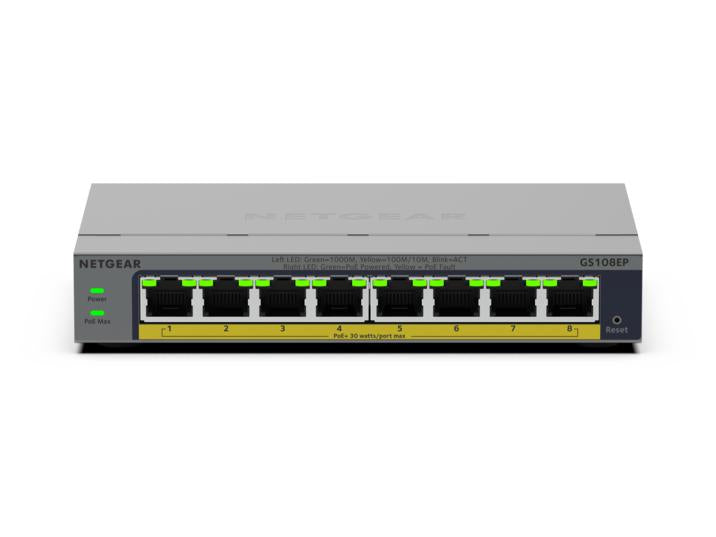

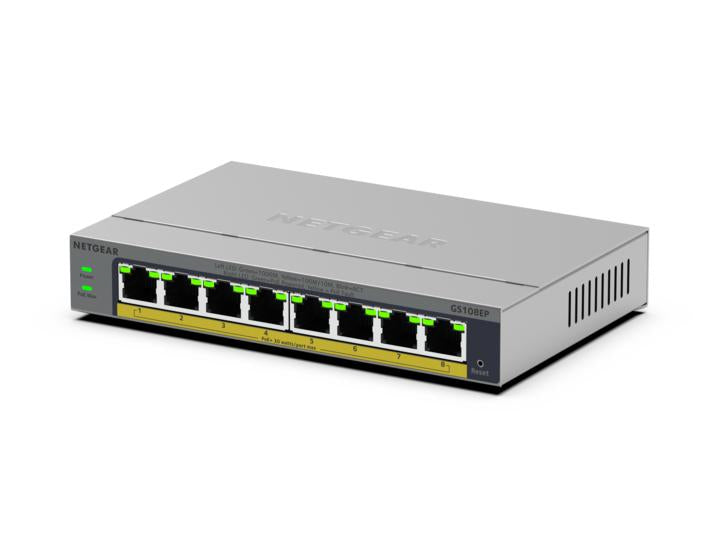

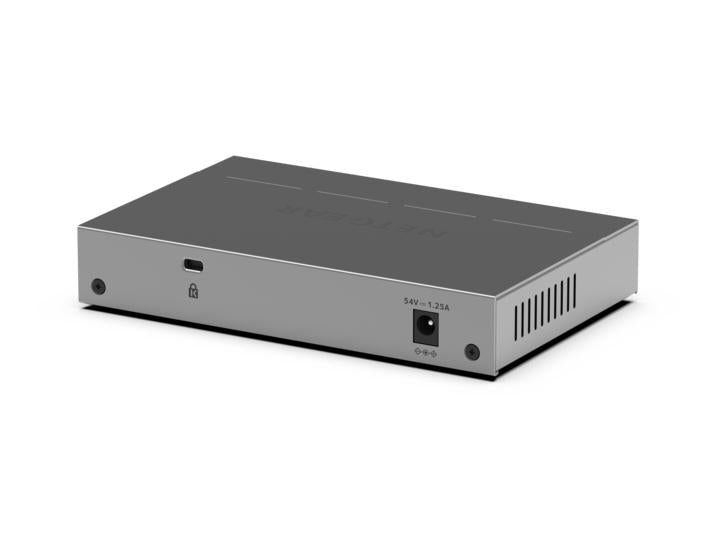

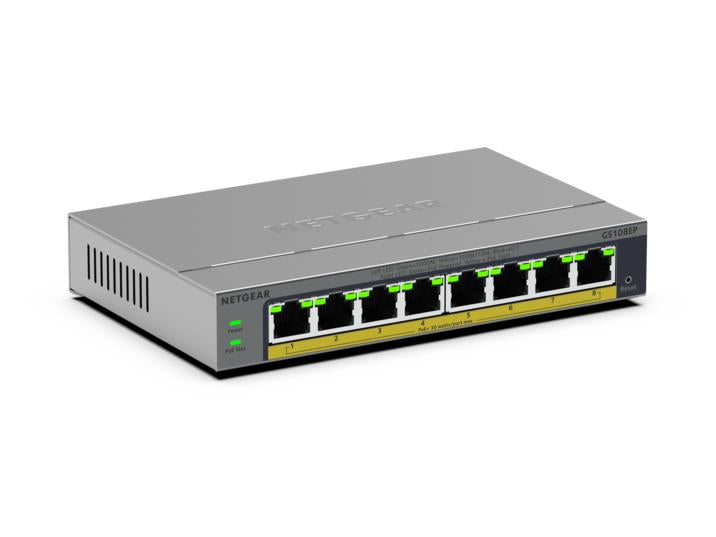

Netgear GS108EP Networking

The Netgear GS108EP is a dependable addition to any modern network installation.

More Capabilities beyond Plug-and-play Connectivity

Today's growing businesses are both placing more demands on and relying more on their network. Companies are putting more applications and demands on their Ethernet Infrastructure. Using VoIP phones and IP cameras require more than simple plug-and-play connectivity. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR's new ProSafe Plus Switches meet this growing need by providing easy to use visibility and limited confi guration capabilities. To provide more insight into the network behavior, ProSafe Plus Switches offer traffic monitoring for users to observe traffic behavior. Additionally, if there are connectivity issues, these switches offer a cable diagnostic test capability that can identify and even locate problems in the cables. To optimize traffic through the switches, ProSafe Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, as a means of improving security or managing collision domains, ProSafe Smart Switches offer VLAN technology. ProSafe Plus Switches offering these monitoring and confi guration capabilities at a slight cost premium over un anaged switches, delivering great value to the end user.

Additionally, furthering NETGEAR's support of the environment, ProSafe Plus Switches have power-saving Green Ethernet technology. The GS108E switch comes in a sturdy metal case with a fan-less design for silent operation.

NETGEAR Green

- Up to 60% lower power consumption than the non-Green version;
- Auto power-down and cable-length detection for energy savings;
- Packaging manufactured with at least 80% recycled materials.

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L2/L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	64
Flow control support	Yes
Port trunking	Yes
Virtual LAN features	Port-based VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	9216
Packet buffer memory	1.5 MB
MAC address table	4000 entries
Supported data transfer rates	10/100/1000 Mbps
Jumbo frames support	Yes
Number of multicast groups filtered	128
Security
Queue scheduling algorithms	Priority queuing (PQ), Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Password protection	Yes
DHCP features	DHCP client
Design
Product colour	Grey
LED indicators	Activity, Link, PoE, Power, Speed, System
Housing material	Metal
Certification	CE, EN, FCC, VCCI
Performance
Mean time between failures (MTBF)	859126 h
Power
Power source	AC/DC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	62 W
Power over Ethernet (PoE)	No
Other features
Connectivity technology	Wired
Bandwidth	16 Gbit/s
Power requirements	100 - 240 VAC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Weight & dimensions
Weight	522 g
Technical details
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), KC, VCCI
