Netgear

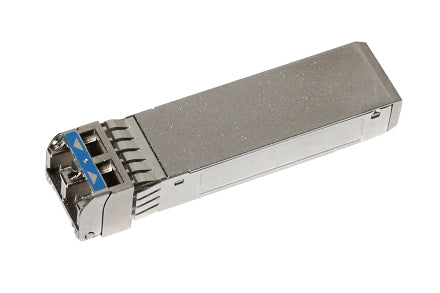

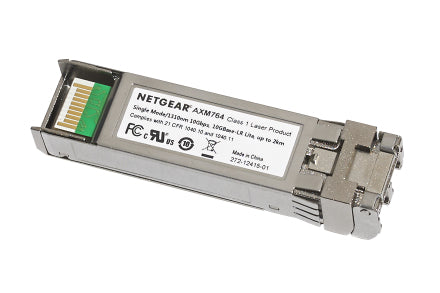

Netgear AXM764 network transceiver module Fiber optic Networking
Netgear AXM764 network transceiver module Fiber optic Networking
Regular price
£353.75 GBP
Regular price
Sale price
£353.75 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The Netgear AXM764 network transceiver module Fiber optic is a dependable addition to any modern network installation.
AXM764 is NETGEAR 10GBASE-LR “Lite” SFP+ Transceiver, a new class of SMF 10G transmitter with LC duplex connector. While not a standard yet, 10GBASE-LR LITE has a specified reach of 2 km (1.24 mile) over standard 9/125µm single mode fiber. 10GBASE-LR LITE isn’t a replacement for standard 10GBASE-LR optics: it is just relevant alternative for “shorter” reach SMF applications.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 2000 m |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Cabling technology | 10GBASE-LR |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| SFP transceiver standard | LR |
| Hot-Plug support | Yes |
| Compatible products | NETGEAR M5300, M6100, M7100, M7300 |
| Harmonized System (HS) code | 85369010 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
