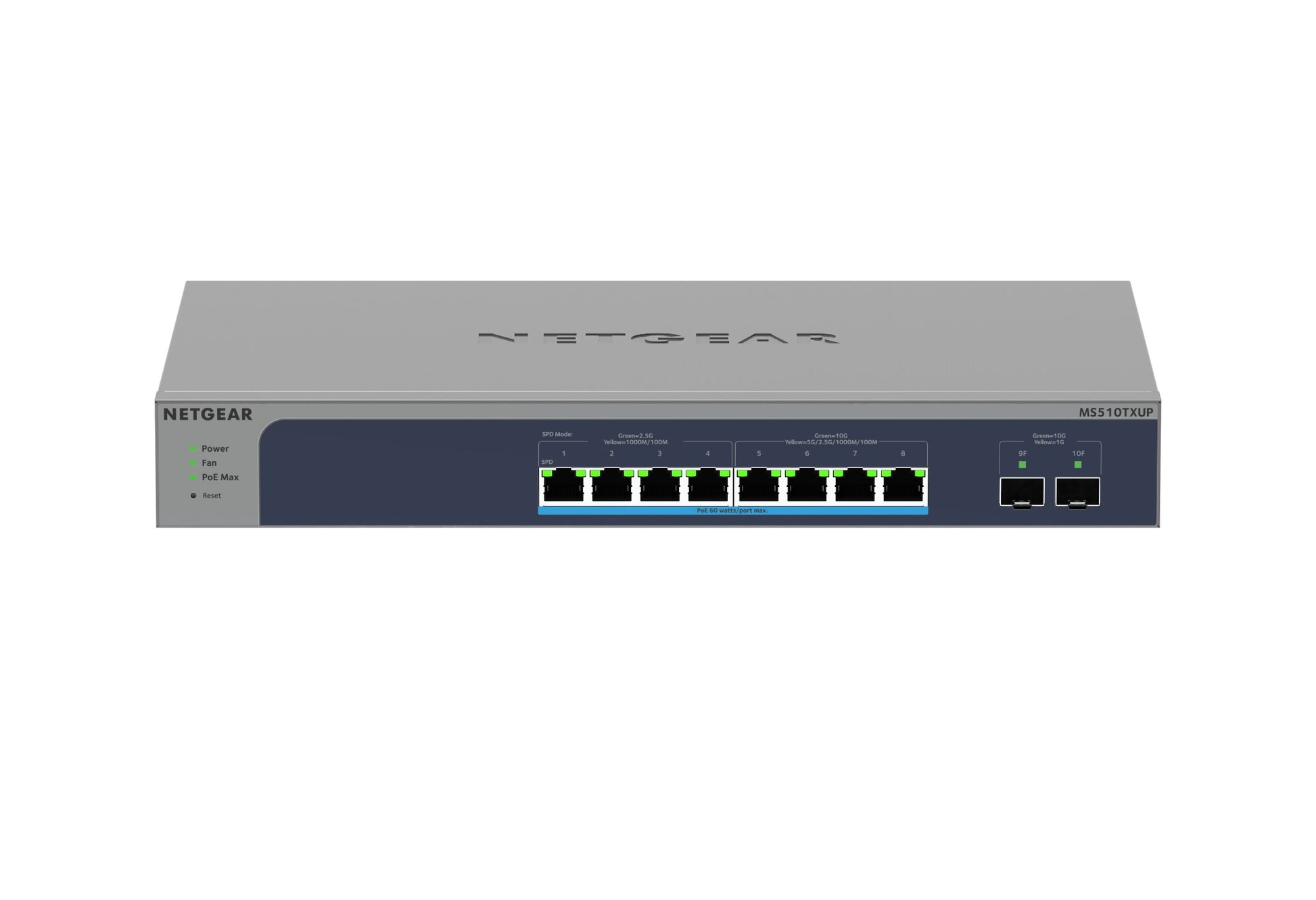

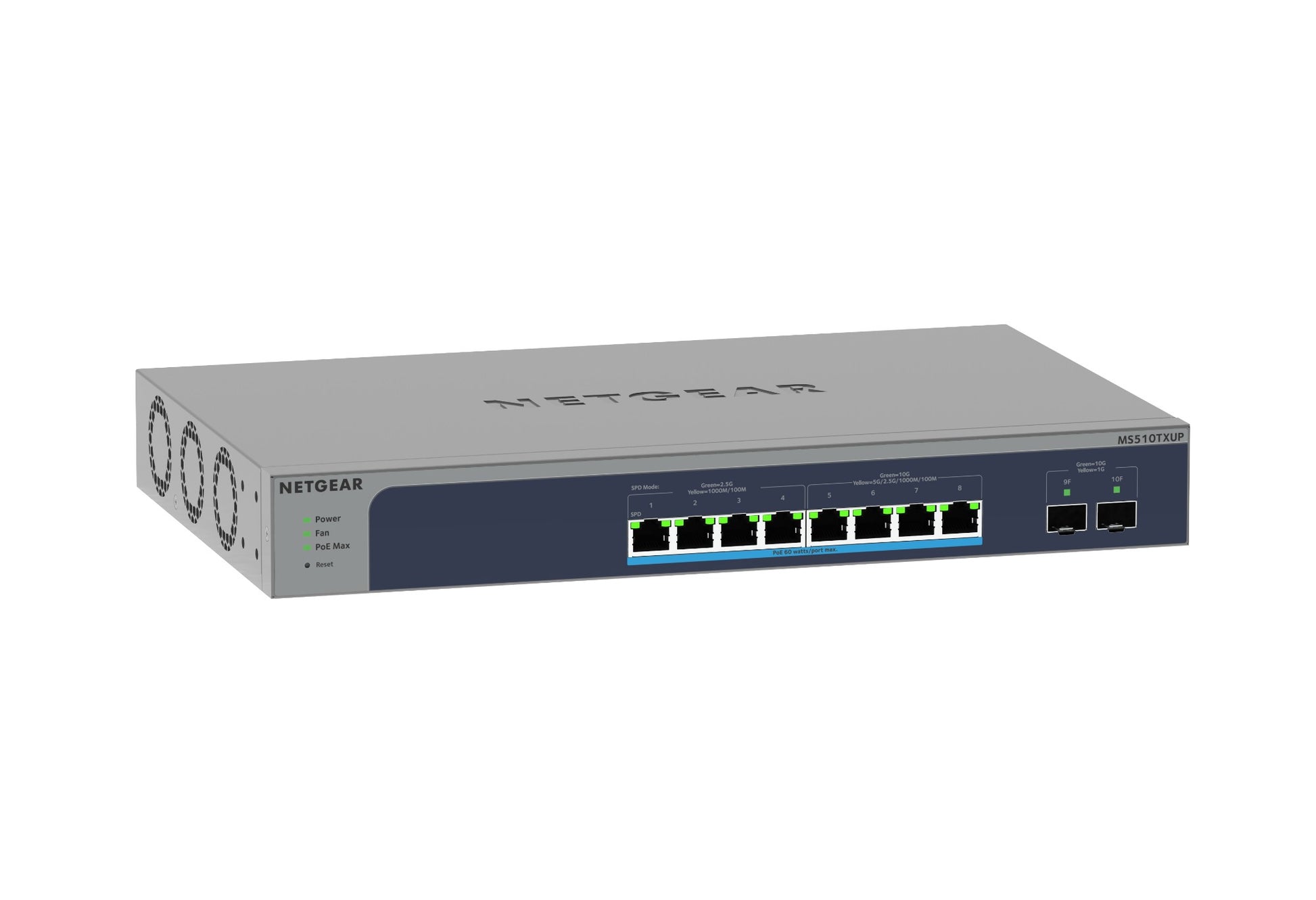

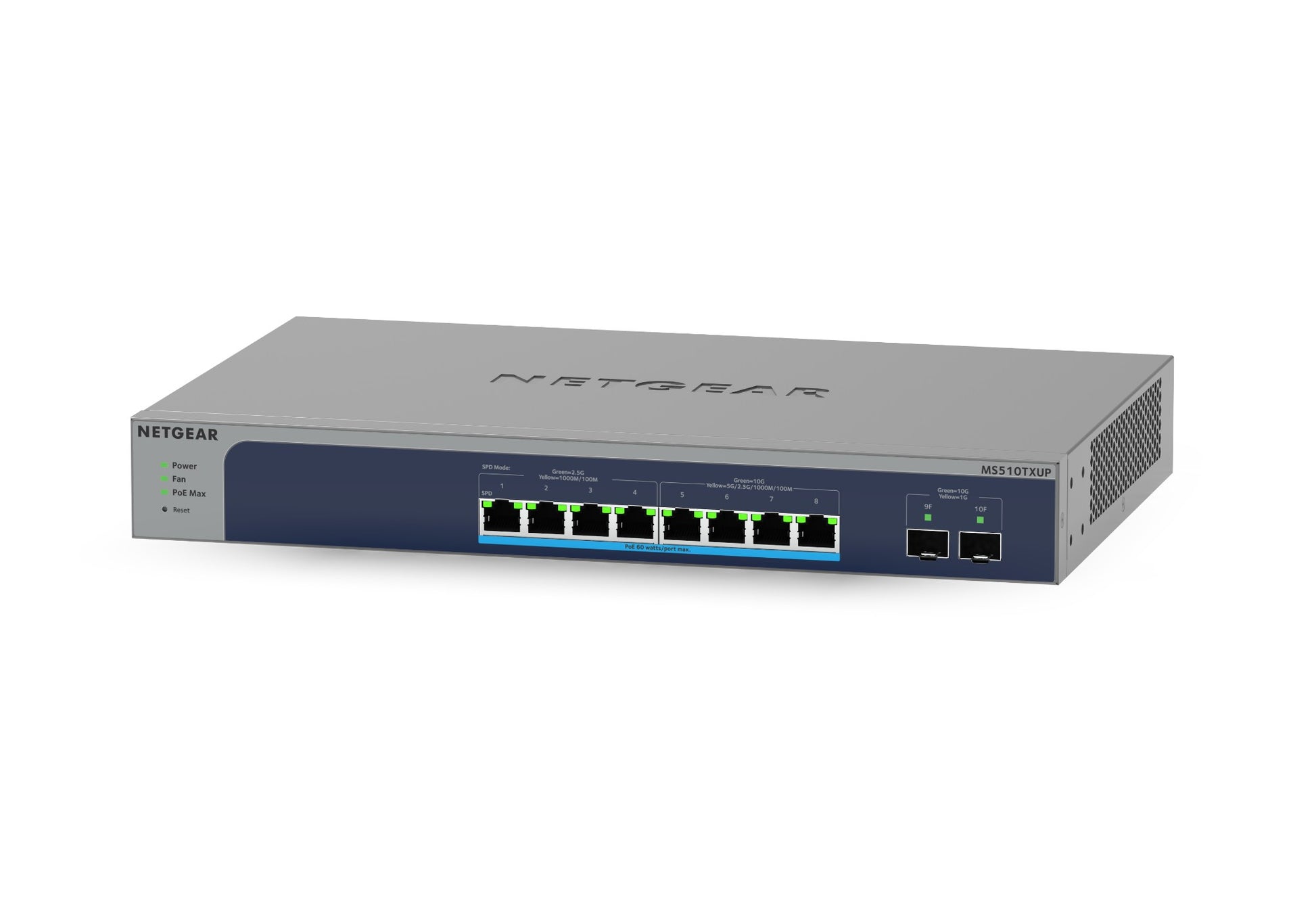

Netgear 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart Switch

The Netgear 8-Port Multi-Gigabit/10g Ethernet Ultra60 PoE++ Smart keeps your wired network organised with PoE power for APs and cameras.

NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management
The NETGEAR® MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch offers 295W PoE budget, 4 ports 1G/2.5G and 4 ports multi-gig/10G and 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXUP can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.

- Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices.
- 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+).
- 295W future-proof PoE budget available across 8 Ultra60 PoE++ ports (802.3bt 60W/port).
- Layer 3 static routing with 32 routes (IPv4 and IPv6).
- Uninterrupted PoE and advanced per port PoE controls.
- NETGEAR Insight Cloud management activation (1-Year Insight subscription is included).
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2+
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
VLAN support	Yes
Port mirroring	Yes
Number of VLANs	256
Broadcast storm control	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	10000
Packet buffer memory	2 MB
MAC address table	32000 entries
Switching capacity	140 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Number of multicast groups filtered	256
Security
Access Control List (ACL)	Yes
Queue scheduling algorithms	WRR+SP
Password protection	Yes
DHCP features	DHCPv6 snooping
Design
Product colour	Grey

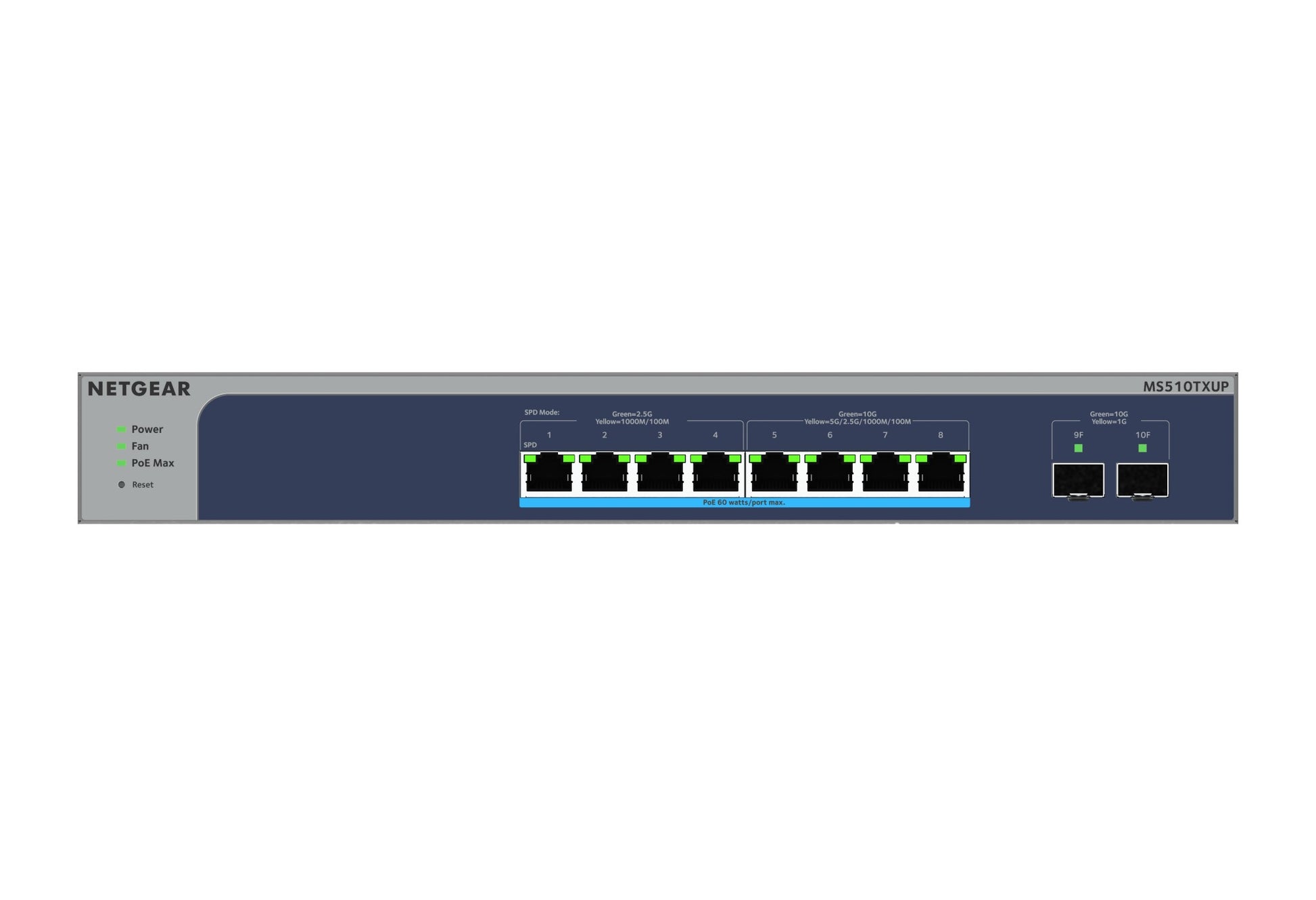

LED indicators	Activity, Fan fail, Link, PoE, Power, Speed
Rack mounting	Yes

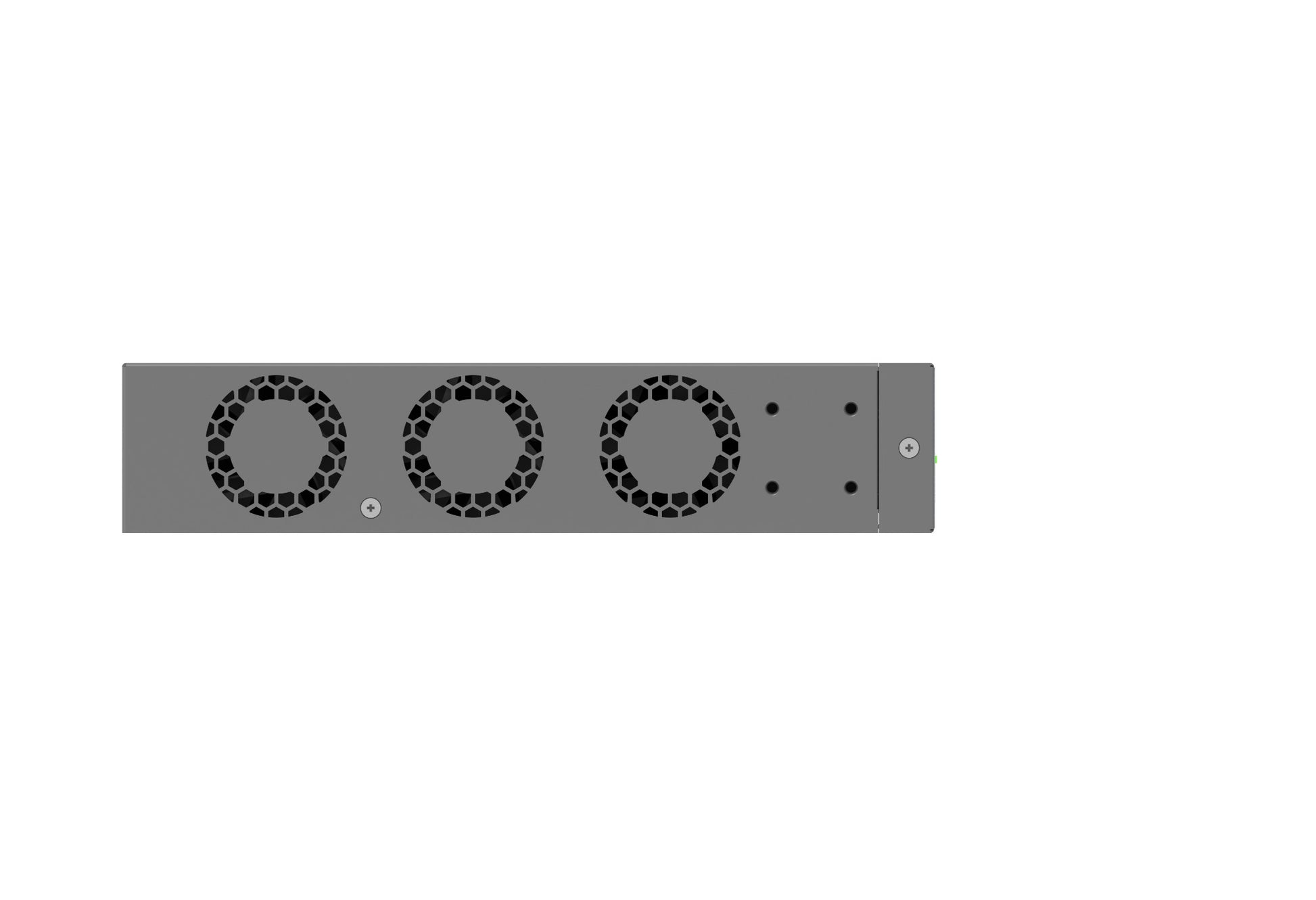

Number of fans	3 fan(s)
Performance
Processor frequency	1000 MHz
Noise level	33 dB
Mean time between failures (MTBF)	1059519 h
Internal memory	256 MB
Flash memory	64 MB
Firmware upgradeable	Yes
Built-in processor	Yes
Harmonized System (HS) code	85176990

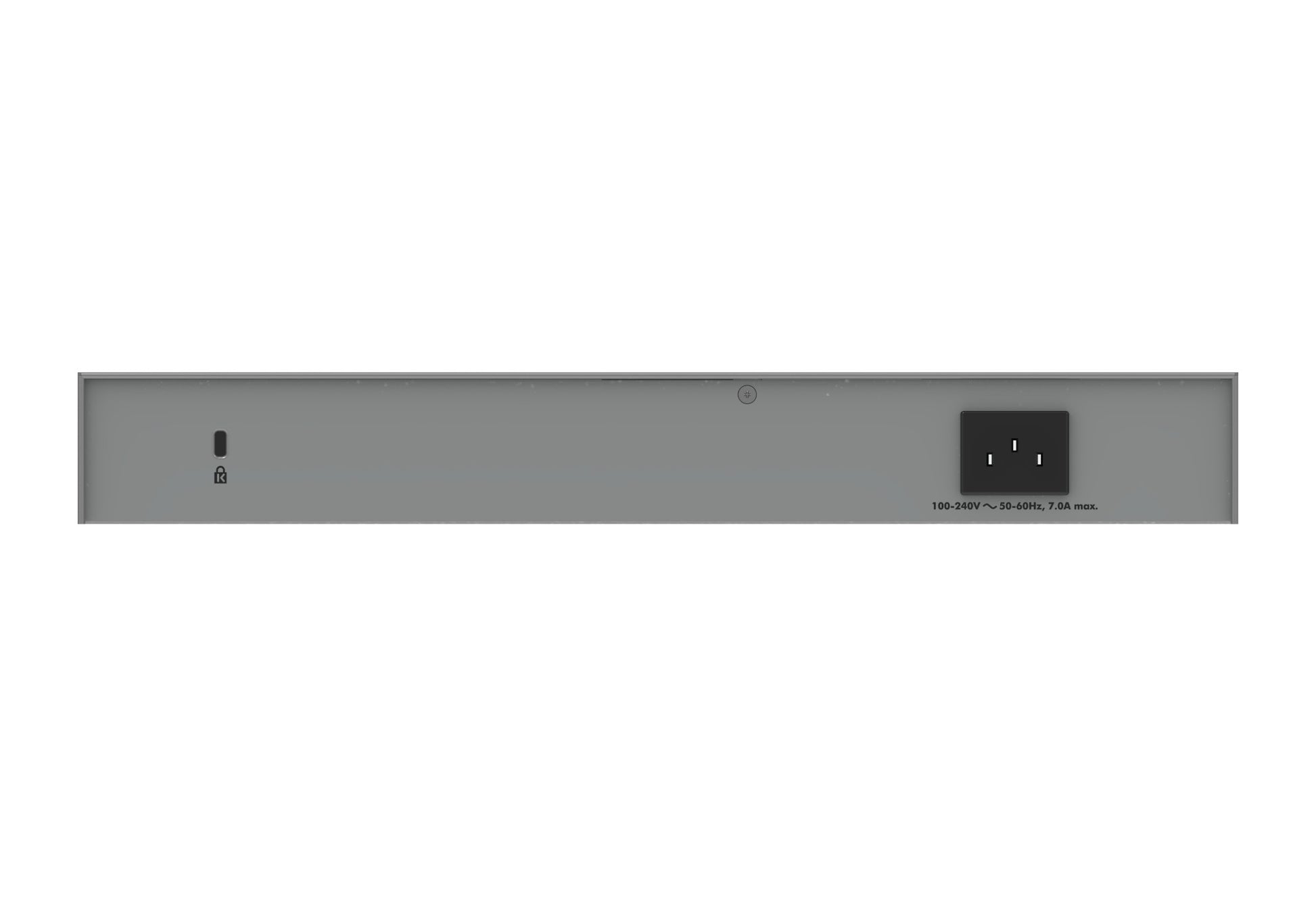

Power
Power consumption (max)	380 W
Power supply included	Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	295 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Heat dissipation	1294.5888 BTU/h
Weight & dimensions
Width	330 mm
Depth	206 mm
Height	43 mm
Weight	2.51 kg
Packaging content
User guide	Yes
Cables included	AC
Packaging data
Rack rails	Yes

Downloads

• Datasheet (PDF)
