Neomounts WL95-800BL1 Videowall wall mount 42-70" - pop-out - max 35 kg
Neomounts WL95-800BL1 Videowall wall mount 42-70" - pop-out - max 35 kg
Regular price
£147.31 GBP
Regular price
Sale price
£147.31 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Position your screen exactly where you need it with the Neomounts WL95-800BL1 Videowall wall mount — VESA fit and load ratings are below.

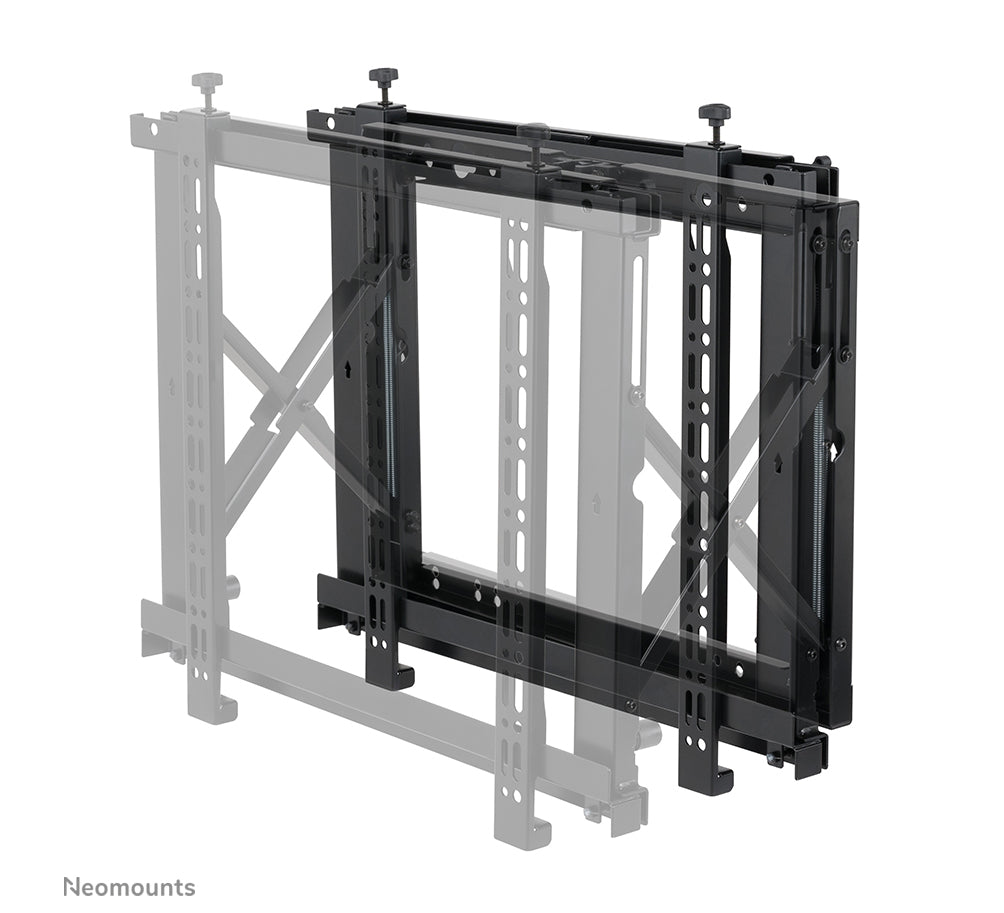

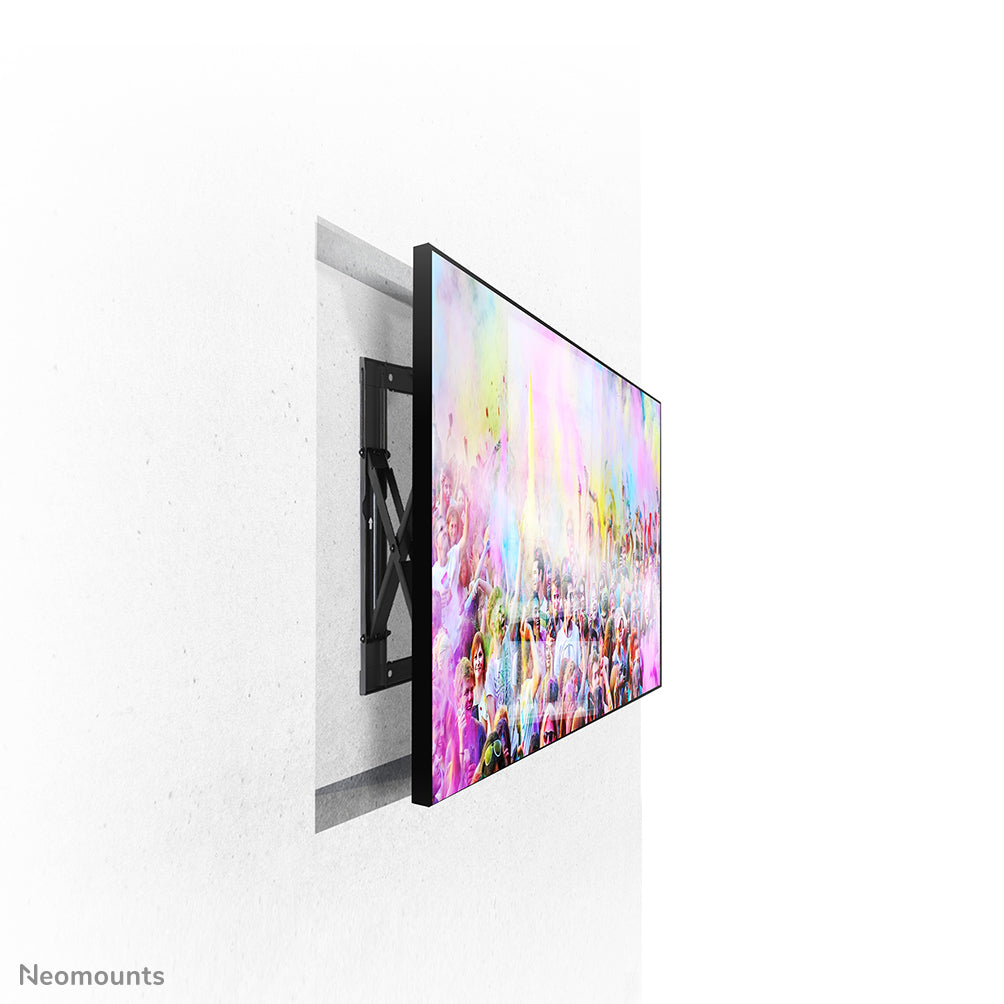

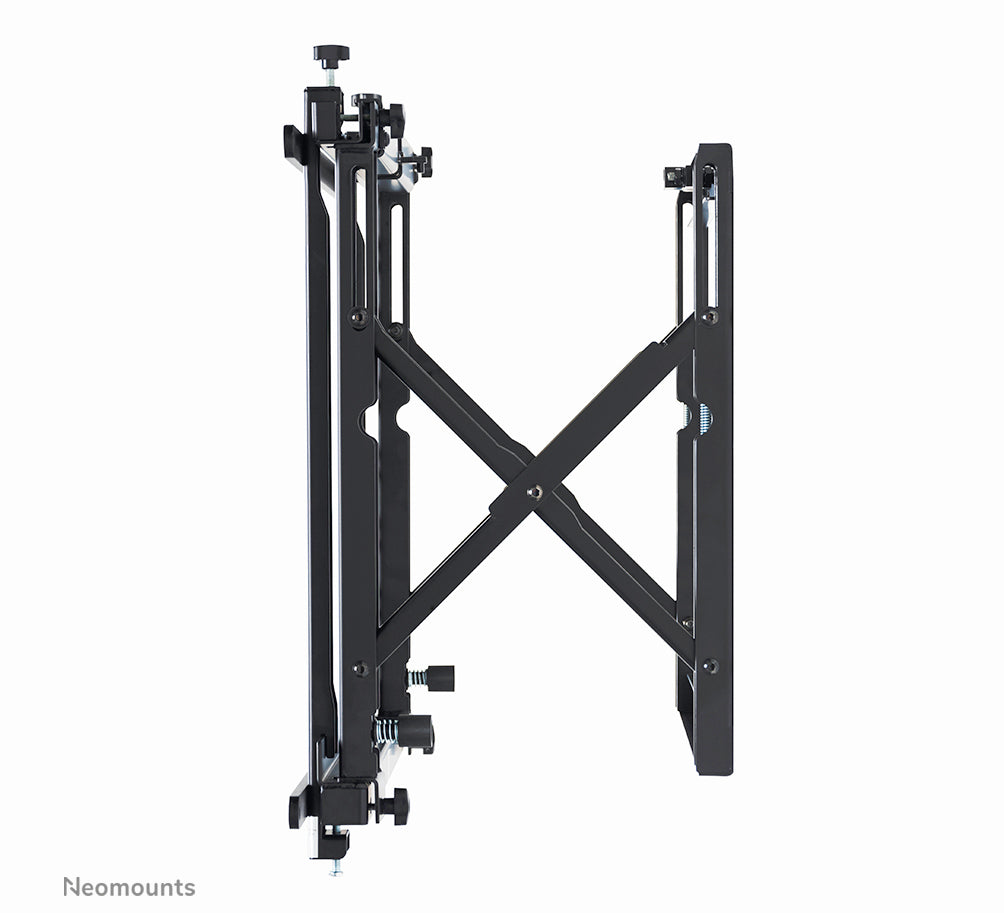

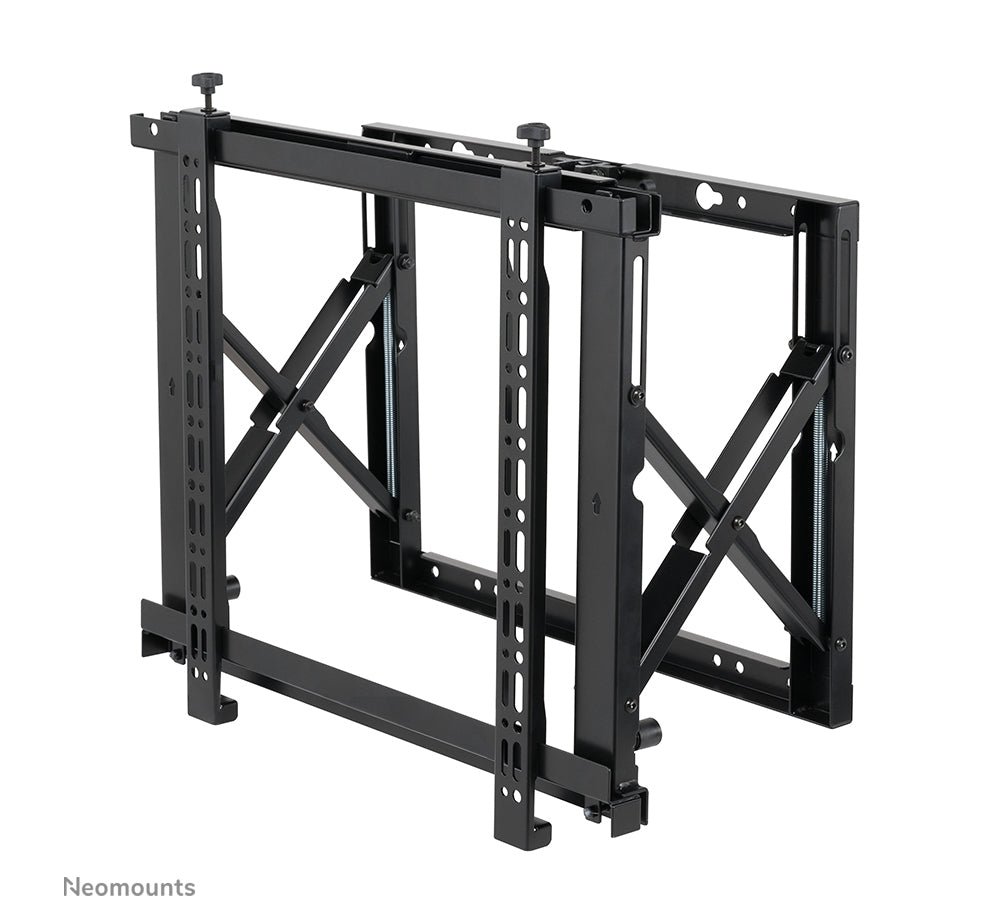

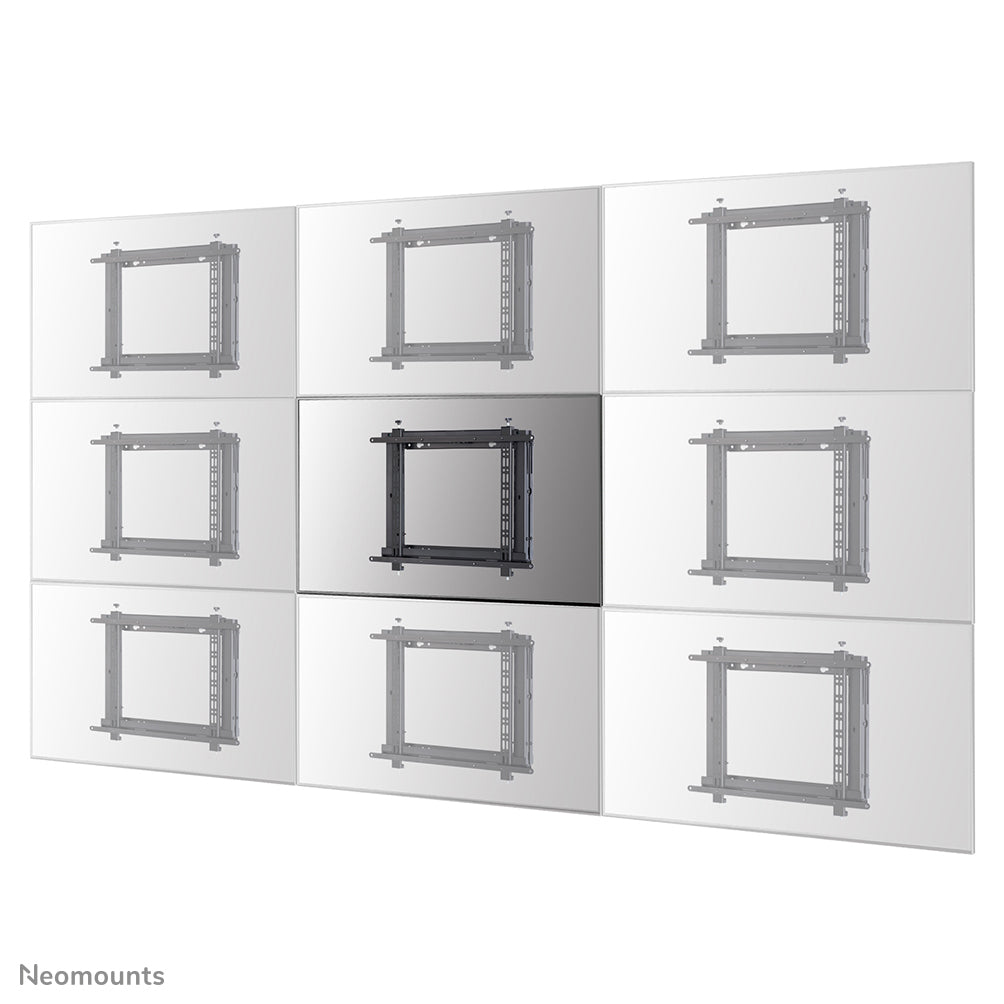

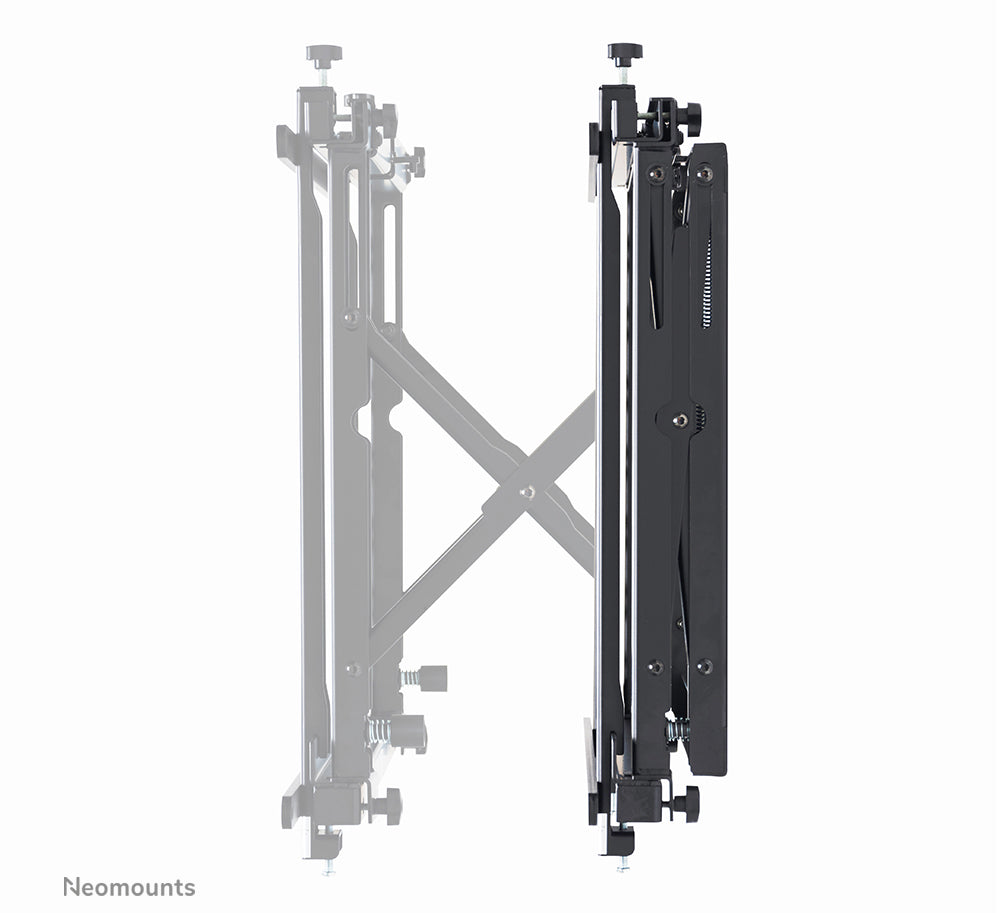

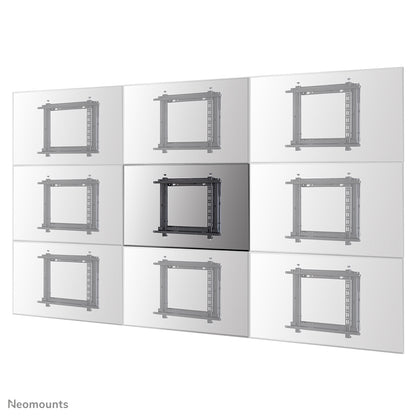

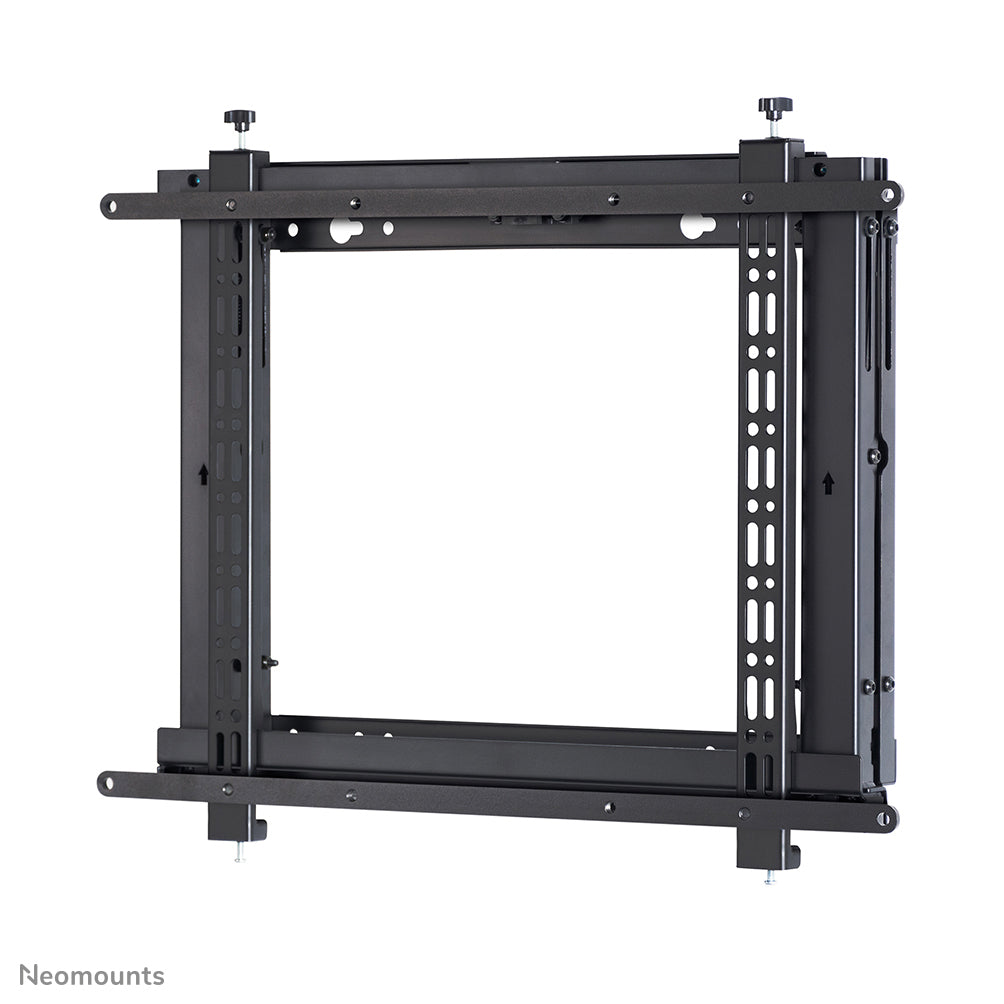

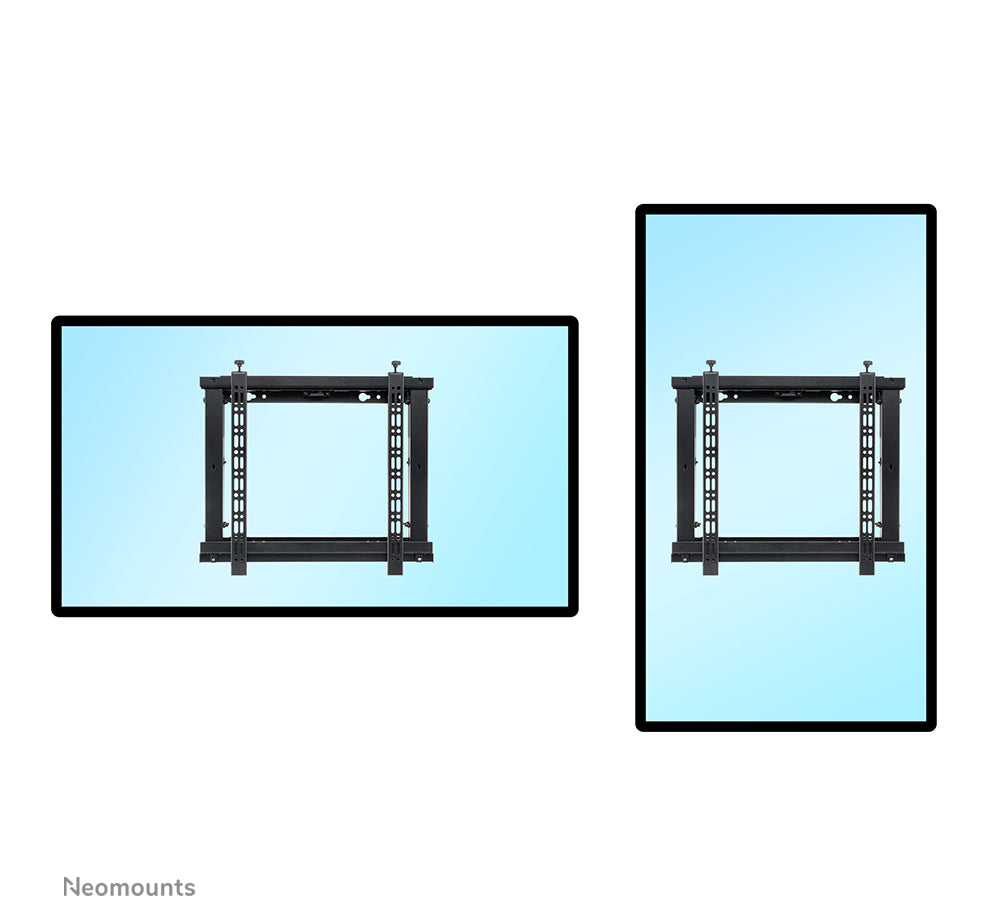

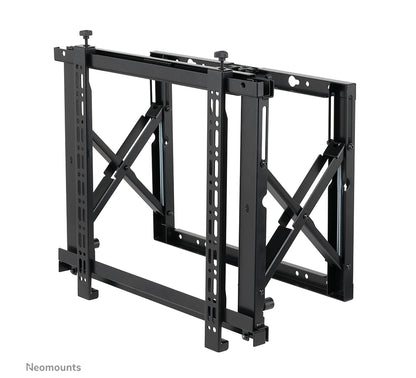

The Neomounts WL95-800BL1 is a push to pop out video wall mount for screens up to 70". The screen can be installed both in portrait and landscape orientation and additionally, toolless micro adjustment in height, depth, tilt and swivel is available for the perfect alignment.The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200x200 up to 600x400 mm (landscape) or 400x600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 35 kg |
| Minimum screen size | 106.7 cm (42") |
| Maximum weight capacity | 35 kg |
| Panel mounting interface | 200 x 300,200 x 400,300 x 100,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400 |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum screen size | 177.8 cm (70") |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 13 mm |
| Distance to the wall (min) | 7.8 cm |
| Distance to the wall (max) | 26.6 cm |
| Height adjustment type | Manual |
| Cable management | No |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Width adjustment | 4 cm |
| Depth adjustment | 4 mm |
| Design | |
| Housing material | Steel |
| Product colour | Black |
| Accepts padlock | No |
| Weight & dimensions | |
| Width | 620 mm |
| Depth | 84 mm |
| Height | 510 mm |
| Weight | 7.72 kg |
| Width adjustment range | 0 - 40 mm |
| Package width | 570 mm |
| Package depth | 110 mm |
| Package height | 620 mm |
| Package weight | 9.8 kg |
| Package type | Box |
| Technical details | |
| Package net weight | 9.8 kg |
| Master (outer) case net weight | 8.5 kg |
| Orientation | Landscape/Portrait |
| Easy to install | Yes |
| Other features | |
| Country of origin | China |
| Depth adjustment range | 0 - 4 mm |
| Logistics data | |
| Master (outer) case width | 570 mm |
| Master (outer) case length | 110 mm |
| Master (outer) case height | 620 mm |
| Master (outer) case gross weight | 9.8 kg |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 24 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
