Neomounts WL70-550BL12 Monitor/TV mount wall 23-42" - gas spring - full motion
Neomounts WL70-550BL12 Monitor/TV mount wall 23-42" - gas spring - full motion
Regular price
£101.57 GBP
Regular price
Sale price
£101.57 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Position your screen exactly where you need it with the Neomounts WL70-550BL12 Monitor/TV mount wall — VESA fit and load ratings are below.

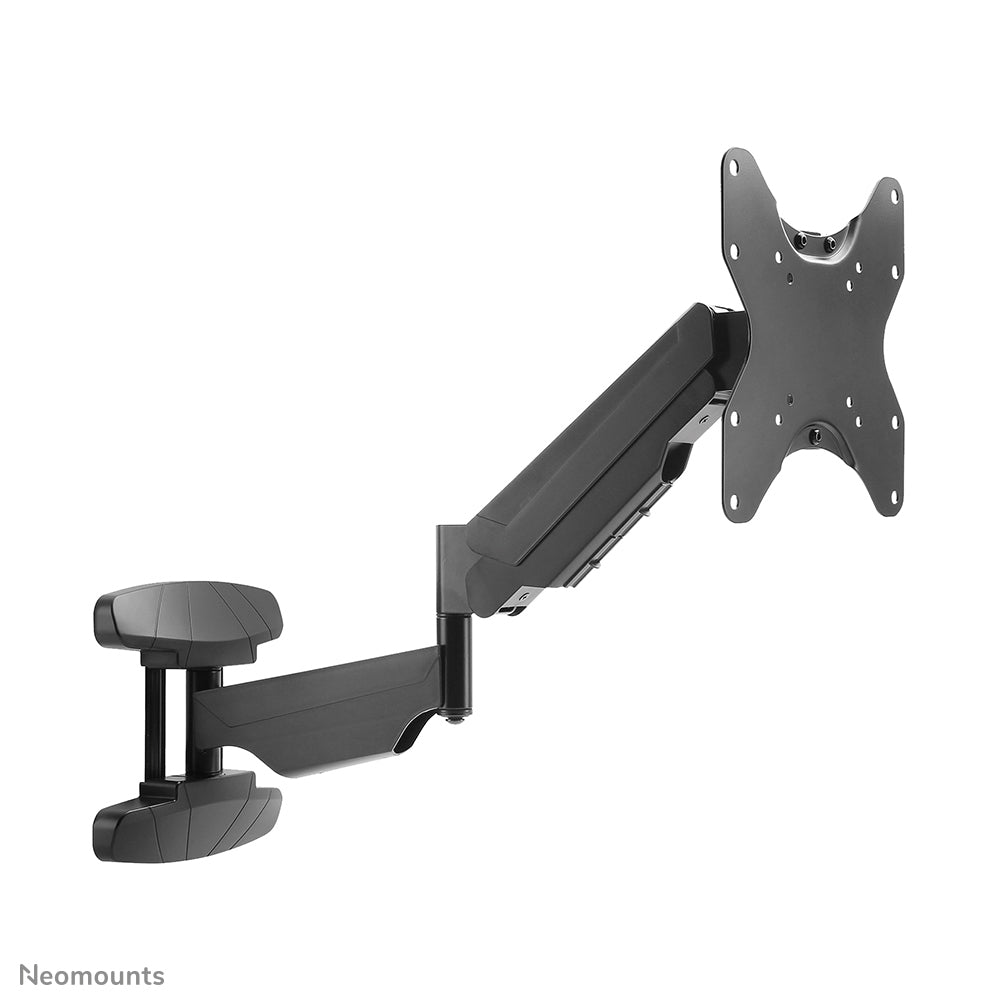

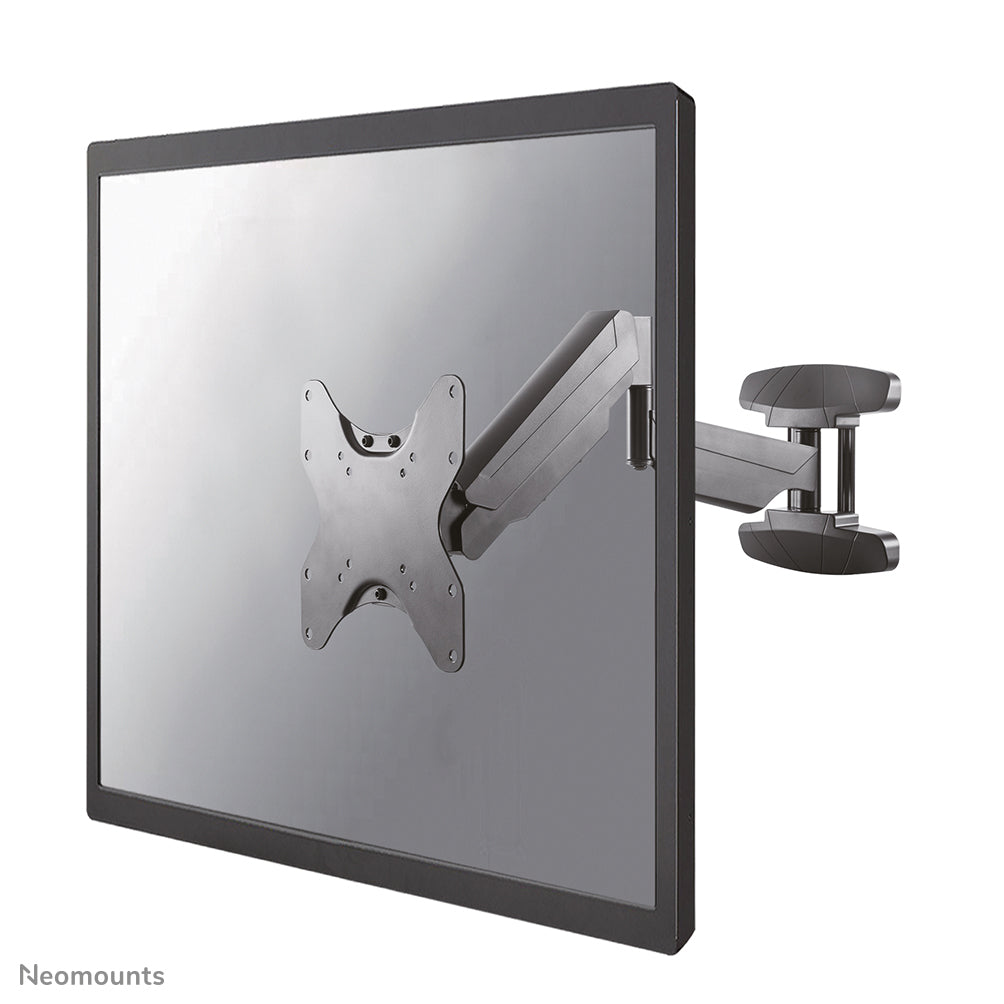

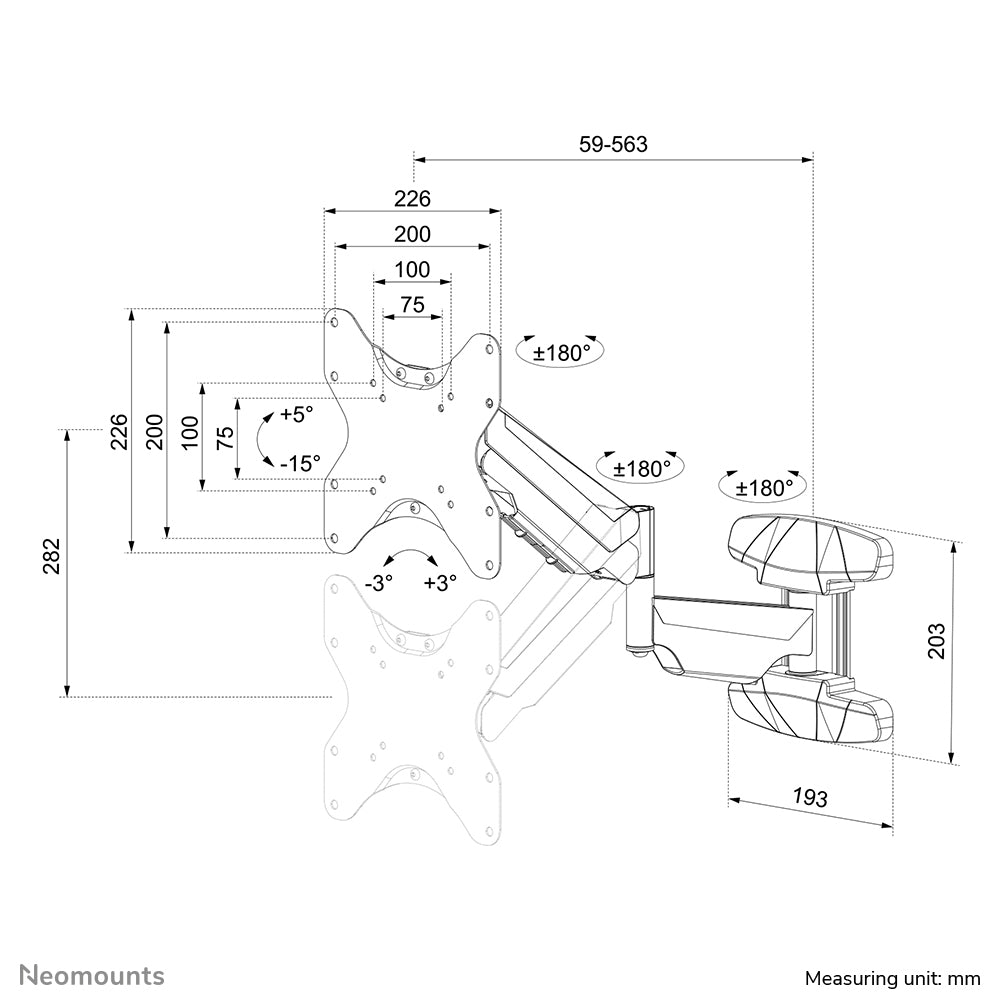

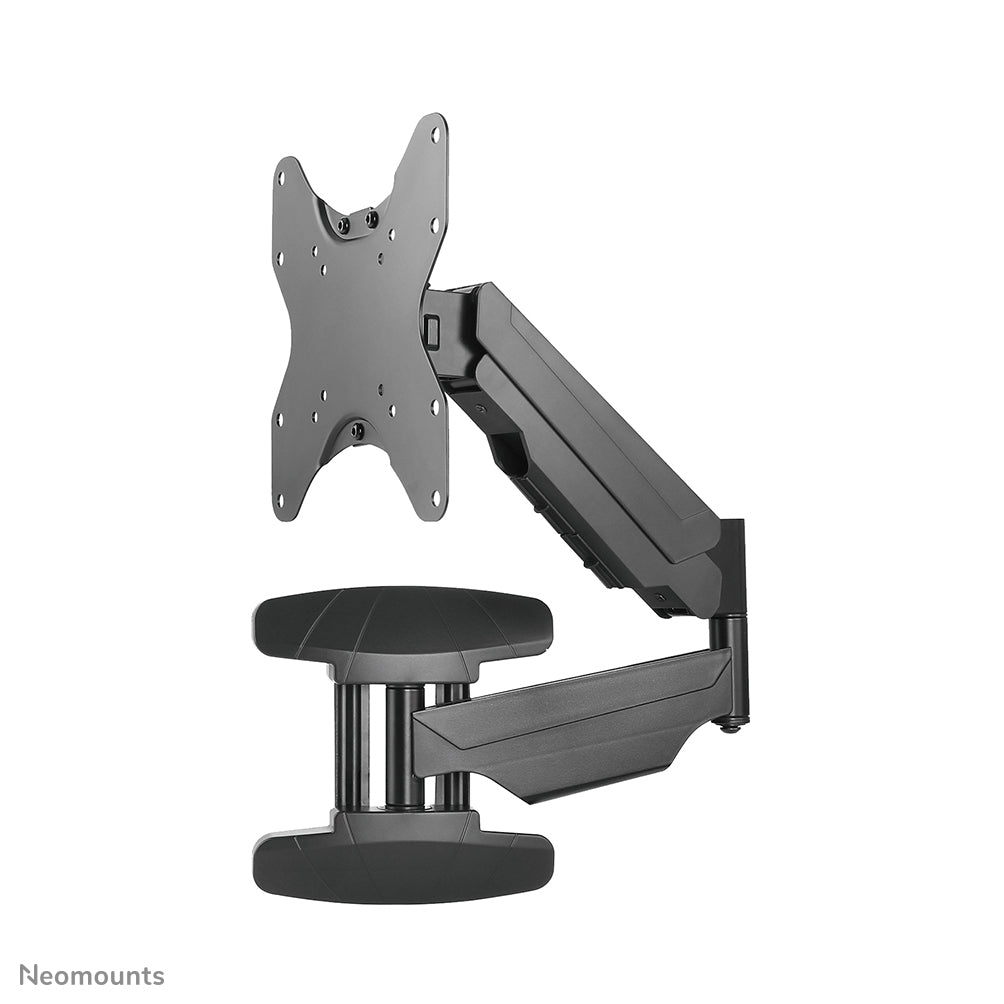

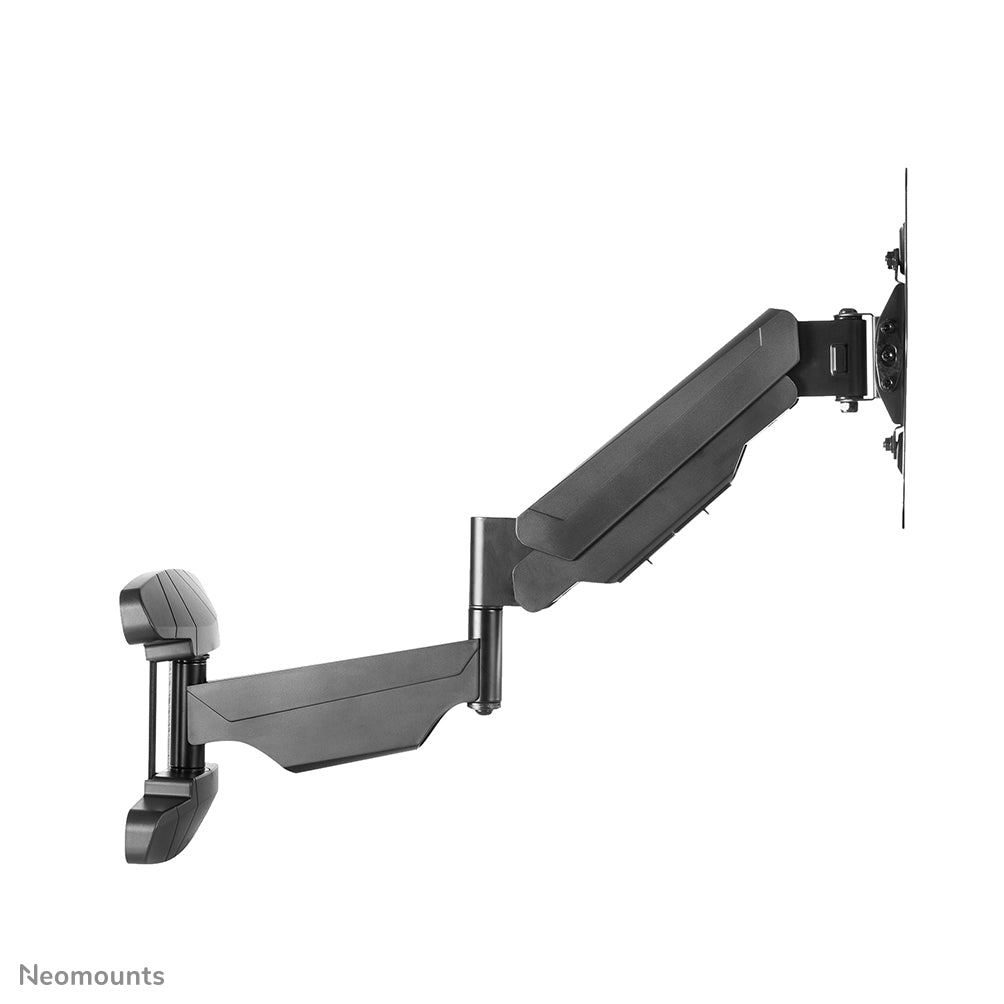

The Neomounts WL70-550BL12 is a full motion wall mount for flat screens up to 42" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.The WL70-550BL12 has a depth of 5,9-56,3 cm and is suitable for screens that meet VESA hole pattern 75x75 to 200x200 mm.

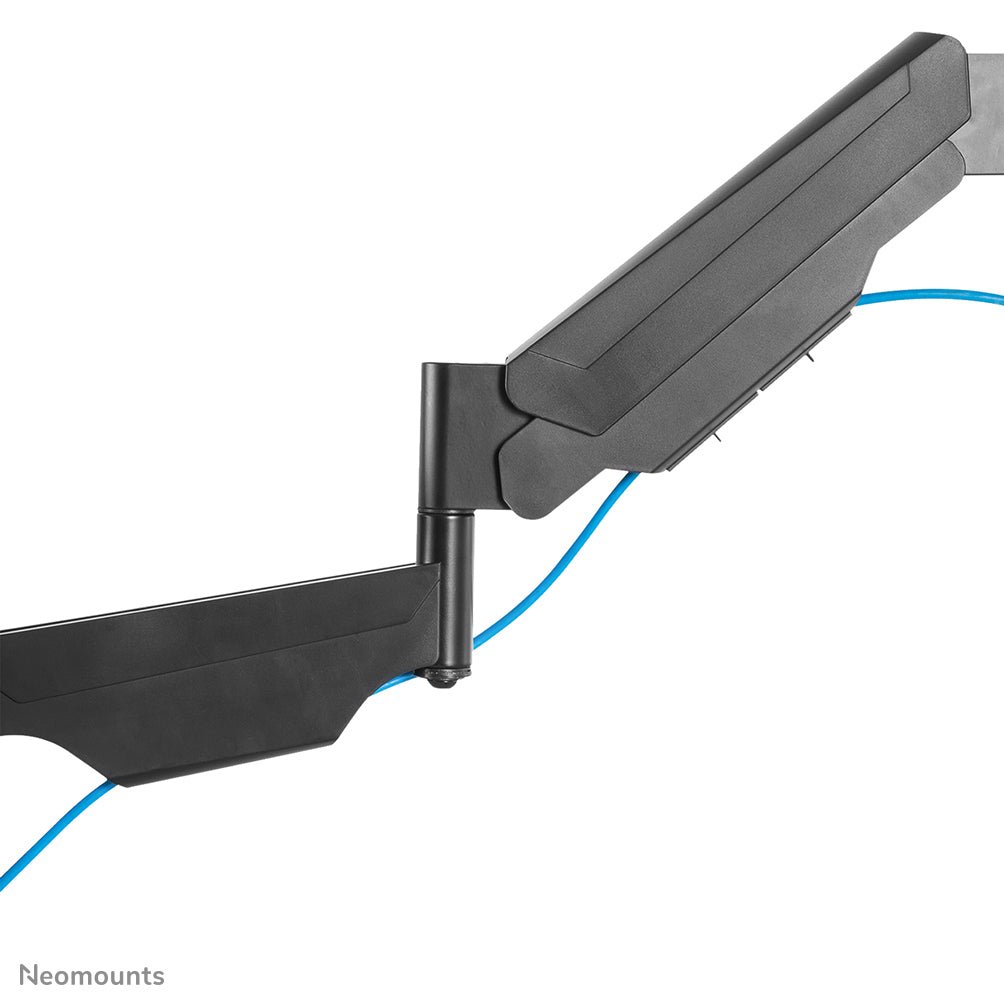

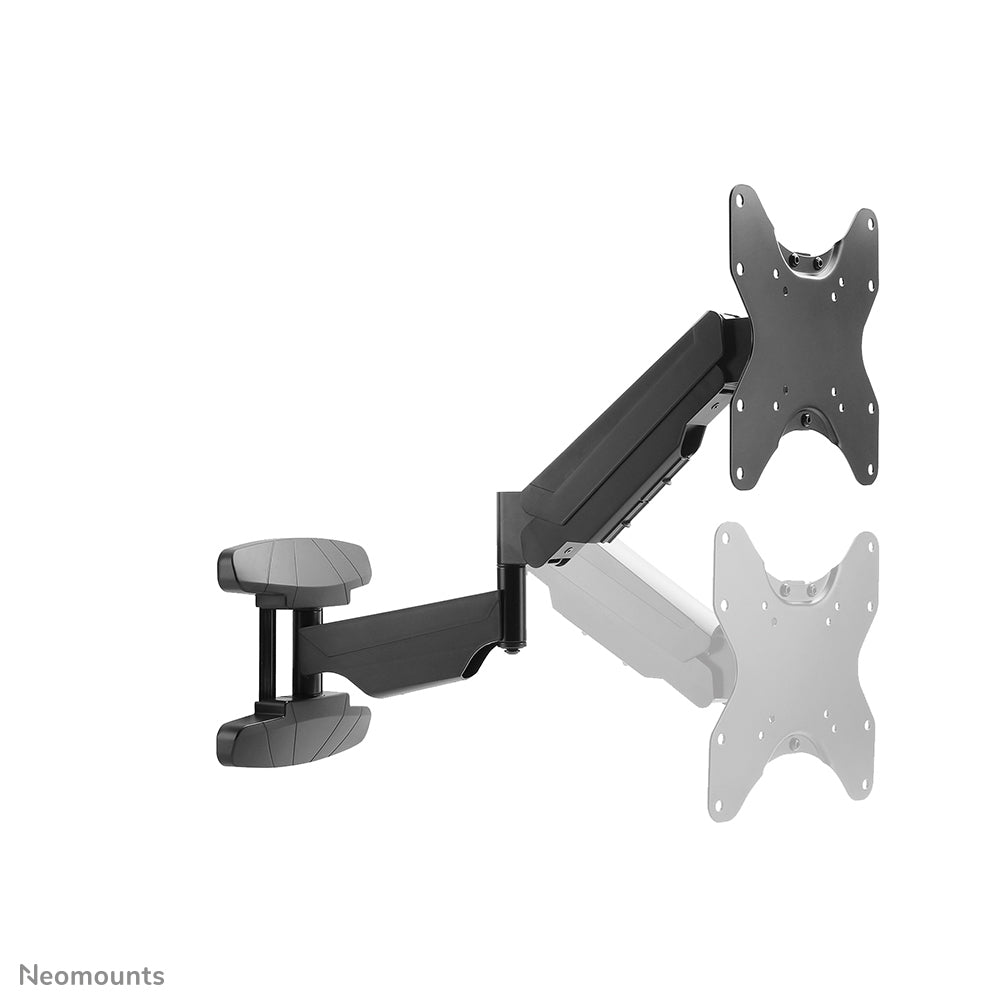

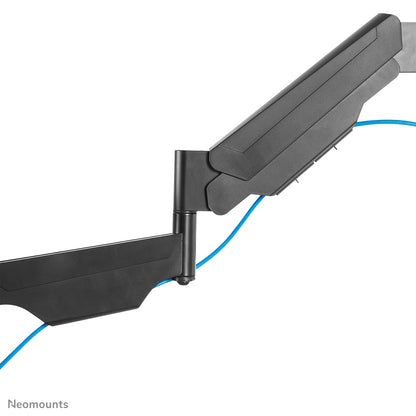

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 30 kg |
| Mounting type | Wall |
| Minimum screen size | 58.4 cm (23") |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200,75 x 75 |
| Number of displays supported | 1 |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Maximum screen size | 106.7 cm (42") |
| Maximum weight capacity | 30 kg |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 282 mm |
| Cable management | Yes |

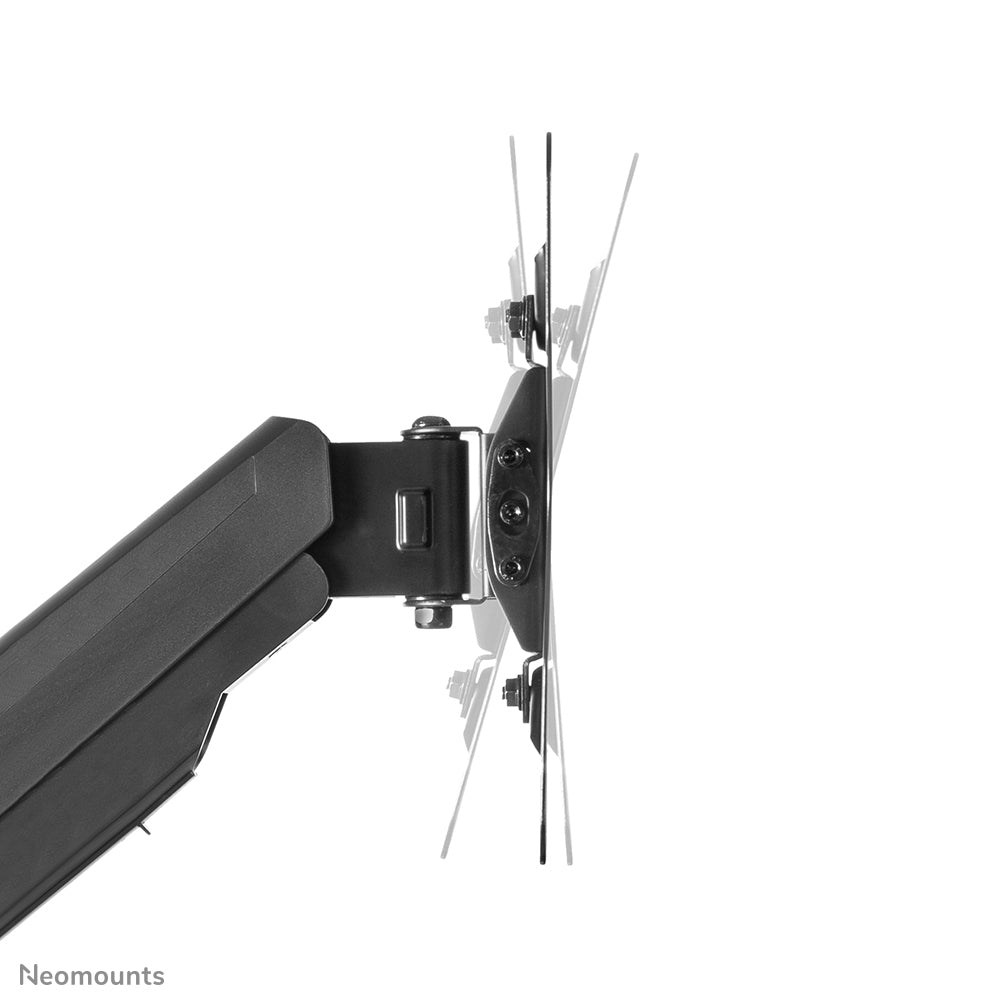

| Tilt angle range | -15 - 5° |
| Swivel angle range | 0 - 180° |
| Swivel angle | 180° |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Distance to the wall (min) | 5.9 cm |
| Distance to the wall (max) | 56.3 cm |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Technical details | |
| Product colour | Black |
| Country of origin | China |
| Package net weight | 4.8 kg |
| Master (outer) case net weight | 11.7 kg |
| Quantity per pack | 1 pc(s) |
| Design | |
| Housing material | Steel |
| Weight & dimensions | |
| Width | 226 mm |
| Depth | 563 mm |
| Height | 327 mm |
| Weight | 3.9 kg |
| Depth (max) | 56.3 cm |
| Packaging data | |
| Package width | 365 mm |
| Package depth | 505 mm |
| Package height | 75 mm |
| Package weight | 4.8 kg |
| Logistics data | |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 245 mm |
| Master (outer) case gross weight | 15.5 kg |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 72 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting | Screws |
| Minimum weight | 5 kg |
