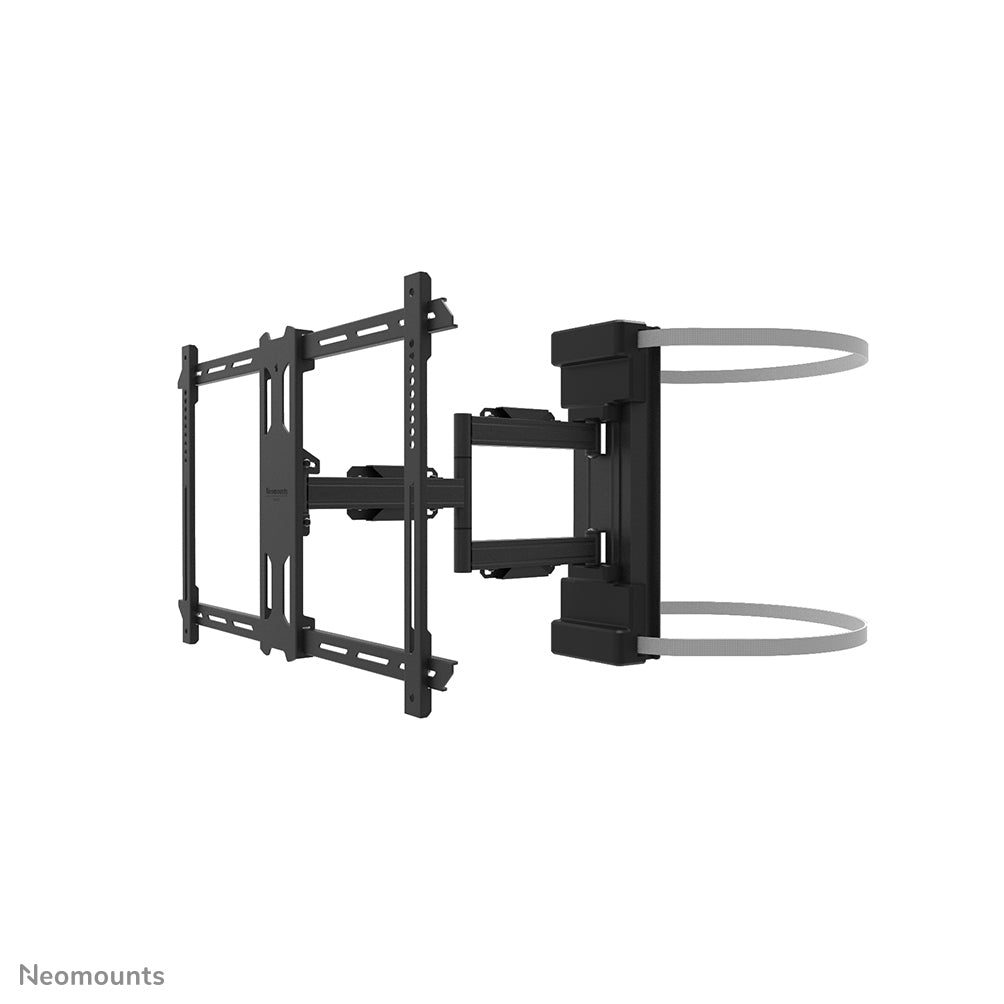

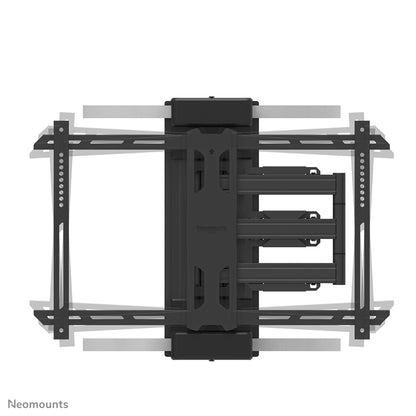

Neomounts WL40S-910BL16 TV pillar mount 40-70" - full motion - diam. 25-100 cm
Neomounts WL40S-910BL16 TV pillar mount 40-70" - full motion - diam. 25-100 cm
Regular price
£196.22 GBP
Regular price
Sale price
£196.22 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Position your screen exactly where you need it with the Neomounts WL40S-910BL16 TV pillar mount — VESA fit and load ratings are below.

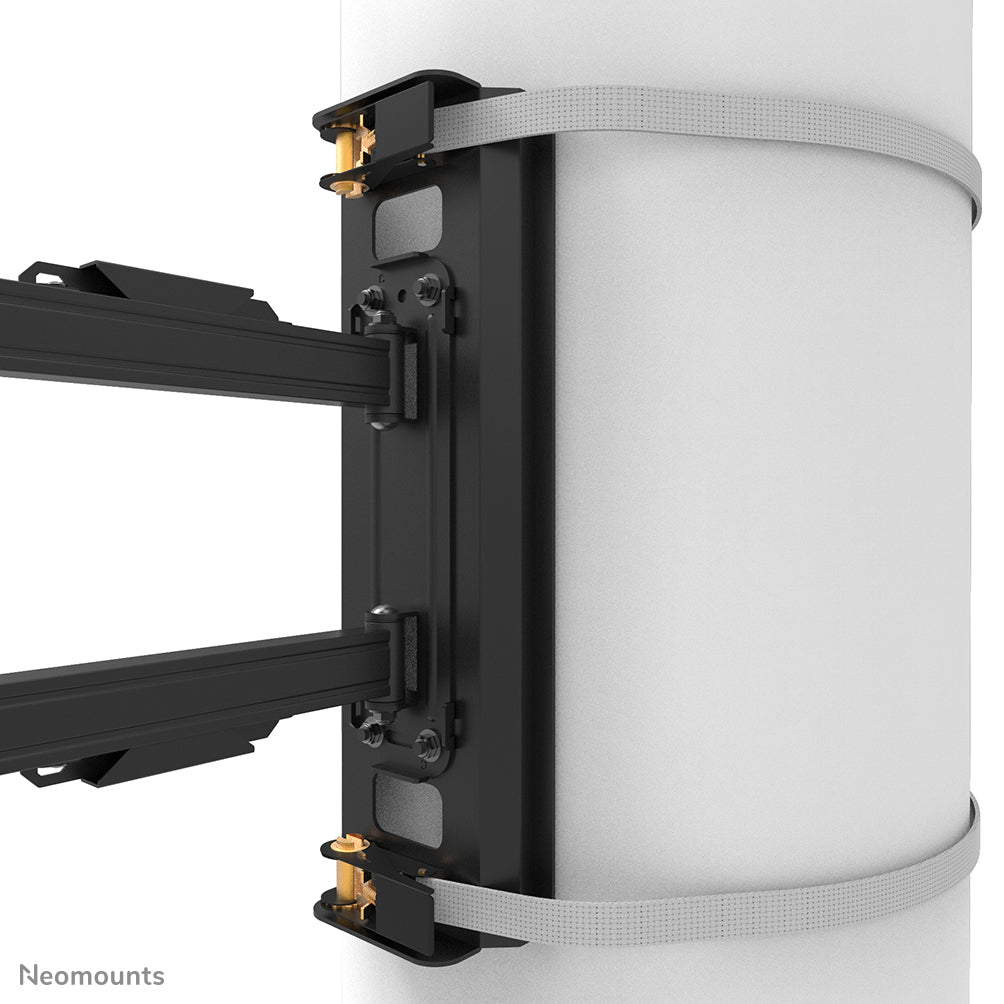

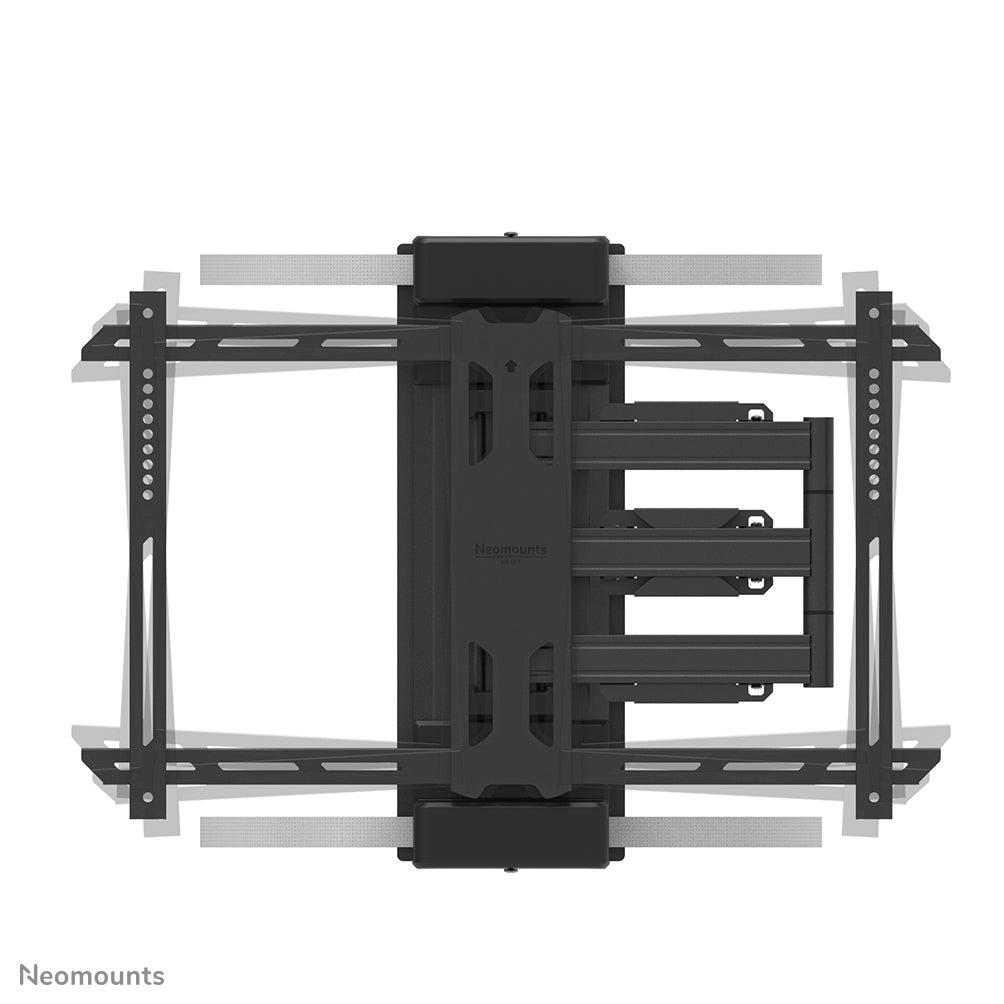

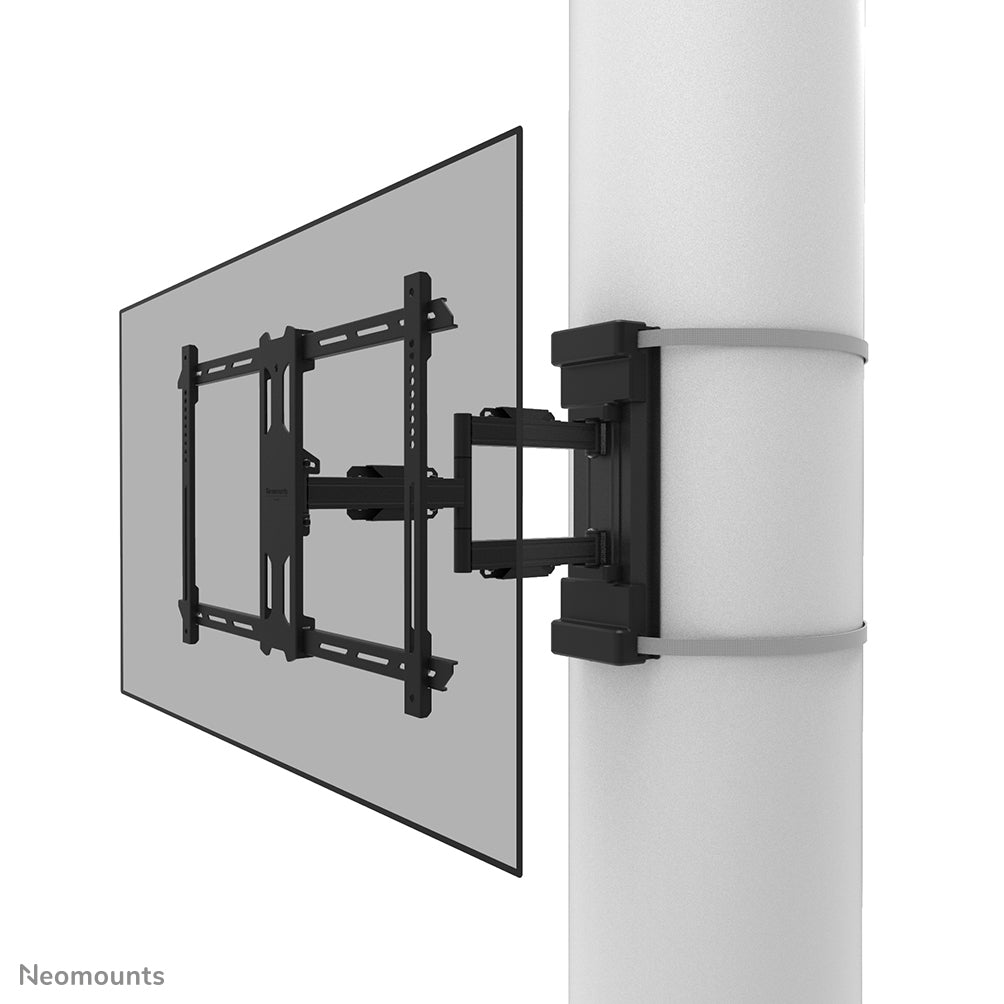

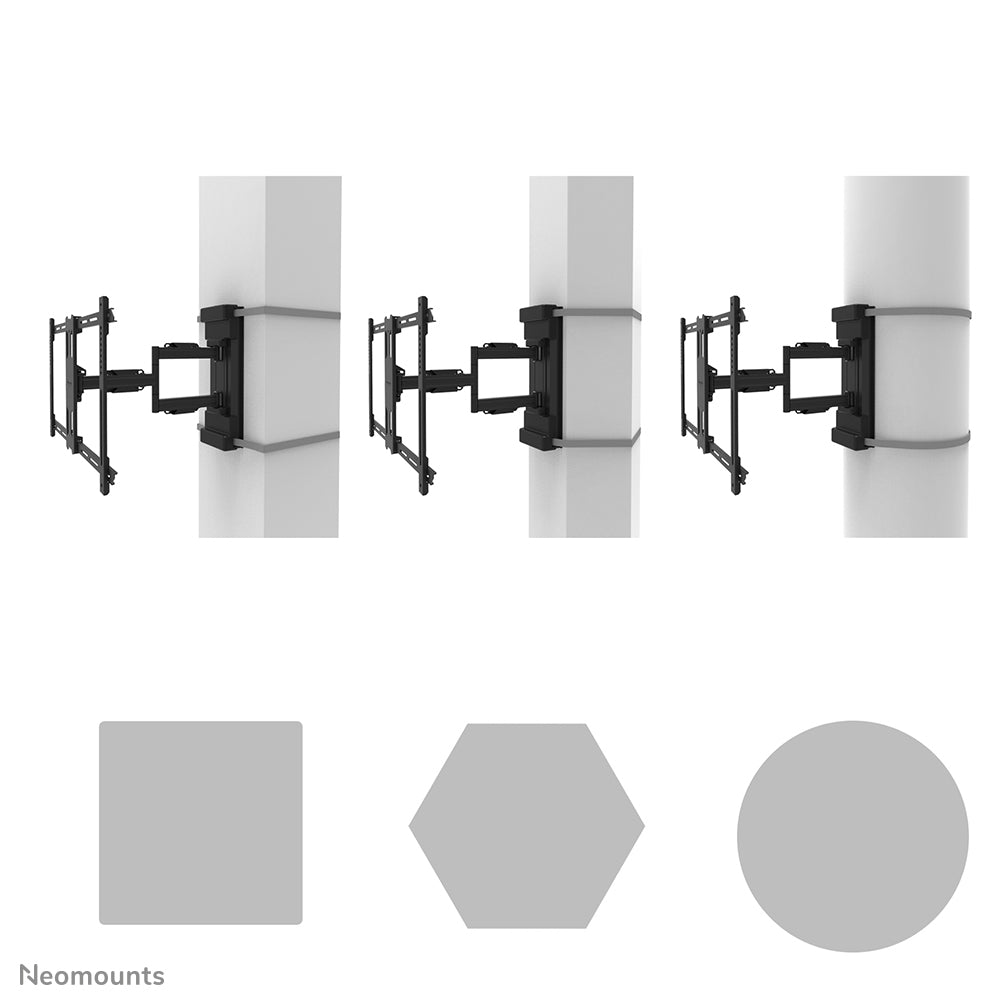

The Neomounts WL40S-910BL16 is a full motion pillar mount for screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (90°) technology allows you to create the optimum viewing angle. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Level adjustment is available for the perfect installation.The WL40S-910BL16 has a depth of 8,2-59 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm.

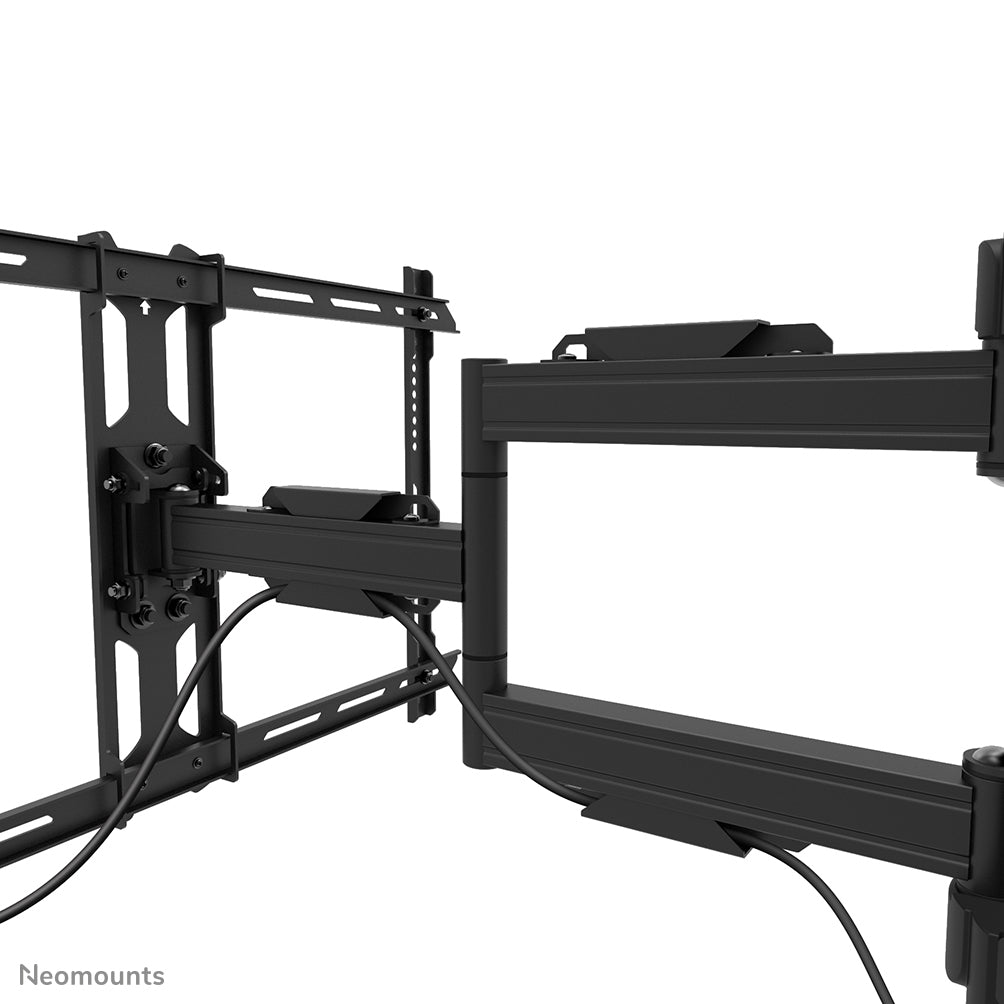

The mount is equipped with metal cable management to secure any loose cables. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 45 kg |
| Mounting type | Pole |
| Minimum screen size | 101.6 cm (40") |
| Panel mounting interface | 200 x 100,200 x 150,200 x 300,200 x 400,300 x 100,300 x 300,300 x 400,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,600 x 300,600 x 200,600 x 400 |
| Number of displays supported | 1 |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum screen size | 177.8 cm (70") |
| Maximum weight capacity | 45 kg |
| Ergonomics | |
| Adjustable depth | Yes |
| Cable management | Yes |
| Tilt angle range | -2 - 12° |
| Swivel angle range | -45 - 45° |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Distance to the wall (min) | 8.2 cm |
| Distance to the wall (max) | 59 cm |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Type | Full motion |
| Technical details | |
| Product colour | Black |
| Country of origin | China |
| Package net weight | 11.1 kg |
| Master (outer) case net weight | 19 kg |
| Compatible pole diameter (min) | 25 cm |
| Compatible pole diameter (max) | 100 cm |
| Lockable | Not lockable |
| Design | |
| Housing material | Steel |
| Packaging content | |

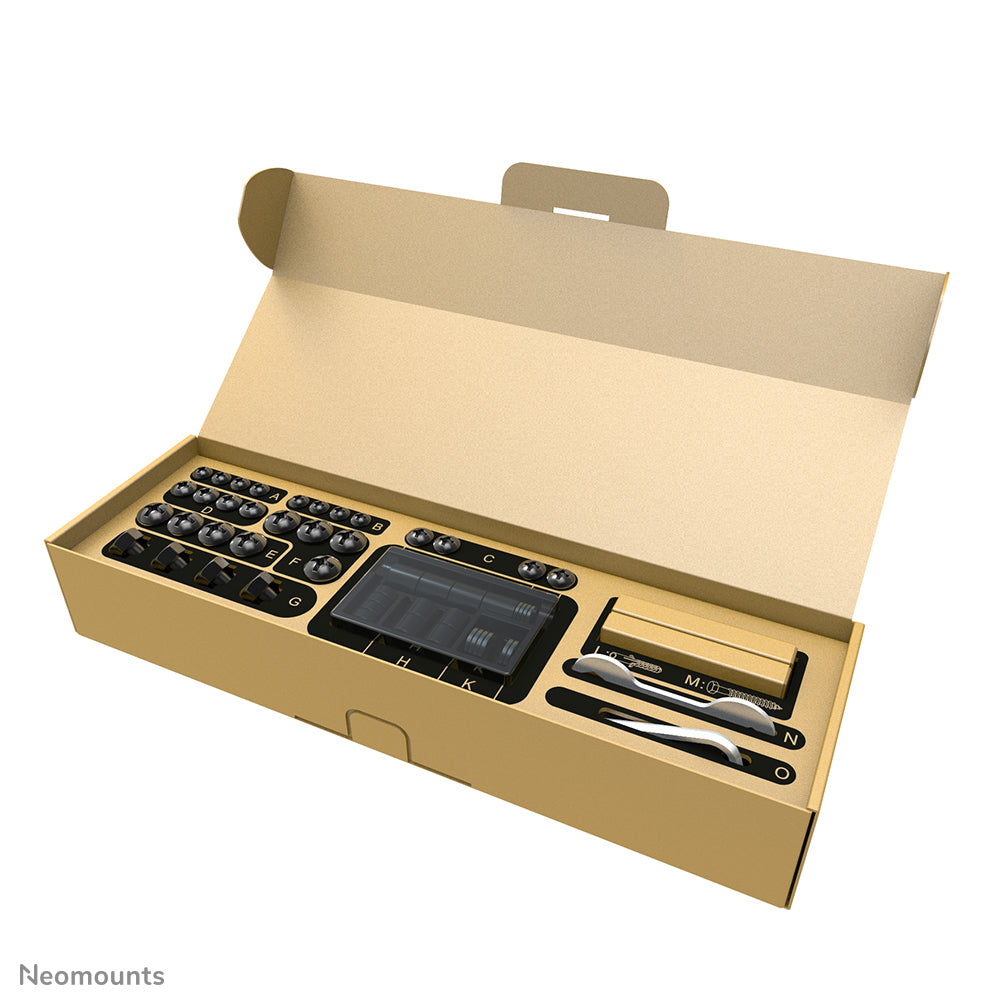

| Mounting kit | Yes |
| Weight & dimensions | |
| Width | 710 mm |
| Depth | 590 mm |
| Height | 520 mm |
| Weight | 9.5 kg |
| Depth (min) | 8.2 cm |
| Depth (max) | 59 cm |
| Packaging data | |
| Package width | 386 mm |
| Package depth | 95 mm |
| Package height | 744 mm |
| Package weight | 11.1 kg |
| Logistics data | |
| Master (outer) case width | 205 mm |
| Master (outer) case length | 406 mm |
| Master (outer) case height | 764 mm |
| Master (outer) case gross weight | 22.8 kg |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 34 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Depth adjustment range | 82 - 590 mm |
