Neomounts WL40S-850BL18 TV mount wall 43-86" - full motion - fast installation
Neomounts WL40S-850BL18 TV mount wall 43-86" - full motion - fast installation
Regular price
£161.63 GBP
Regular price
Sale price
£161.63 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Position your screen exactly where you need it with the Neomounts WL40S-850BL18 TV mount wall — VESA fit and load ratings are below.

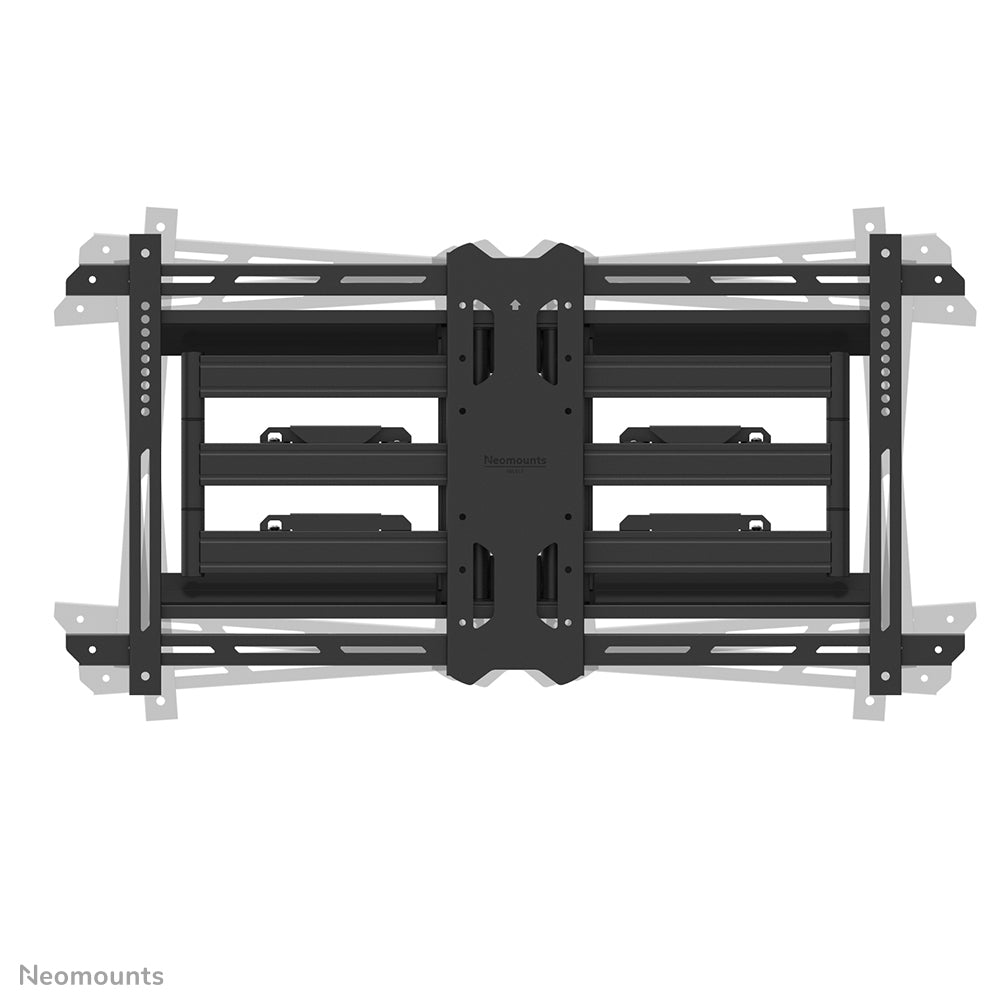

The Neomounts WL40S-850BL18 LEVEL is a full motion wall mount for flat screens up to 86" with a maximum weight capacity of 60 kg. The versatile tilt (18°) and swivel (35°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.The LEVEL-850 wall mount has a depth of 5-61 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400mm.

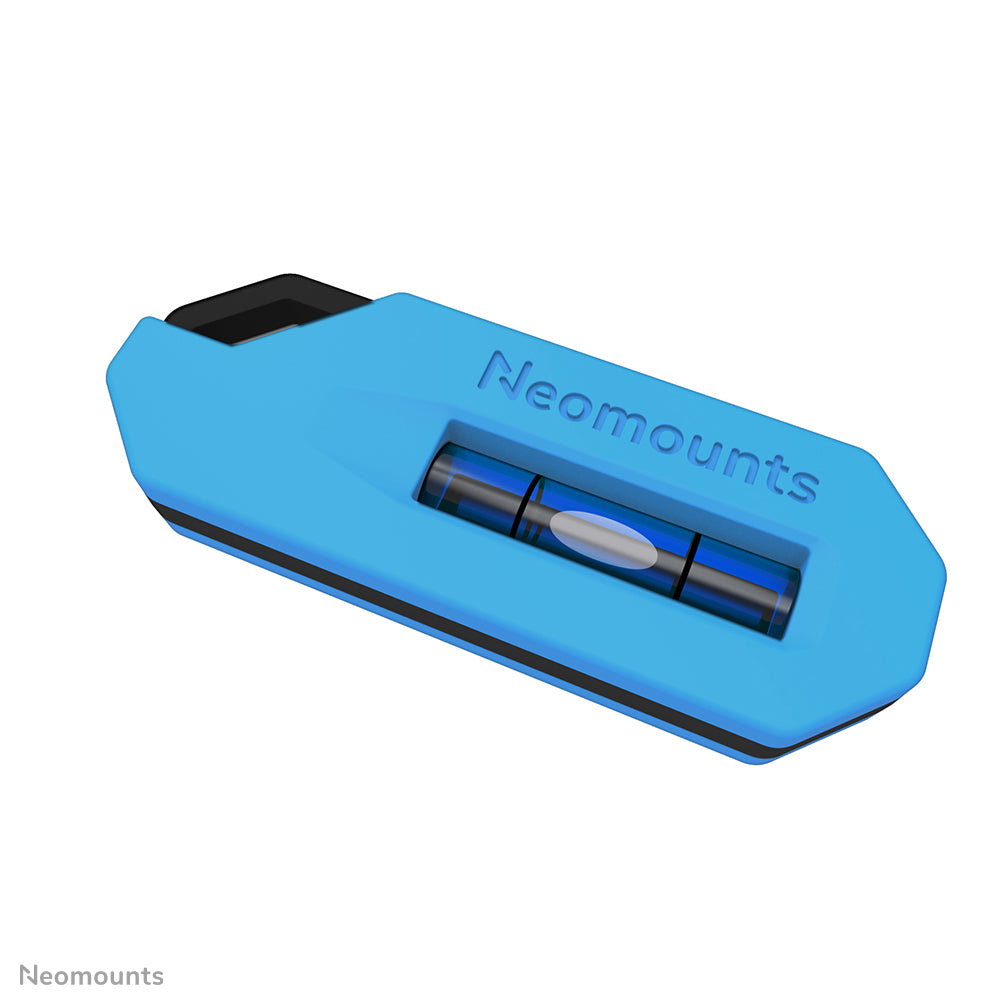

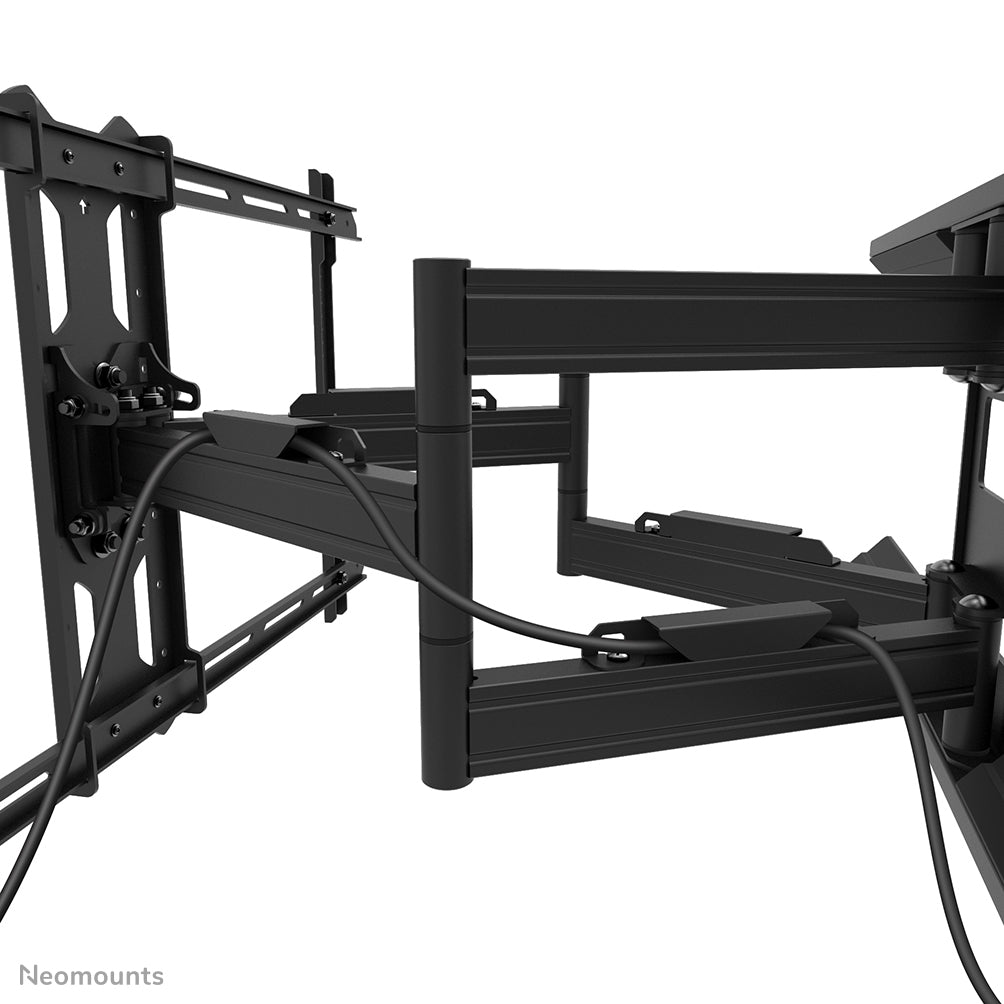

The WL40S-850BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 60 kg |
| Mounting type | Wall |
| Minimum screen size | 109.2 cm (43") |
| Panel mounting interface | 200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400,680 x 300,800 x 200,800 x 400 |
| Number of displays supported | 1 |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 800 x 400 mm |
| Maximum screen size | 2.18 m (86") |
| Maximum weight capacity | 60 kg |
| Ergonomics | |
| Height adjustment | No |
| Cable management | Yes |
| Tilt angle range | -3 - 15° |
| Swivel angle range | 0 - 35° |
| Swivel angle | 35° |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Distance to the wall (min) | 5 cm |
| Distance to the wall (max) | 61 cm |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Type | Full motion |
| Technical details | |
| Product colour | Black |
| Country of origin | China |
| Package net weight | 12.7 kg |
| Master (outer) case net weight | 21 kg |
| Quantity per pack | 1 pc(s) |
| Lockable | Not lockable |
| Design | |
| Housing material | Steel |
| Packaging content | |
| Mounting kit | Yes |
| Number of wrenches included | 1 |
| Hex key included | Yes |
| Weight & dimensions | |
| Width | 850 mm |
| Depth | 50 mm |
| Height | 436 mm |
| Weight | 10.4 kg |
| Depth (max) | 5 cm |
| Packaging data | |
| Package width | 882 mm |
| Package depth | 311 mm |
| Package height | 90 mm |
| Package weight | 12.7 kg |
| Logistics data | |
| Master (outer) case width | 902 mm |
| Master (outer) case length | 195 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 26.1 kg |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 30 pc(s) |
| Harmonized System (HS) code | 7326909890 |
