Neomounts WL40-550BL18 TV mount wall 43-75" - full motion - easy install

£120.38 GBP

Sale Sold out

Taxes included.

Condition New

Position your screen exactly where you need it with the Neomounts WL40-550BL18 TV mount wall — VESA fit and load ratings are below.

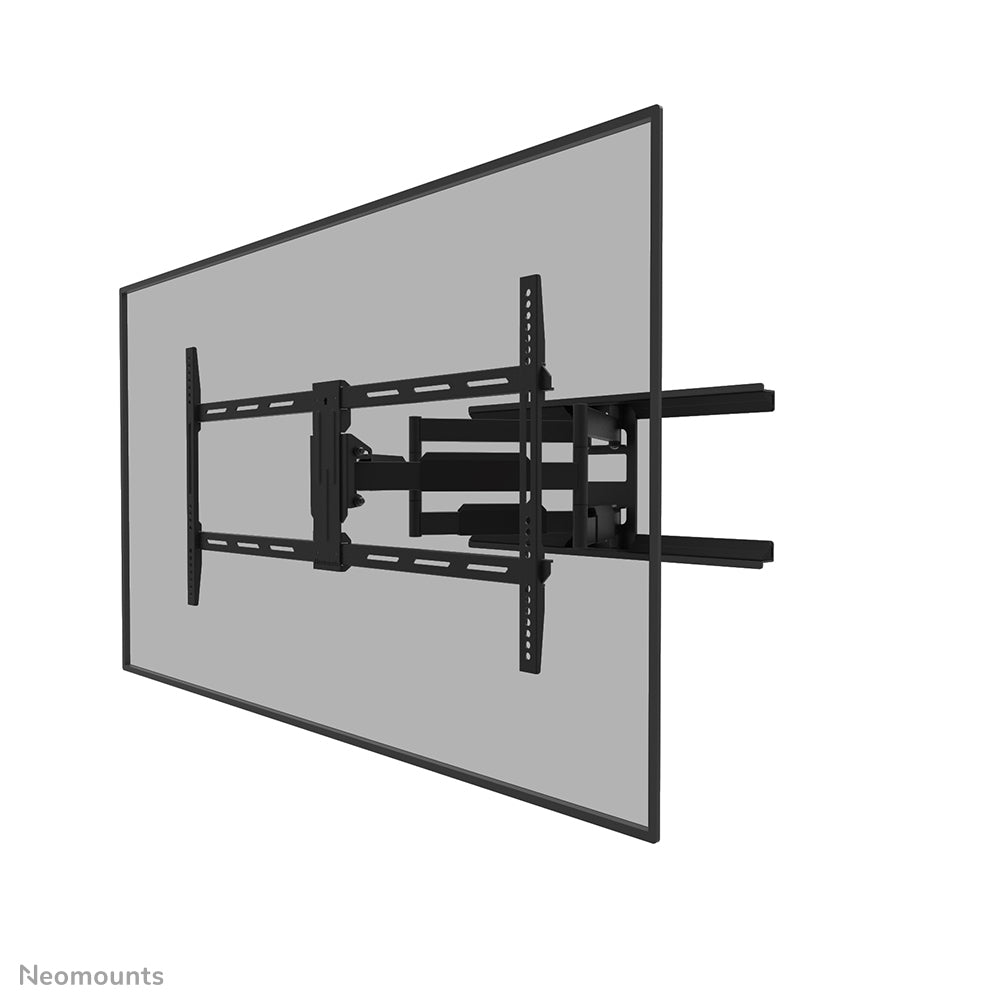

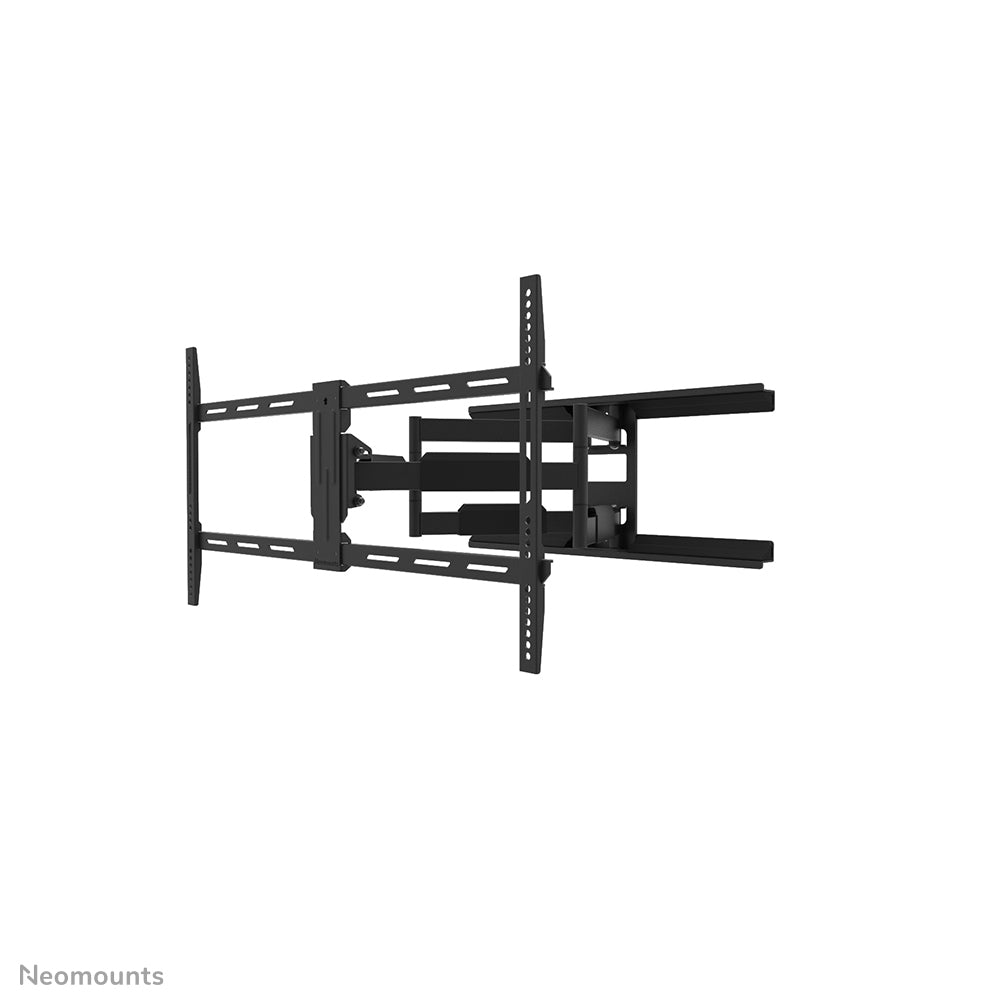

The Neomounts WL40-550BL18 LEVEL is a full motion wall mount for flat screens up to 75" with a maximum weight capacity of 45 kg. The versatile tilt (18°) and swivel (54°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

The LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm.

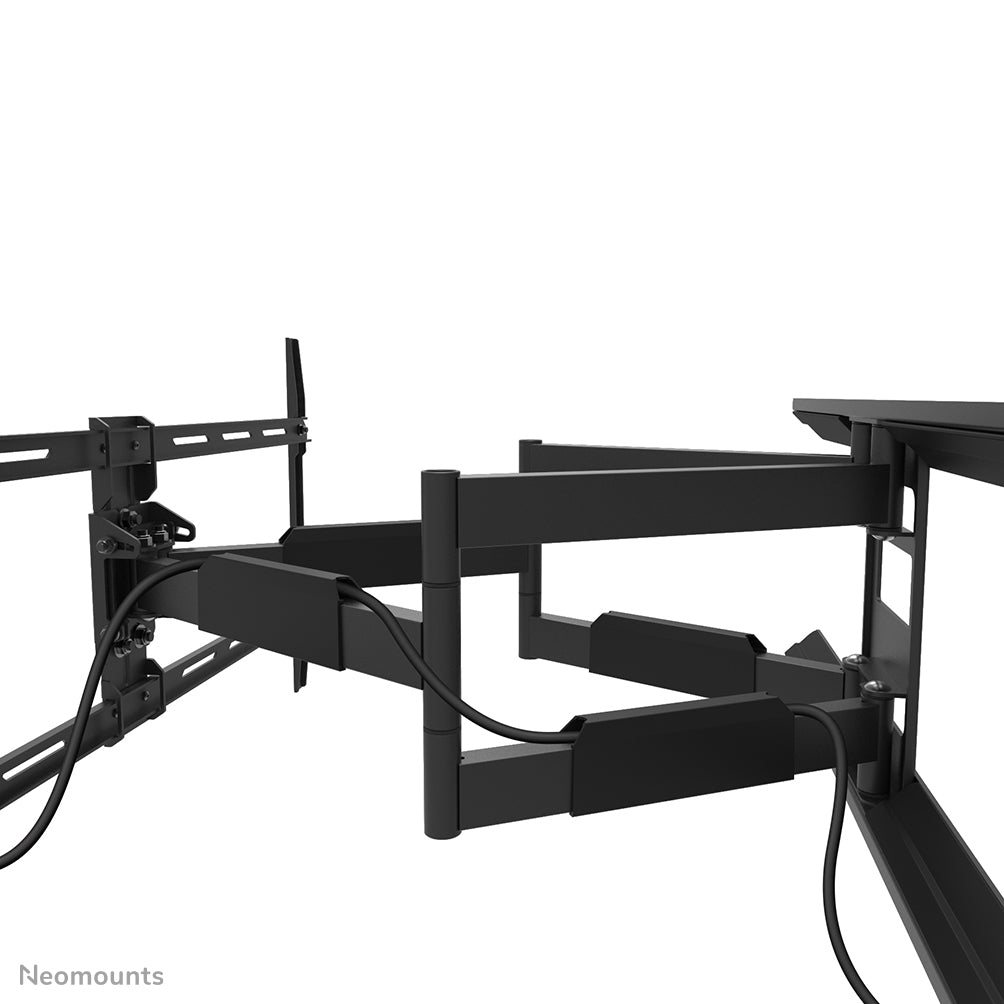

The WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.

Specifications

Mounting
Maximum weight capacity (per display)	45 kg
Mounting type	Wall
Minimum screen size	109.2 cm (43")
Panel mounting interface	200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400,680 x 300,800 x 200,800 x 400
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	800 x 400 mm
Maximum screen size	190.5 cm (75")
Maximum weight capacity	45 kg
Ergonomics
Height adjustment	No
Cable management	Yes
Tilt angle range	-3 - 15°
Swivel angle range	0 - 54°
Swivel angle	54°
Angle of rotation	6°
Pivot angle	-3 - 3°
Distance to the wall (min)	5.5 cm
Distance to the wall (max)	71 cm
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Type	Full motion
Technical details
Product colour	Black
Country of origin	China
Package net weight	11.7 kg
Master (outer) case net weight	22.1 kg
Quantity per pack	1 pc(s)
Lockable	Not lockable
Design
Housing material	Steel
Packaging content
Mounting kit	Yes
Weight & dimensions
Width	850 mm
Depth	55 mm
Height	436 mm
Weight	9.9 kg
Depth (max)	5.5 cm
Packaging data
Package width	882 mm
Package depth	340 mm
Package height	65 mm
Package weight	11.7 kg
Logistics data
Master (outer) case width	902 mm
Master (outer) case length	145 mm
Master (outer) case height	360 mm
Master (outer) case gross weight	24 kg
Products per master (outer) case	2 pc(s)
Products per pallet (EU)	40 pc(s)
Harmonized System (HS) code	7326909890
