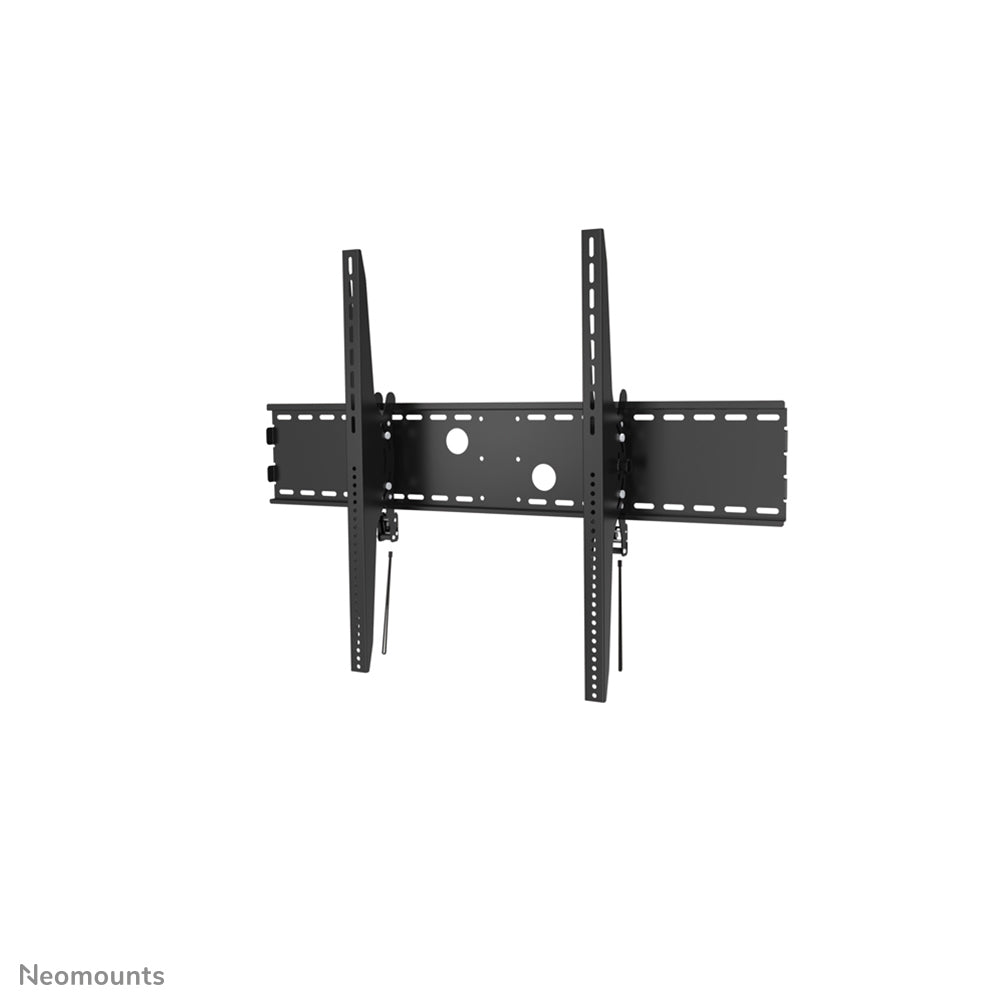

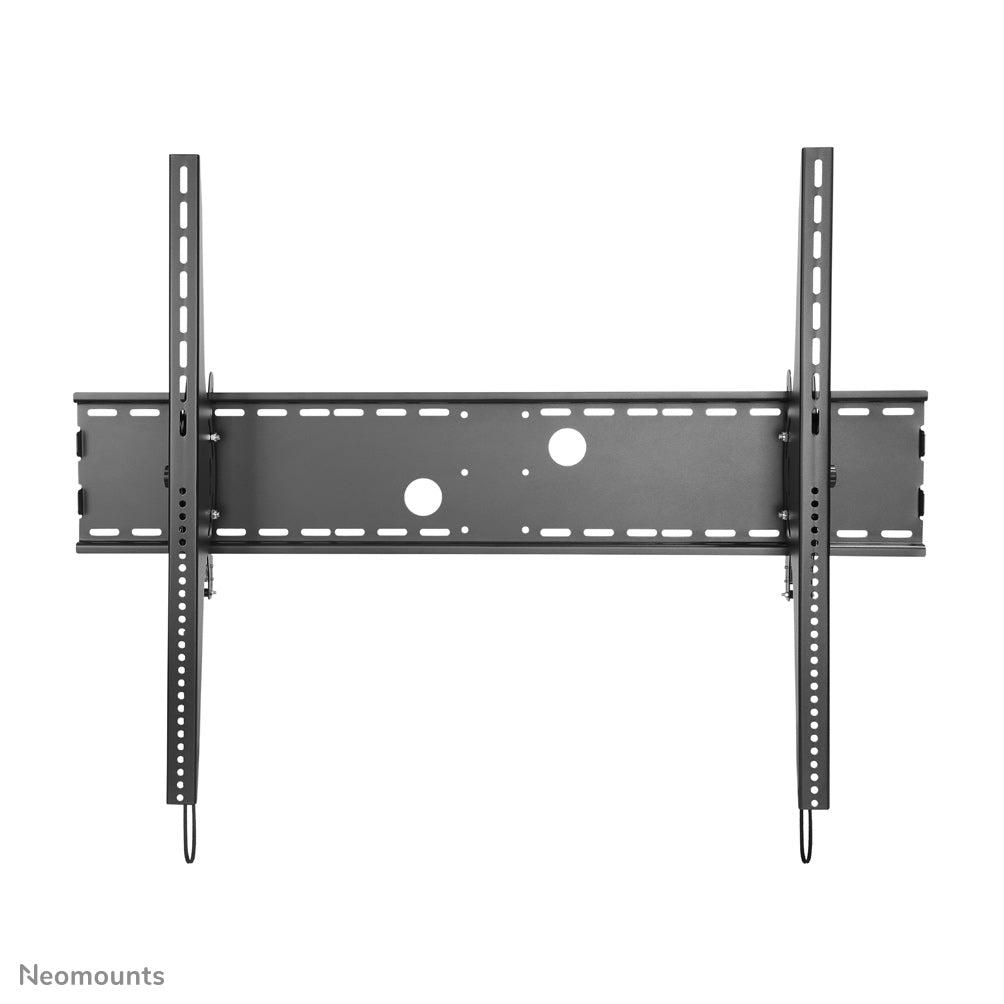

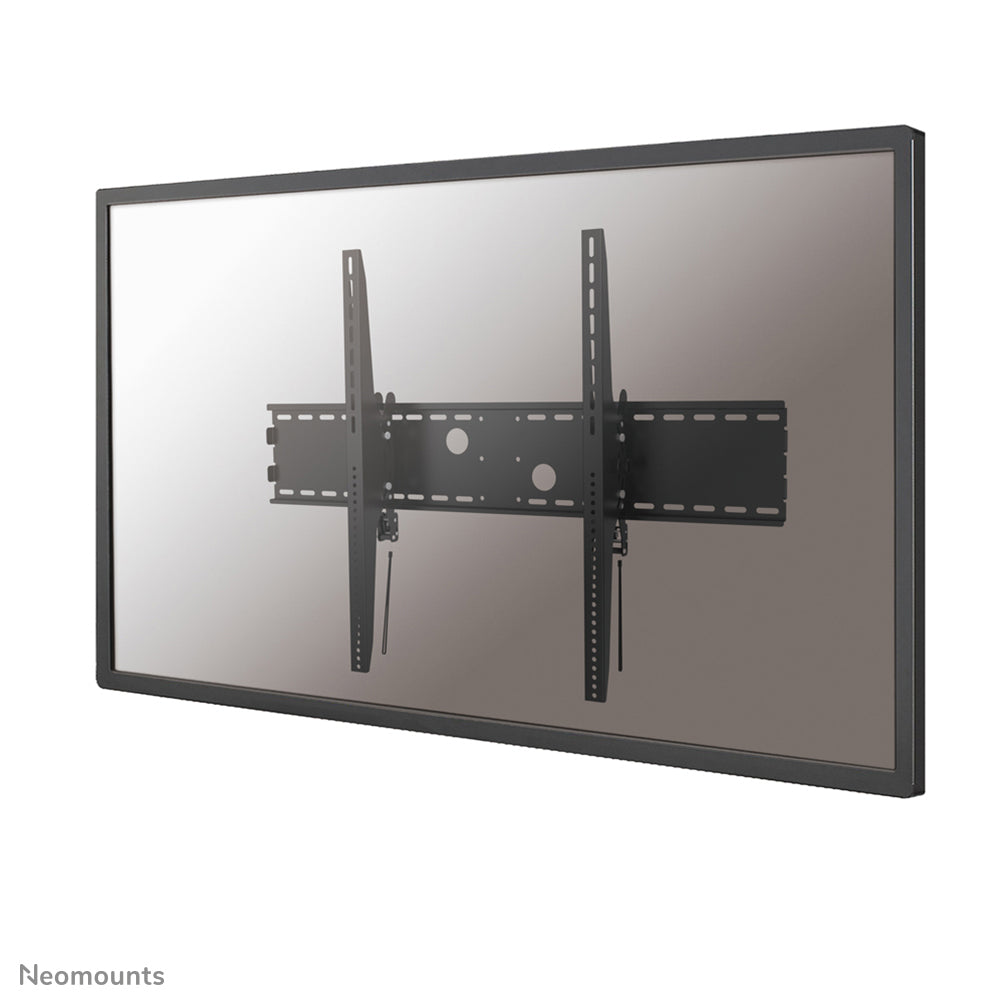

Neomounts LFD-W2000 TV mount wall 60-100" - tiltable

Position your screen exactly where you need it with the Neomounts LFD-W2000 TV mount wall — VESA fit and load ratings are below.

The Neomounts wall mount, model LFD-W2000 is a tiltable wall mount for flat screens up to 100" (254 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 13 centimetres.

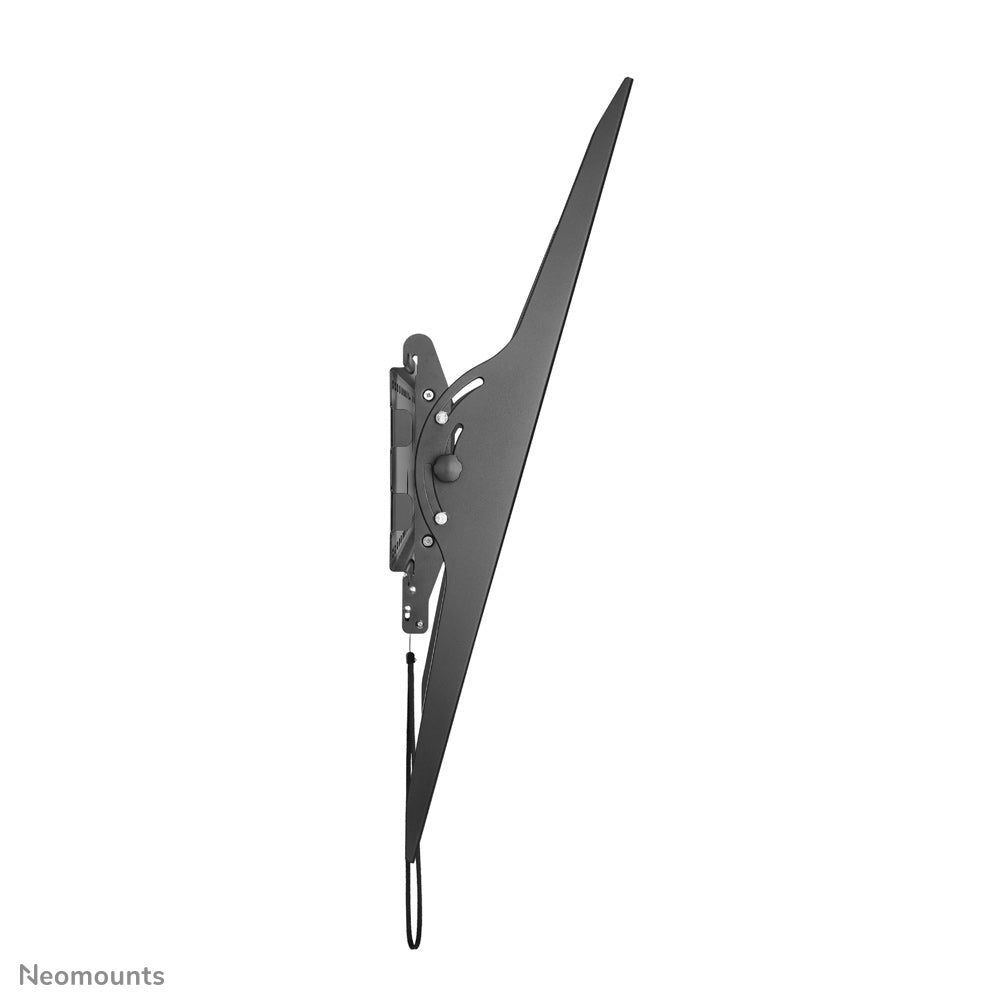

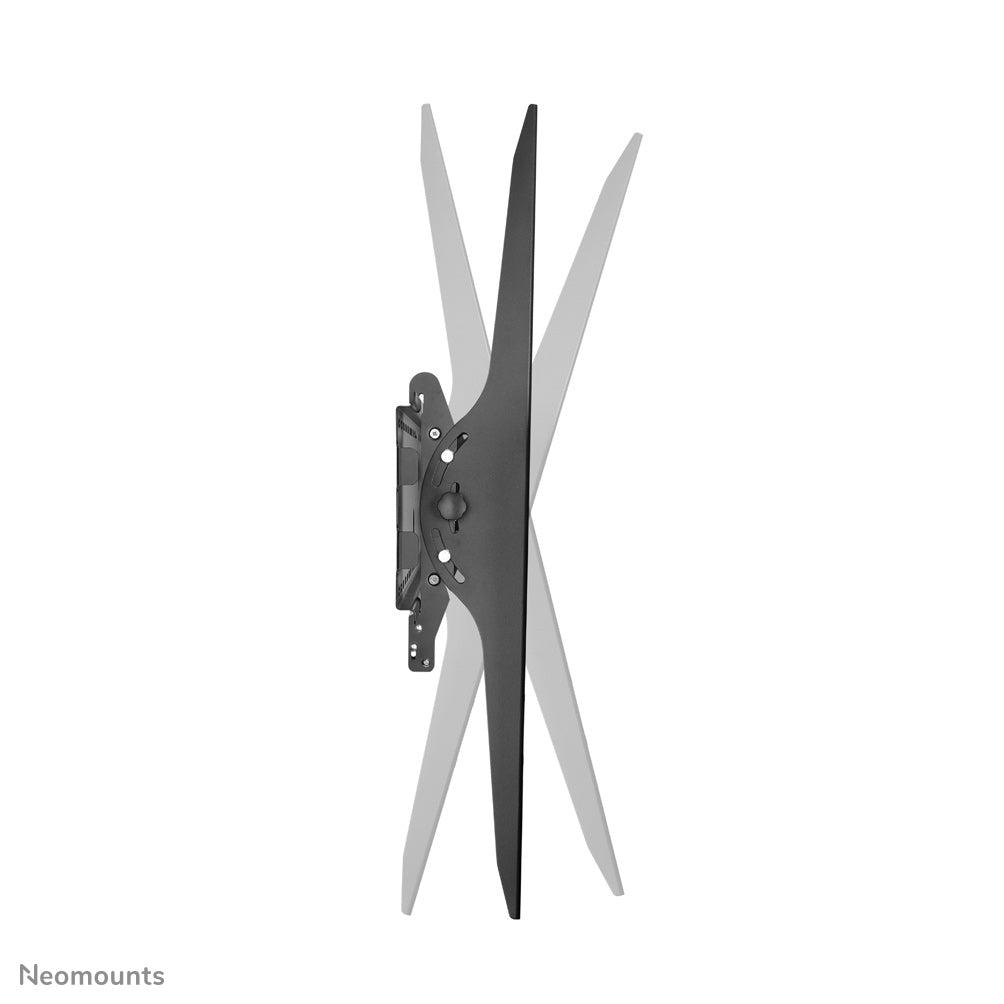

Neomounts' tilt (-15°|+15°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen.

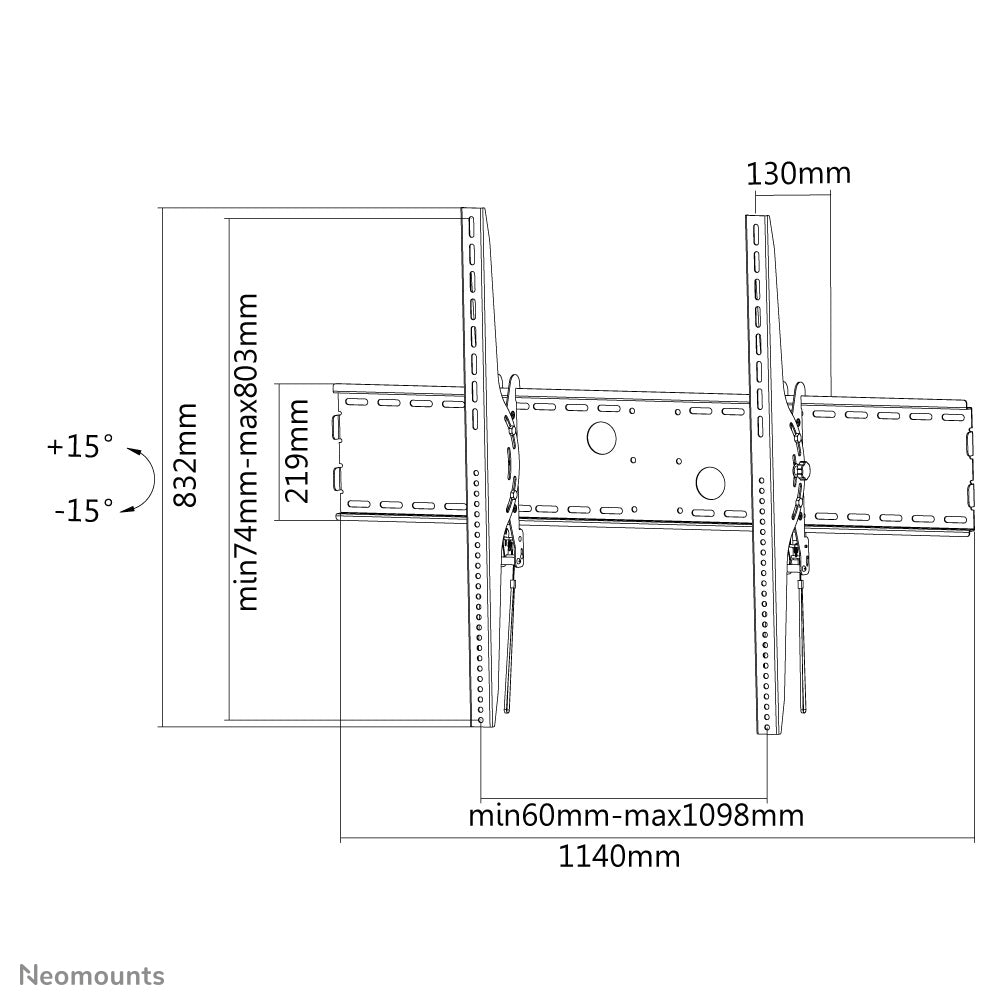

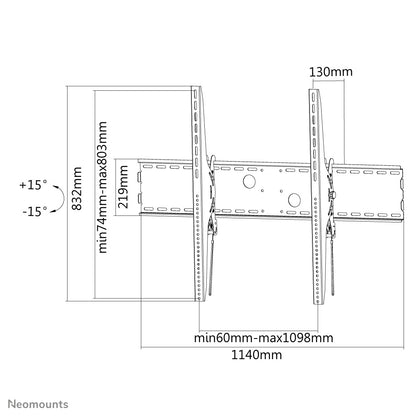

Neomounts LFD-W2000 is suitable for screens up to 100" (254 cm). The weight capacity of this product is 125 kg. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 1000x800mm.

Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.

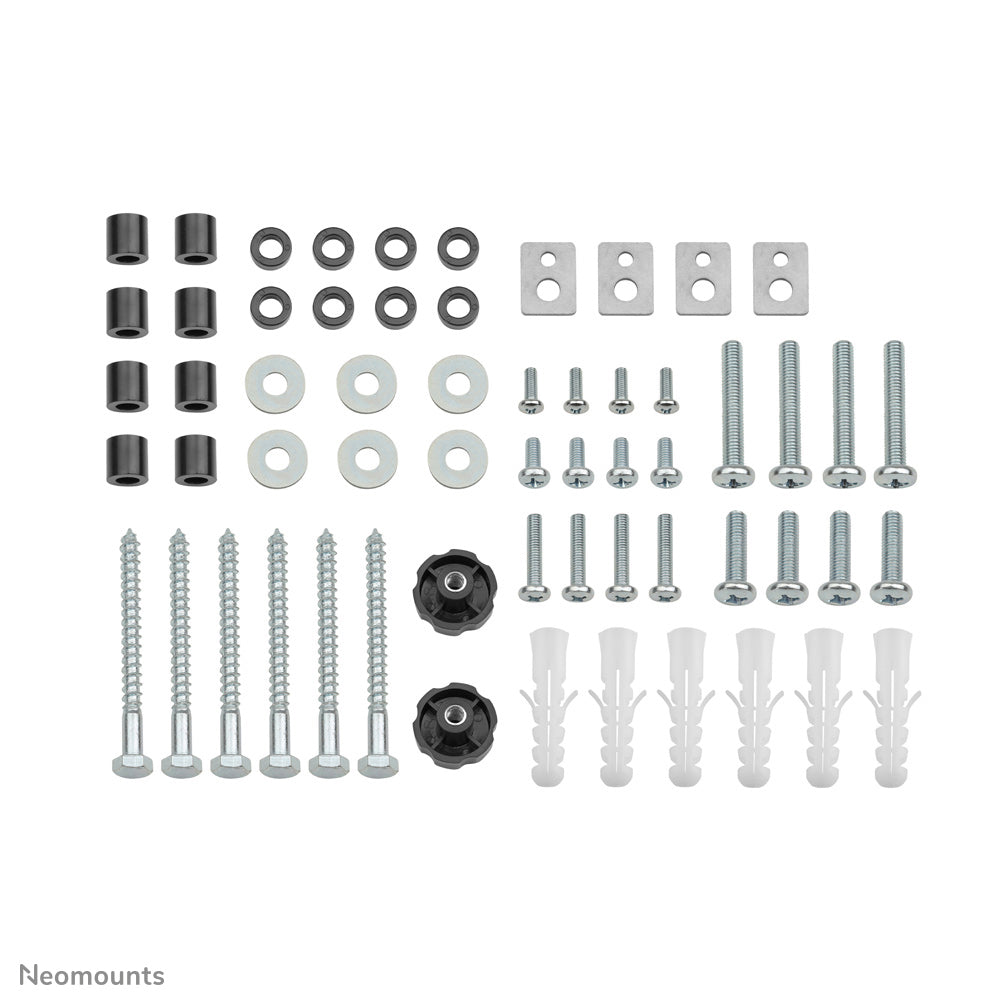

All installation material is included with the product.

Specifications

Mounting
Maximum weight capacity (per display)	125 kg
Mounting type	Wall
Minimum screen size	152.4 cm (60")
Panel mounting interface	1000 x 400,1000 x 600,1000 x 800,1000 x 700,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,800 x 800,800 x 200,800 x 400,800 x 500,800 x 600,900 x 600
Number of displays supported	1
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	1000 x 800 mm
Maximum screen size	2.54 m (100")
Maximum weight capacity	125 kg
Ergonomics
Tilt angle range	0 - 30°
Distance to the wall (max)	13 cm
Tilt adjustment	Yes
Technical details
Product colour	Black
Country of origin	China
Package net weight	8.19 kg
Master (outer) case net weight	16.4 kg
Design
Housing material	Steel
Weight & dimensions
Weight	8.12 kg
Packaging data
Package width	232 mm
Package depth	68 mm
Package height	1178 mm
Package weight	8.2 kg
Logistics data
Master (outer) case width	1195 mm
Master (outer) case length	155 mm
Master (outer) case height	250 mm
Master (outer) case gross weight	19.6 kg
Products per master (outer) case	2 pc(s)
Products per pallet (EU)	48 pc(s)
Harmonized System (HS) code	7326909890
