Neomounts LFD-W1640MP TV mount wall 37-75" - fixed

Position your screen exactly where you need it with the Neomounts LFD-W1640MP TV mount wall — VESA fit and load ratings are below.

Neomounts model LFD-W1640MP is a fixed wall mount for flat screens up to 75". The depth of this mount is 6,2 centimetres and also offers the option to store a Mediaplayer or Mini PC.

Neomounts LFD-W1640MP is suitable for screens up to 75". The weight capacity of this product is 35 kg and is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.

Create a clean design ambiance for your flat screen TV or LFD in public areas.

All installation material including is included with the product.

Specifications

Mounting
Maximum weight capacity (per display)	35 kg
Mounting type	Wall
Minimum screen size	94 cm (37")
Panel mounting interface	200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,600 x 300,600 x 200,600 x 400
Number of displays supported	1
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	190.5 cm (75")
Maximum weight capacity	35 kg
Ergonomics
Distance to the wall (min)	6.2 cm
Distance to the wall (max)	6.2 cm
Type	Fixed
Technical details
Product colour	Black
Country of origin	China
Package net weight	3 kg
Master (outer) case net weight	16.6 kg
Design
Housing material	Steel
Weight & dimensions

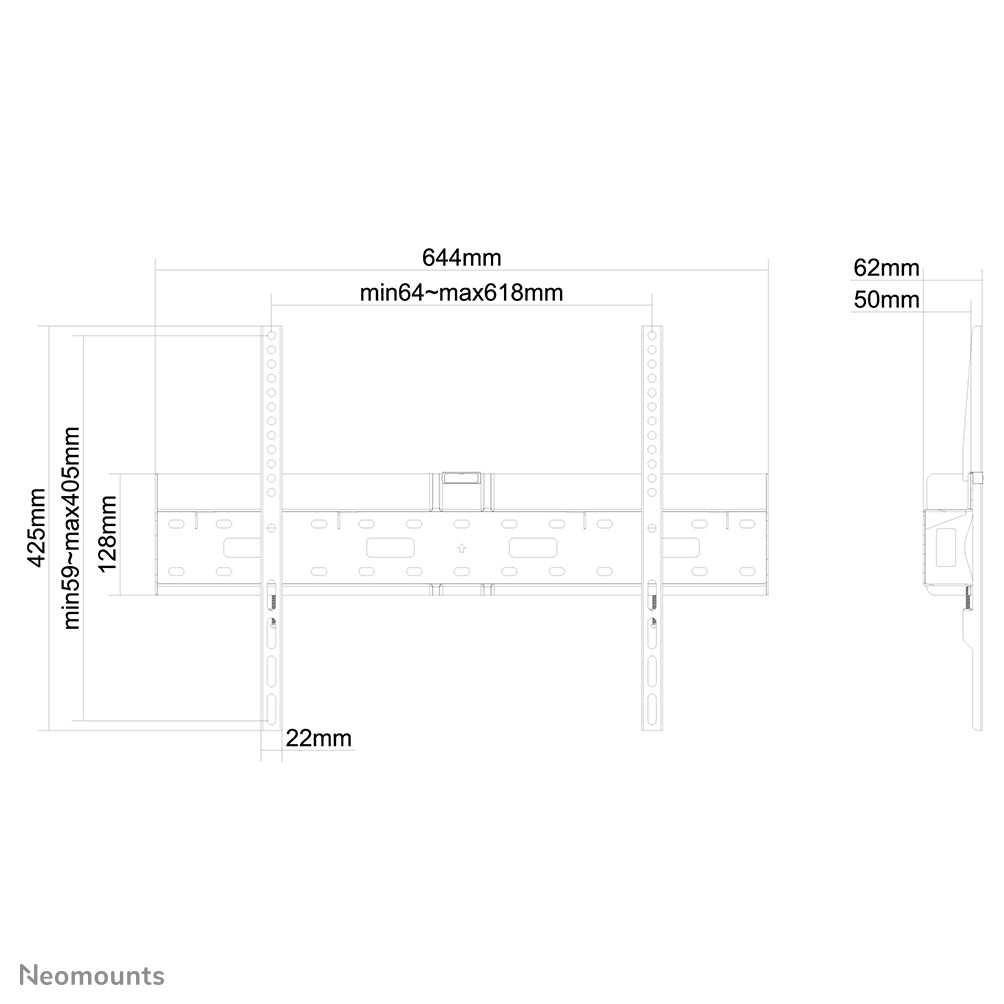

Width	644 mm
Height	425 mm
Weight	2.56 kg
Packaging data
Package width	133 mm
Package depth	57 mm
Package height	666 mm
Package weight	3 kg
Logistics data
Master (outer) case width	685 mm
Master (outer) case length	285 mm
Master (outer) case height	200 mm
Master (outer) case gross weight	17.8 kg
Products per master (outer) case	6 pc(s)
Products per pallet (EU)	180 pc(s)
Harmonized System (HS) code	7326909890
