Neomounts FPMA-W350BLACK TV mount wall 32-55" - tiltable

Position your screen exactly where you need it with the Neomounts FPMA-W350BLACK TV mount wall — VESA fit and load ratings are below.

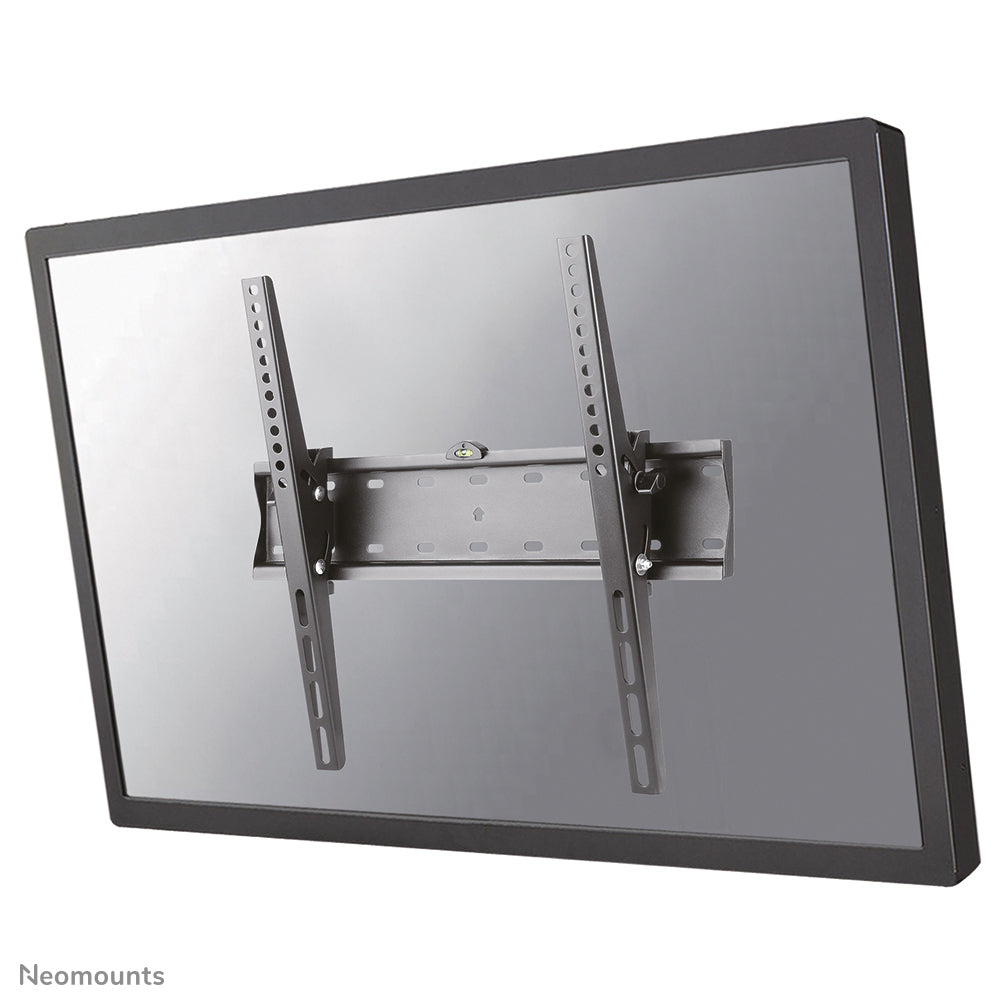

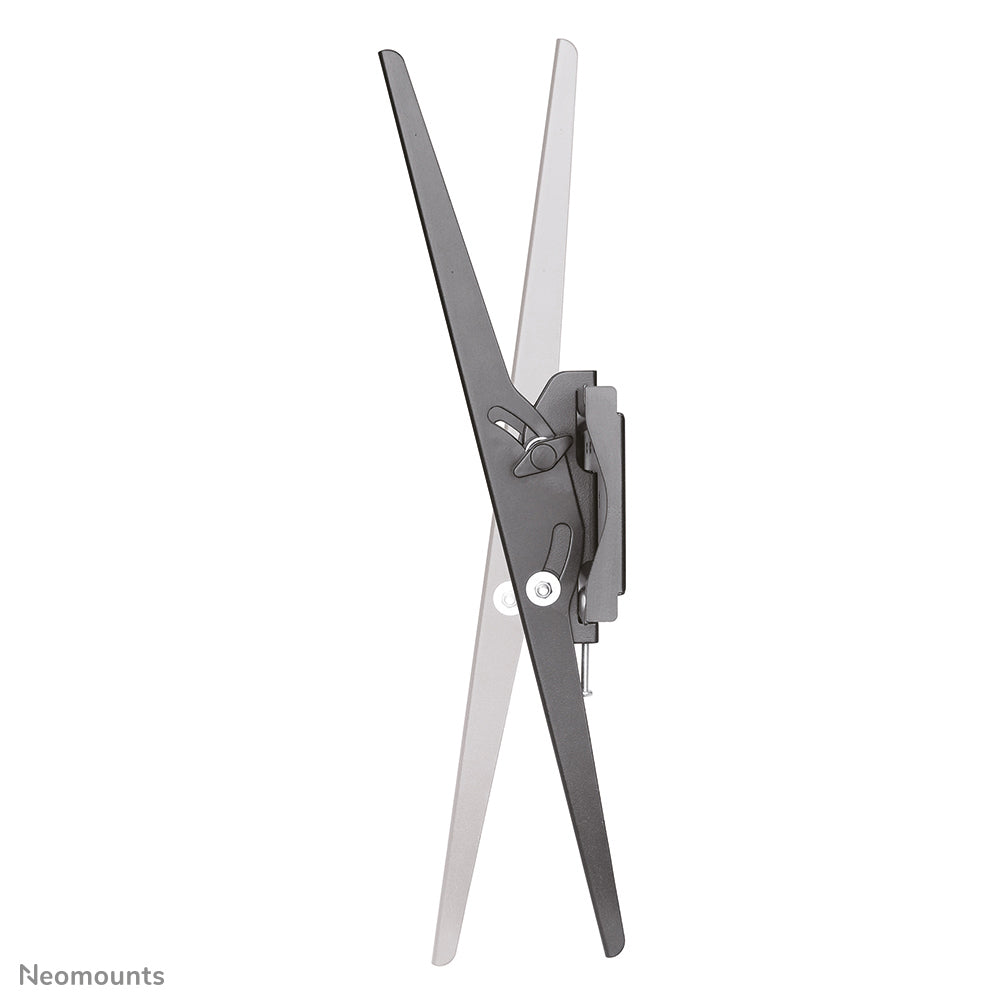

The Neomounts FPMA-W350BLACK is a tiltable wall mount for flat screens up to 55" with a maximum weight capacity of 40 kg. The versatile tilt technology (24°) allows you to create the optimum viewing angle.

The FPMA-W350BLACK has a depth of 5,3 cm and is suitable for screens that meet VESA hole pattern 200x200 to 400x400mm. Deviant hole patterns can be covered using one of Neomounts VESA adapter plates. The integrated bubble level assures easy installation of the mount.

Specifications

Mounting
Maximum weight capacity (per display)	40 kg
Mounting type	Wall
Minimum screen size	81.3 cm (32")
Panel mounting interface	200 x 200,300 x 300,400 x 200,400 x 300,400 x 400
Number of displays supported	1
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	400 x 400 mm
Maximum screen size	139.7 cm (55")
Maximum weight capacity	40 kg
Ergonomics
Height adjustment	Yes
Height adjustment range	0 - 425 mm
Tilt angle range	0 - 24°
Distance to the wall (max)	5.3 cm
Tilt adjustment	Yes
Technical details
Product colour	Black
Width adjustment range	0 - 433 mm
Country of origin	China
Master (outer) case net weight	16 kg
Easy to install	Yes
Design
Housing material	Steel

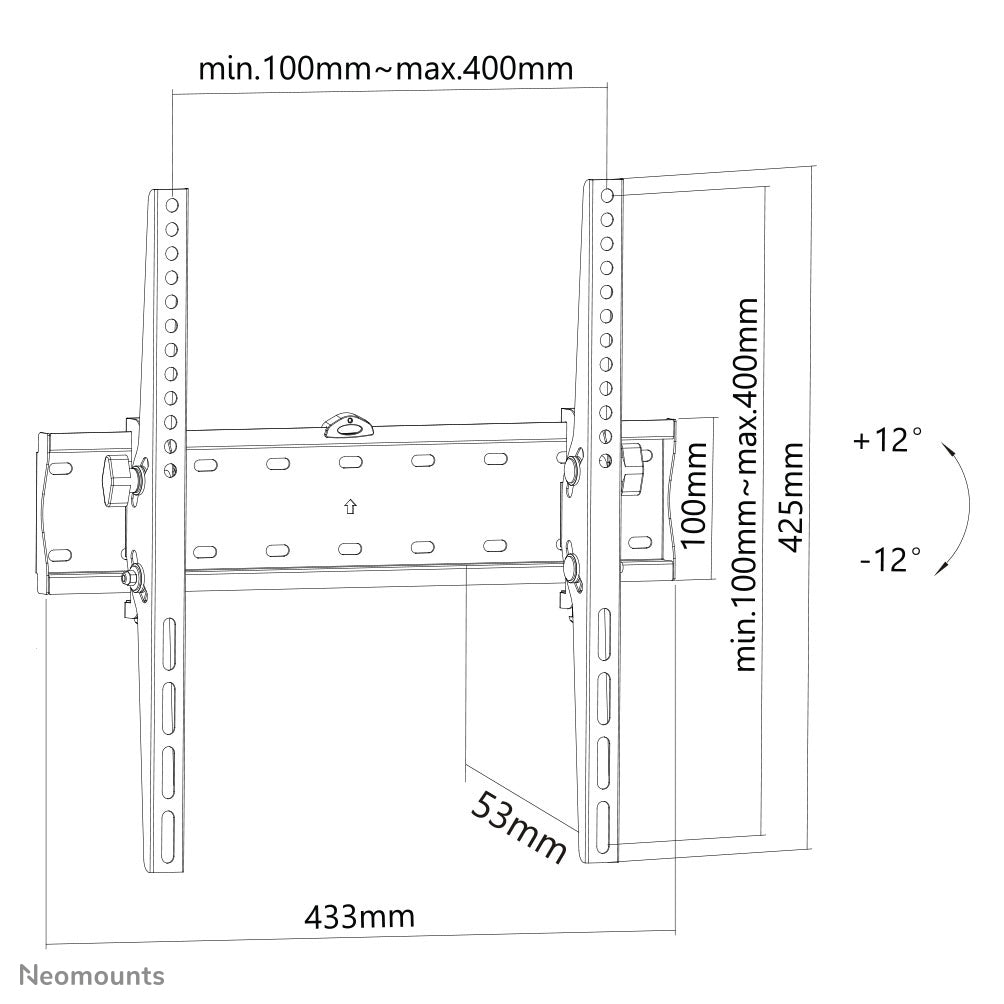

Weight & dimensions
Width	433 mm
Height	425 mm
Weight	1.5 kg
Depth (max)	5.3 cm
Packaging data
Package width	112 mm
Package depth	56 mm
Package height	455 mm
Package weight	1.6 kg
Logistics data
Master (outer) case width	240 mm
Master (outer) case length	300 mm
Master (outer) case height	470 mm
Master (outer) case gross weight	18.3 kg
Products per master (outer) case	10 pc(s)
Products per pallet (EU)	300 pc(s)
Harmonized System (HS) code	7326909890
Other features
Depth adjustment range	0 - 53 mm
