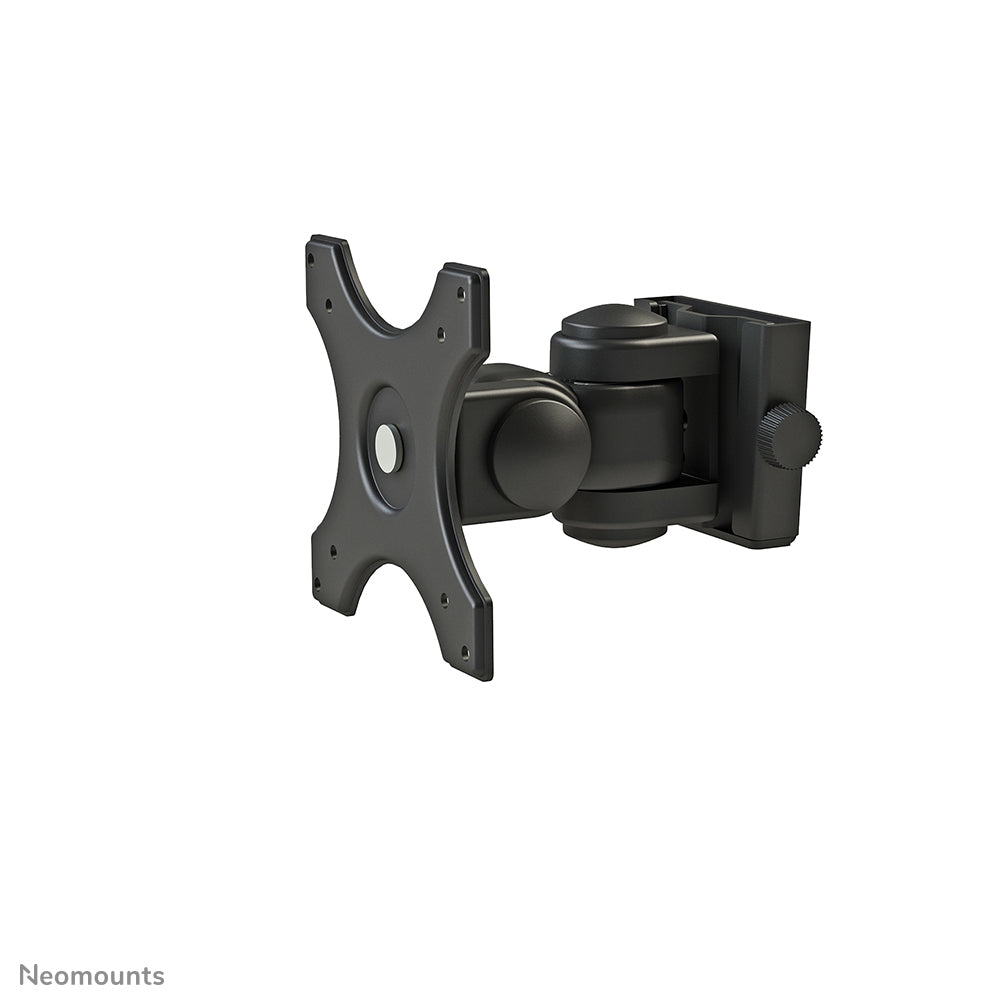

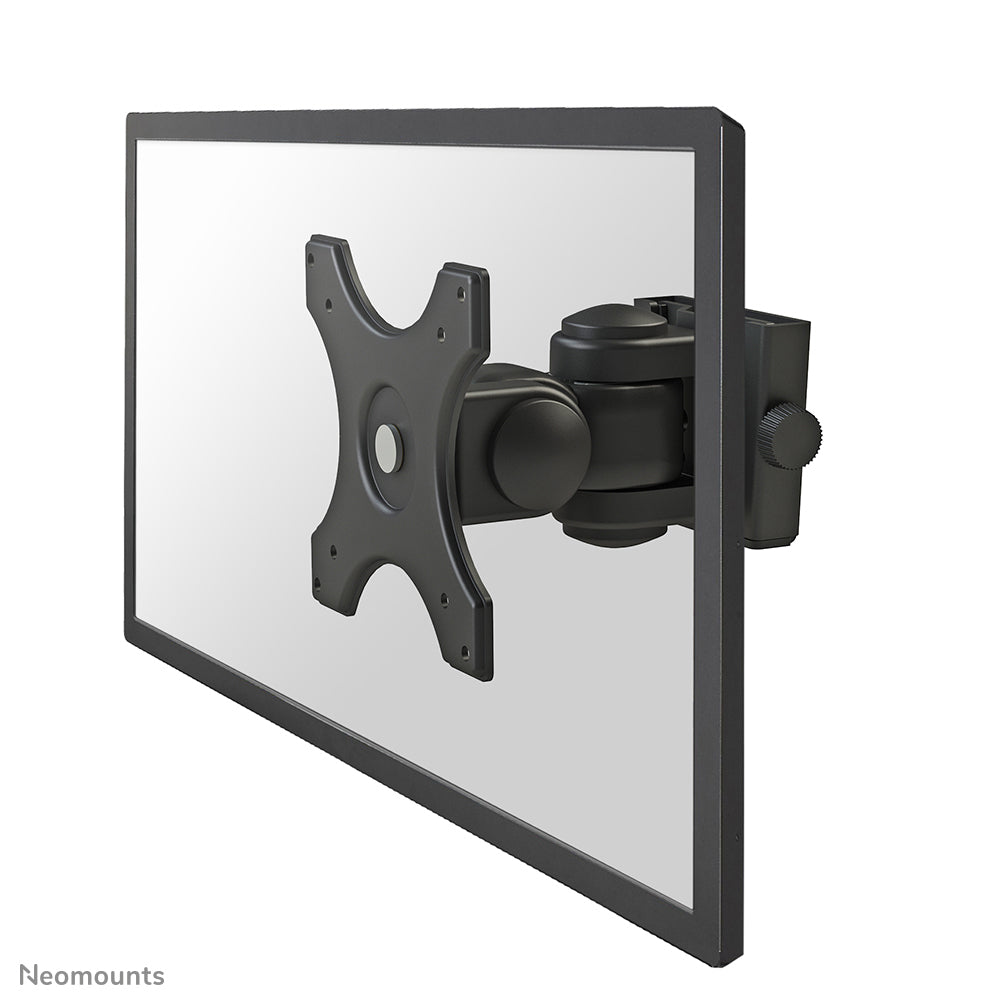

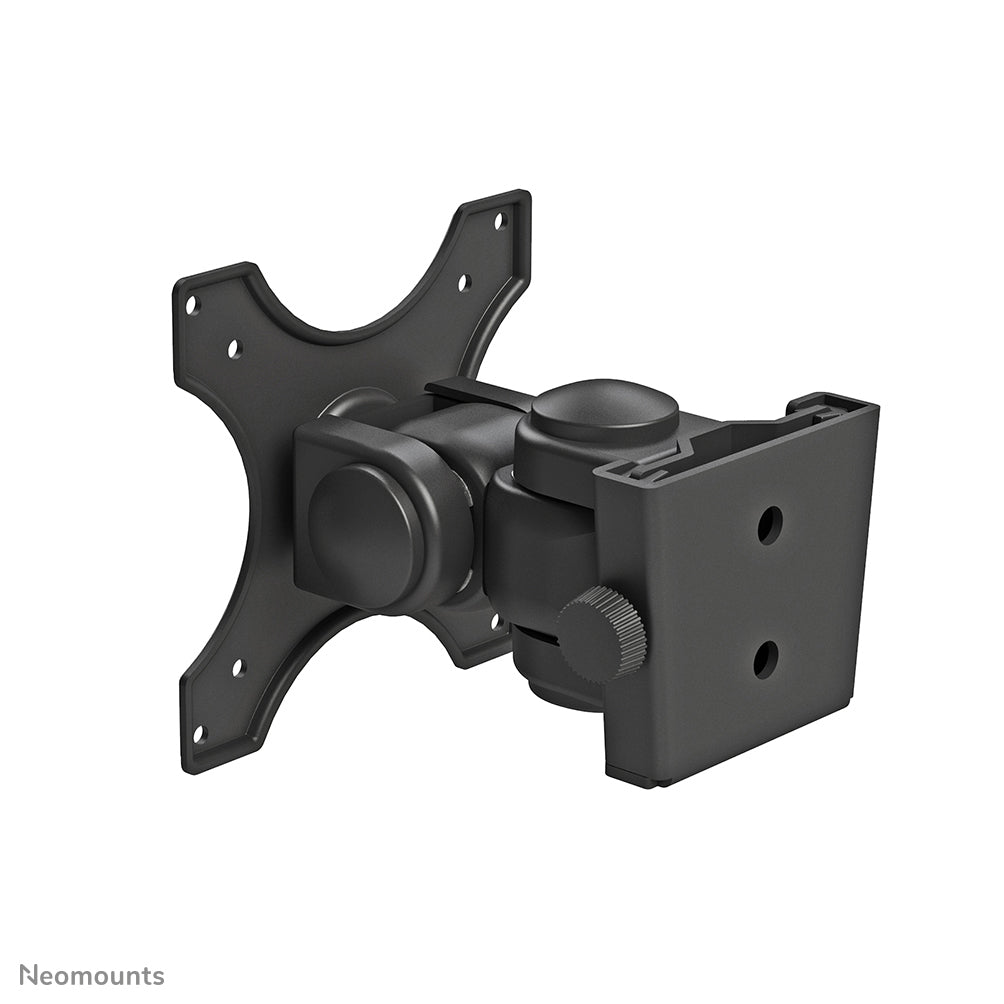

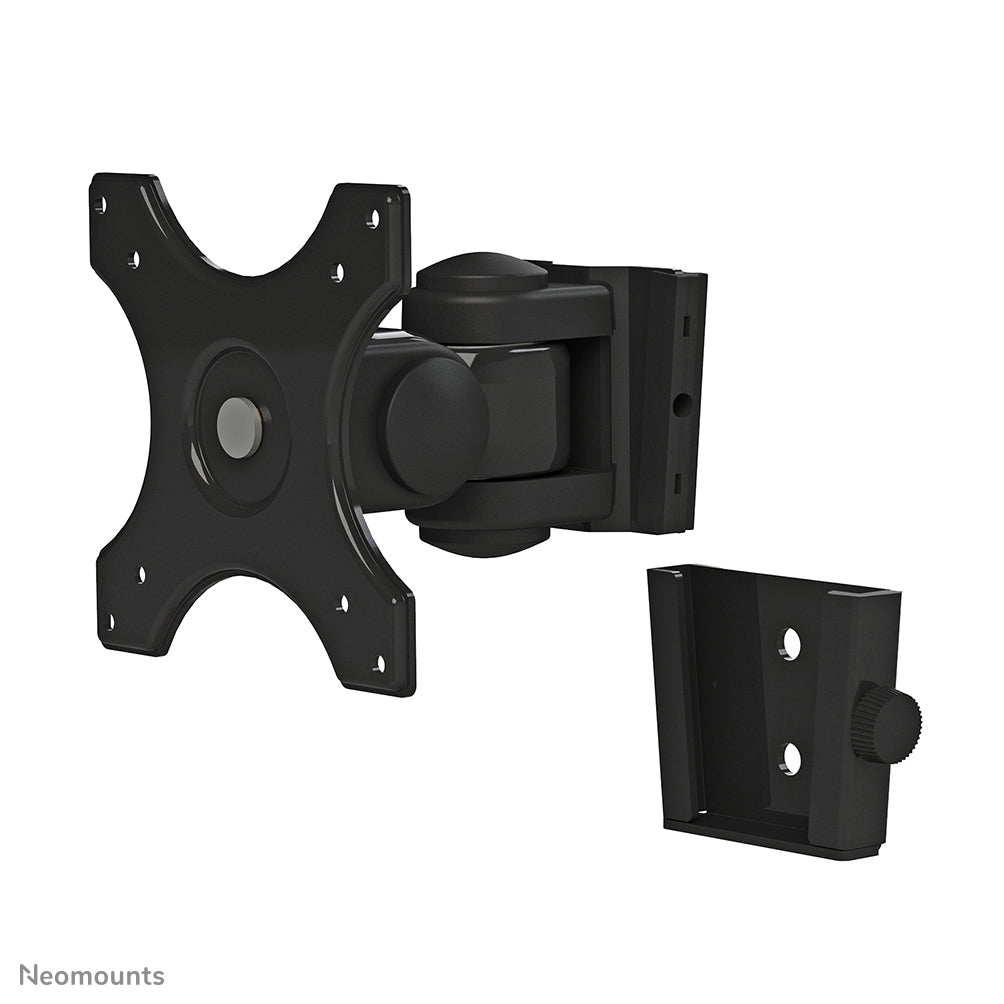

Neomounts FPMA-W250BLACK Monitor/TV mount wall 10-30" - full motion

Position your screen exactly where you need it with the Neomounts FPMA-W250BLACK Monitor/TV mount wall — VESA fit and load ratings are below.

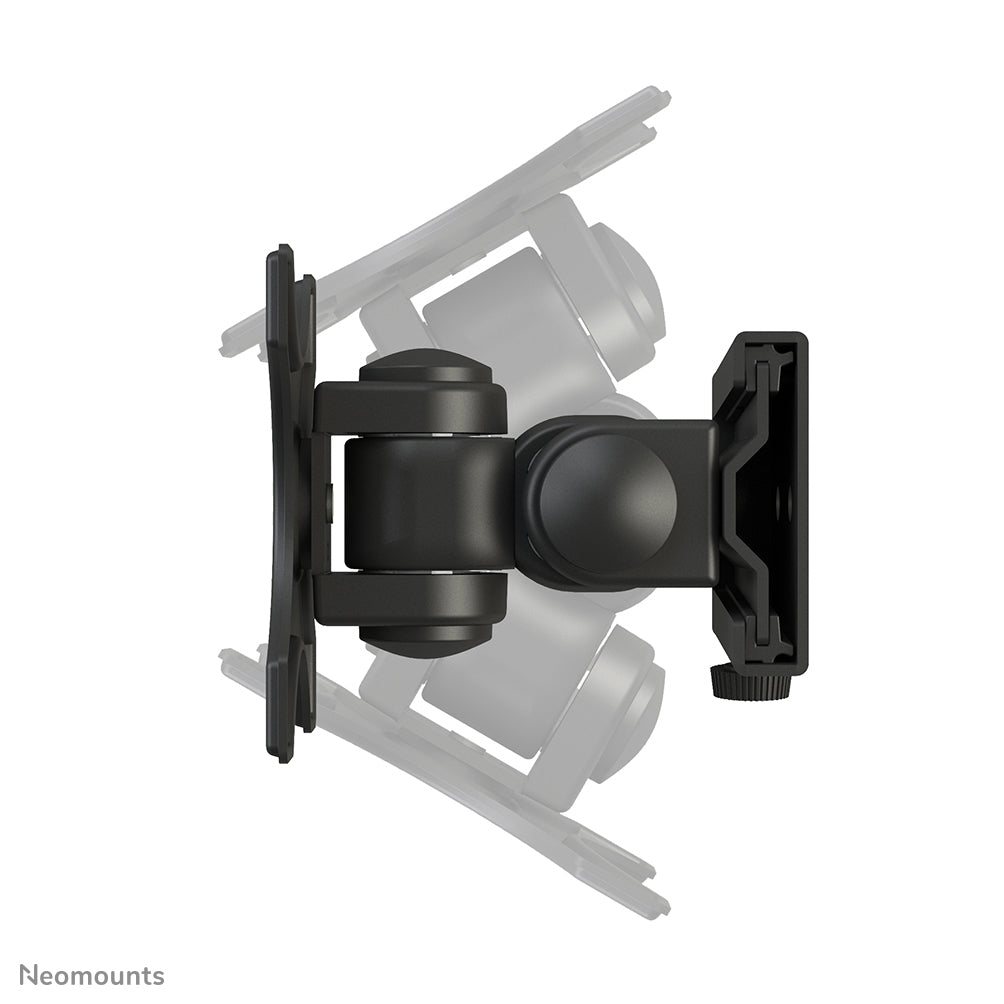

The Neomounts FPMA-W250BLACK wall mount is suitable for flat screens up to 30" with a maximum weight capacity of 12 kg. The mount can tilt and swivel to position the screen in the optimal viewing position.

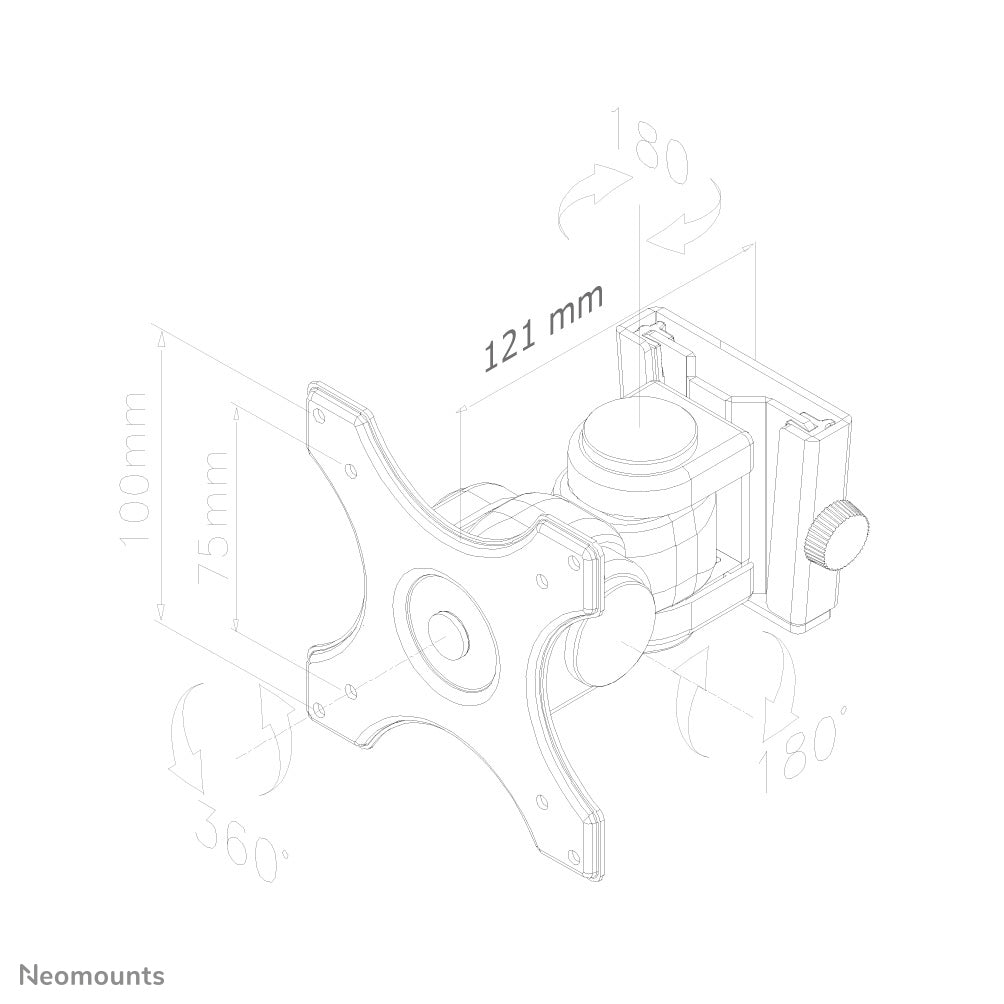

The FPMA-W250BLACK has a depth of 12 cm and is suitable for screens that meet VESA hole pattern 75x75 to 100x100 mm.

Specifications

Mounting
Maximum weight capacity (per display)	12 kg
Mounting type	Wall
Minimum screen size	25.4 cm (10")
Panel mounting interface	75 x 75 mm
Number of displays supported	1
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Maximum screen size	76.2 cm (30")
Maximum weight capacity	12 kg
Ergonomics
Tilt angle range	0 - 180°
Swivel angle range	0 - 180°
Swivel angle	180°
Angle of rotation	360°
Distance to the wall (max)	12 cm
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Type	Full motion
Technical details
Product colour	Black
Country of origin	Taiwan
Package net weight	1.5 kg
Master (outer) case net weight	16.8 kg
Design
Housing material	Steel
Weight & dimensions
Weight	880 g
Packaging data
Package width	143 mm
Package depth	128 mm
Package height	128 mm
Package weight	1.5 kg
Logistics data
Master (outer) case width	455 mm
Master (outer) case length	290 mm
Master (outer) case height	300 mm
Master (outer) case gross weight	18.1 kg
Products per master (outer) case	12 pc(s)
Products per pallet (EU)	216 pc(s)
Harmonized System (HS) code	7326909890

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
