Neomounts FPMA-HAW050 Medical TV mount wall 10-40" - full motion

£247.63 GBP

Sale Sold out

Taxes included.

Condition New

Position your screen exactly where you need it with the Neomounts FPMA-HAW050 Medical TV mount — VESA fit and load ratings are below.

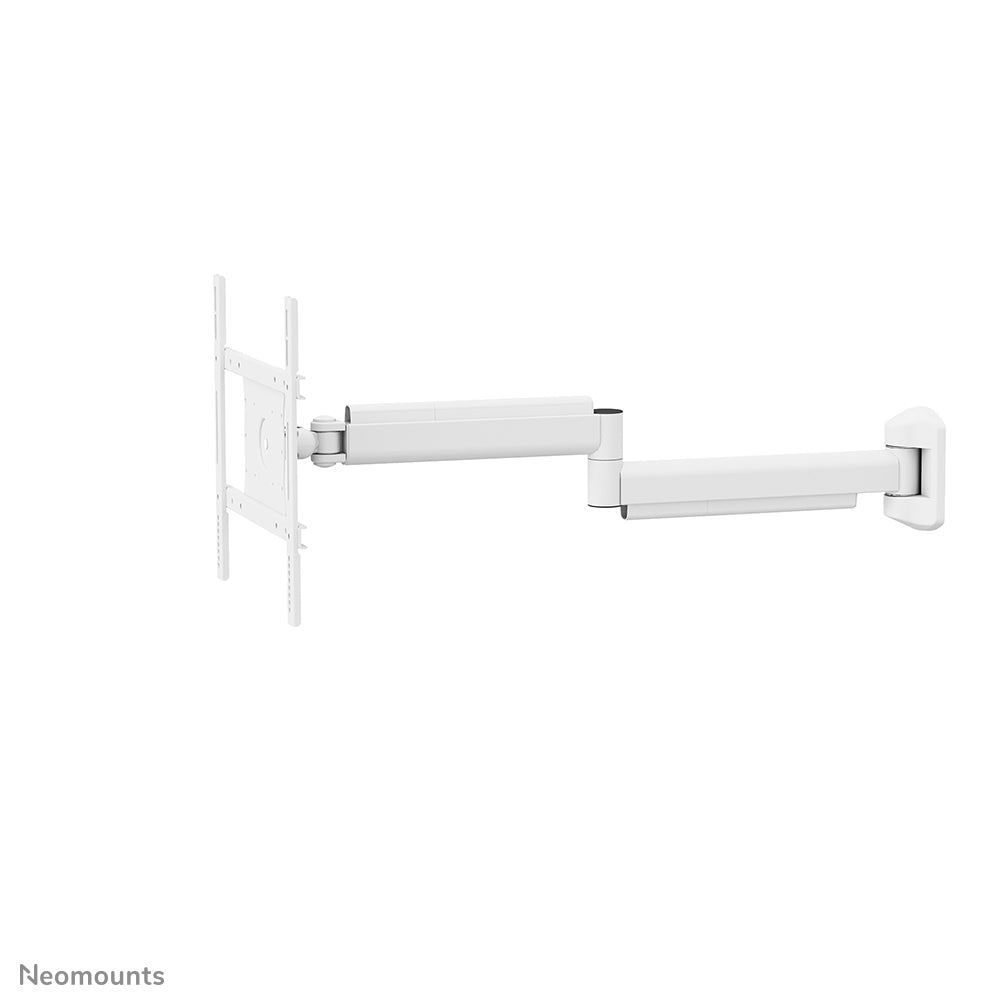

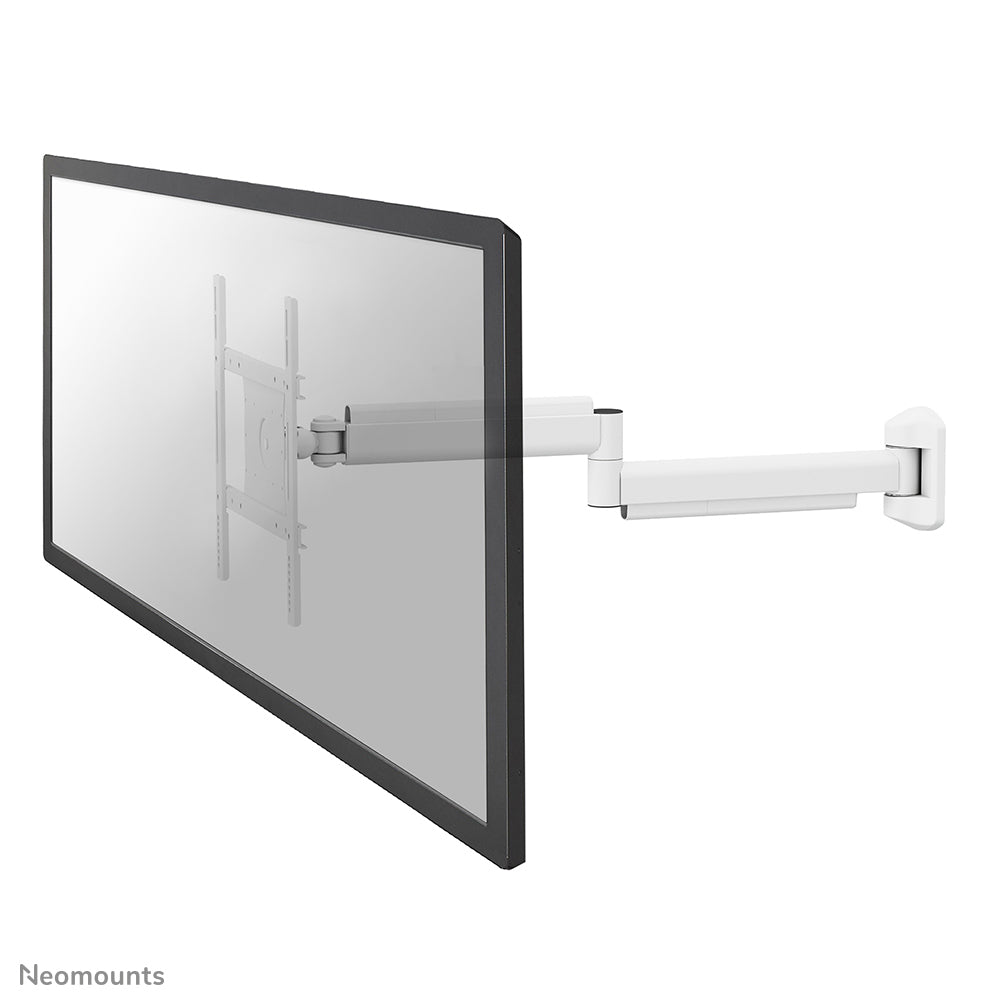

The Neomounts wall mount, model FPMA-HAW050 is a tilt-, turn- and swivel wall mount for medical flat screens up to 40". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.

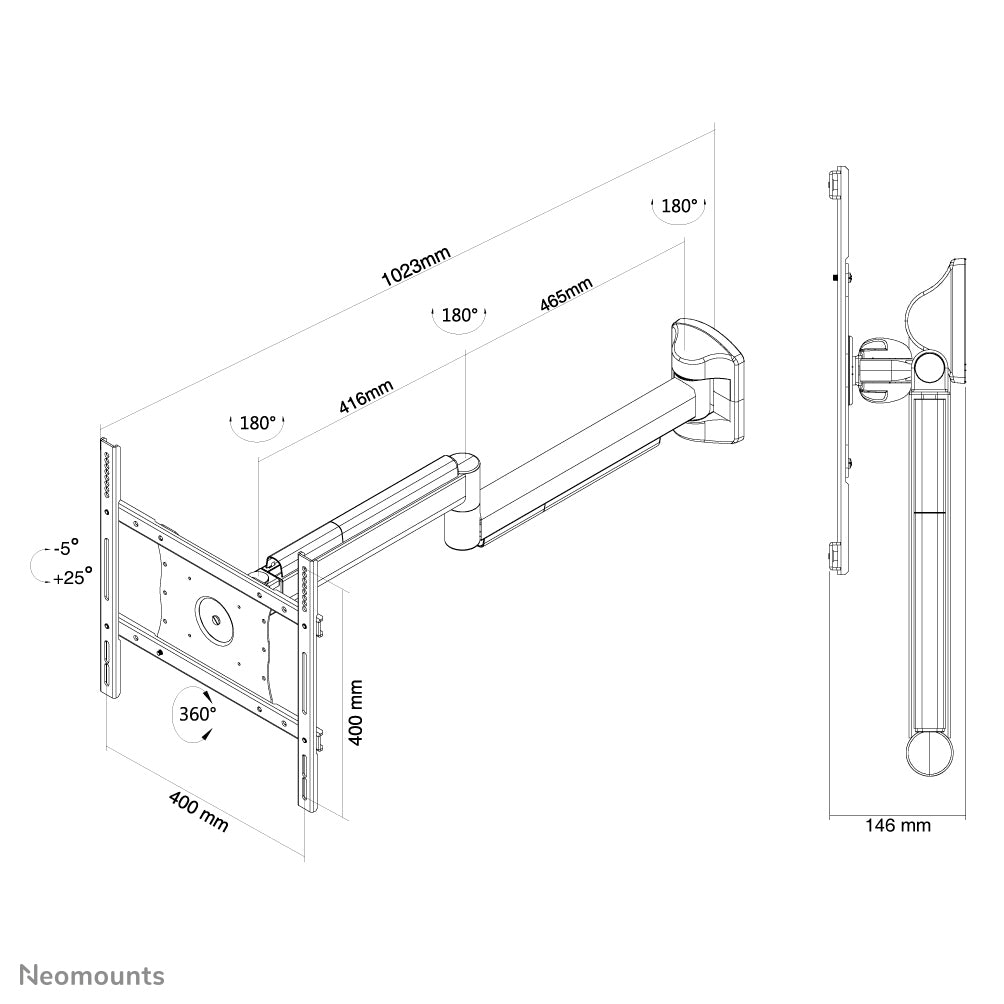

Neomounts' unique tilt (30°), turn (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily depth adjustable from 15 to 102 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-HAW050 has three pivot points and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 10 kg. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

All installation material is included with the product.

Specifications

Mounting
Maximum weight capacity (per display)	10 kg
Minimum screen size	25.4 cm (10")
Panel mounting interface	100 x 200,100 x 100,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 400 mm
Maximum weight capacity	10 kg
Maximum screen size	101.6 cm (40")
Depth (min)	15 cm
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Depth adjustment range	150 - 1020 mm
Swivel angle range	0 - 180°
Swivel angle	180°
Tilt angle range	0 - 30°
Angle of rotation	360°
Number of pivot points	3
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	White
Housing material	Steel
Weight & dimensions
Weight	8.97 kg
Package width	580 mm
Package depth	310 mm
Package height	200 mm
Package weight	10 kg
Package net weight	10 kg
Other features
Depth (max)	102 cm
Country of origin	Taiwan
Logistics data
Master (outer) case width	310 mm
Master (outer) case length	200 mm
Master (outer) case height	580 mm
Master (outer) case gross weight	10 kg
Products per master (outer) case	1 pc(s)
Products per pallet (EU)	50 pc(s)
Master (outer) case net weight	10 kg
Harmonized System (HS) code	7326909890
