Neomounts

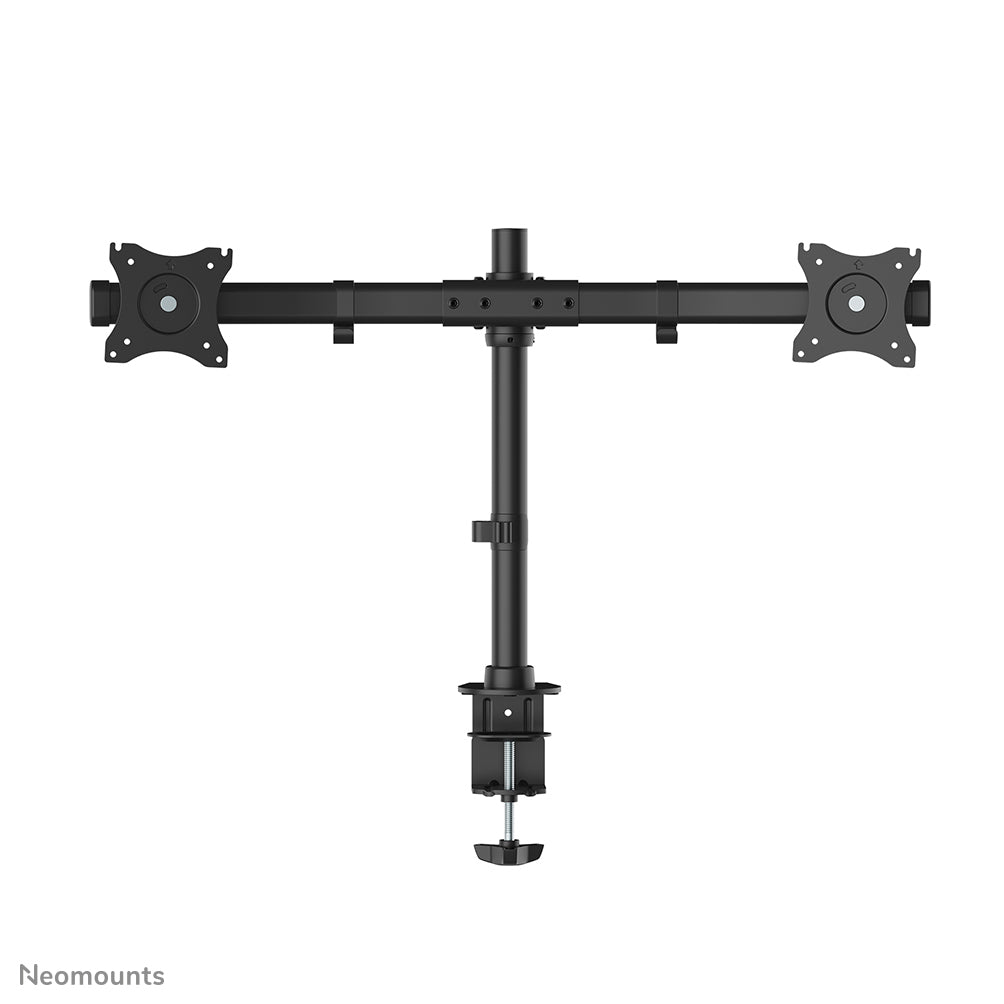

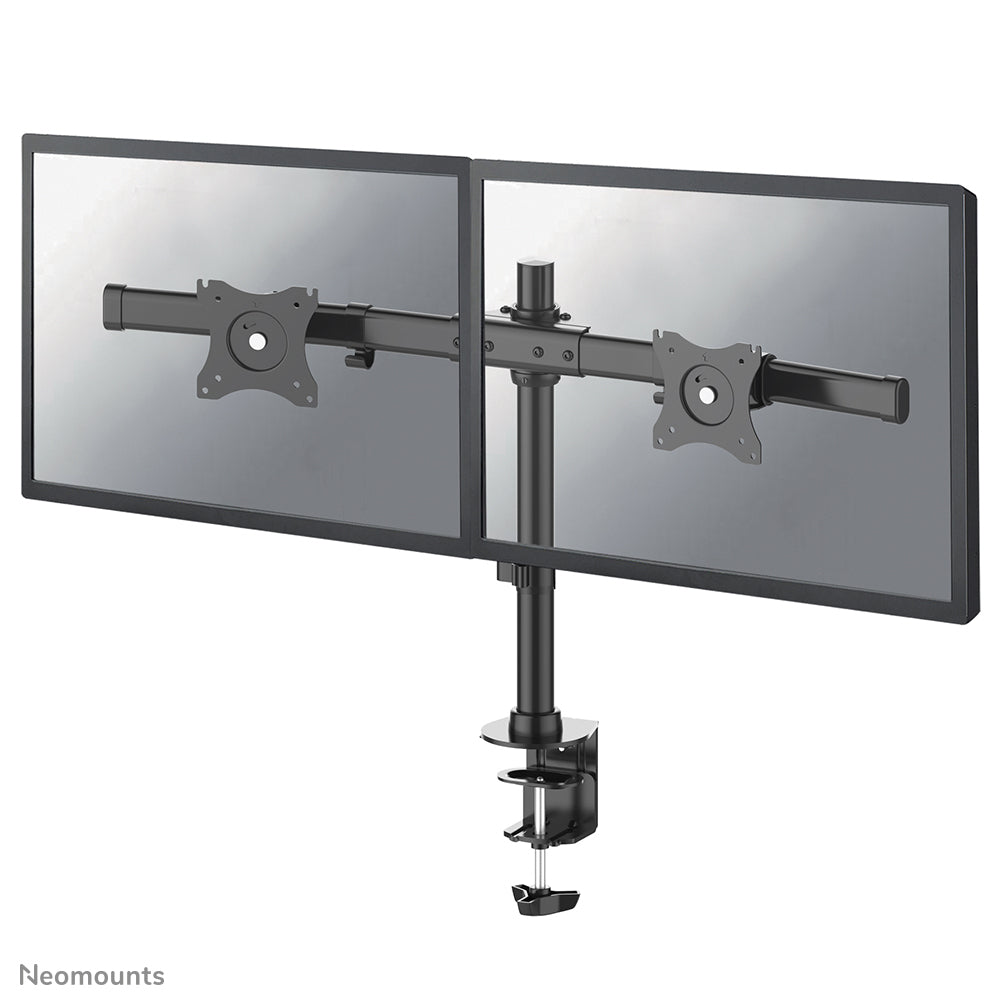

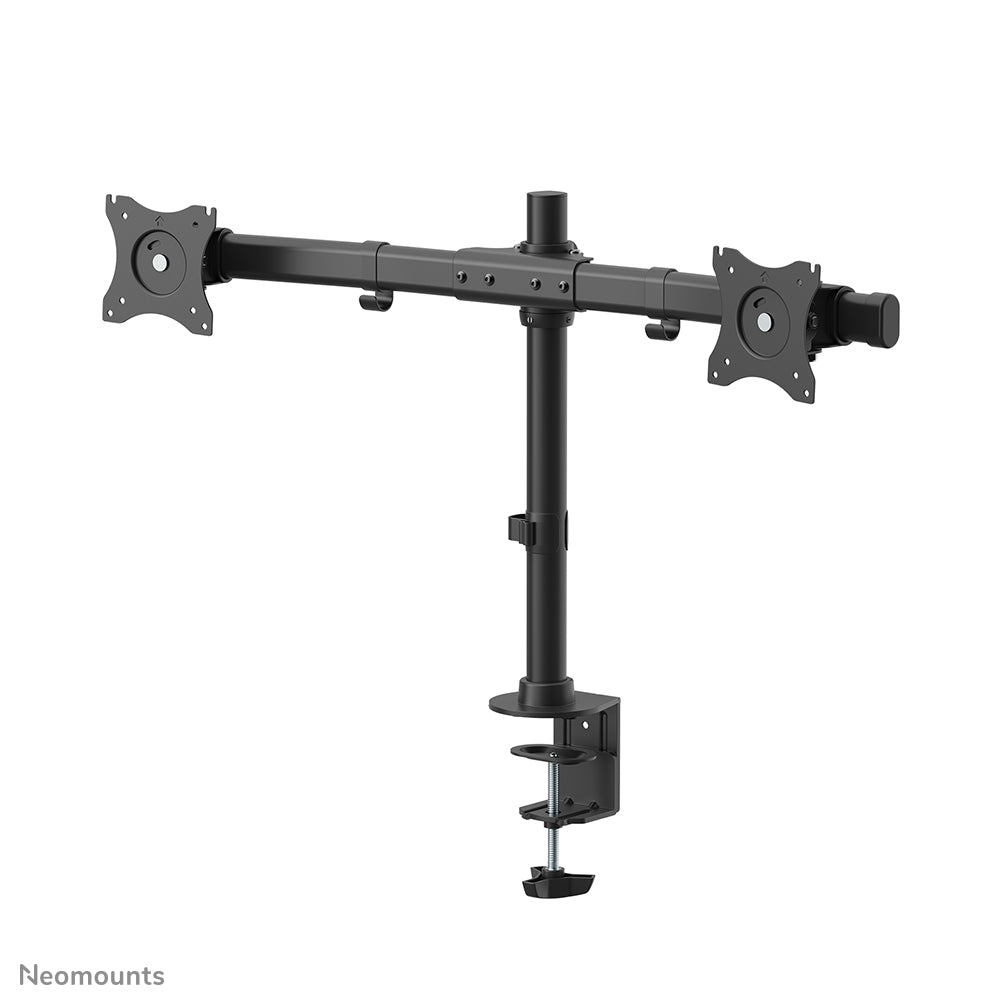

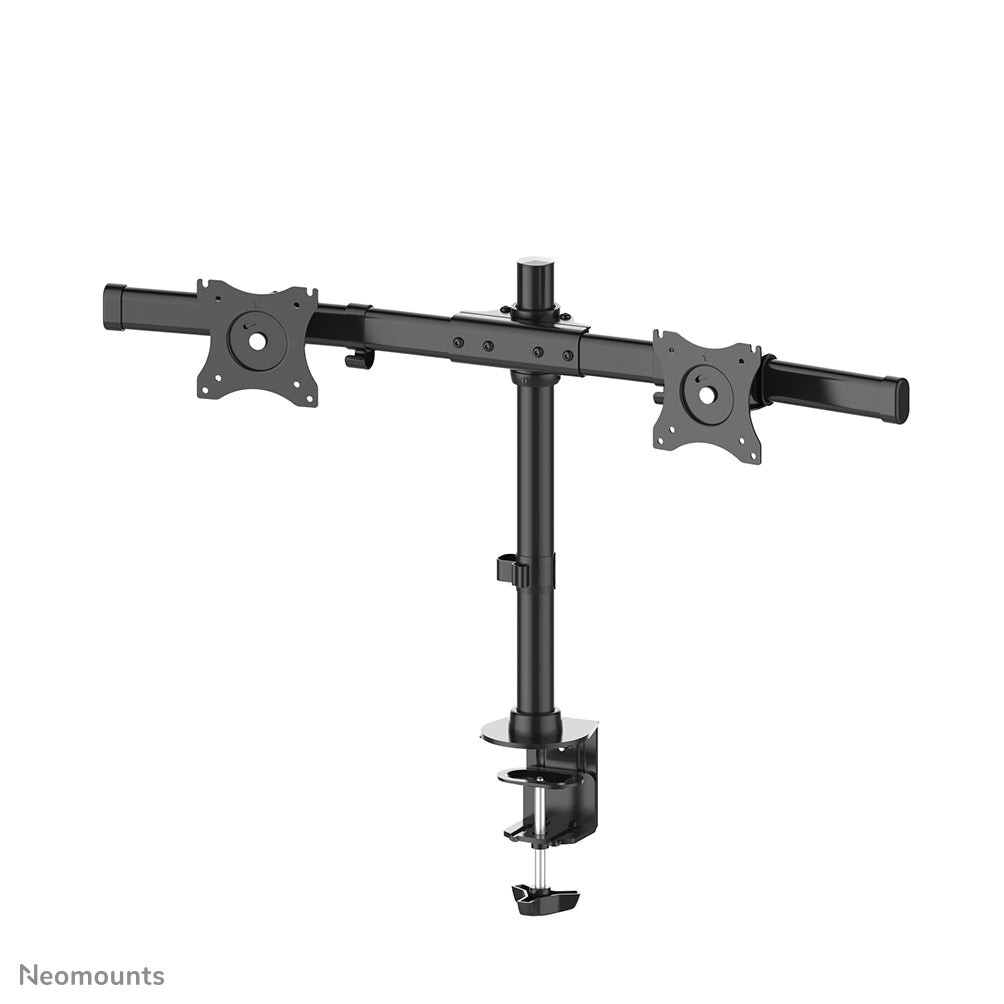

Neomounts FPMA-DCB100DBLACK Monitor arm 10-27"

£57.68 GBP

Sale Sold out

Taxes included.

Condition New

Position your screen exactly where you need it with the Neomounts FPMA-DCB100DBLACK Monitor arm 10-27" — VESA fit and load ratings are below.

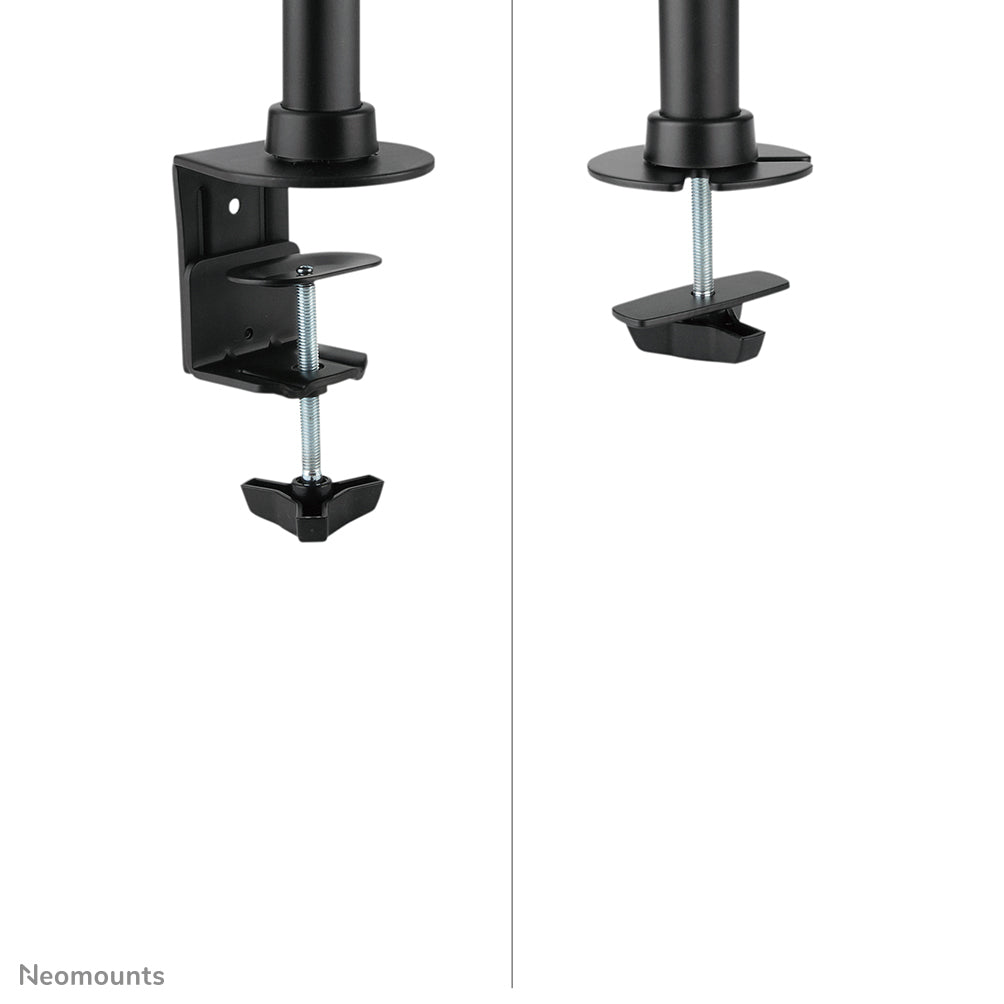

The Neomounts desk mount, model FPMA-DCB100DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This dual crossbar mount is a great choice for space saving placement on desks using a desk clamp or desk grommet.

Neomounts versatile tilt (+45°/-45°), rotate (360°) and swivel (30°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 45 centimetres. The cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-DCB100DBLACK has a crossbar with two monitor holders with one pivot point and is suitable for screens up to 27". The weight capacity of this product is 10 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates. The pole of the desk mount has a diameter of 35 mm.

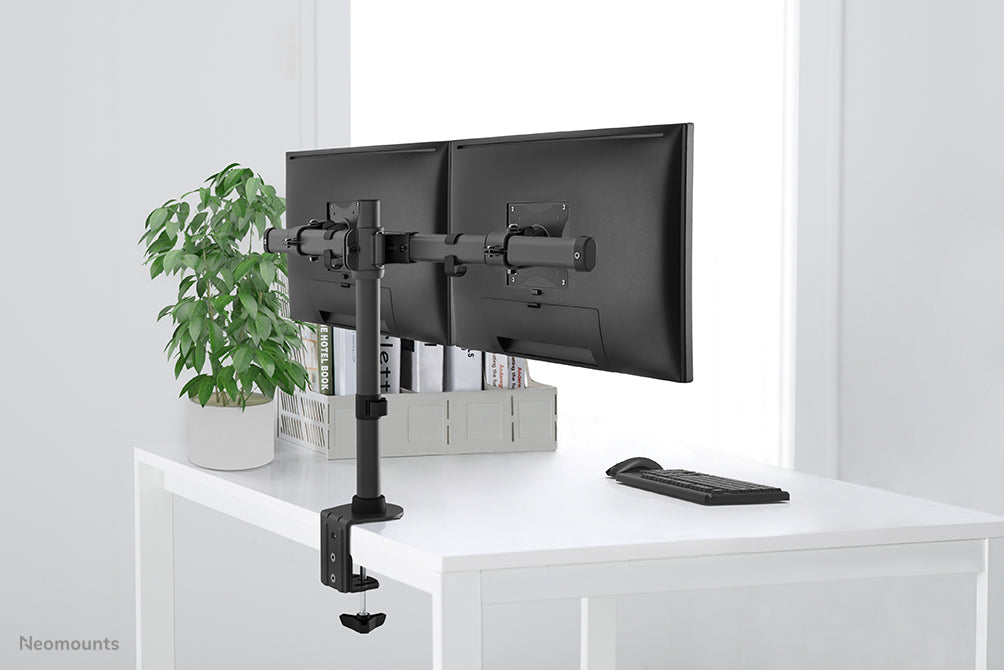

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. This mount is the ultimate save spacer on your desk.

All installation material is included with the product.

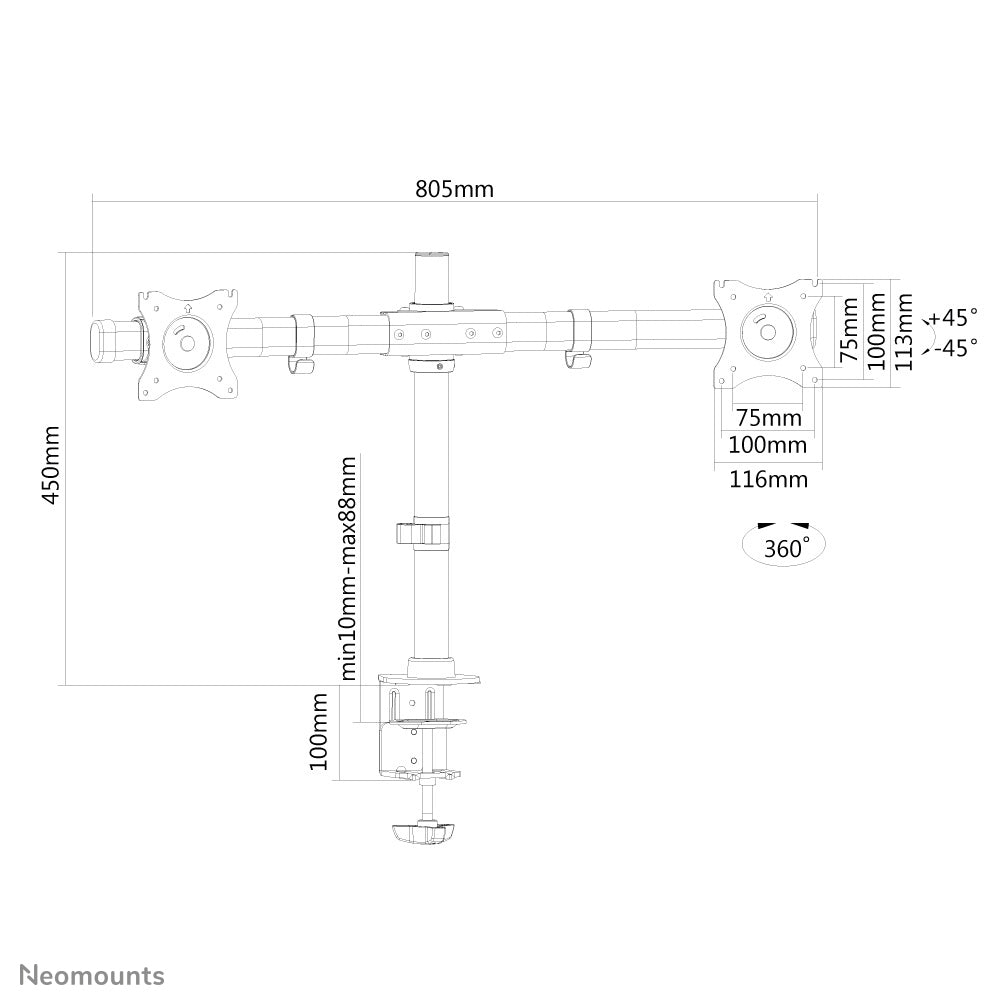

Specifications

Mounting
Maximum weight capacity (per display)	10 kg
Desk thickness (max)	9 cm
Minimum screen size	25.4 cm (10")
Panel mounting interface	100 x 100,75 x 75 mm
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Maximum weight capacity	10 kg
Maximum screen size	68.6 cm (27")
Ergonomics
Depth adjustment range	0 - 80 mm
Height adjustment	Yes
Height adjustment range	0 - 450 mm
Pivot angle	-180 - 180°
Swivel angle range	-15 - 15°
Swivel angle	30°
Tilt angle range	-45 - 45°
Angle of rotation	360°
Number of pivot points	1
Height adjustment type	Manual
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	Black
Housing material	Steel
Weight & dimensions
Depth	80 mm
Height	450 mm
Weight	4.03 kg
Package width	166 mm
Package depth	120 mm
Package height	512 mm
Package weight	5.3 kg
Logistics data
Master (outer) case width	345 mm
Master (outer) case length	255 mm
Master (outer) case height	525 mm
Master (outer) case gross weight	21.1 kg
Products per master (outer) case	4 pc(s)
Country of origin	China
Products per pallet (EU)	100 pc(s)
Master (outer) case net weight	16.5 kg
Harmonized System (HS) code	7326909890
