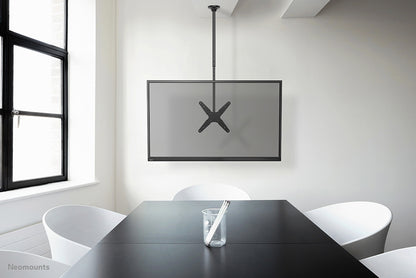

Neomounts FPMA-C340BLACK Monitor/TV mount ceiling 32-75" - h 106-156 cm
Neomounts FPMA-C340BLACK Monitor/TV mount ceiling 32-75" - h 106-156 cm
Regular price
£65.87 GBP
Regular price
Sale price
£65.87 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Position your screen exactly where you need it with the Neomounts FPMA-C340BLACK Monitor/TV mount ceiling — VESA fit and load ratings are below.

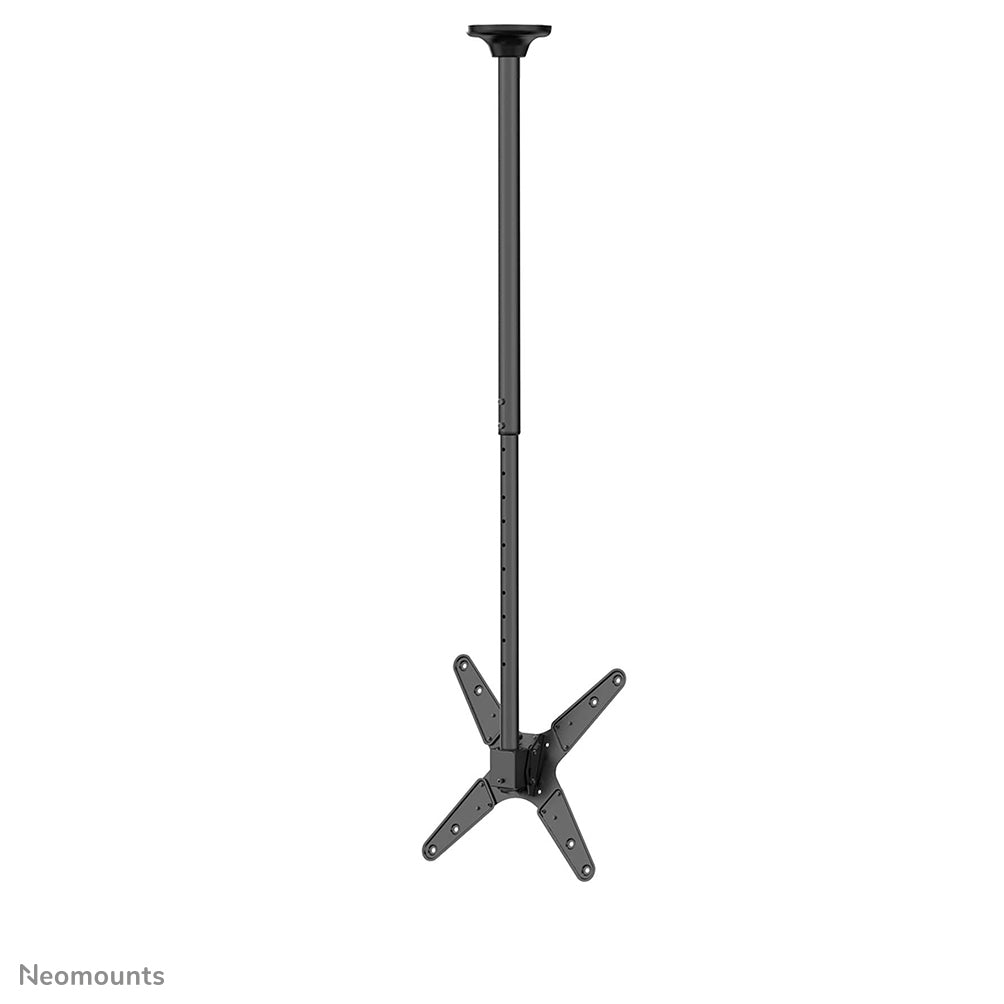

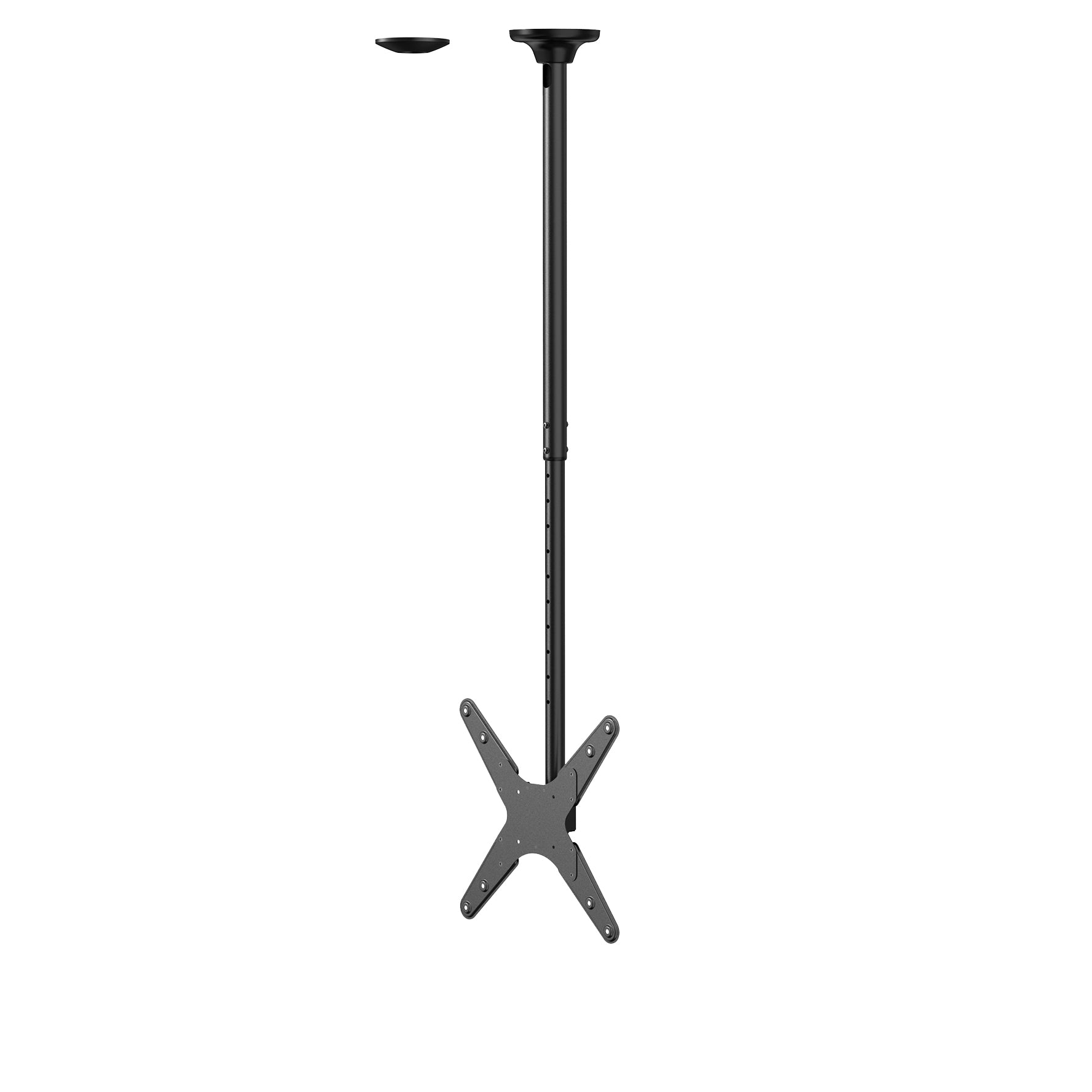

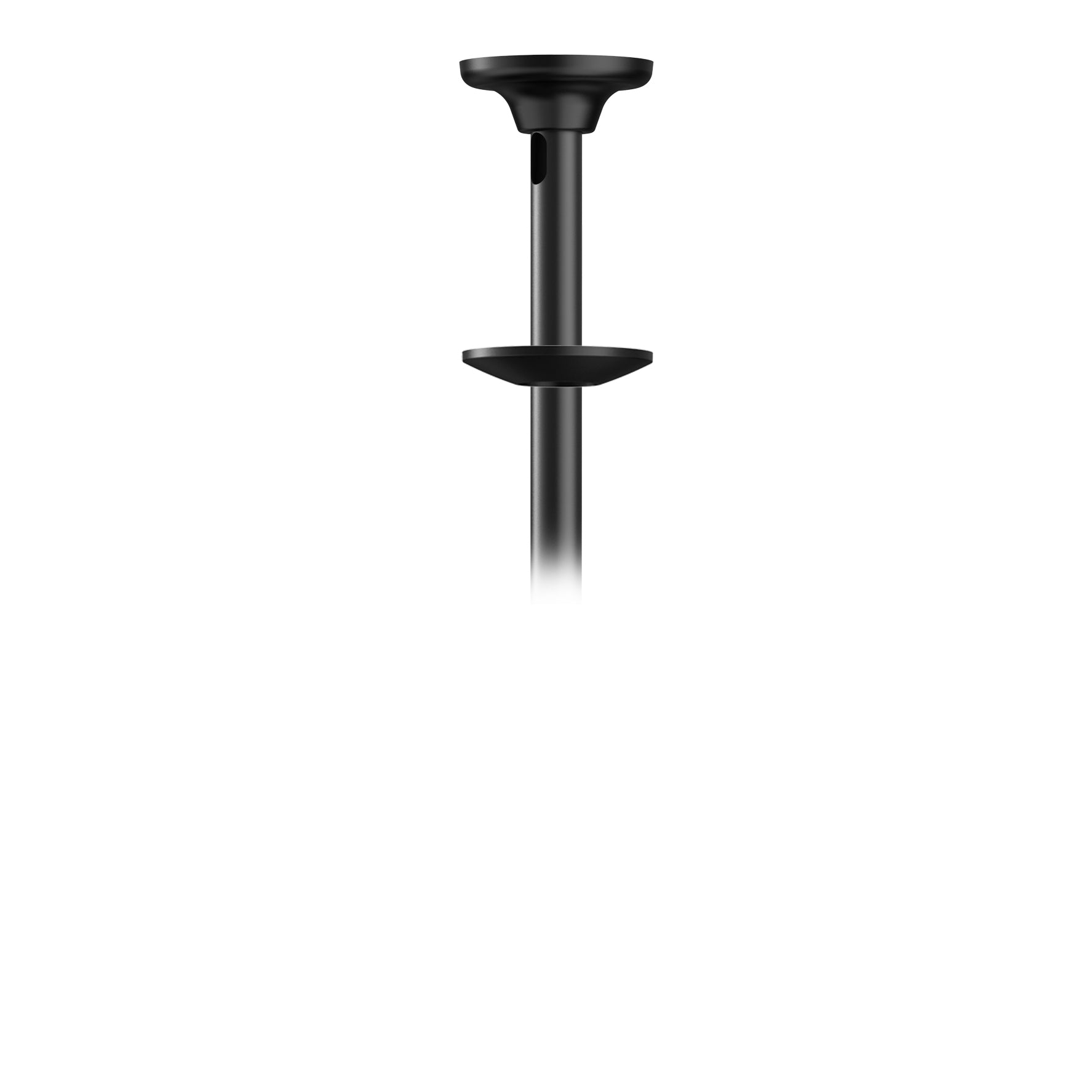

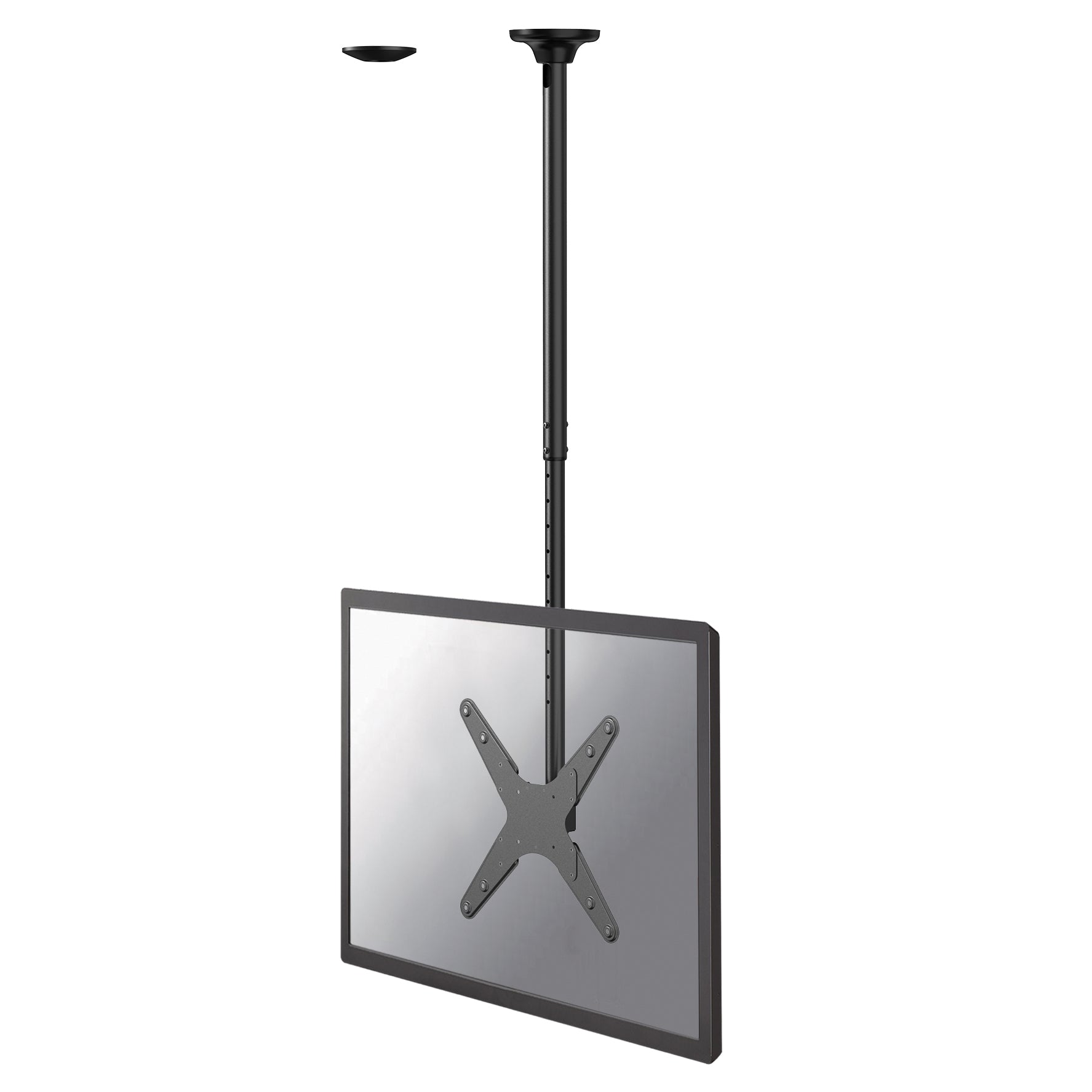

The Neomounts FPMA-C340BLACK is a full motion ceiling mount for flat screens up to 75". The unique tilt (25°), swivel (360°) and rotate technology (6°) allows the mount to change to the best angle for the optimal viewing position.The ceiling mount can be easily adjusted in height from 106 to 156 cm* and has a weight capacity of 50 kg. The FPMA-C340BLACK is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. A nifty cable management systems conceals and routes cables from ceiling to screen. The mount comes with an additional cover for installation on suspended ceilings.
* The Neomounts NS-EP100BLACK is an extension pole for ceiling mount models NM-C440BLACK, NM-C440DBLACK, FPMA-C340BLACK and FPMA-C340DBLACK. This pole can be used as extra extension to the pole included with the models. In this way, the height of the ceiling mounts can be increased with an extra 107,5 cm.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 50 kg |
| Mounting type | Ceiling |
| Minimum screen size | 81.3 cm (32") |
| Panel mounting interface | 150 x 200,200 x 100,300 x 300,400 x 200,400 x 400 |
| Number of displays supported | 1 |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Maximum screen size | 190.5 cm (75") |
| Maximum weight capacity | 50 kg |
| Ergonomics | |
| Height adjustment | Yes |

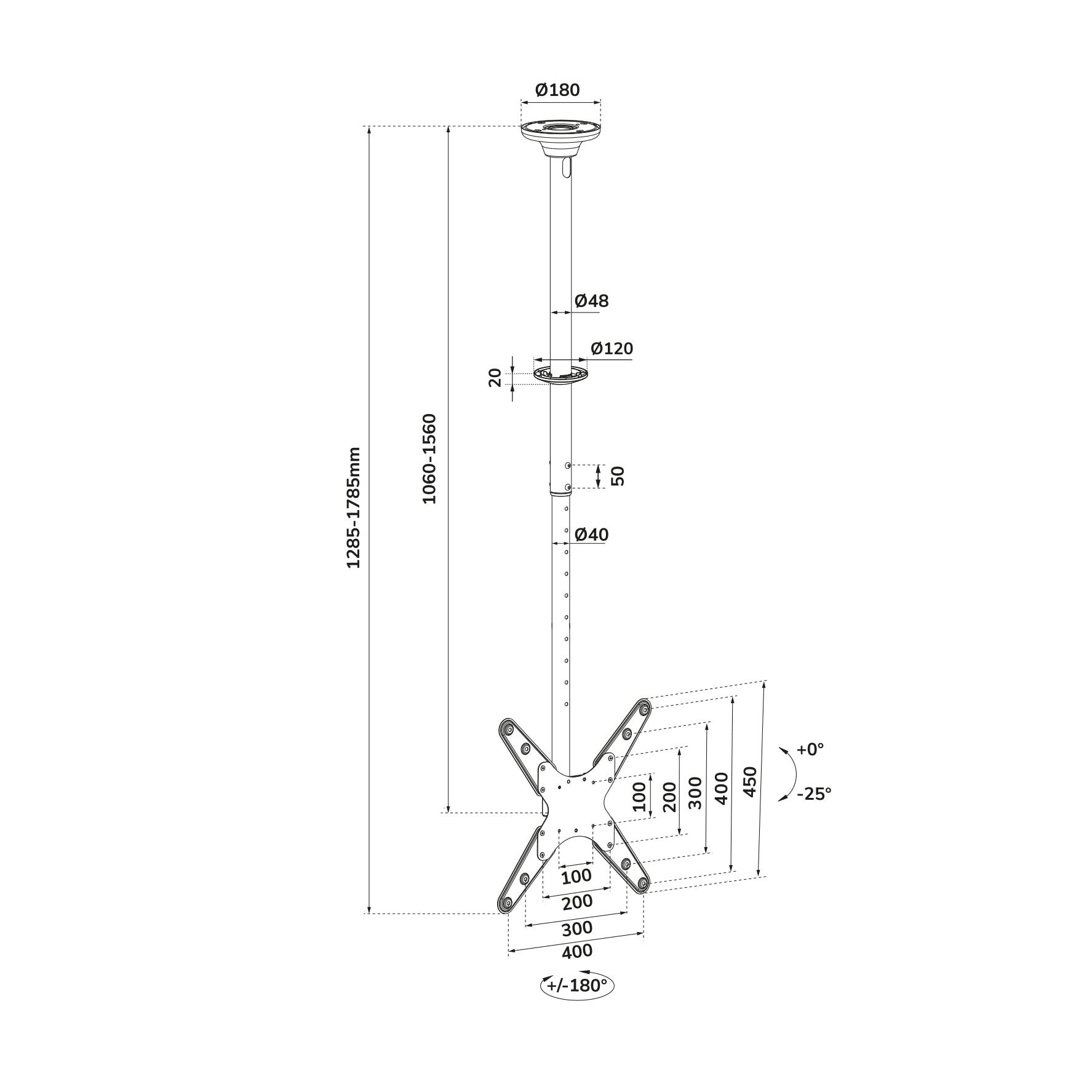

| Height adjustment range | 1060 - 1560 mm |
| Tilt angle range | -25 - 0° |
| Swivel angle range | -180 - 180° |
| Swivel angle | 360° |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Number of pivot points | 1 |
| Height adjustment type | Manual |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Tilt angle | 25° |
| Technical details | |
| Product colour | Black |
| Country of origin | China |
| Package net weight | 12.8 kg |
| Master (outer) case net weight | 17.6 kg |
| Design | |
| Housing material | Steel |
| Weight & dimensions | |
| Height | 1785 mm |
| Weight | 5.54 kg |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 145 mm |
| Package height | 930 mm |
| Package weight | 8.8 kg |
| Logistics data | |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case height | 950 mm |
| Master (outer) case gross weight | 17.6 kg |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 30 pc(s) |
| Harmonized System (HS) code | 7326909890 |
