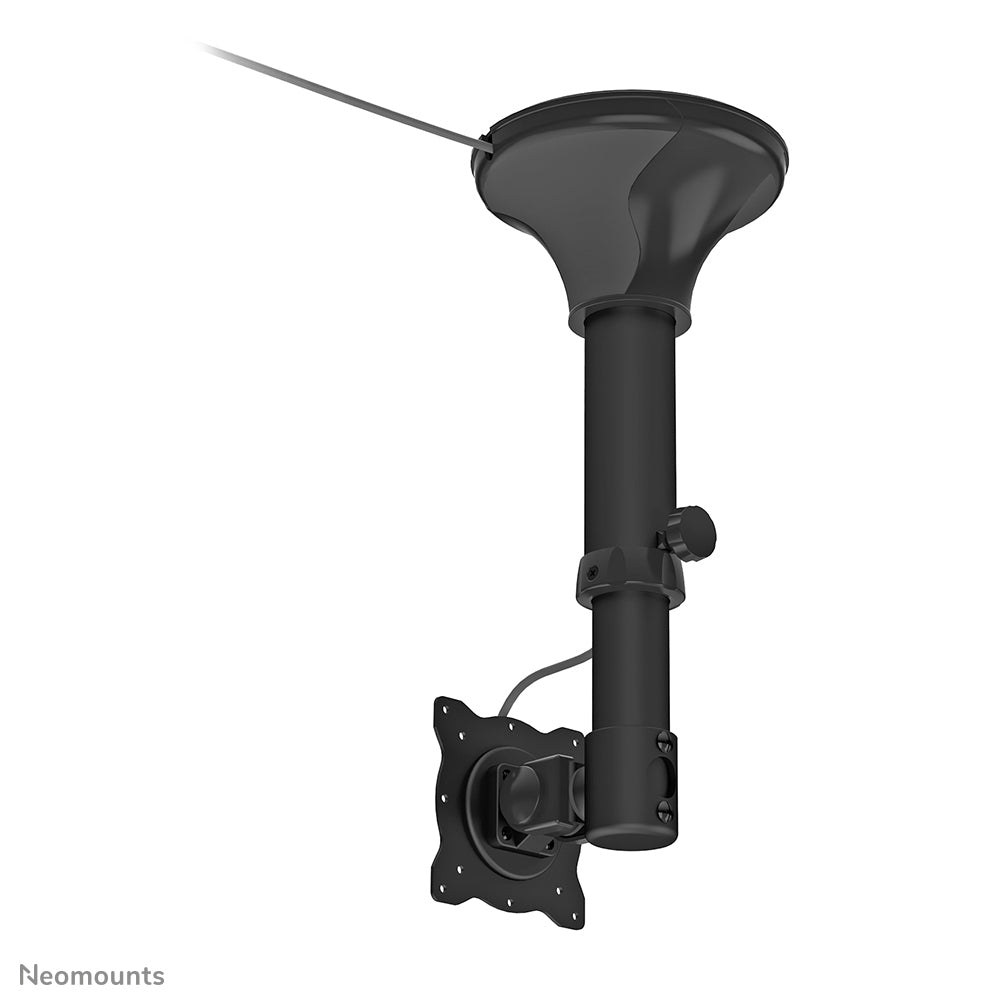

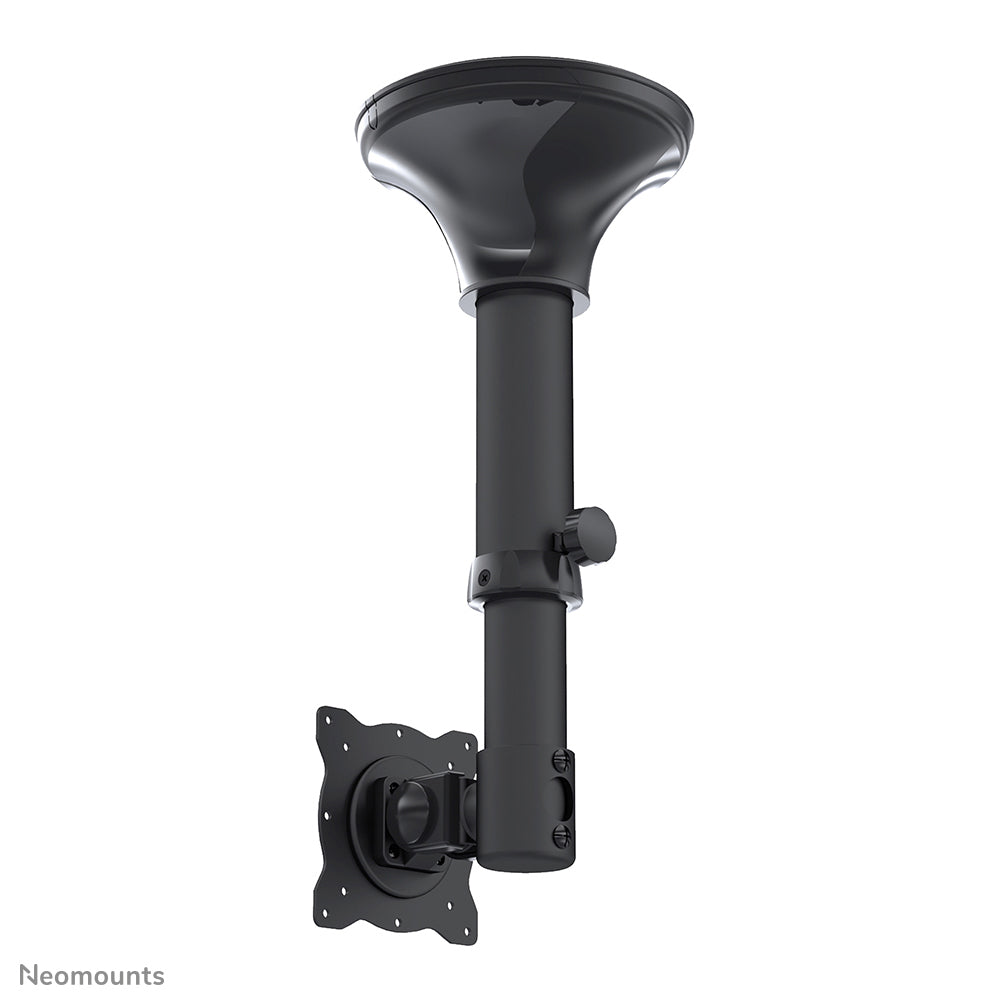

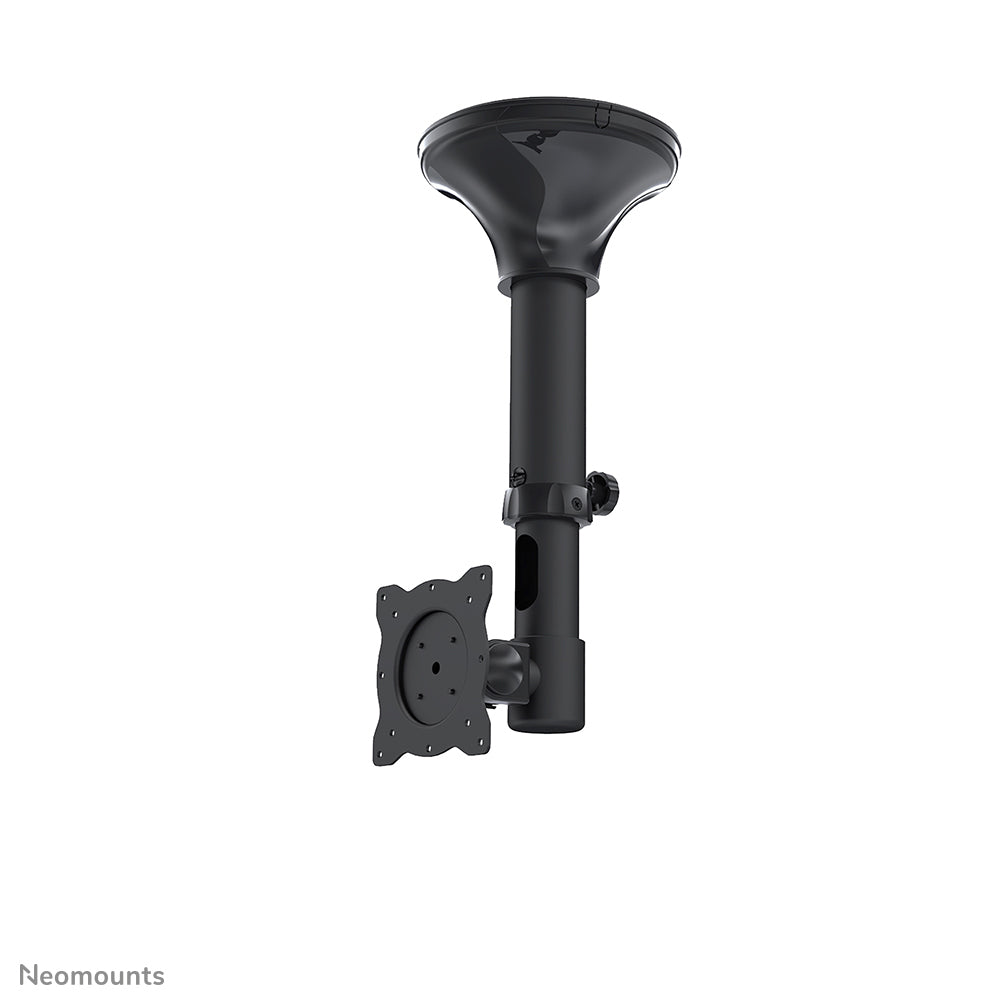

Neomounts FPMA-C025BLACK Monitor/TV mount ceiling 10-30" - h 37-47 cm - tiltable

Position your screen exactly where you need it with the Neomounts FPMA-C025BLACK Monitor/TV mount ceiling — VESA fit and load ratings are below.

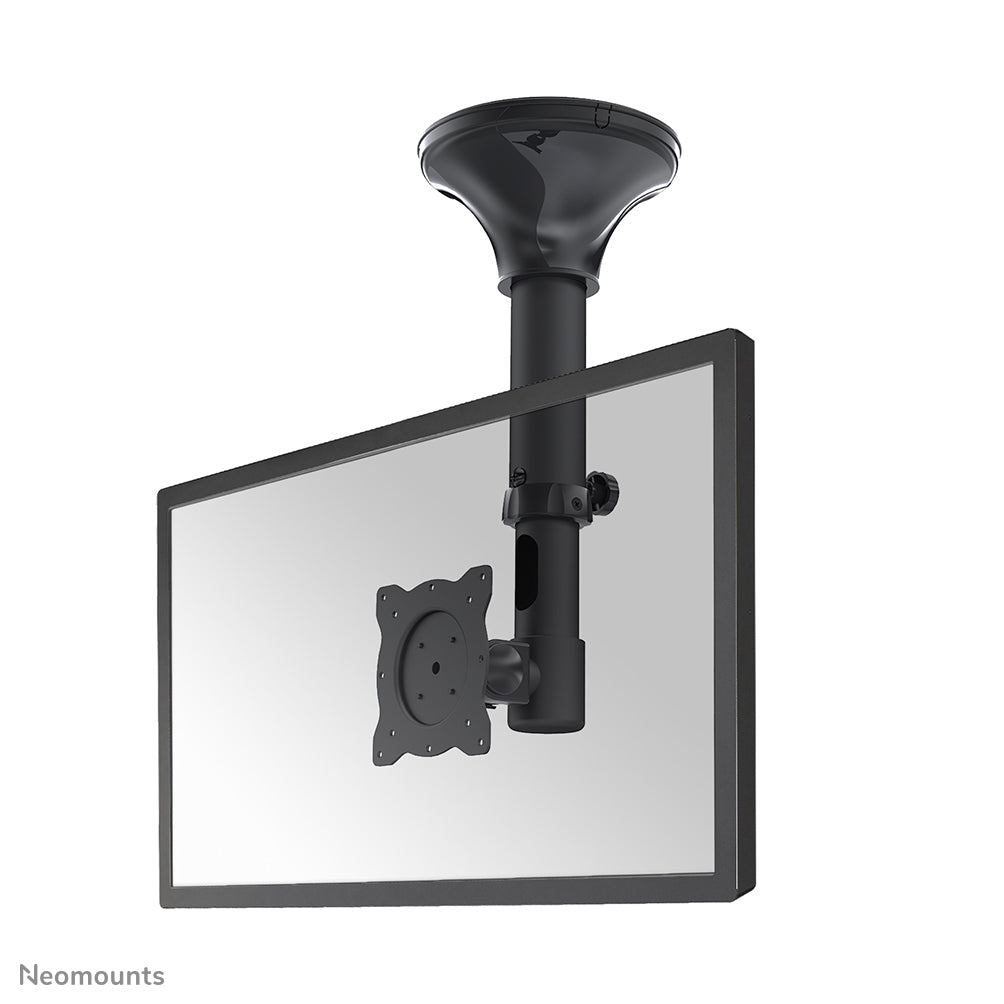

The Neomounts ceiling mount, model FPMA-C025BLACK is a tilt- and rotatable ceiling mount for flat screens up to 30" (76 cm). This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

Neomounts versatile tilt (180°) and rotate (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 37 to 47 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

Neomounts FPMA-C025BLACK has one pivot point and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 12 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

All installation material is included with the product.

Specifications

Mounting
Maximum weight capacity (per display)	12 kg
Mounting type	Ceiling
Minimum screen size	25.4 cm (10")

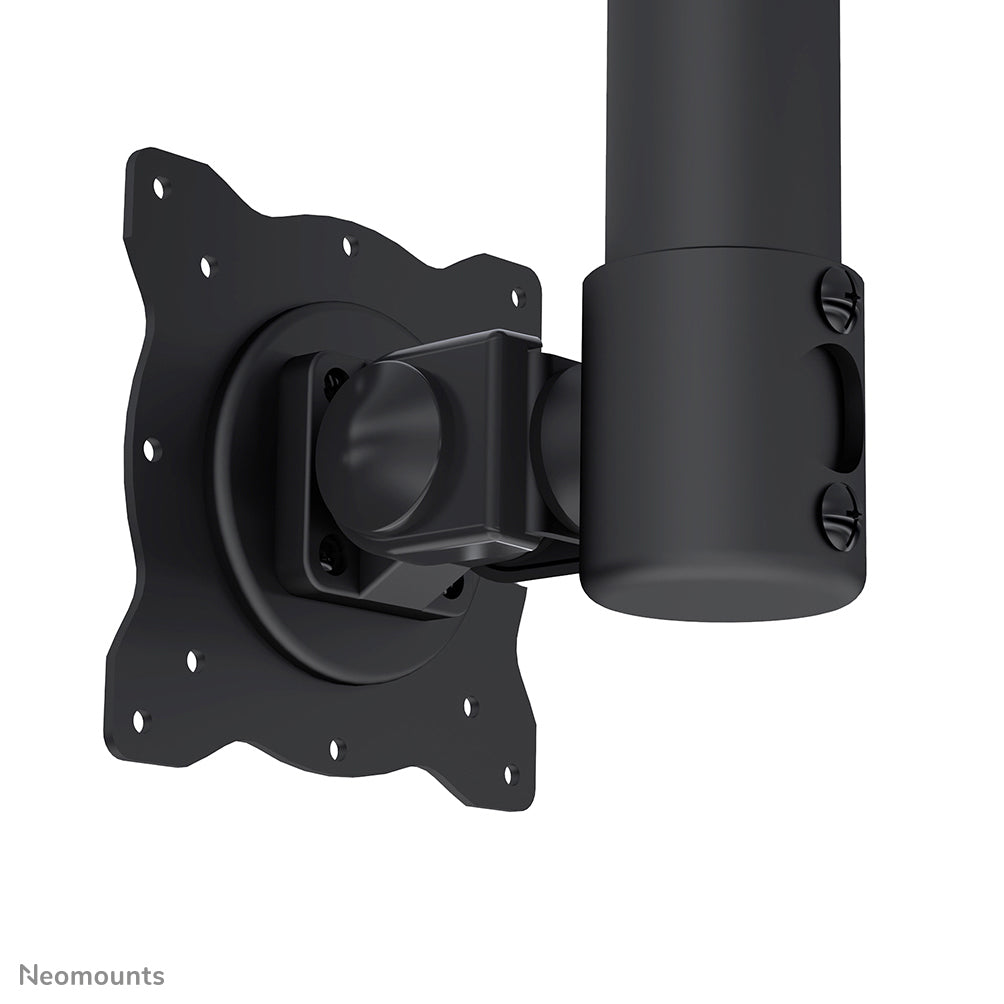

Panel mounting interface	100 x 100,75 x 75 mm
Number of displays supported	1
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Maximum screen size	76.2 cm (30")
Maximum weight capacity	12 kg
Ergonomics

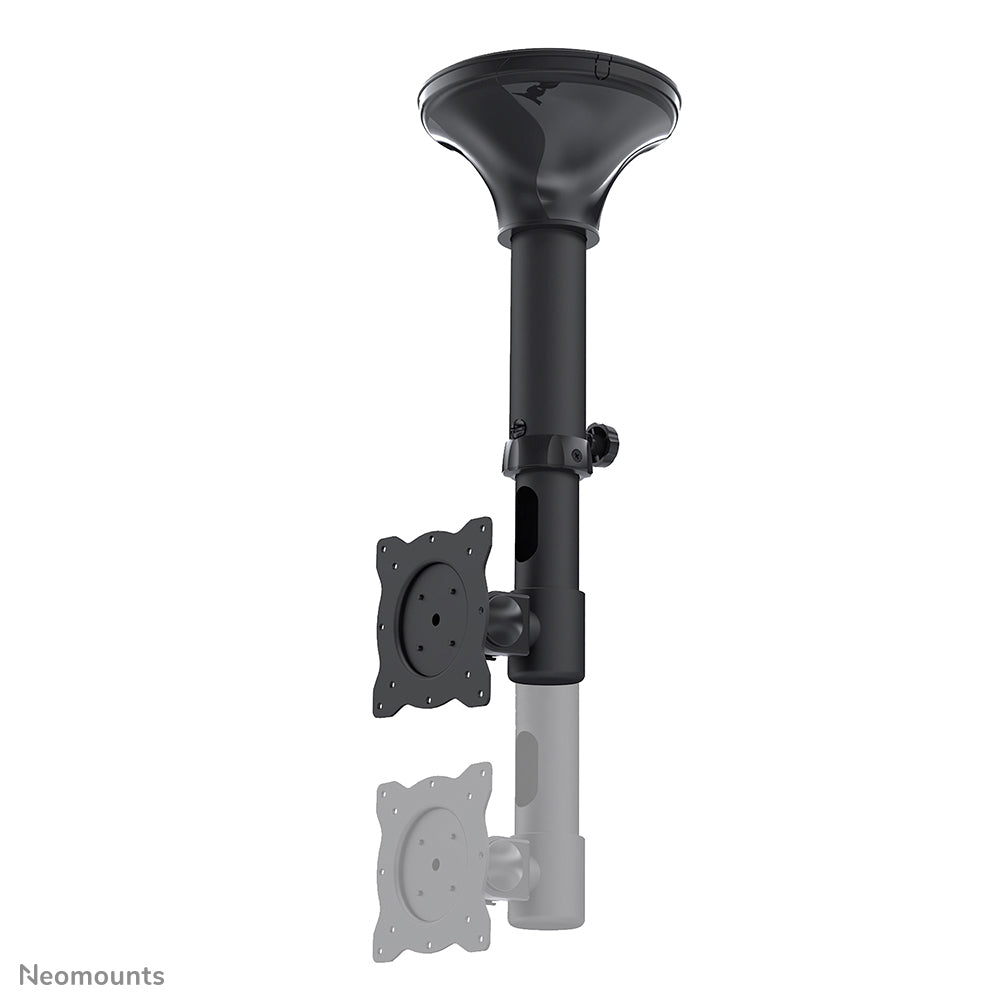

Height adjustment	Yes

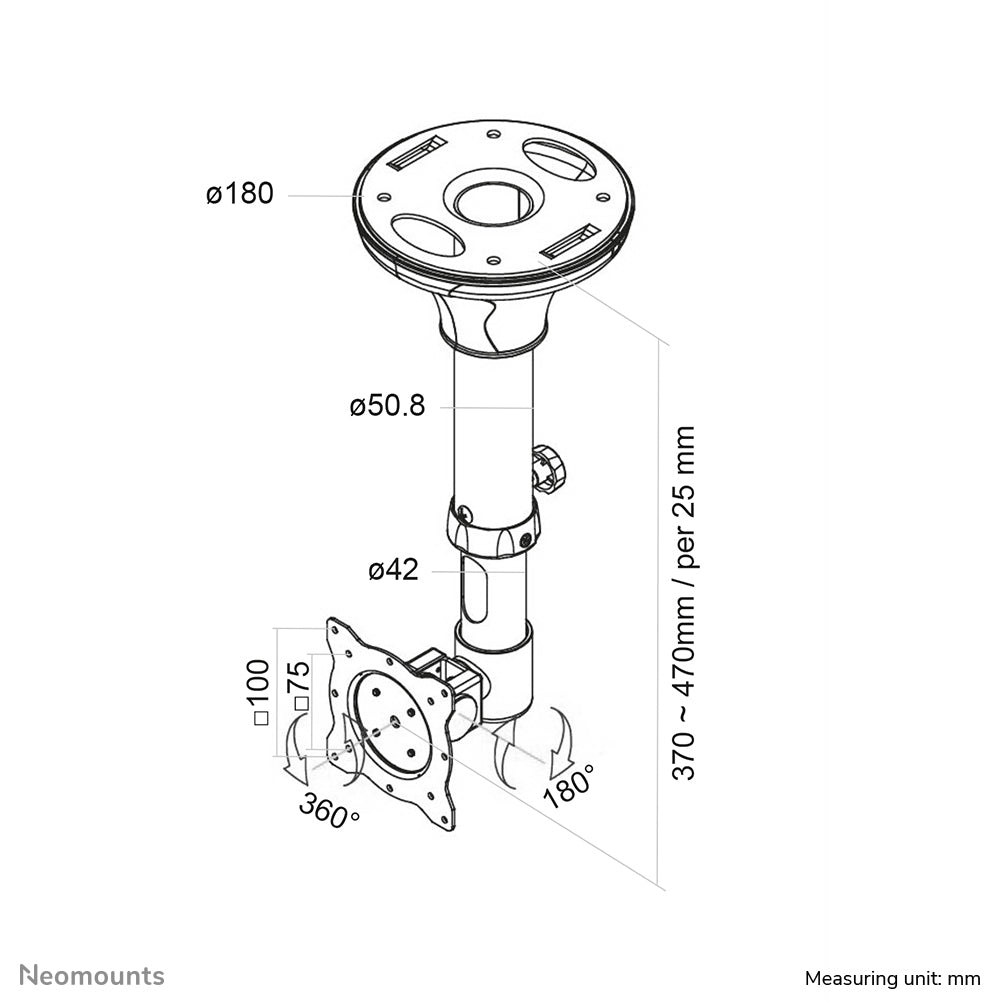

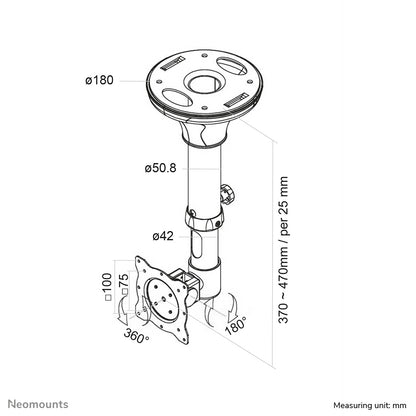

Height adjustment range	370 - 470 mm
Tilt angle range	0 - 180°
Angle of rotation	360°
Height adjustment type	Manual
Tilt adjustment	Yes
Tilt angle	180°
Technical details
Product colour	Black
Country of origin	Taiwan
Master (outer) case net weight	9.3 kg
Design
Housing material	Steel
Weight & dimensions
Depth	50 mm
Height	470 mm
Weight	2.37 kg
Packaging data
Package width	403 mm
Package depth	182 mm
Package height	191 mm
Package weight	2.8 kg
Logistics data
Master (outer) case width	590 mm
Master (outer) case length	437 mm
Master (outer) case height	240 mm
Master (outer) case gross weight	10.5 kg
Products per master (outer) case	3 pc(s)
Products per pallet (EU)	84 pc(s)
Harmonized System (HS) code	7326909890
Other features
Depth adjustment range	0 - 50 mm

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
