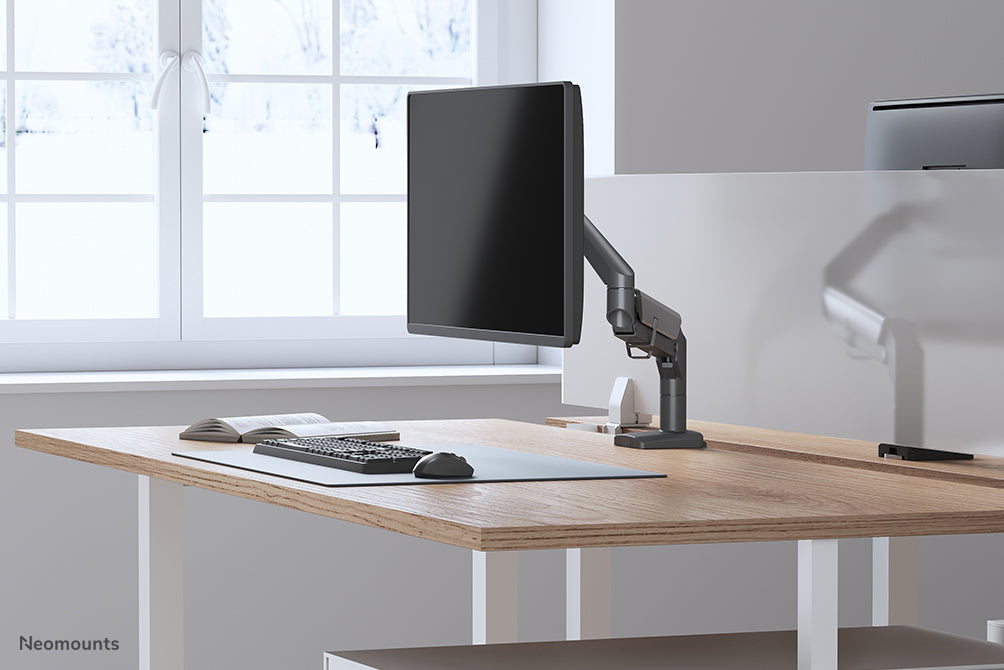

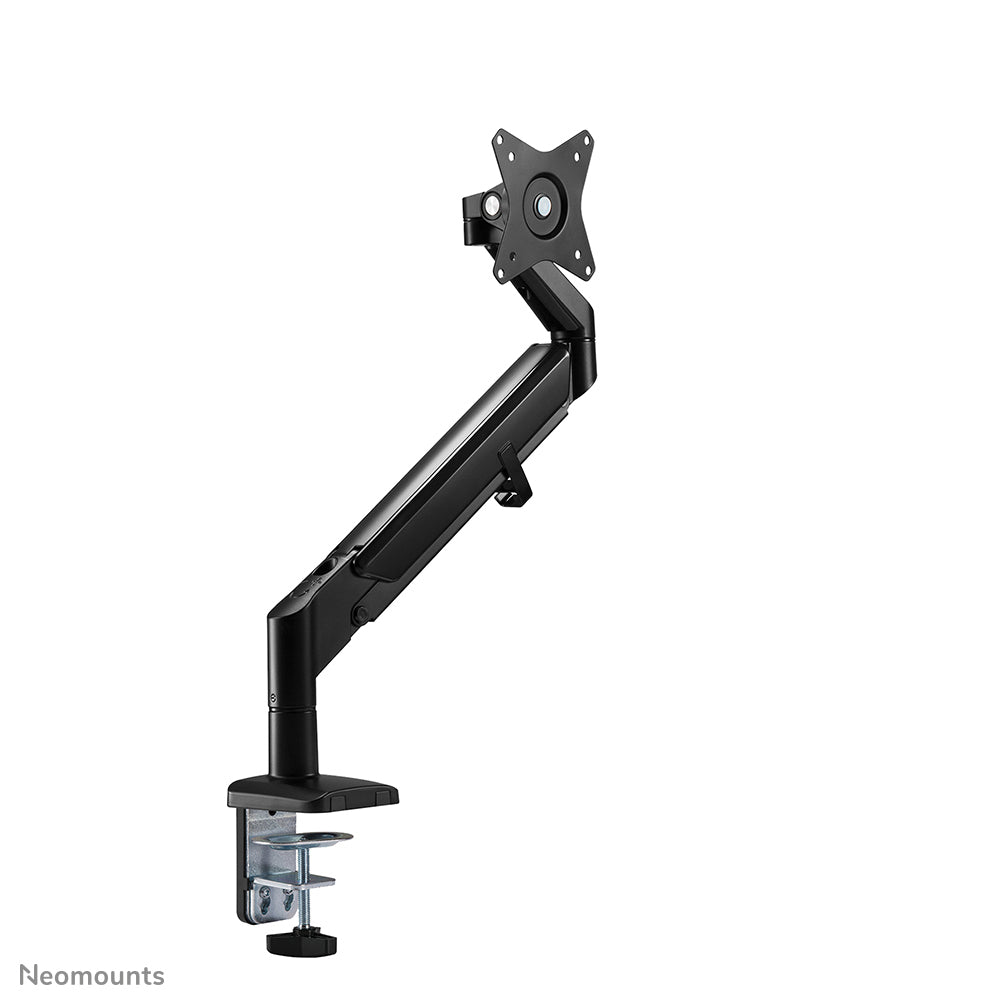

Neomounts DS70-810BL1 Monitor arm 17-32" - gas spring - space saving - 180°-stop
Neomounts DS70-810BL1 Monitor arm 17-32" - gas spring - space saving - 180°-stop
Regular price
£102.30 GBP
Regular price
Sale price
£102.30 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Position your screen exactly where you need it with the Neomounts DS70-810BL1 Monitor arm 17-32" — VESA fit and load ratings are below.

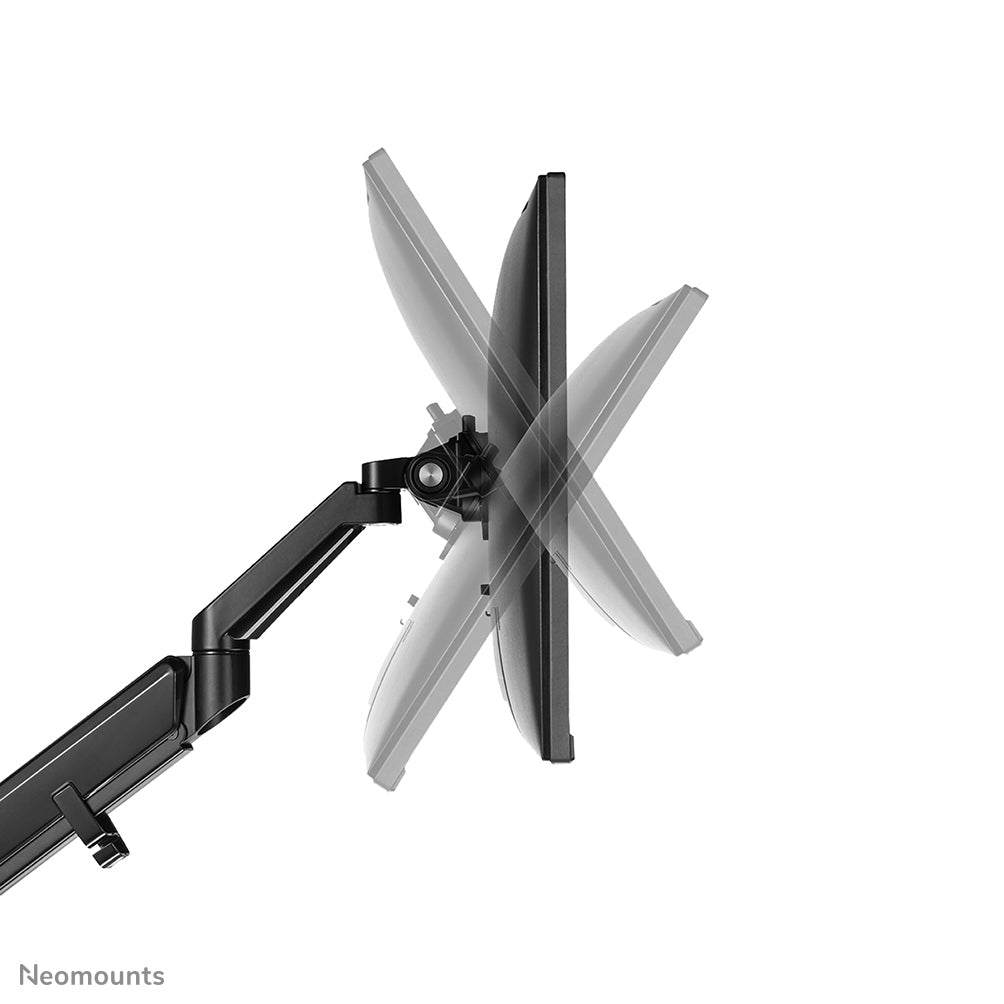

The Neomounts DS70-810BL1 is a full motion desk mount for one flat screen up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management clips ensure orderly routing of the cables.Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL1 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 9 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.5 cm |
| Minimum screen size | 43.2 cm (17") |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Maximum weight capacity | 9 kg |
| Maximum screen size | 81.3 cm (32") |
| Maximum weight capacity (per curved/ultra-wide display) | 9 kg |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 490 mm |
| Height adjustment | Yes |
| Height adjustment range | 265 - 550 mm |
| Pivot angle | -180 - 180° |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -45 - 45° |
| Angle of rotation | 360° |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Orientation | Landscape/Portrait |
| Technical details | |
| Minimum weight | 1 kg |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 555 mm |
| Height | 615 mm |
| Weight | 3 kg |
| Package width | 222 mm |
| Package depth | 117 mm |
| Package height | 400 mm |
| Package weight | 3.6 kg |
| Package net weight | 3.6 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 465 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 370 mm |
| Master (outer) case gross weight | 22.3 kg |
| Products per master (outer) case | 6 pc(s) |
| Products per pallet (EU) | 72 pc(s) |
| Master (outer) case net weight | 18 kg |
| Harmonized System (HS) code | 7326909890 |
