Neomounts DS60-425WH1 Monitor arm 17-27" - space saving
Neomounts DS60-425WH1 Monitor arm 17-27" - space saving
Regular price
£72.52 GBP
Regular price
Sale price
£72.52 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Position your screen exactly where you need it with the Neomounts DS60-425WH1 Monitor arm 17-27" — VESA fit and load ratings are below.

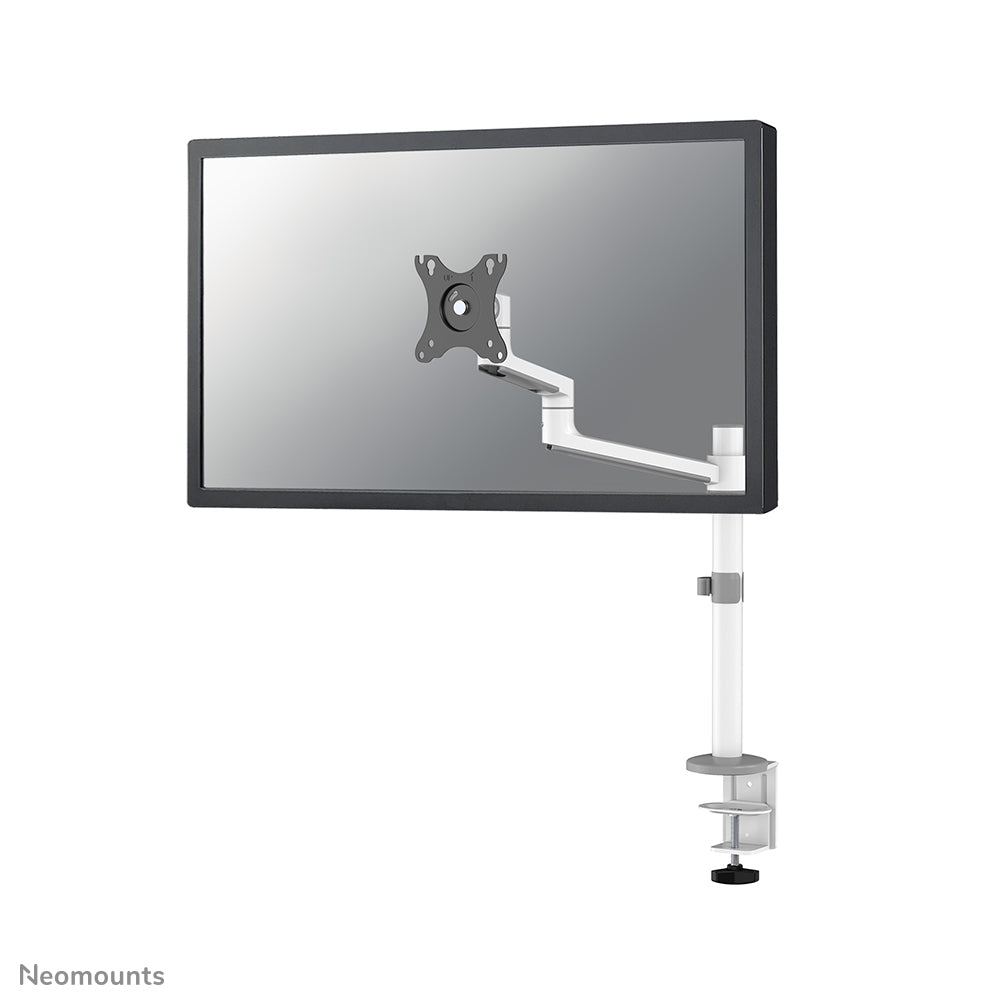

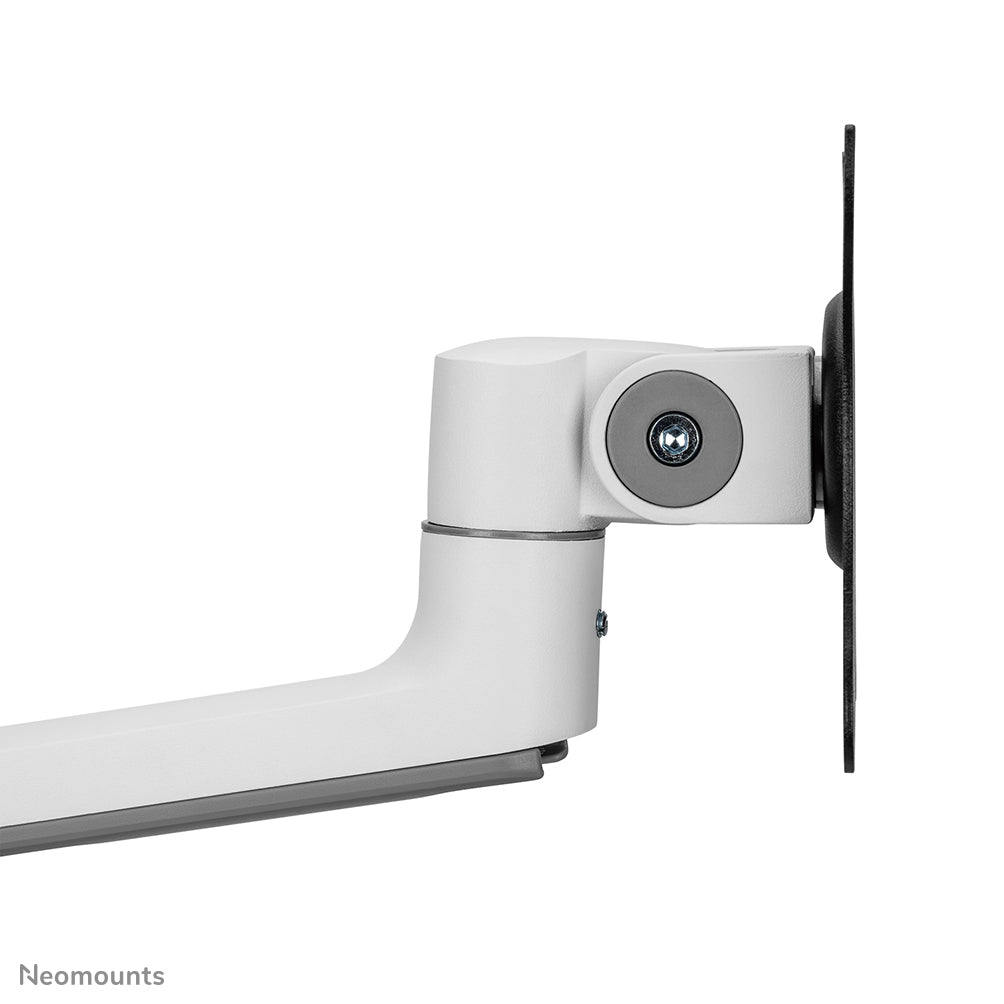

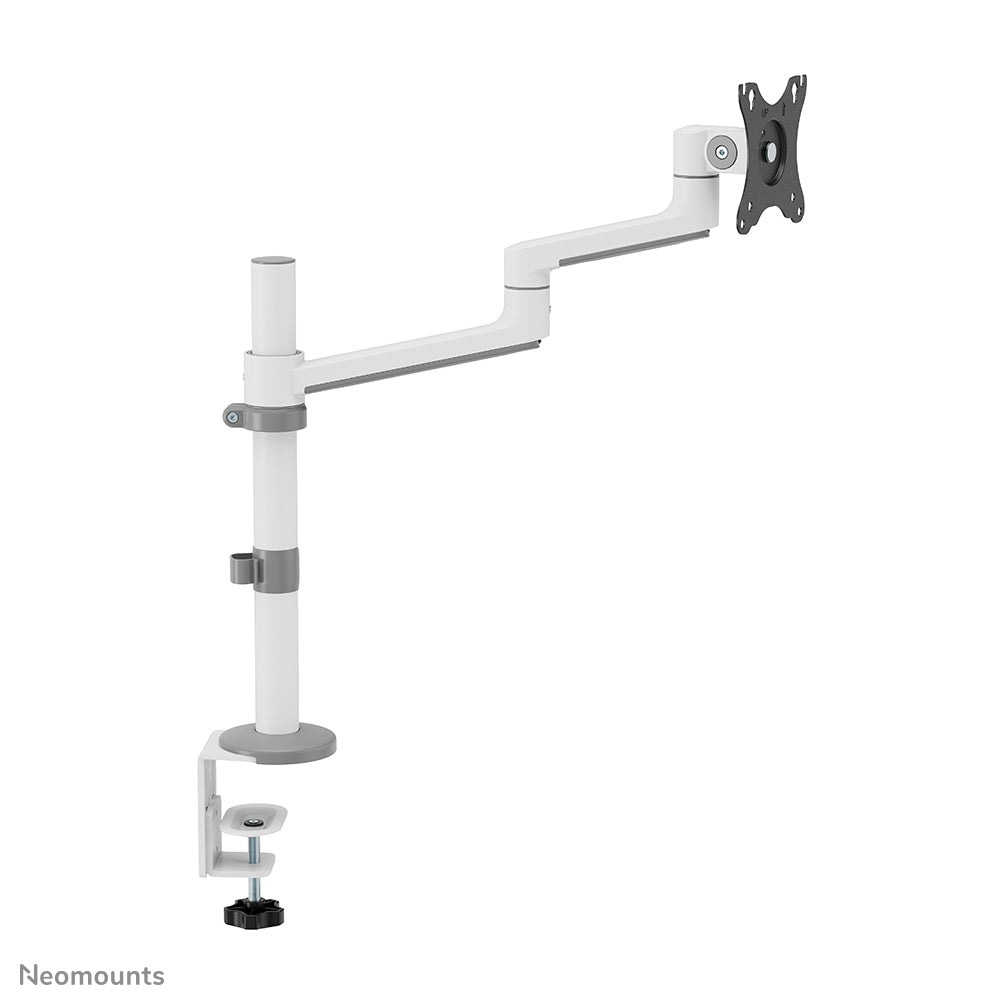

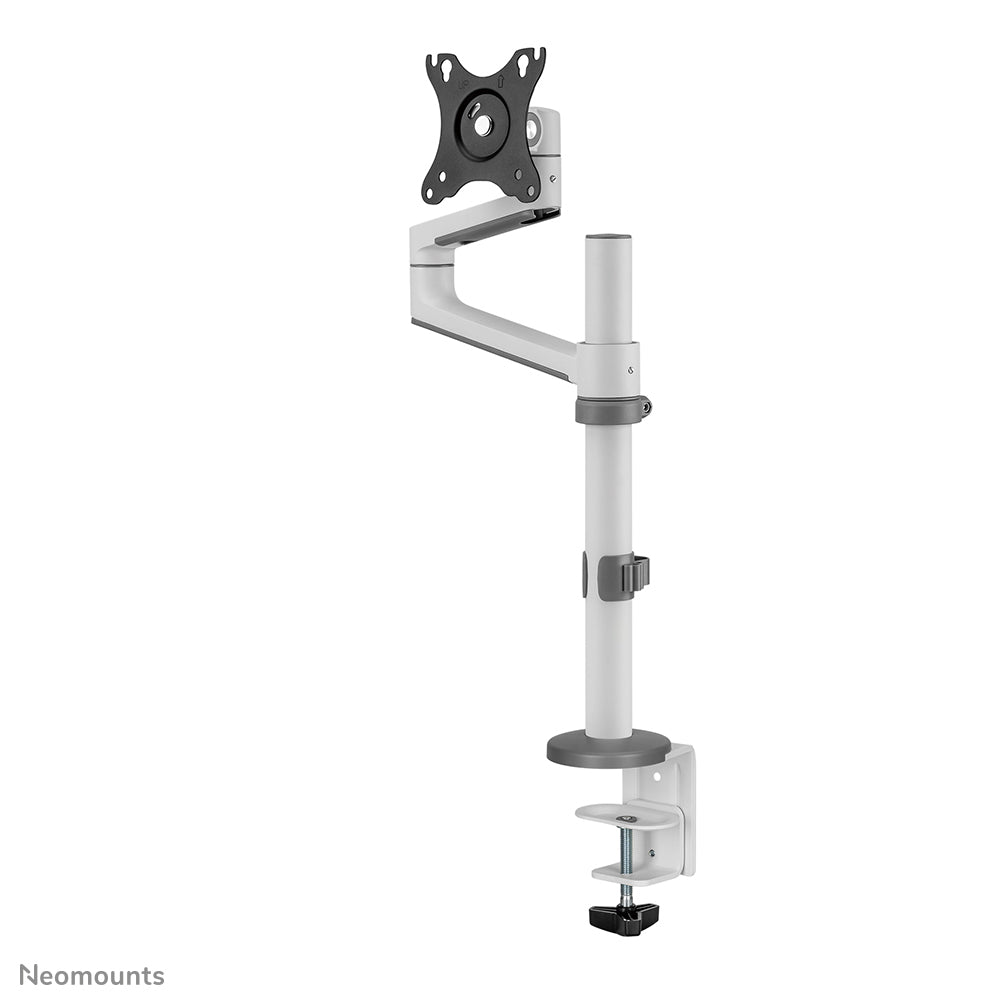

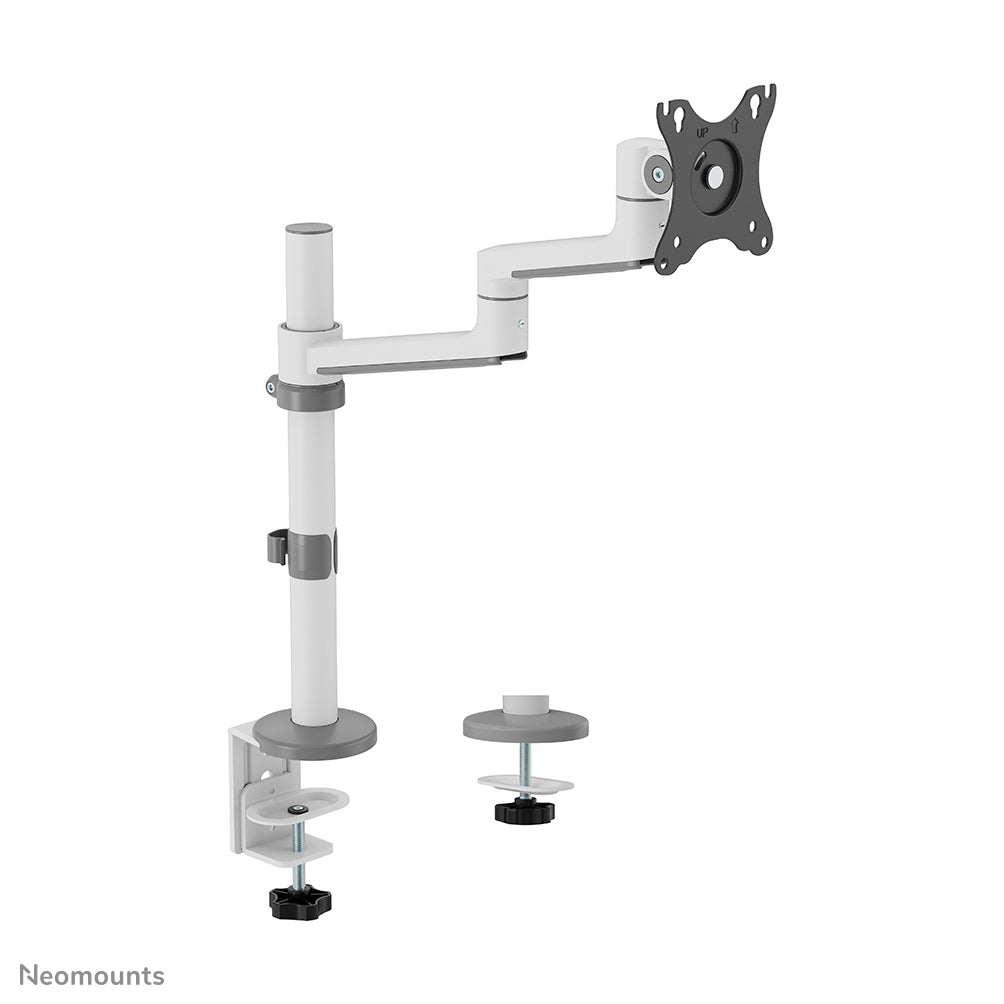

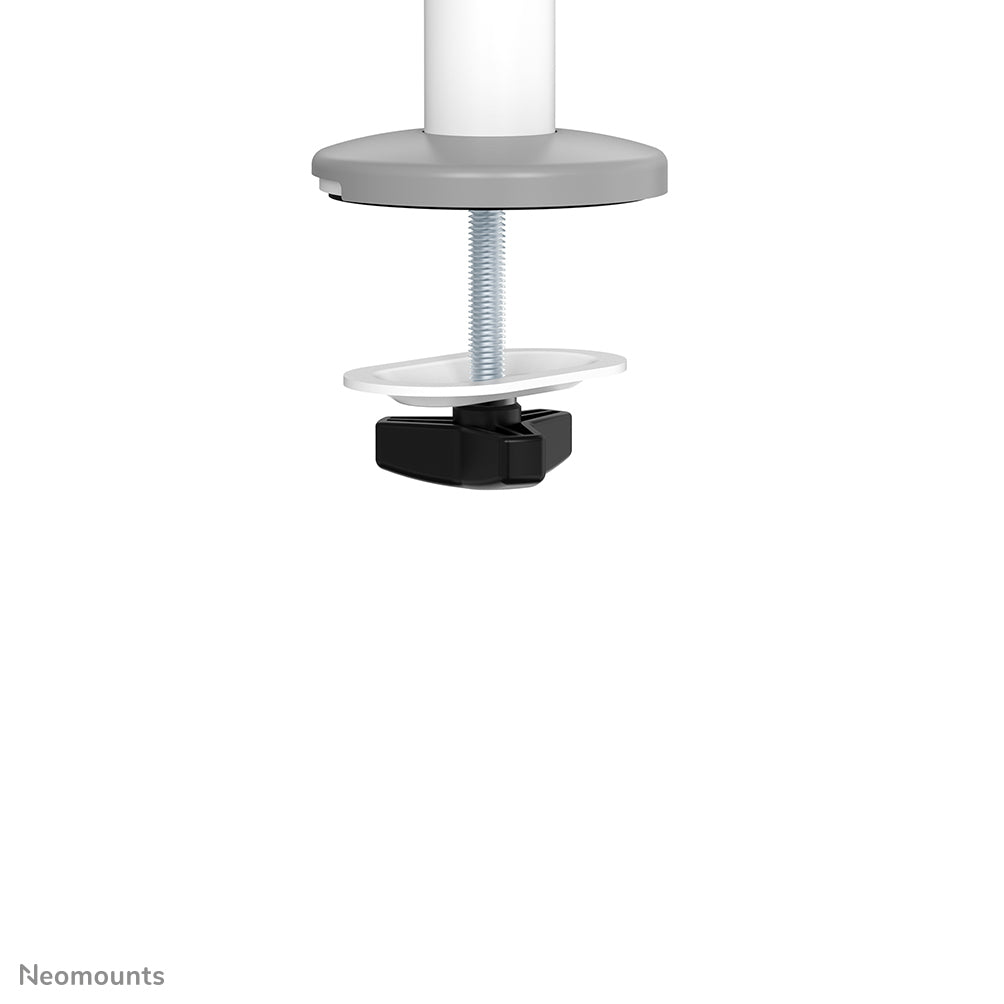

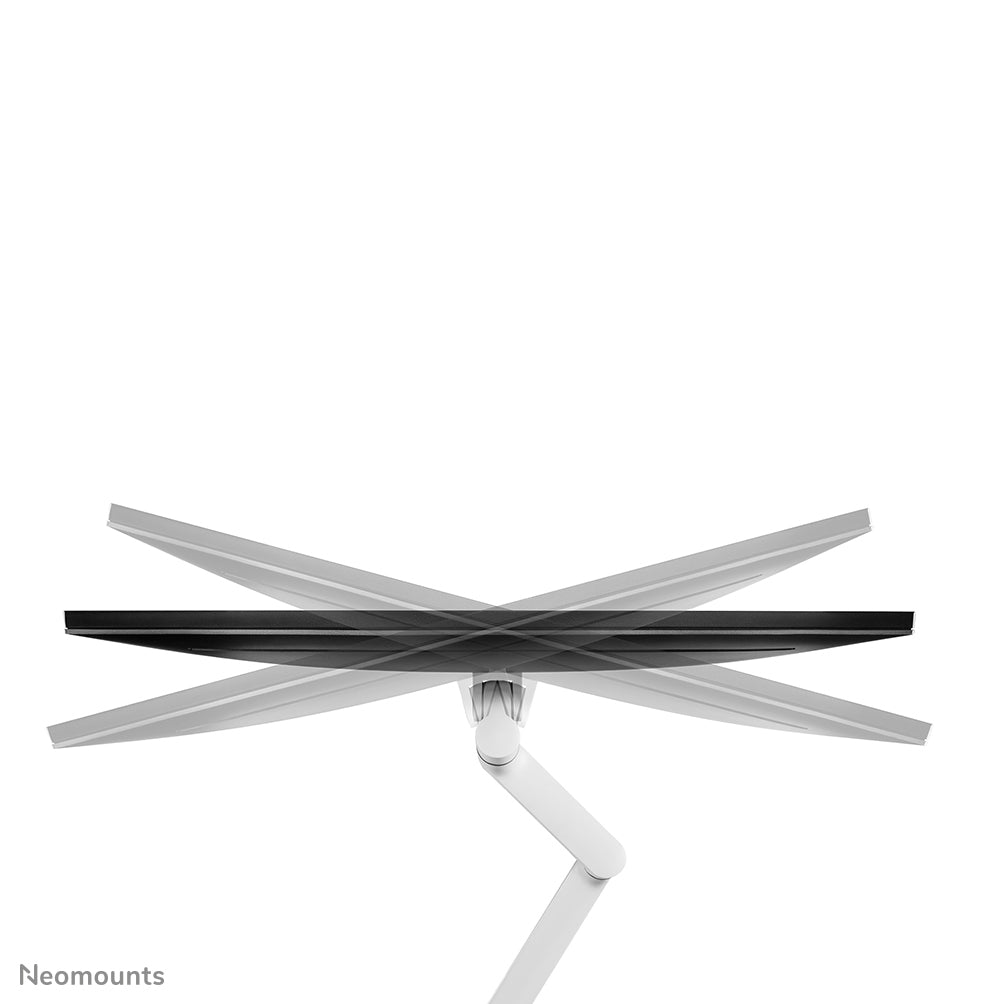

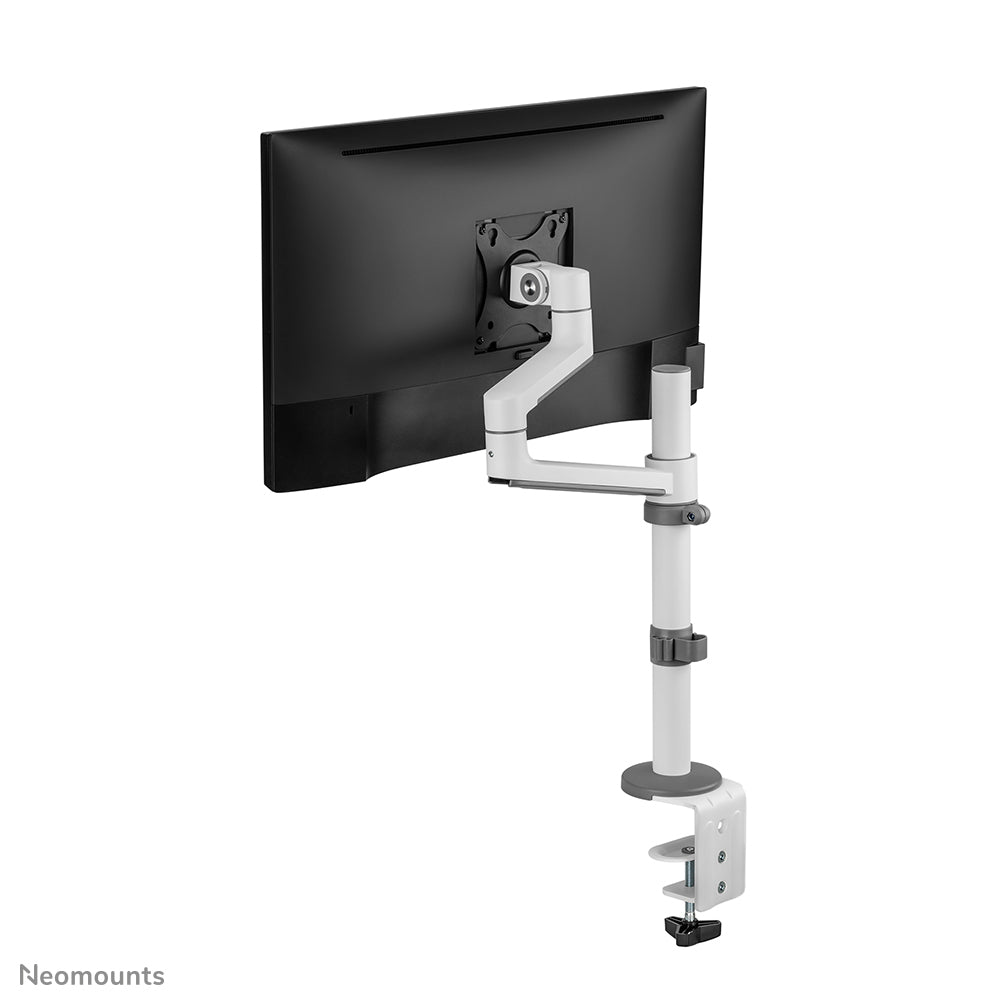

The Neomounts DS60-425WH1 NEXT Lite is a full motion desk mount for screens up to 27" with a maximum weight capacity of 8 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screen. Additionally, the mount has manual height and depth adjustment to create the perfect working position.Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425WH1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8 cm |
| Minimum screen size | 43.2 cm (17") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Distance to the wall (min) | 12.8 cm |
| Distance to the wall (max) | 45.9 cm |
| Maximum weight capacity | 8 kg |
| Maximum screen size | 68.6 cm (27") |
| Clamp mount desk thickness (max) | 8 cm |
| Grommet mount desk thickness (max) | 4 cm |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 66 - 398 mm |
| Height adjustment | Yes |
| Height adjustment range | 275 - 555 mm |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -30 - 90° |
| Angle of rotation | 360° |
| Height adjustment type | Manual |
| Feet | Yes |
| Feet colour | Black |
| Swivelling | Yes |
| Width adjustment | 33.2 cm |
| Design | |
| Product colour | White |
| Housing material | Steel |
| Orientation | Landscape/Portrait |
| Accepts padlock | No |
| Technical details | |
| Width adjustment range | 0 - 332 mm |
| Weight & dimensions | |
| Width | 453 mm |
| Depth | 459 mm |
| Height | 611 mm |
| Weight | 2.54 kg |
| Package width | 140 mm |
| Package depth | 103 mm |
| Package height | 440 mm |
| Package weight | 3 kg |
| Package net weight | 3 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Clamp included | Yes |
| Packaging content | |
| VESA mount included | Yes |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 455 mm |
| Master (outer) case gross weight | 18.2 kg |
| Products per master (outer) case | 6 pc(s) |
| Products per pallet (EU) | 120 pc(s) |
| Master (outer) case net weight | 15.2 kg |
| Harmonized System (HS) code | 7326909890 |
