MULTIBRACKETS M Wallmount Pro MBW3U Tilt Black

Position your screen exactly where you need it with the MULTIBRACKETS M Wallmount Pro MBW3U — VESA fit and load ratings are below.

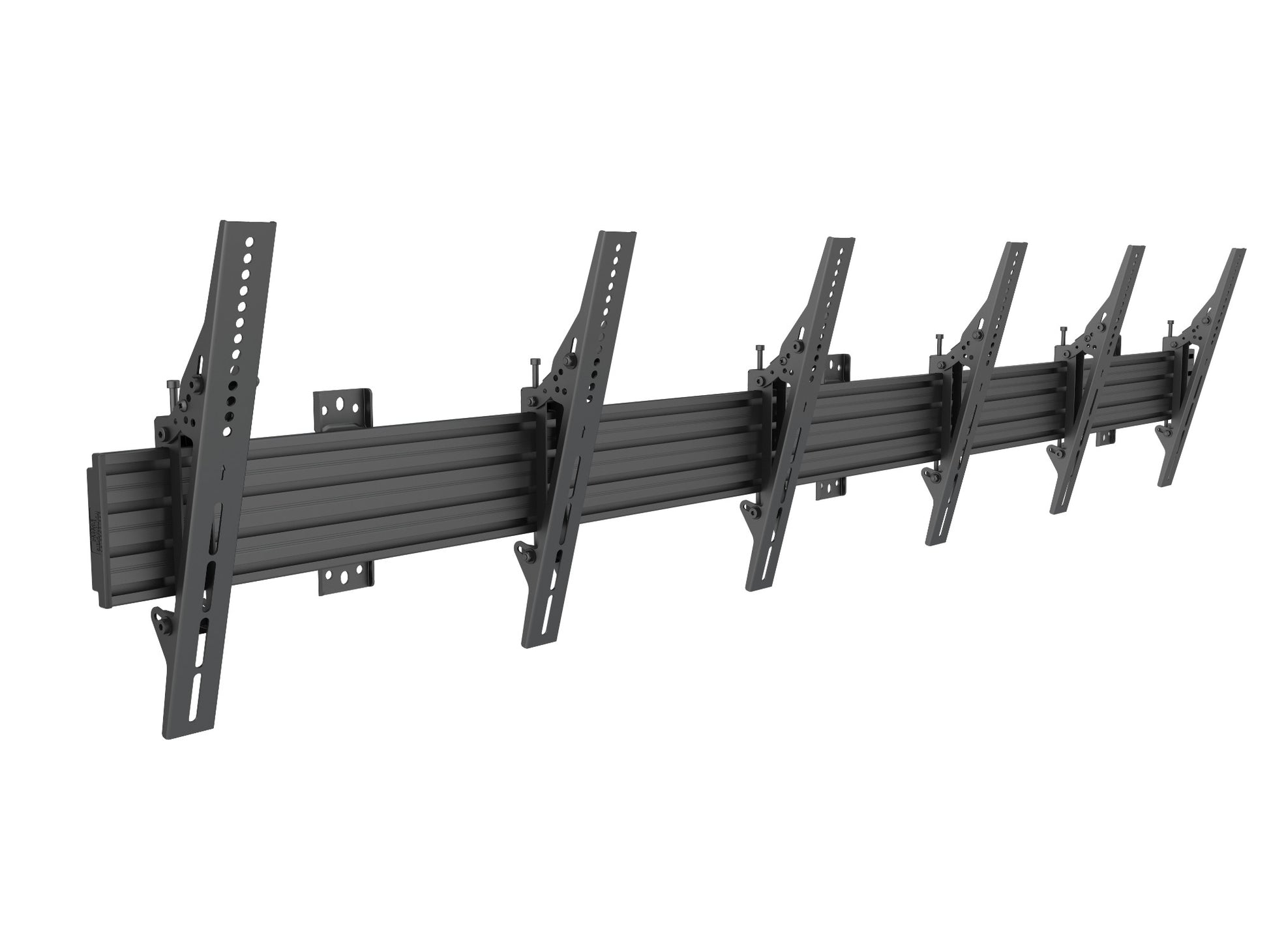

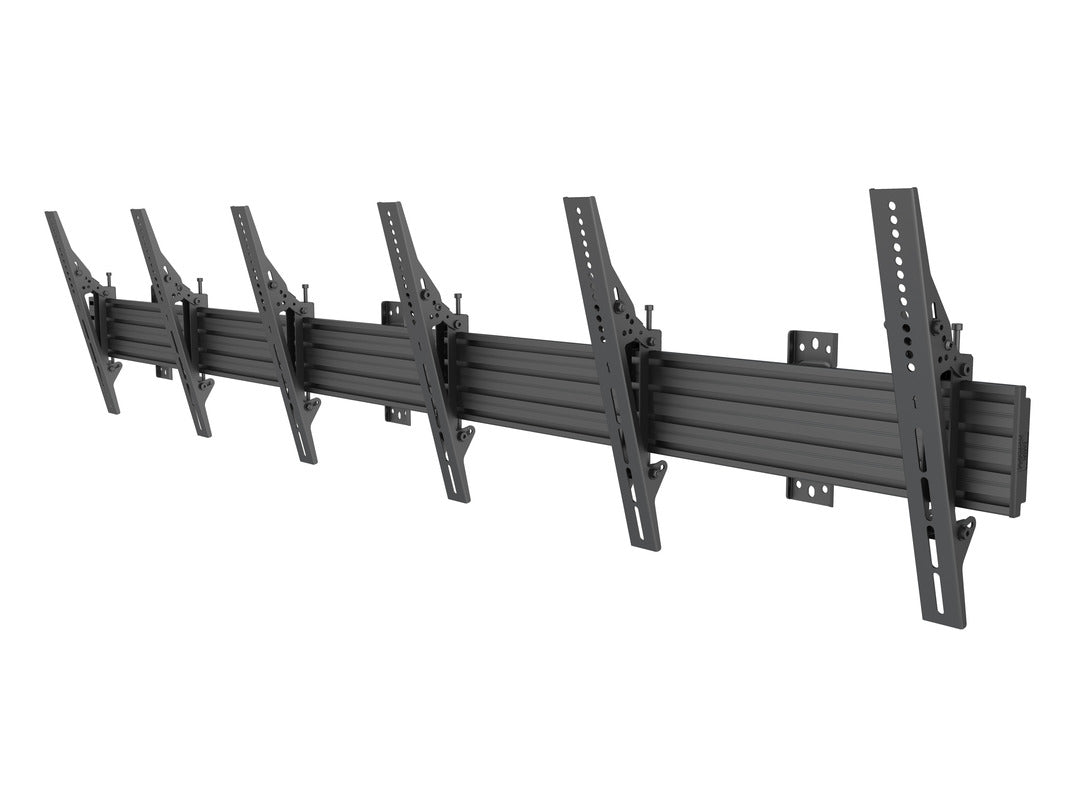

Multibrackets Pro Series M Wallmount Pro MBW3U Tilt Black is our innovative - ready to be installed Single-Display Wallmount.

The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Wallmount Pro MBW3U Tilt Black is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

With its modular construction installers have vast possibilities to change, create, update and reconfigure its design if ideas change over time, then Pro Series can follow.

Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

The Pro Series possibilities to extend aluminum rail change brackets and add details by individual choice is vast so that one can tailor each mount to its location and function.

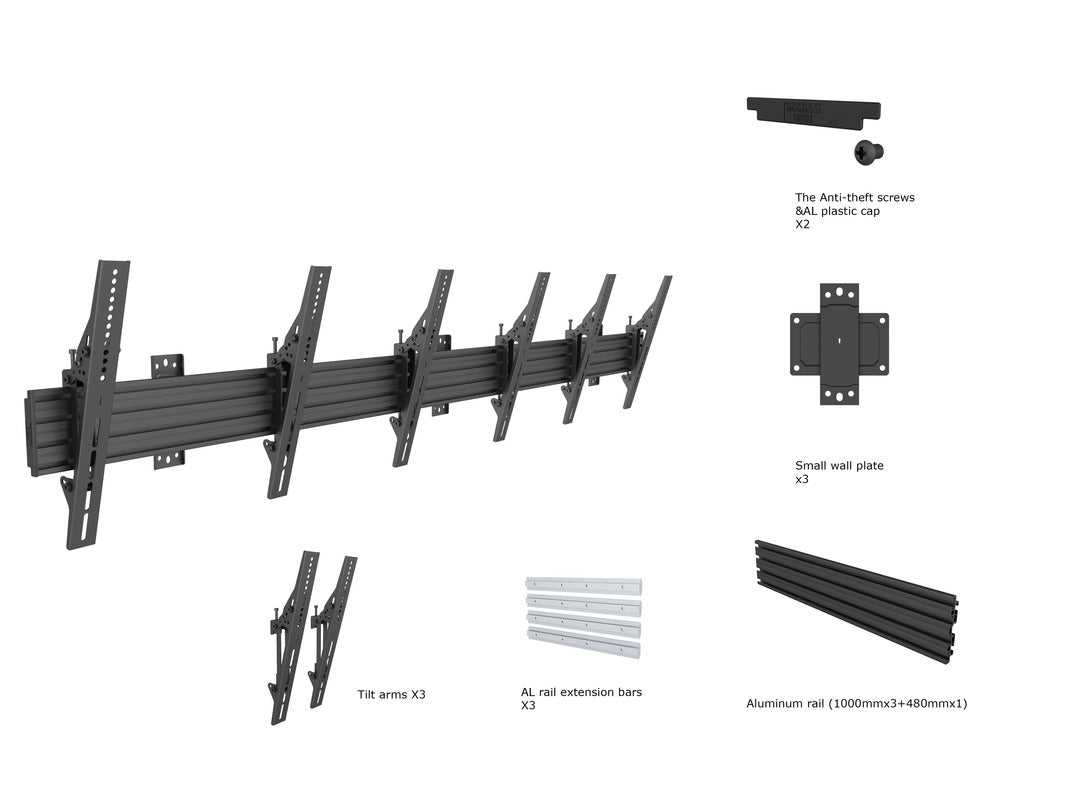

The Pro Series includes hardware so that a basic installation should not be a hassle.

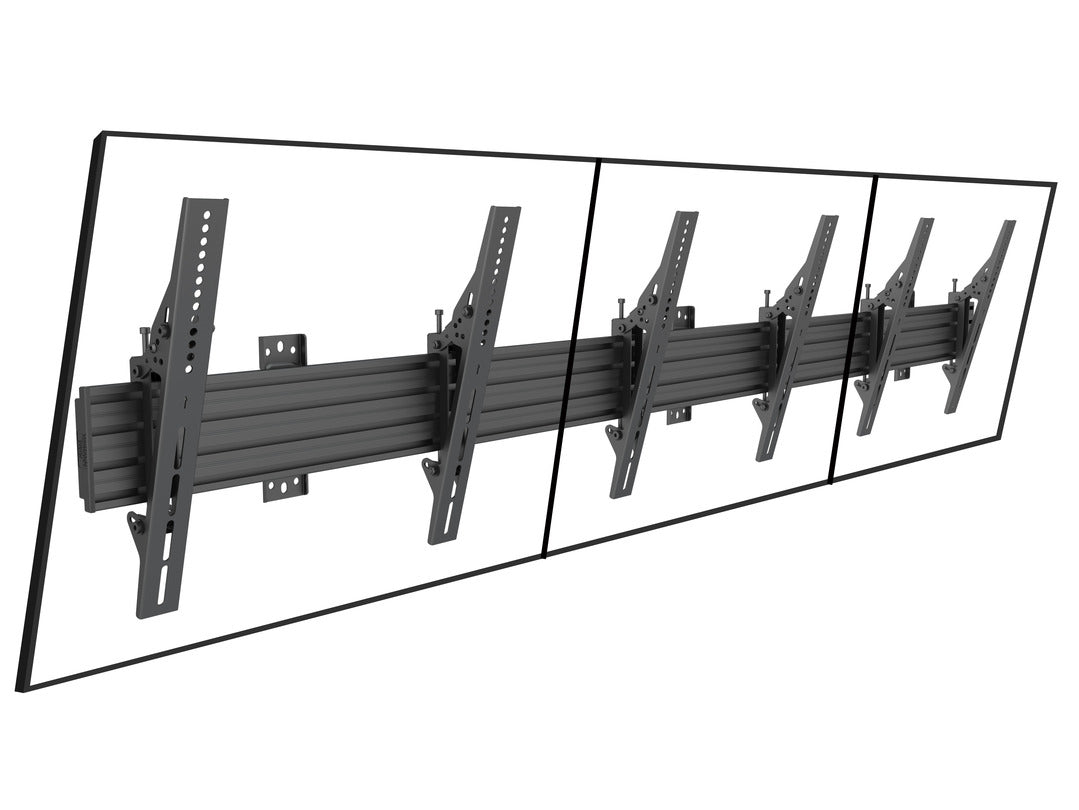

Multibrackets Pro Series Public Wallmounts is ideal for any large screen digital signage wallmount application such as videowalls, menuboards and more.

Specifications

Mounting
Minimum screen size	101.6 cm (40")
Maximum weight capacity	90 kg
Panel mounting interface	100 x 100,600 x 400 mm
Number of displays supported	3
Mounting type	Wall
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	165.1 cm (65")
Ergonomics
Swivel angle	360°
Tilt angle range	0 - 15°
Angle of rotation	8°

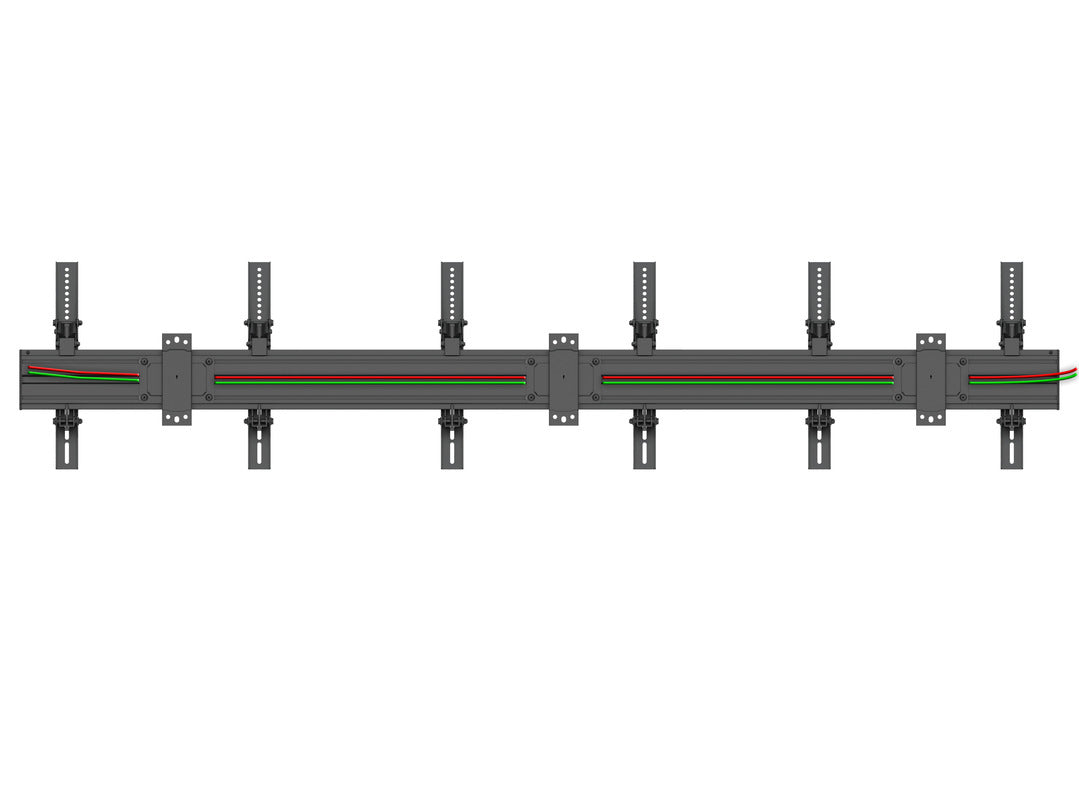

Cable management	Yes
Rotating	Yes
Tilt adjustment	Yes
Design
Housing material	Aluminium, Steel
Certification	CE
Product colour	Black

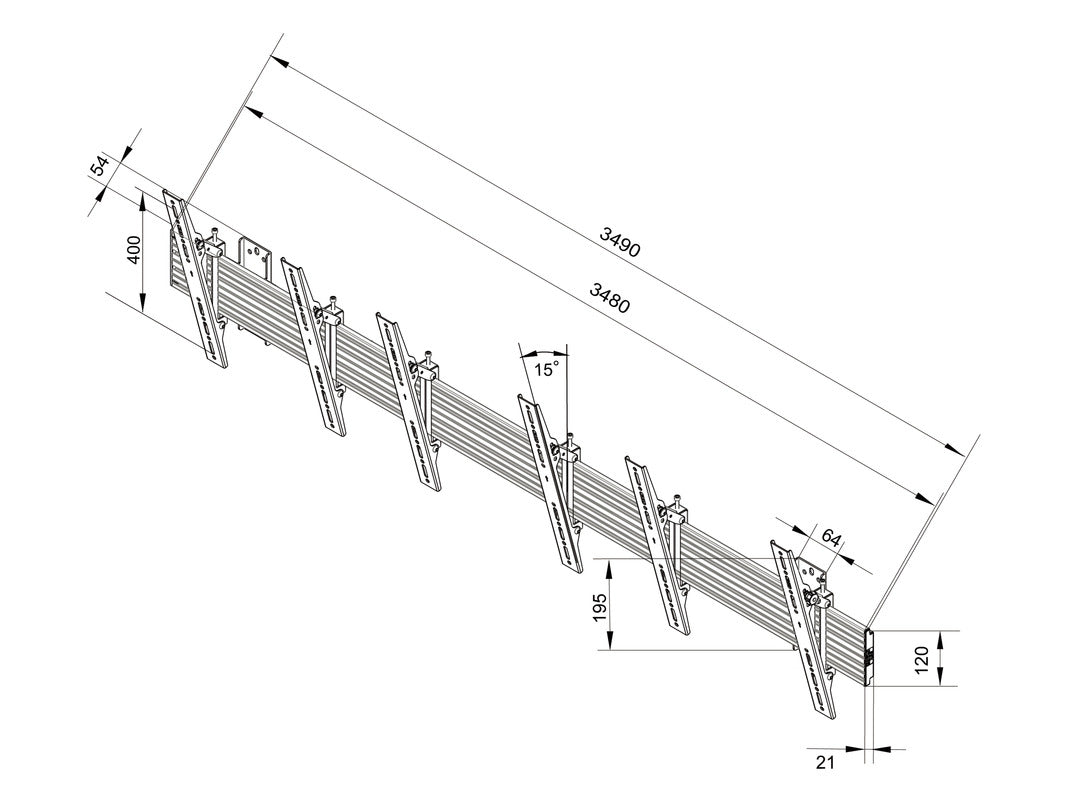

Weight & dimensions
Width	3480 mm
Height	430 mm
Weight	16.8 kg
Depth (max)	8 cm
Aluminium content weight	7.6 kg
Steel content weight	16.8 kg
Other metals content weight	0 g
Package width	205 mm
Package depth	1030 mm
Package height	160 mm
Package weight	17.4 kg
Package type	Box
Technical details
Plastic packaging weight	30 g
Paper/cardboard packaging weight	600 g
Metal packaging weight	0 g
Logistics data
Shipping (inner) case width	20.5 cm
Shipping (inner) case length	103 cm
Shipping (inner) case height	16 cm
Shipping (inner) case gross weight	10.9 kg
Products per shipping (inner) case	0 pc(s)
