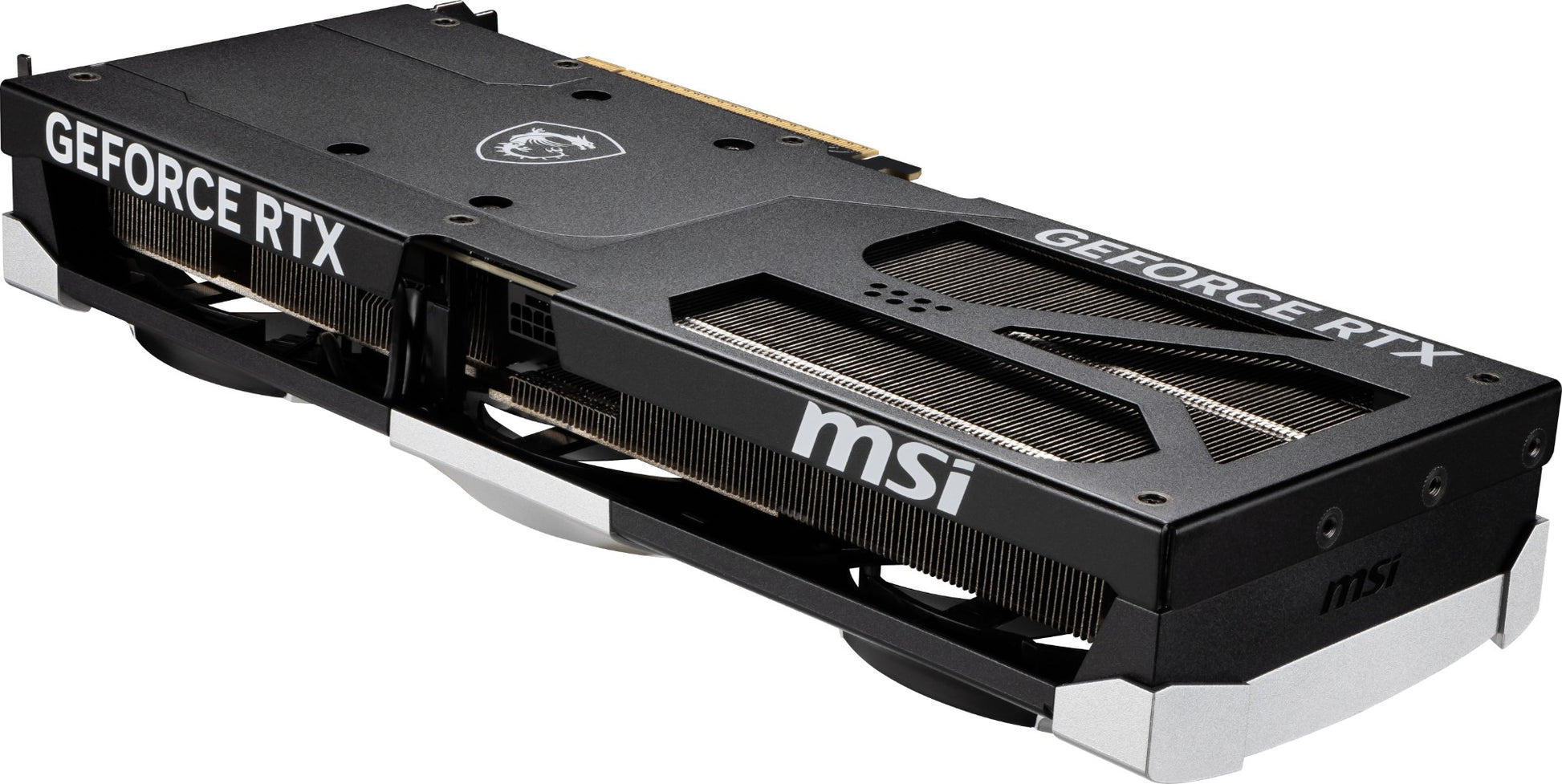

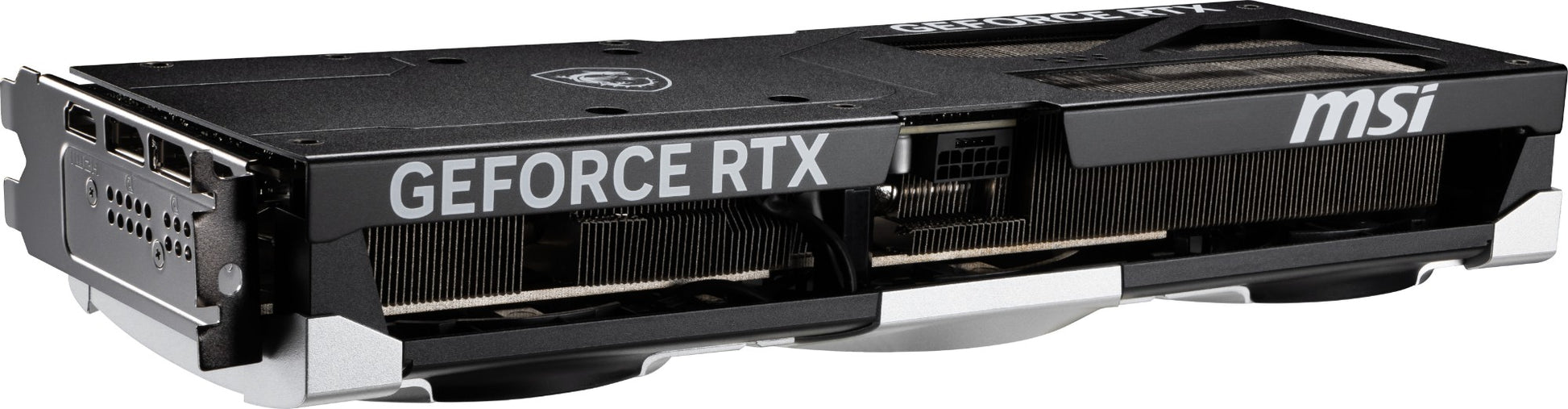

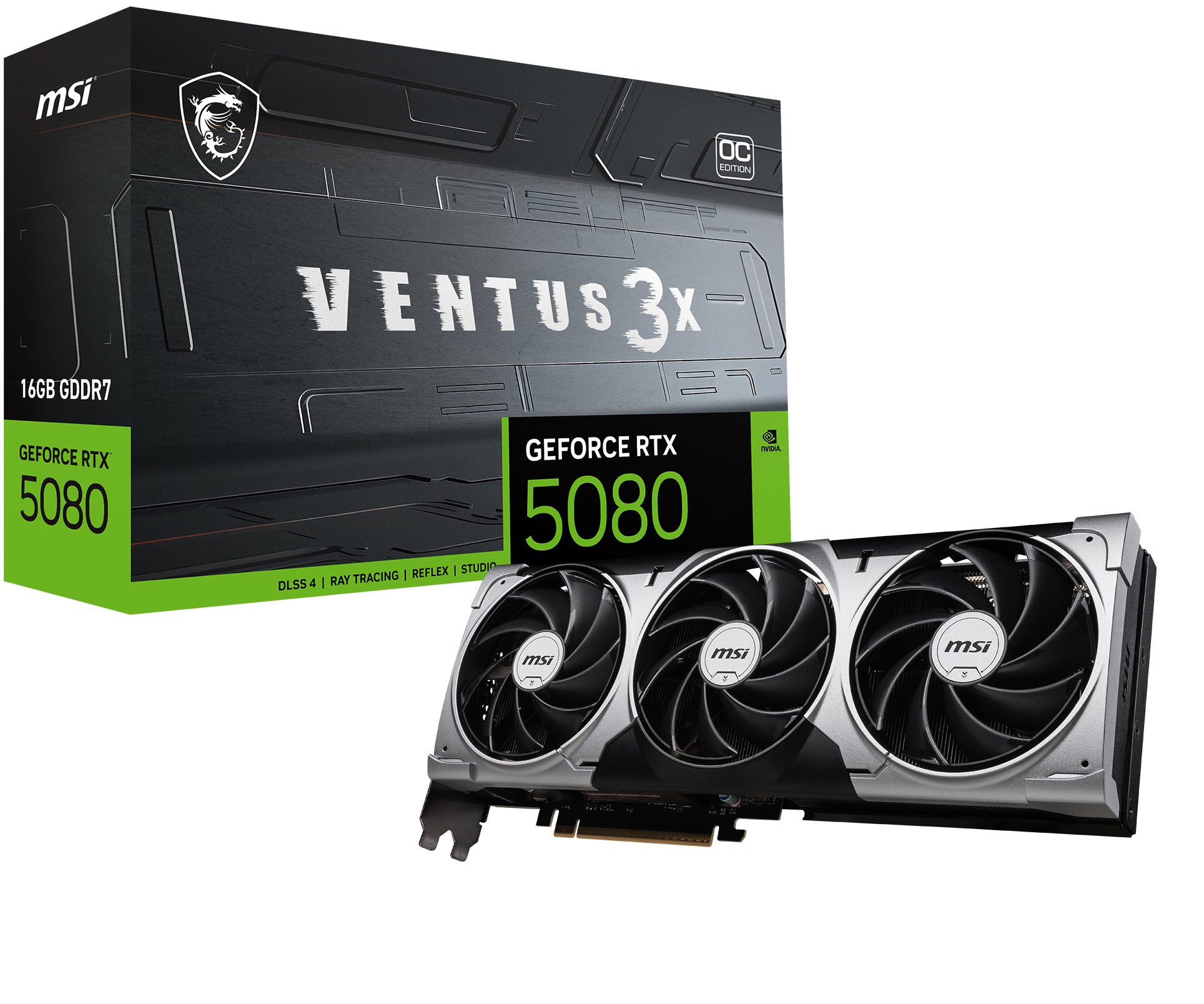

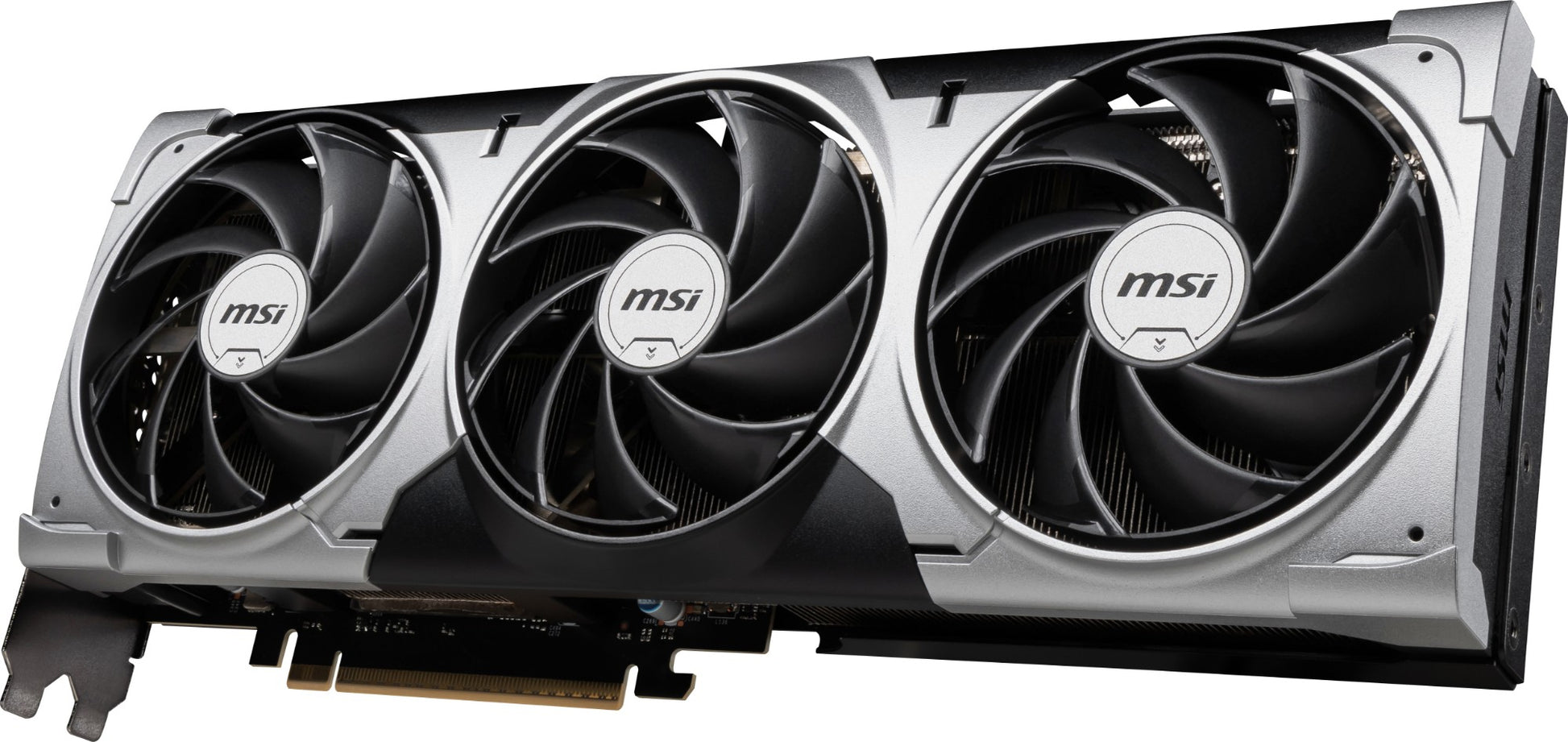

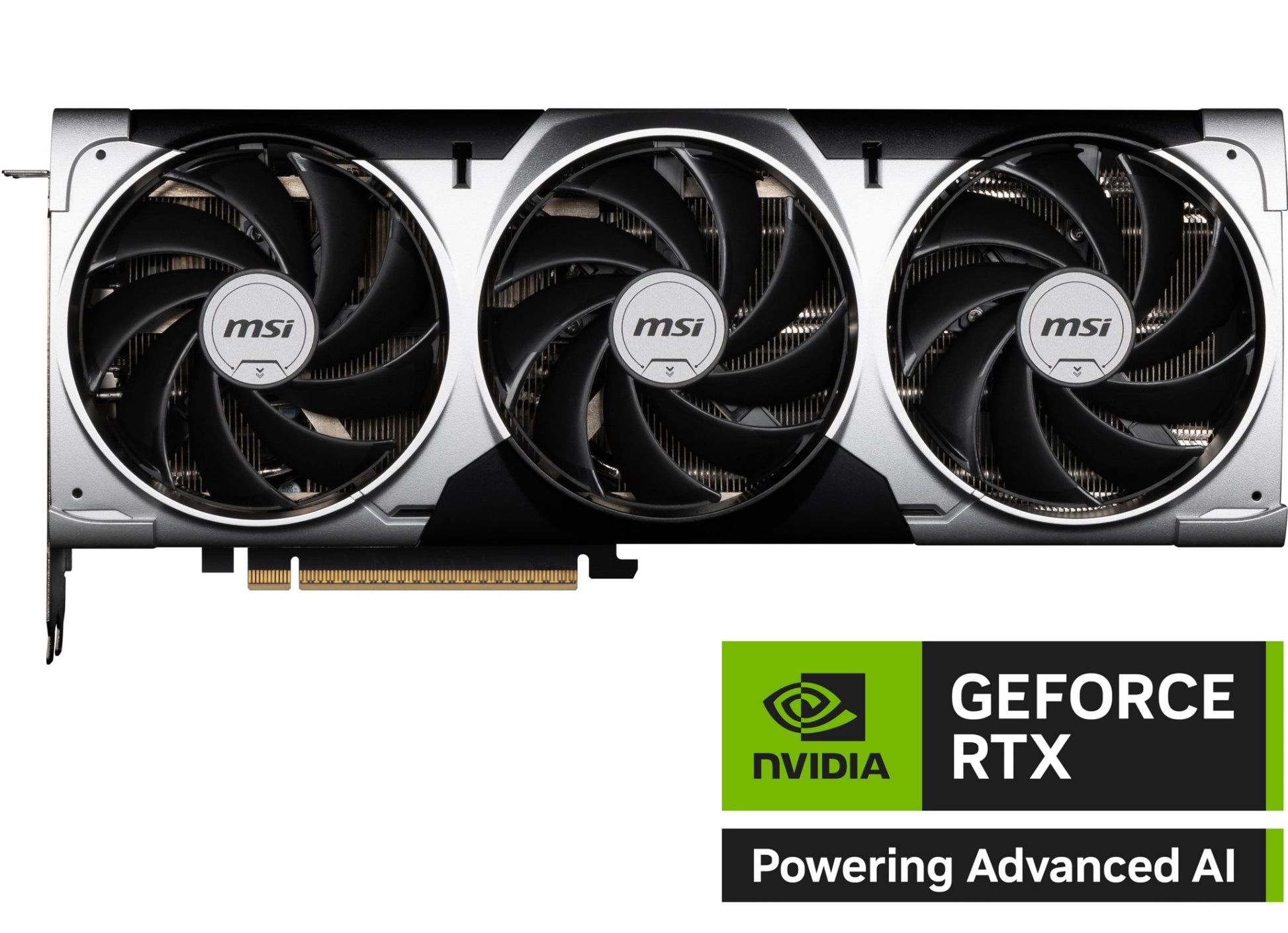

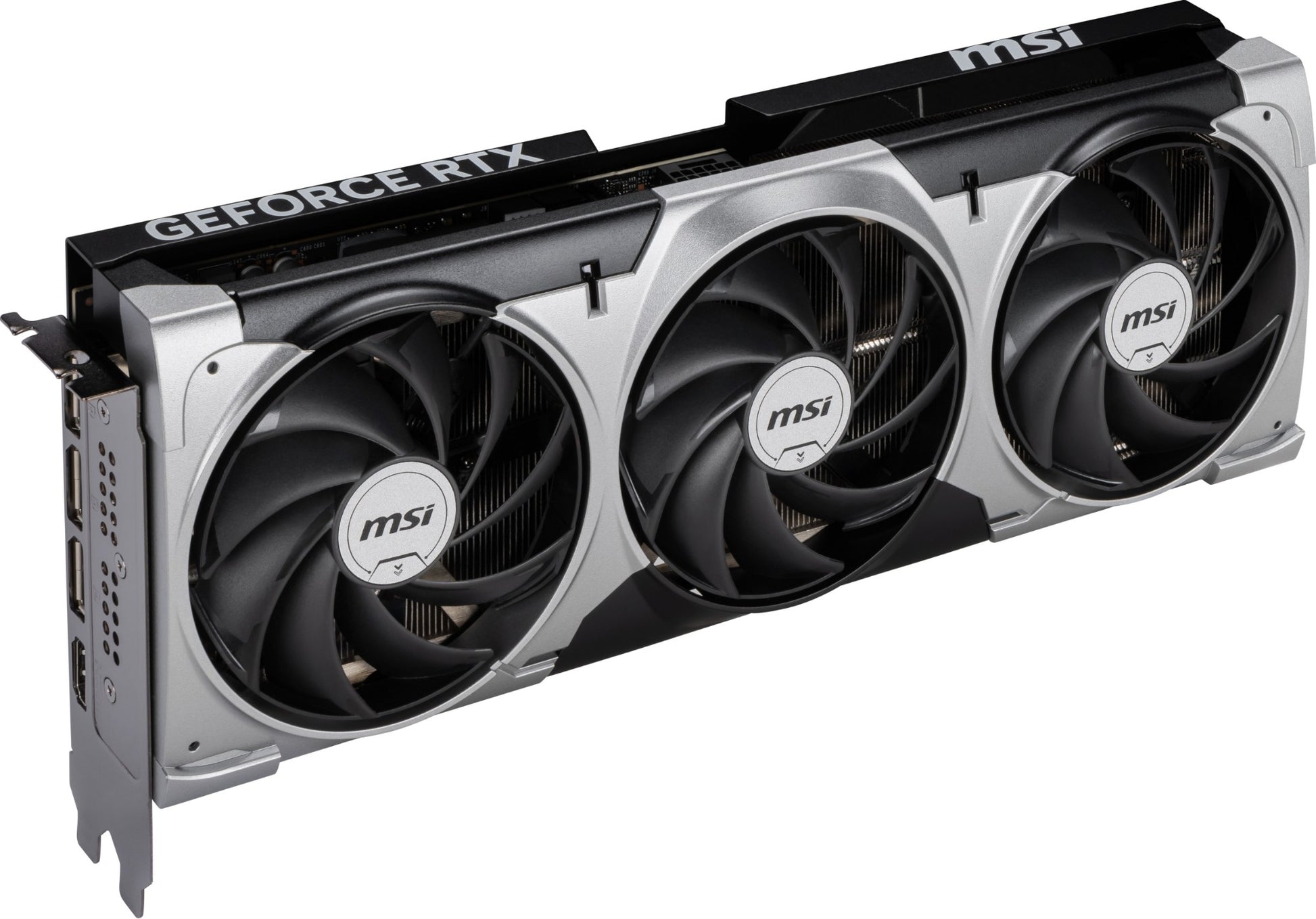

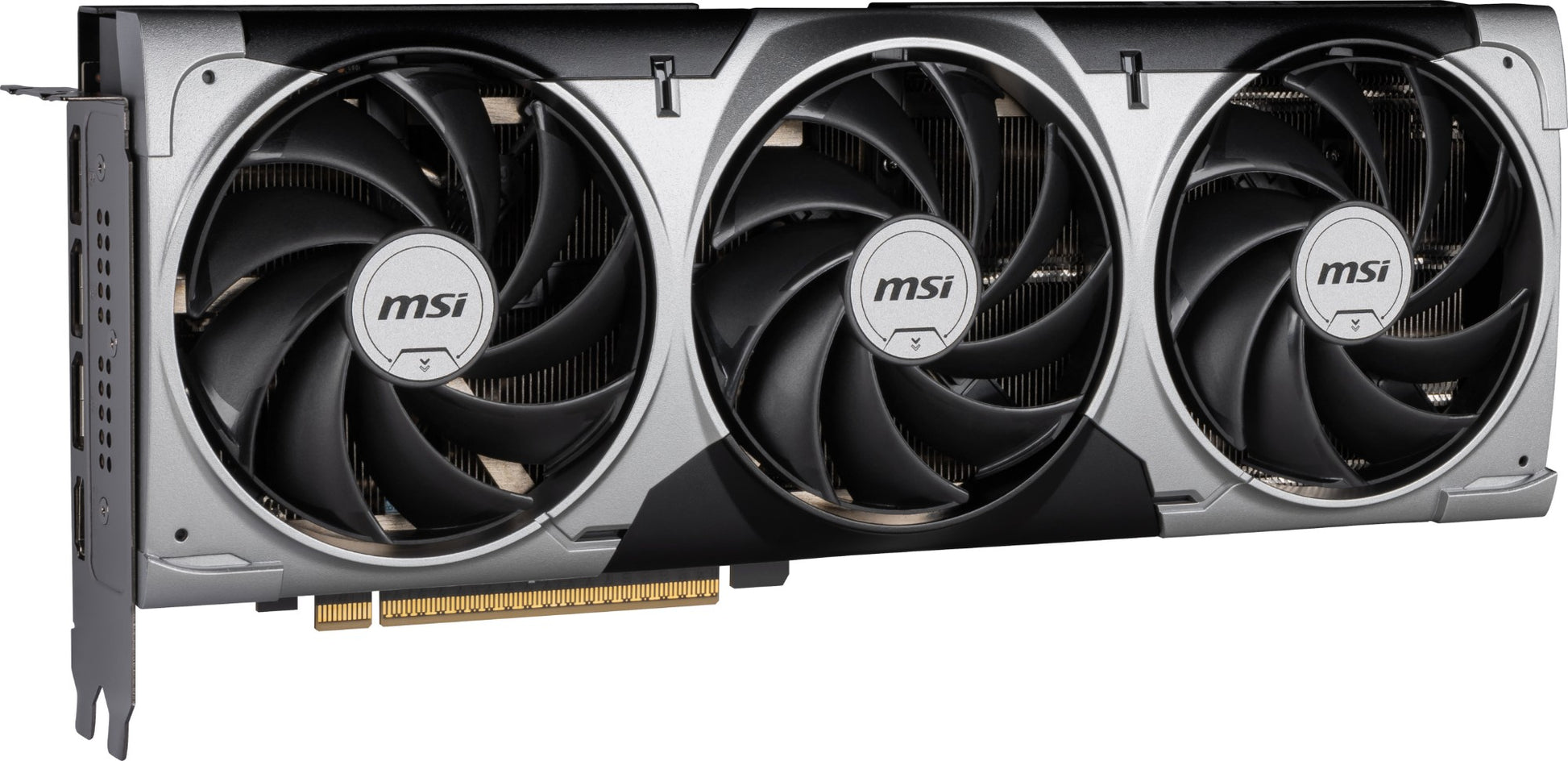

MSI VENTUS GeForce GeForce RTX 5080 16GB GDDR7 OC Graphics Card

The MSI VENTUS GeForce GeForce RTX 5080 brings 16GB GDDR7 graphics muscle for high-refresh gaming and GPU-accelerated creative work — see the spec table for clocks, outputs and cooling.

TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

Specifications

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2640 MHz
Maximum displays per videocard	4
CUDA cores	10752
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5080
Memory
Discrete graphics card memory	16 GB
Memory bandwidth (max)	30 GB/s
Memory bus	256 bit
Graphics card memory type	GDDR7
Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	1
DisplayPort version	2.1a
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express x16 5.0
Thunderbolt 3 ports quantity	0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No
Performance
NVIDIA G-SYNC	Yes
TV tuner integrated	No
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Fan diameter	12 cm
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Grey
Number of slots	2
Power

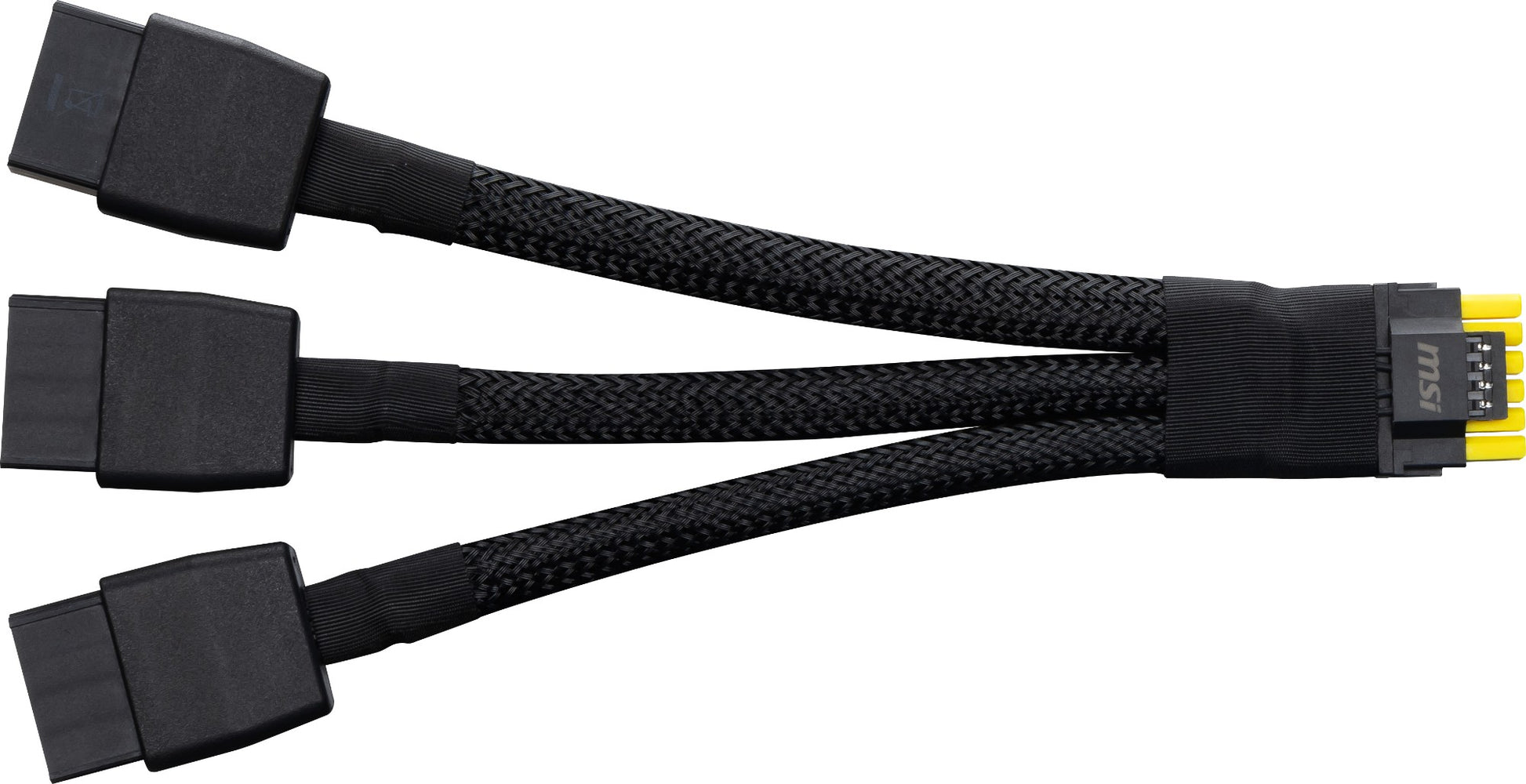

Supplementary power connectors	1x 16-pin
Power consumption (typical)	360 W
Minimum system power supply	850 W
Weight & dimensions
Weight	1.1 kg
Height	121 mm
Depth	49 mm
Length	303 mm
Packaging data
Package type	Box
Package width	386 mm
Package height	235 mm
Package depth	90 mm
Package weight	1.58 kg
Cables included	Power
Logistics data
Products per shipping (inner) case	1 pc(s)
