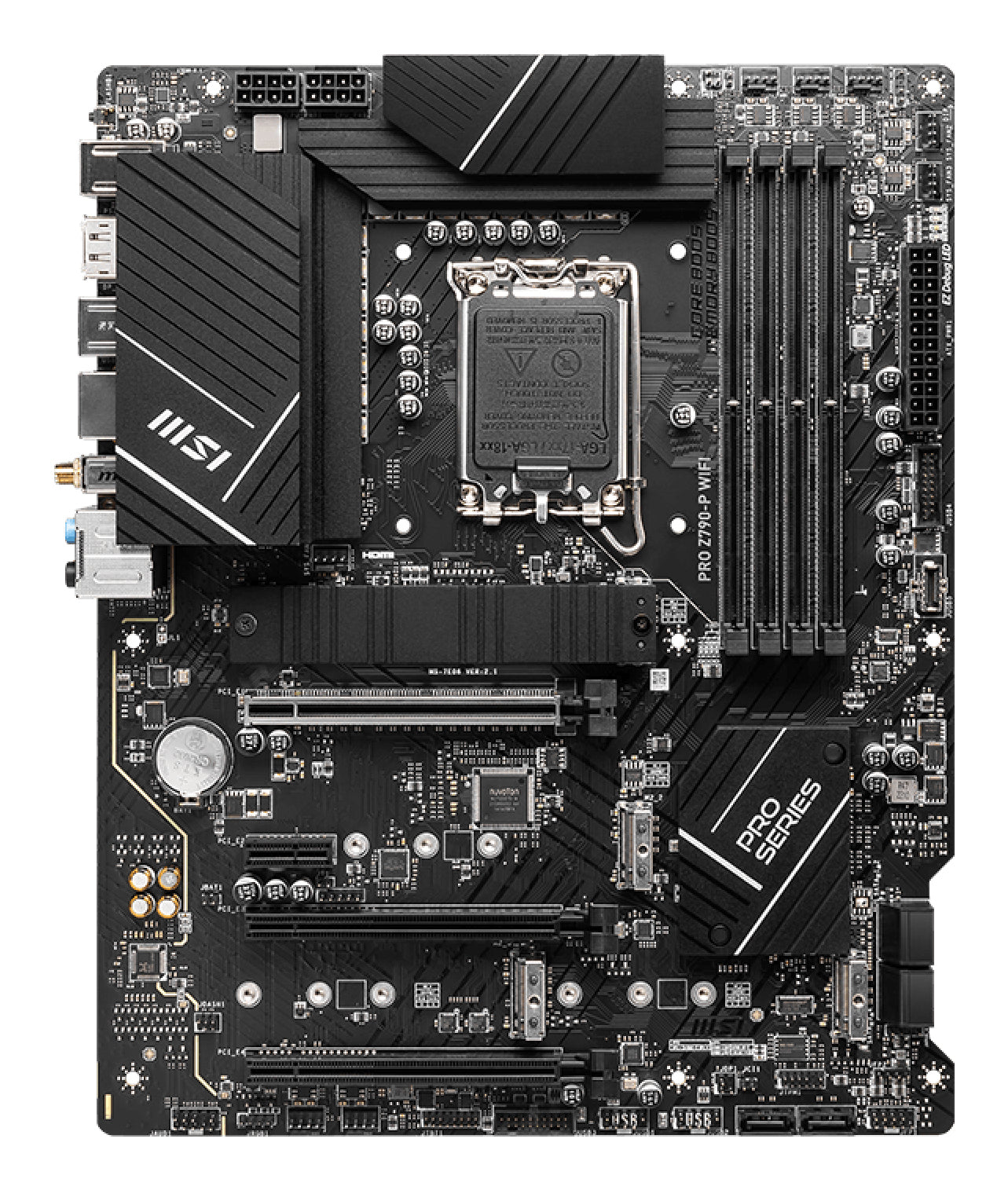

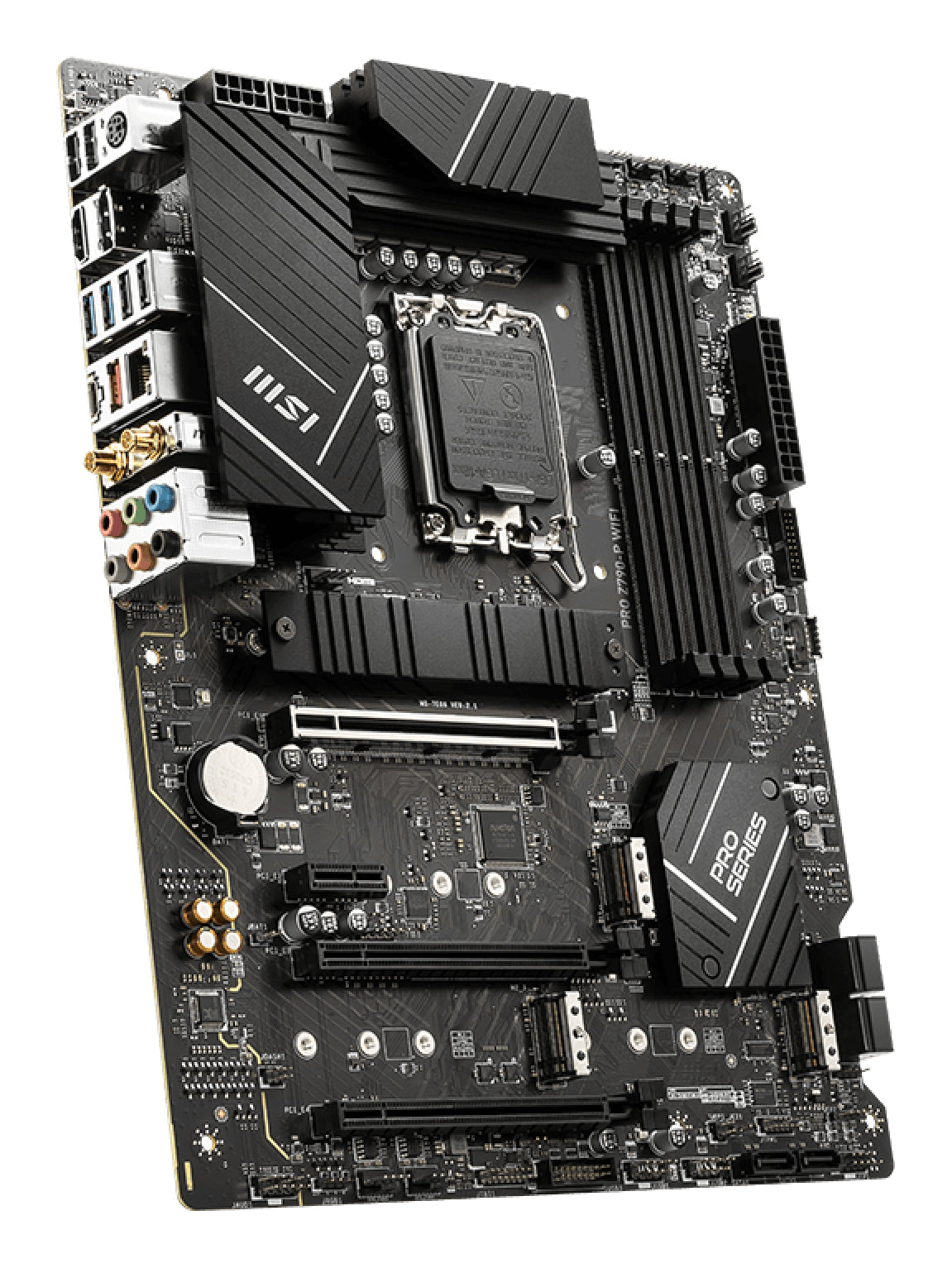

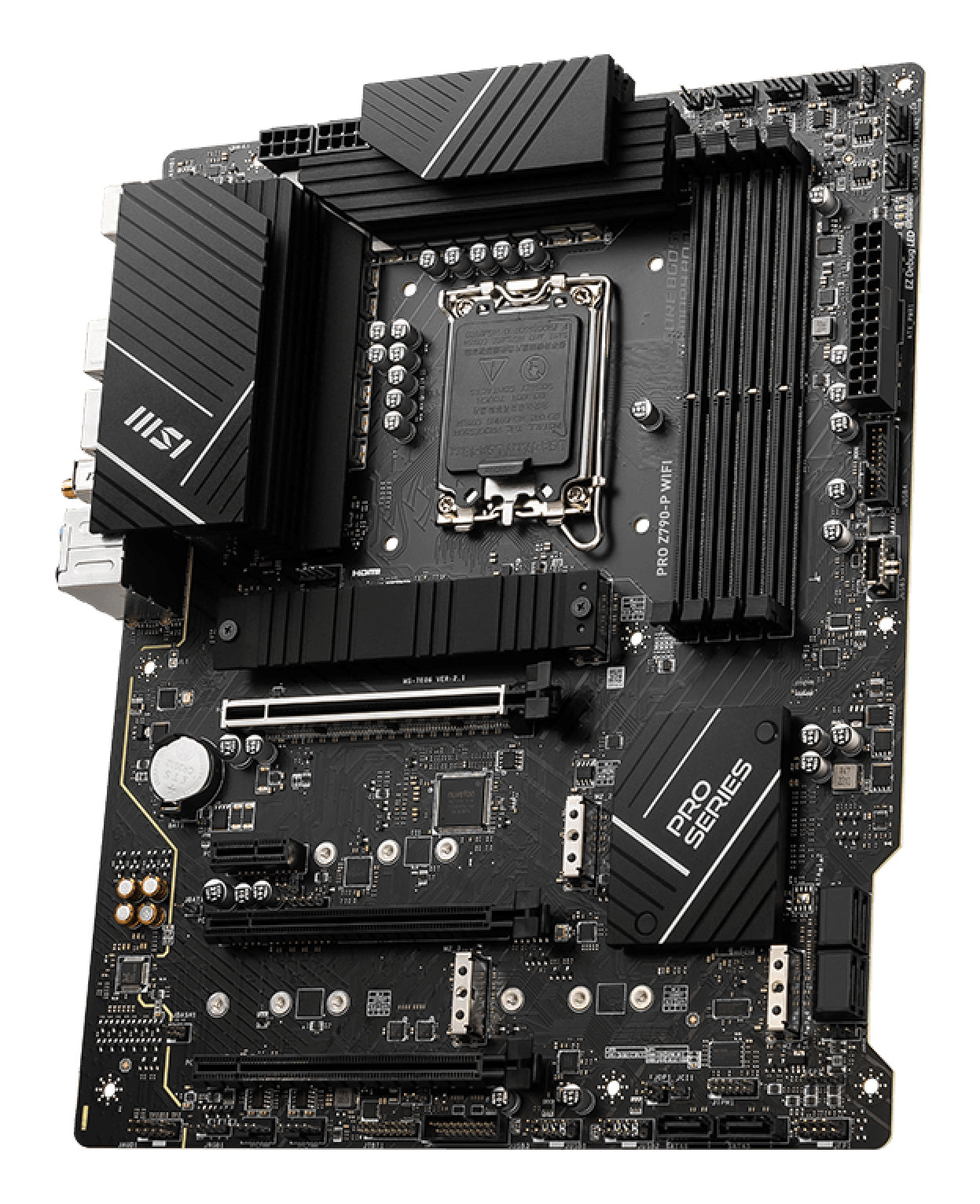

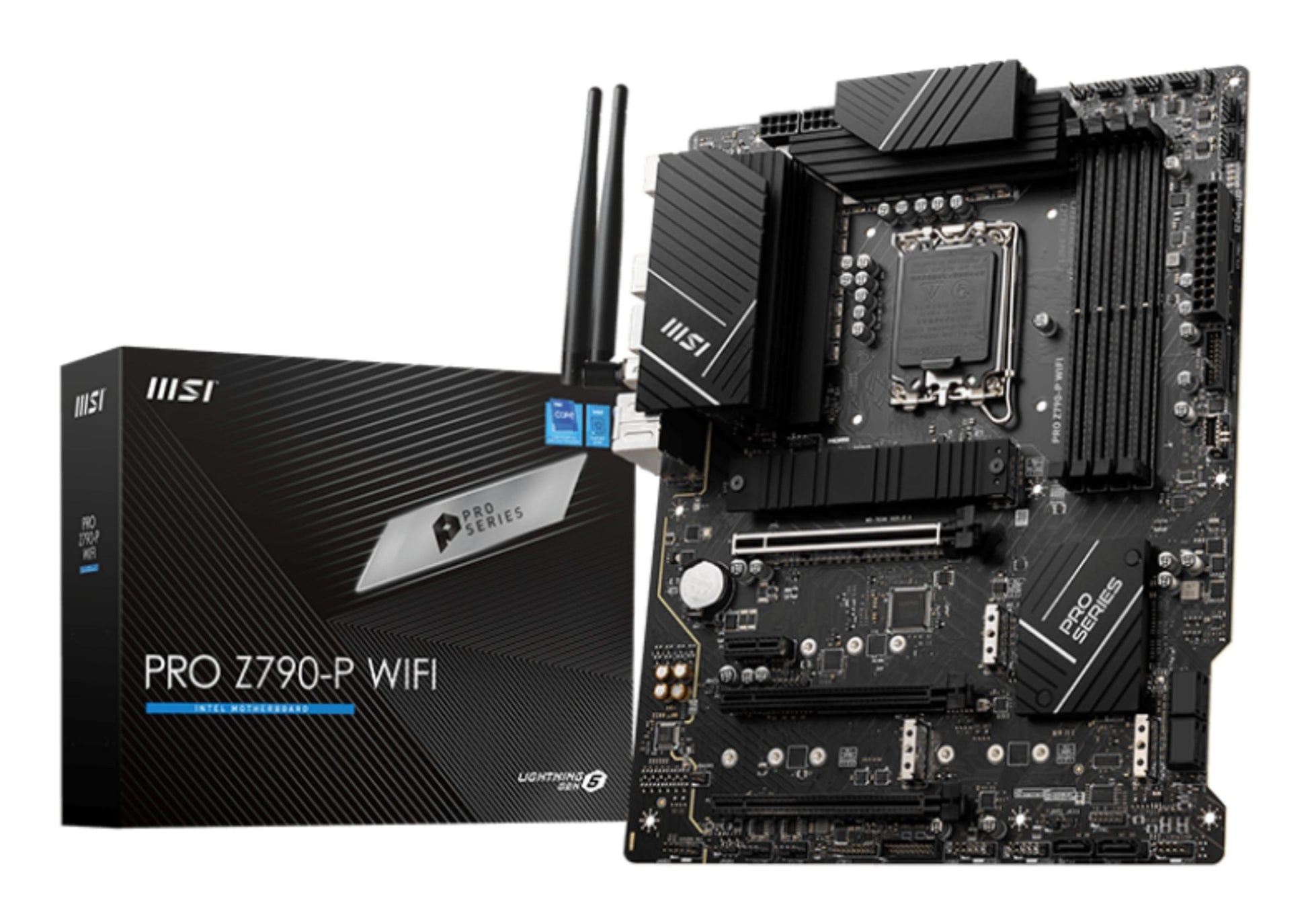

MSI PRO Z790-P WIFI motherboard Intel Z790 LGA 1700 ATX
MSI PRO Z790-P WIFI motherboard Intel Z790 LGA 1700 ATX
Regular price
£166.11 GBP
Regular price
Sale price
£166.11 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The MSI PRO Z790-P WIFI provides the foundation for your build — socket, chipset and expansion details are in the spec table below.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| mSATA ports quantity | 0 |
| TPM connector | Yes |
| Number of SATA connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Front panel audio connector | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Supported processor sockets | LGA 1700 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| RAID levels | 0, 1, 5, 10 |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speeds | 4800,5000,5200,5400,5800,6000,6400,6600,6800,7000 MHz |
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 7000 MHz |
| ECC ?ompatibility | Non-ECC |
| Storage controllers | |
| Internal storage capacity | 10 GB |
| RAID support | Yes |

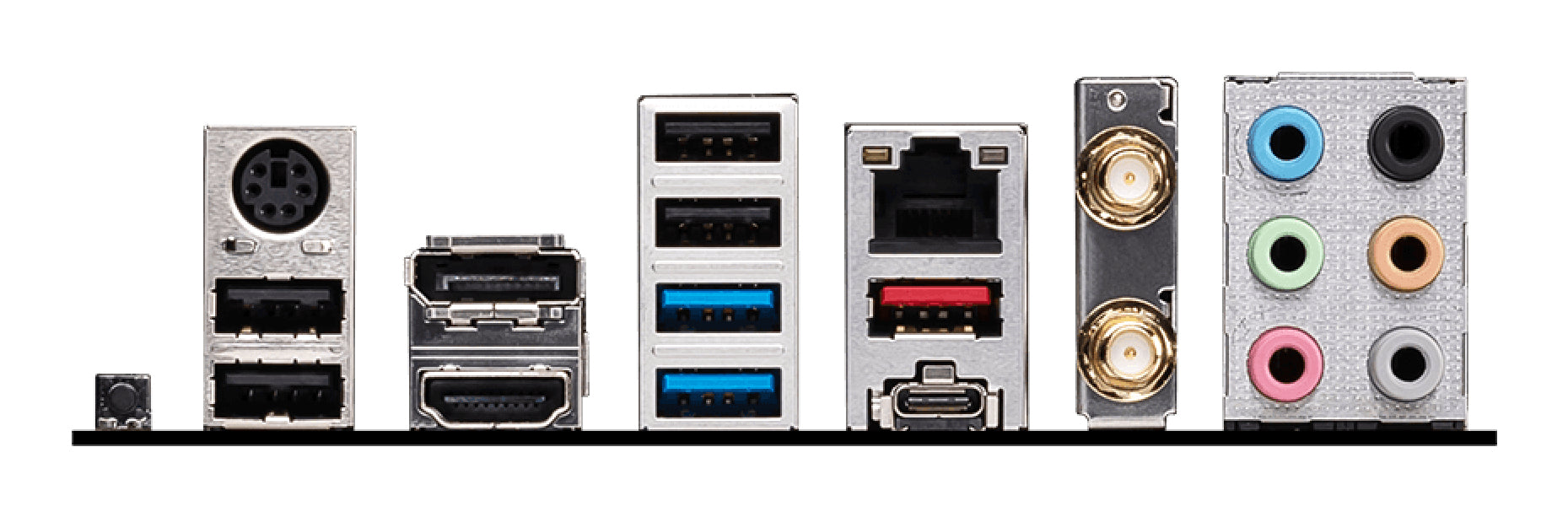

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 0 |
| S/PDIF out port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Features | |
| Audio chip | Realtek ALC897 |
| Product colour | Black |
| Expansion slots | |
| PCI slots | 0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| System Management BIOS (SMBIOS) version | 3.5 |
| Software | |
| Bundled software | Drivers MSI Center Intel Extreme Tuning Utility CPU-Z MSI GAMING Norton 360 Deluxe AIDA64 Extreme - MSI Edition |
| Weight & dimensions | |
| Width | 304.8 mm |
| Depth | 243.8 mm |
| Packaging content | |
| Cables included | SATA |
