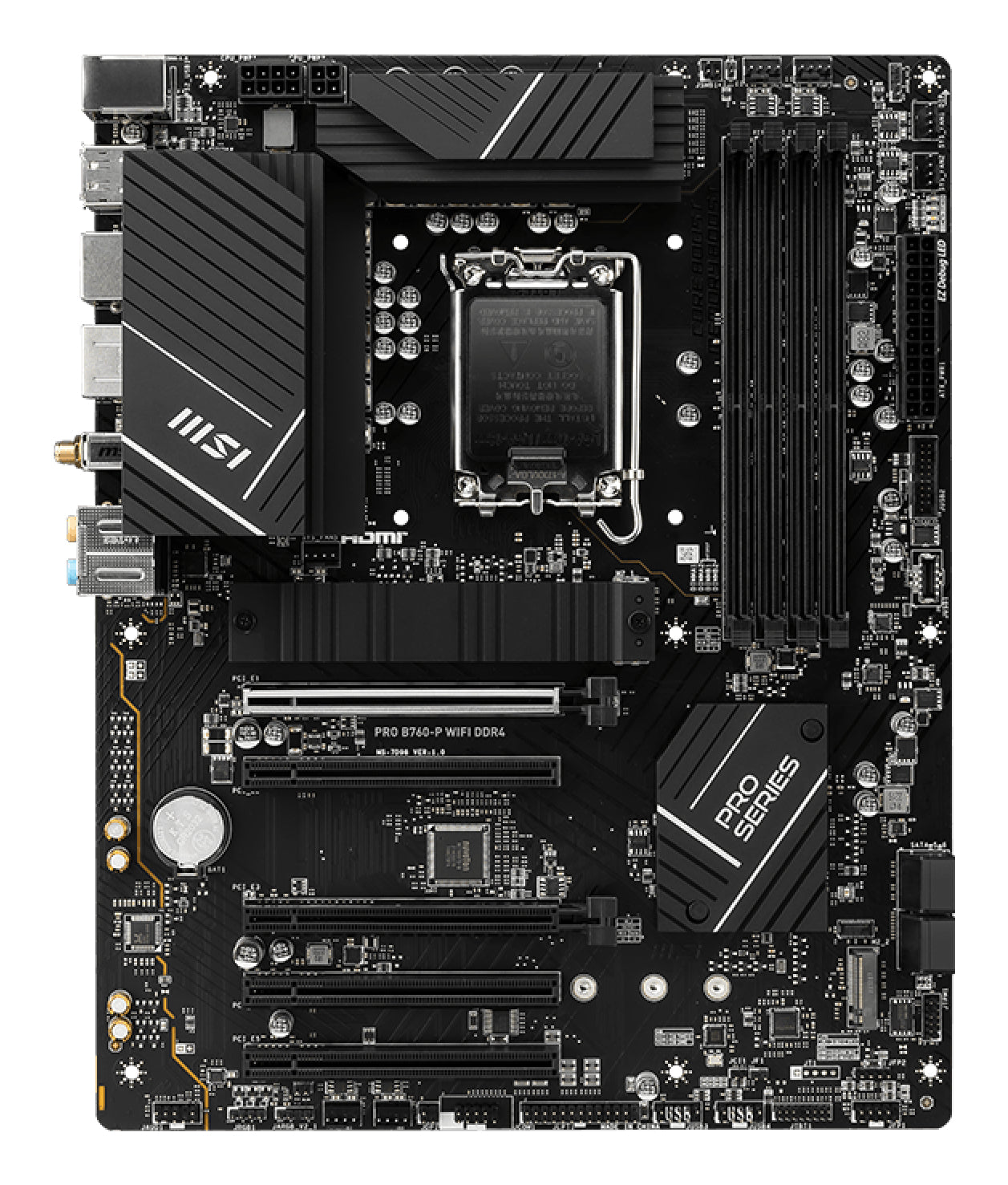

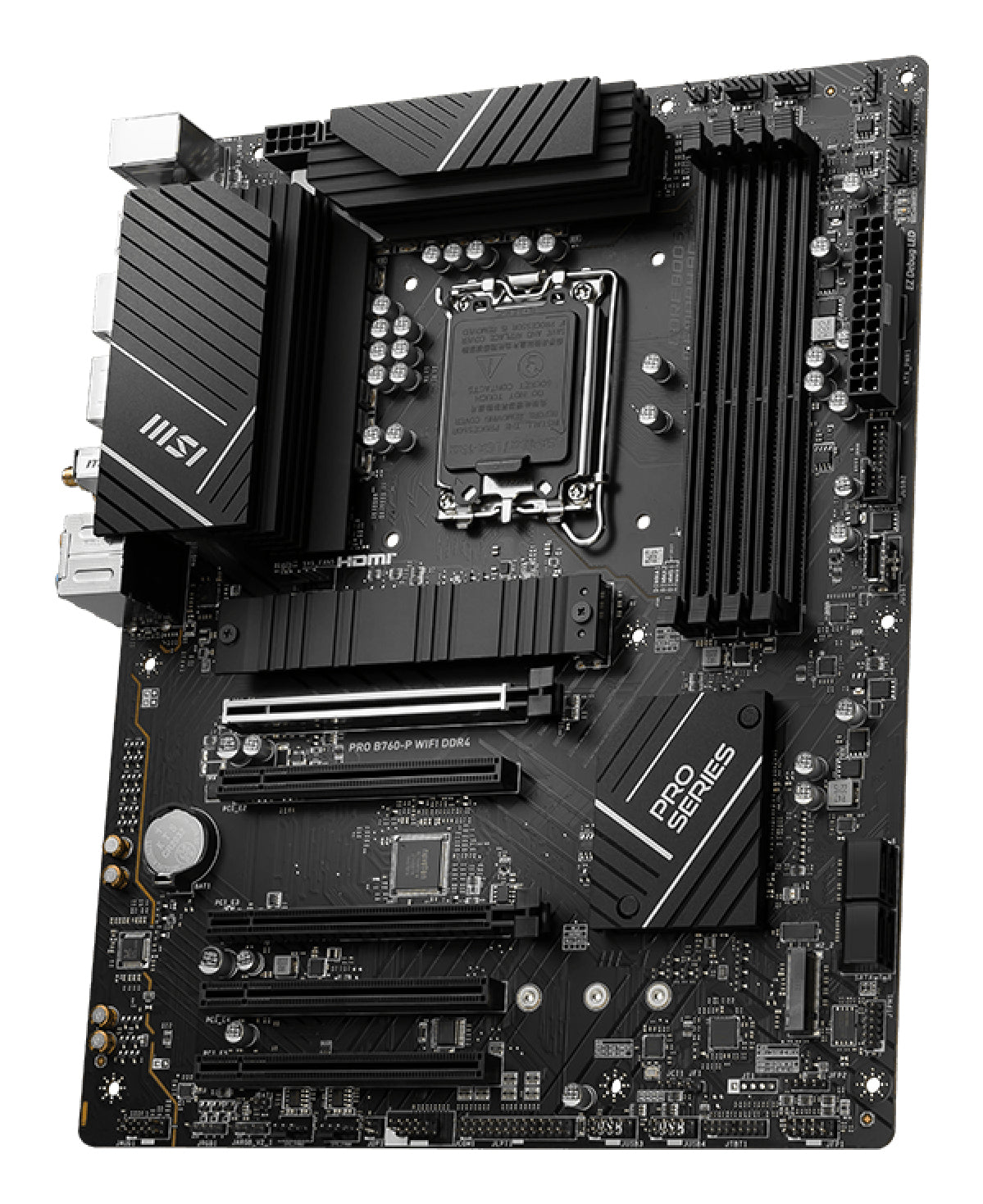

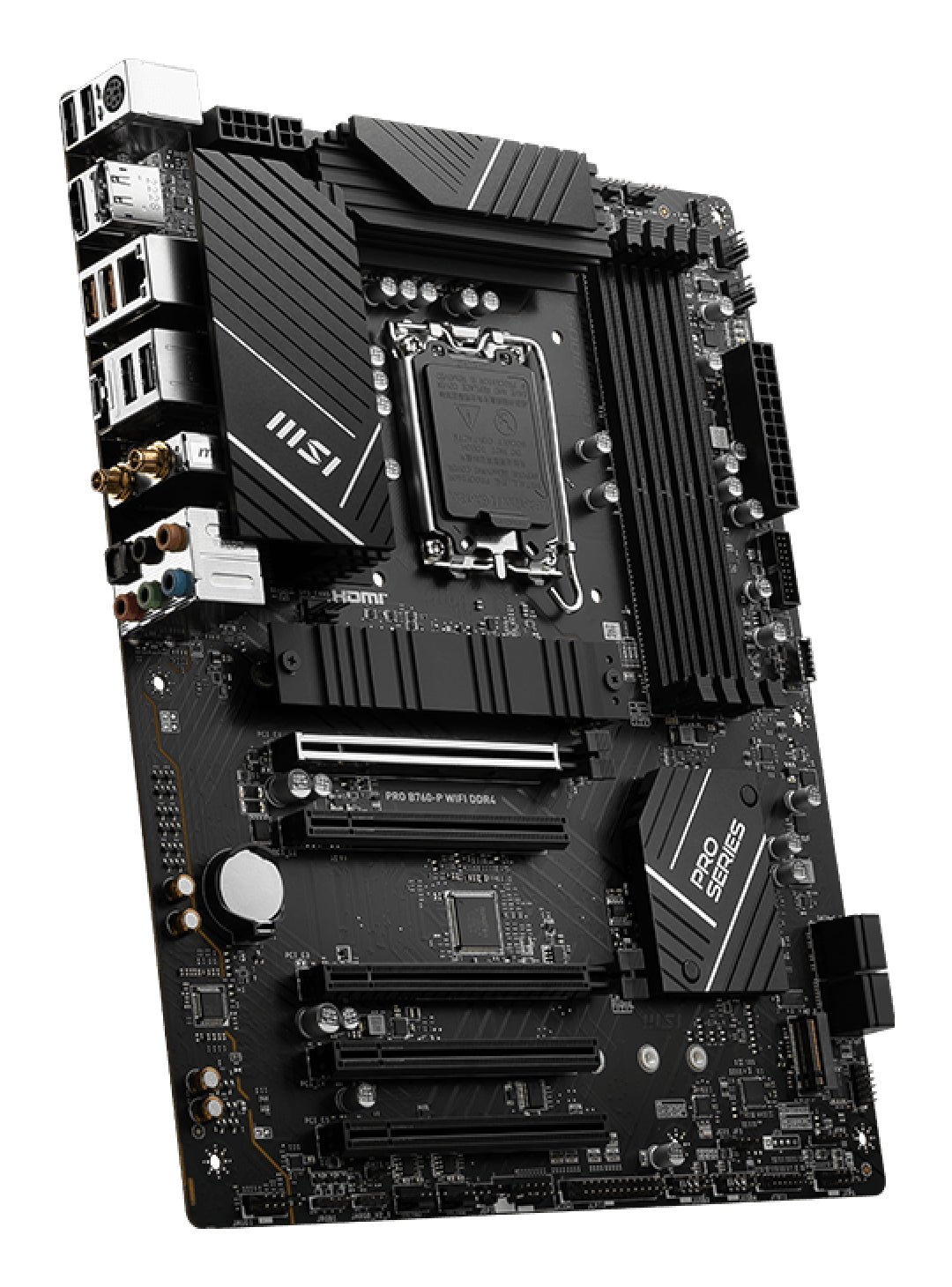

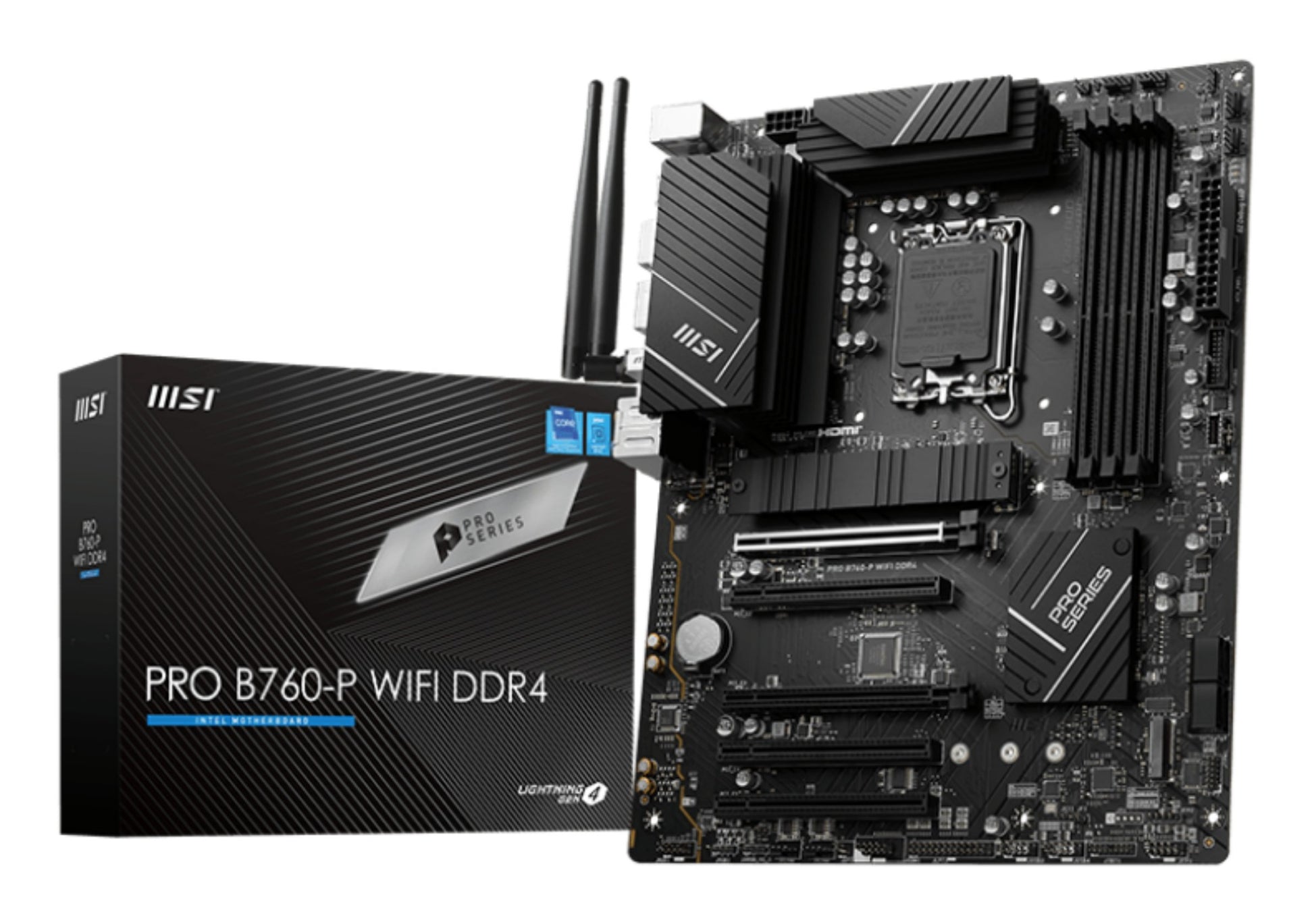

MSI PRO B760-P WIFI DDR4 motherboard Intel B760 LGA 1700 ATX
MSI PRO B760-P WIFI DDR4 motherboard Intel B760 LGA 1700 ATX
Regular price
£130.03 GBP
Regular price
Sale price
£130.03 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The MSI PRO B760-P WIFI DDR4 provides the foundation for your build — socket, chipset and expansion details are in the spec table below.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2 10G
Using USB 3.2 devices has never been faster! MSI PRO series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 10Gb/s when connecting the Rear USB Type-C.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| TPM connector | Yes |
| Number of SATA connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Supported processor sockets | LGA 1700 |
| On-board graphics card | No |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Windows operating systems supported | Windows 10, Windows 11 |
| RAID levels | 0, 1, 5, 10 |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz |
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 5333 MHz |
| ECC ?ompatibility | Non-ECC |
| Storage controllers | |
| Number of storage drives supported | 6 |
| RAID support | Yes |

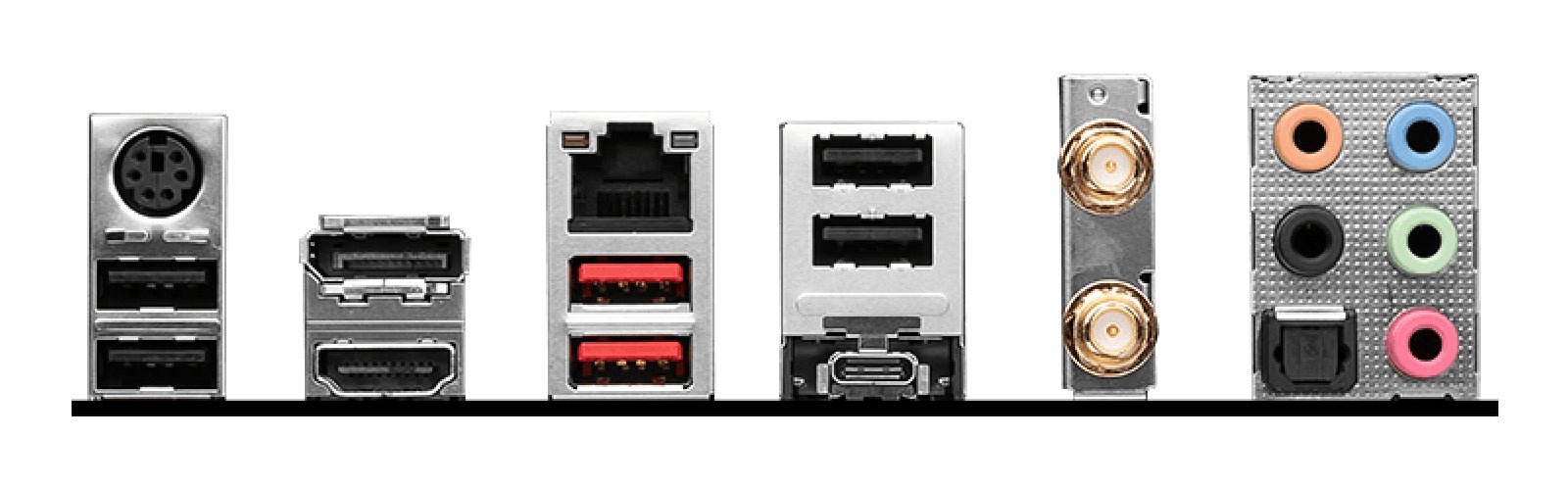

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Power source type | ATX |
| Audio chip | Realtek ALC897 |
| Product colour | Black |
| Expansion slots | |
| PCI Express x16 slots | 5 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| System Management BIOS (SMBIOS) version | 3.5 |
| Weight & dimensions | |
| Width | 243.8 mm |
| Depth | 304.8 mm |
