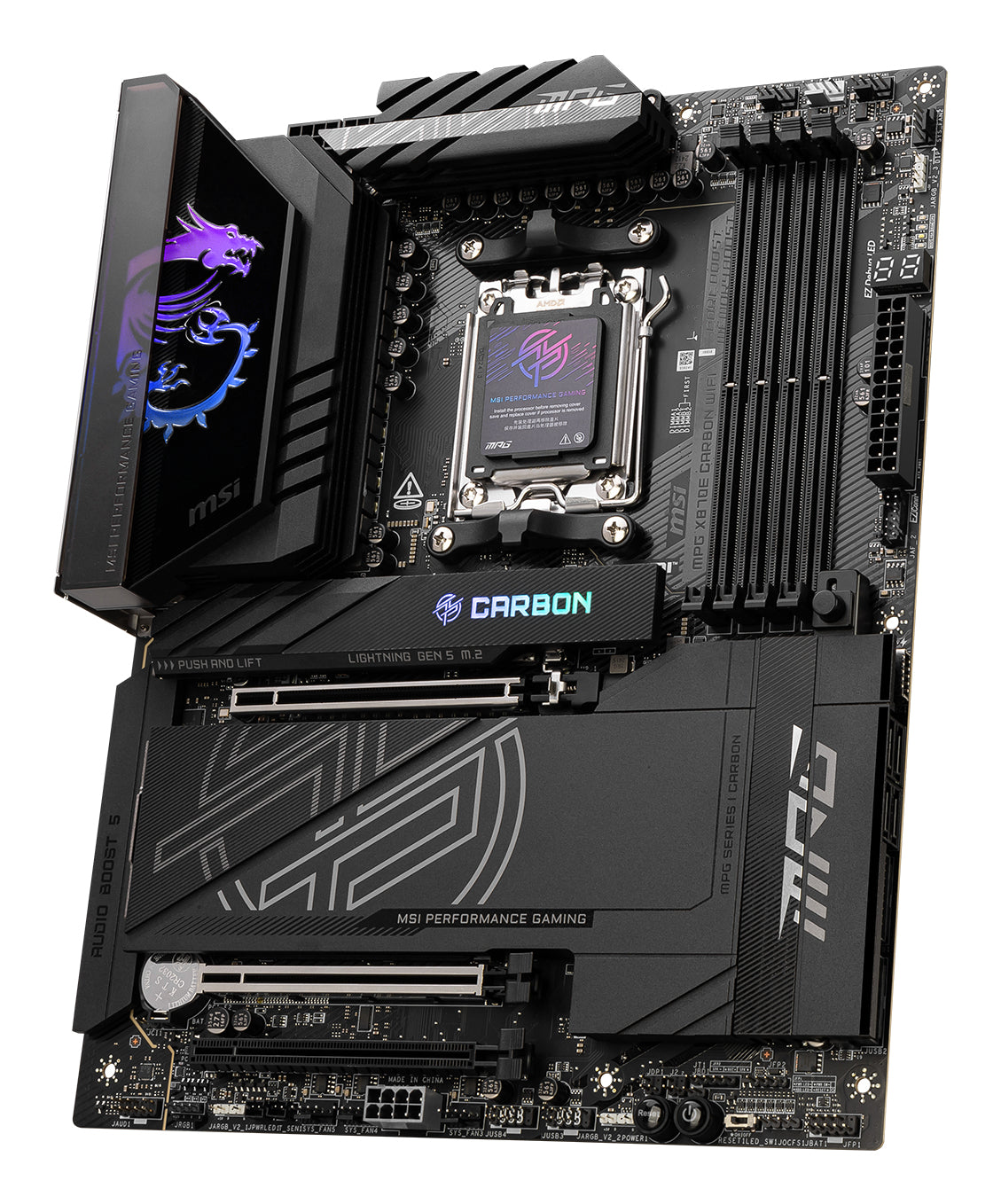

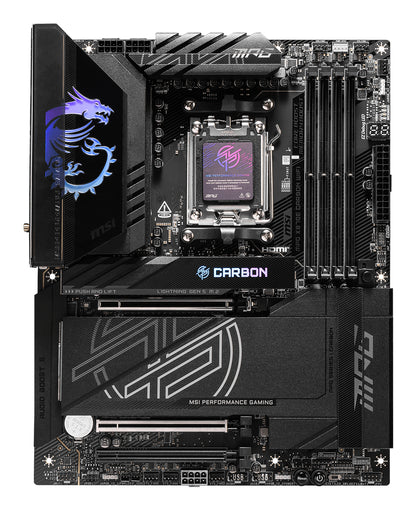

MSI MPG X870E CARBON WIFI motherboard AMD X870E Socket AM5 ATX
MSI MPG X870E CARBON WIFI motherboard AMD X870E Socket AM5 ATX
Regular price
£401.93 GBP
Regular price
Sale price
£401.93 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The MSI MPG X870E CARBON WIFI provides the foundation for your build — socket, chipset and expansion details are in the spec table below.
4 X DDR5 , Socket AM5, Wi -Fi 7, 2,5GBE LAN, 4 X M.2
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| Total number of SATA connectors | 4 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 4 |
| mSATA ports quantity | 0 |
| Number of SATA connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| On-board graphics card | No |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ 7 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| ECC ?ompatibility | Non-ECC |
| Storage controllers | |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 2 |
| USB4 Gen 2x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Product colour | Black |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
