MSI

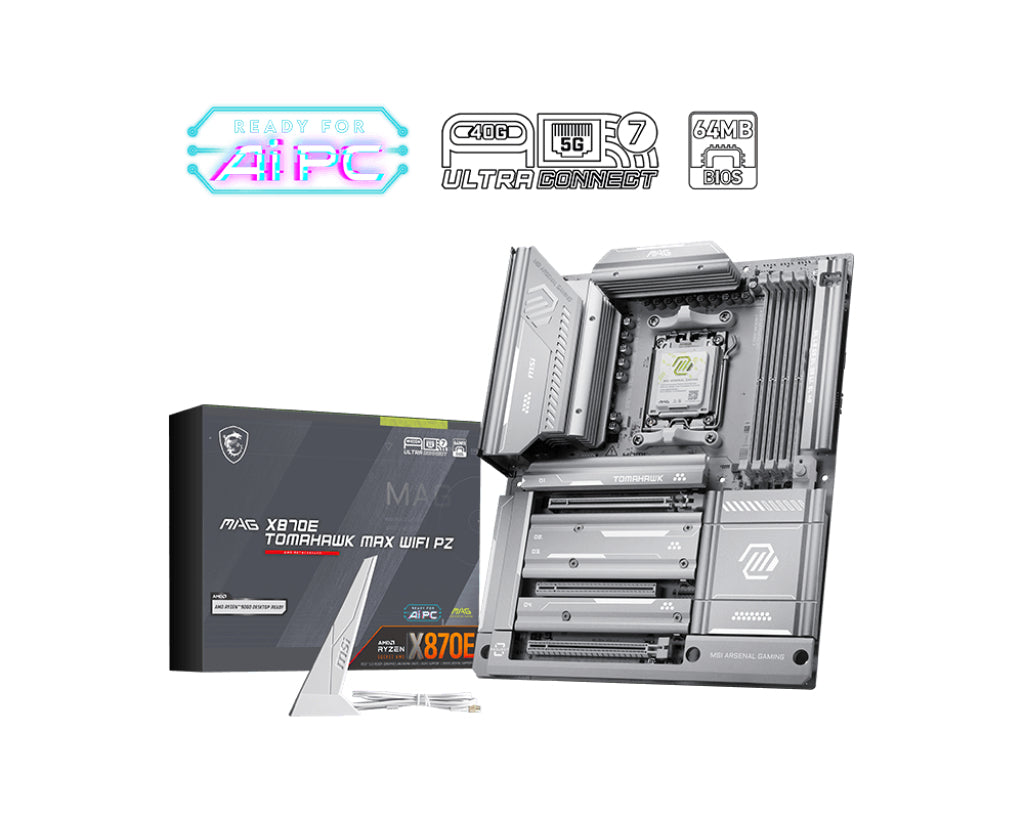

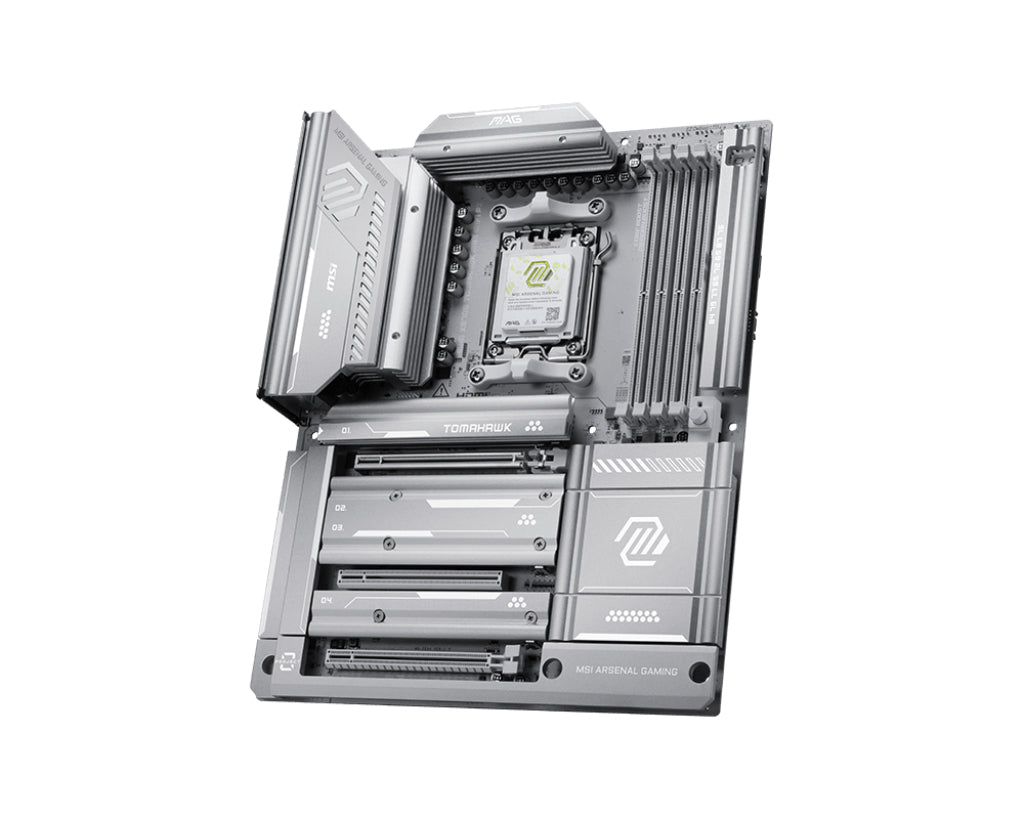

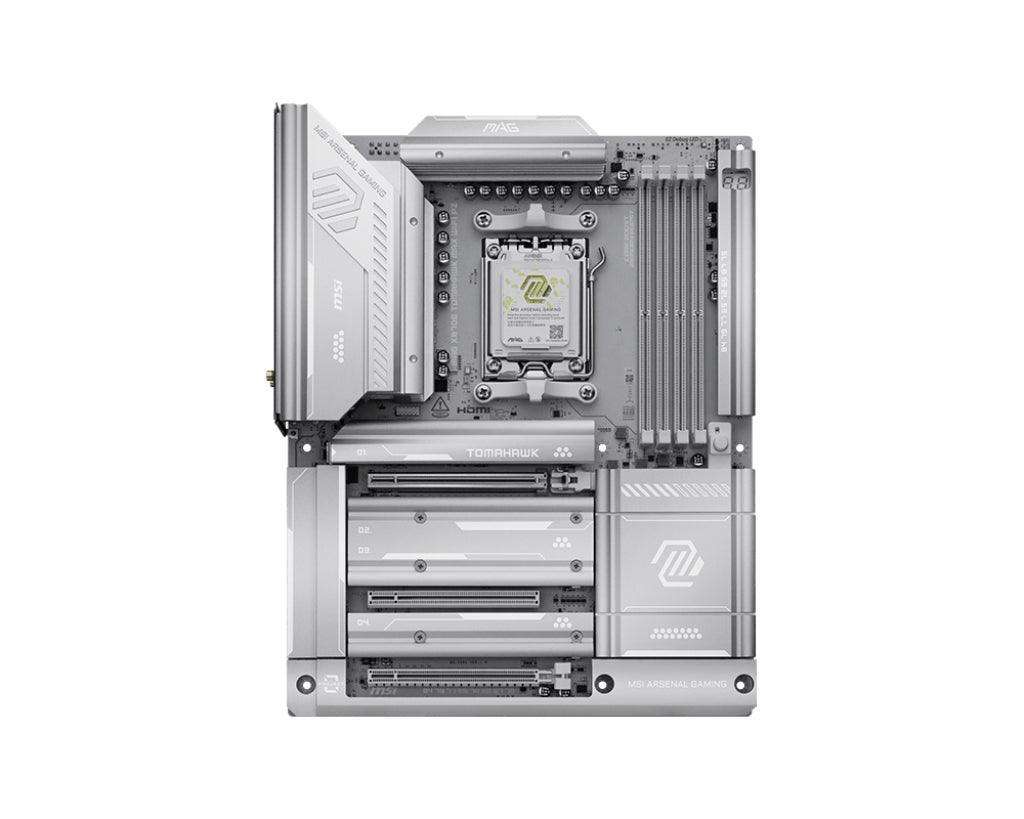

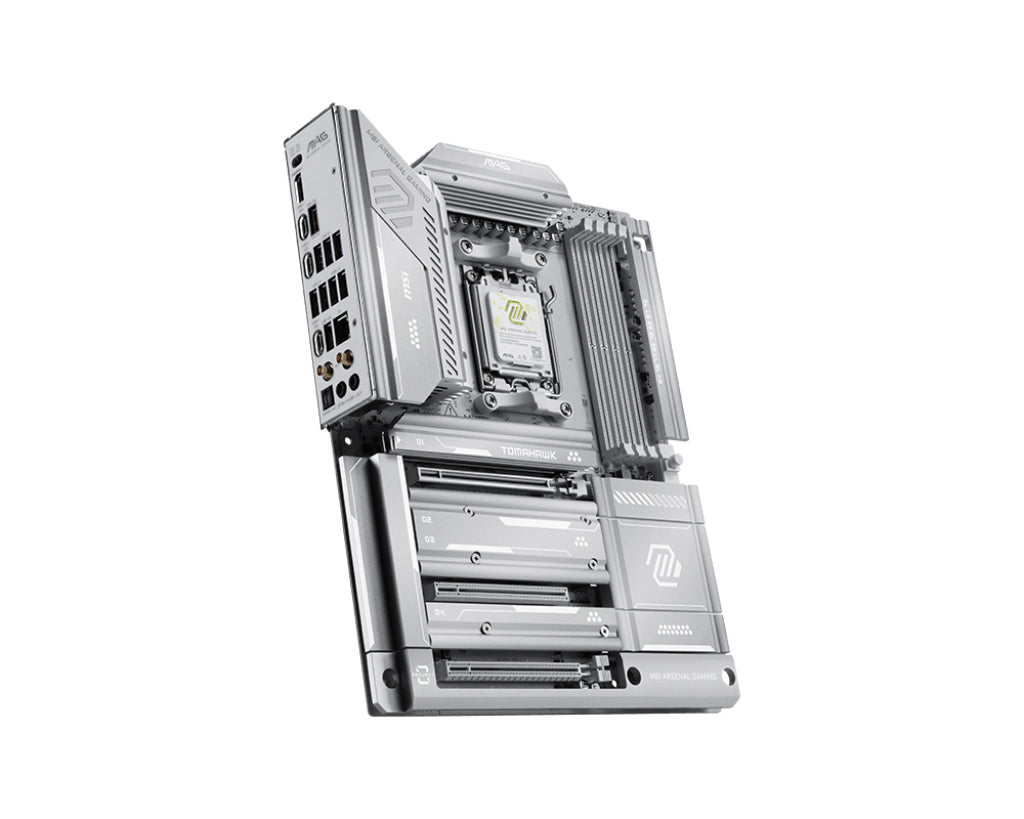

MSI MAG X870E TOMAHAWK MAX WIFI PZ motherboard AMD X870E Socket AM5 ATX
MSI MAG X870E TOMAHAWK MAX WIFI PZ motherboard AMD X870E Socket AM5 ATX
Regular price
£324.64 GBP
Regular price
Sale price
£324.64 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The MSI MAG X870E TOMAHAWK MAX provides the foundation for your build — socket, chipset and expansion details are in the spec table below.
MAG X870E TOMAHAWK MAX WIFI PZ is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
MSI Motherboard ai logo
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
The MAG X870E TOMAHAWK MAX WIFI PZ features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8 pin power connectors and exclusive Core Boost technology, the MAG X870E TOMAHAWK MAX WIFI PZ is ready to sustain heavy gaming loadings.
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| mSATA ports quantity | 0 |
| Number of SATA connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| RAID levels | 0, 1, 10 |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5600,6400,8400 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8400 MHz |
| ECC ?ompatibility | Non-ECC |
| Storage controllers | |
| Number of storage drives supported | 8 |
| RAID support | Yes |

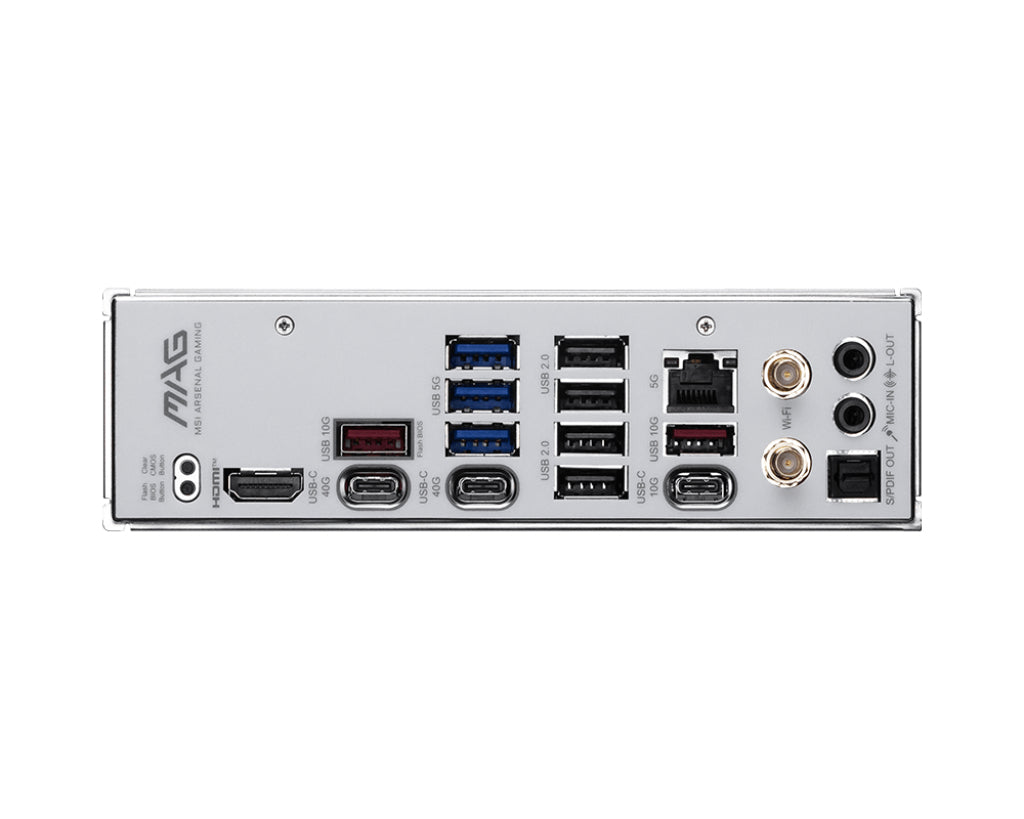

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 0 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 2 |
| USB4 Gen 2x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8126 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Product colour | White |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| ACPI version | 6.5 |
| System Management BIOS (SMBIOS) version | 3.7 |
| Weight & dimensions | |
| Width | 243.8 mm |
| Depth | 304.8 mm |
