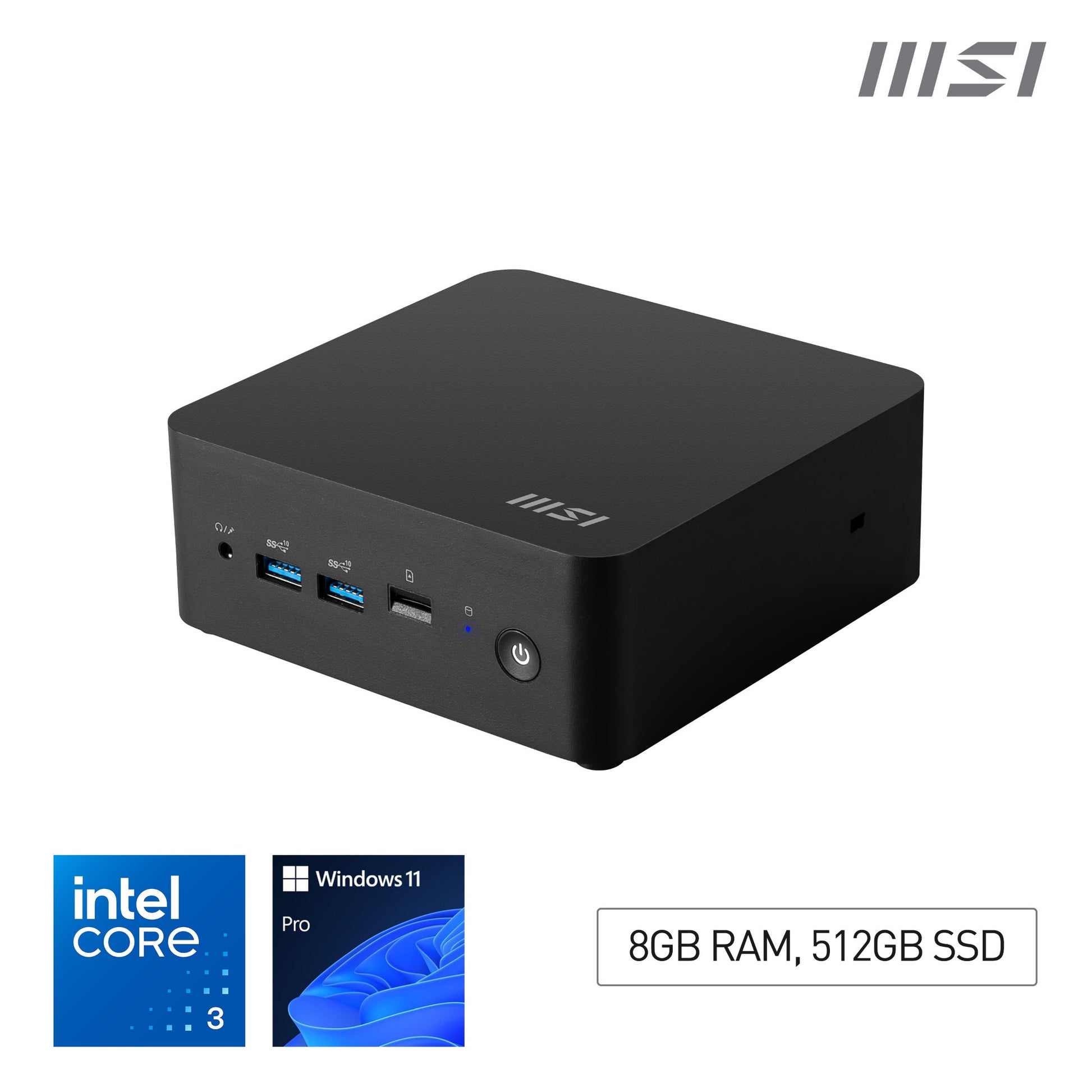

MSI Cubi NUC 1M Core 3 100U 8GB 512GB SSD SFF Desktop PC

Office-ready out of the box, the MSI Cubi NUC 1M runs the daily workload on Core 3 100U, 8GB RAM and 512GB SSD.

"Cubi NUC 1M: The Sustainable & Energy Efficient Mini-PC

The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).

The Cubi NUC 1M i3 100U FS 8GB 512GB W11P configuration is a complete system equipped with an Intel® Core 3 processor 100U, 8 GB of DDR5-5200MHz memory, 512 GB of M.2 SSD storage, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity, as well as Windows 11 Pro software pre-installed.

The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.

Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

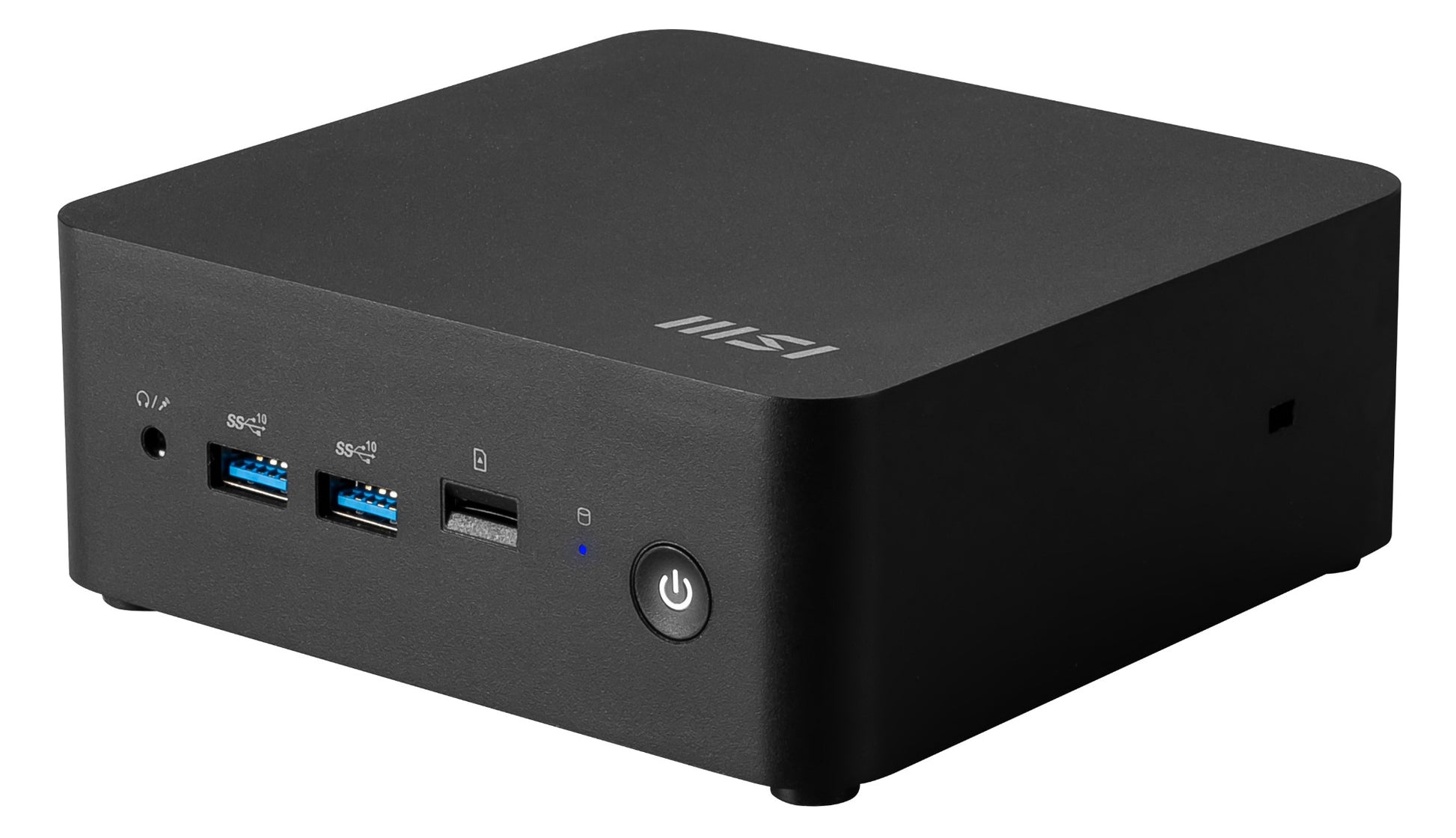

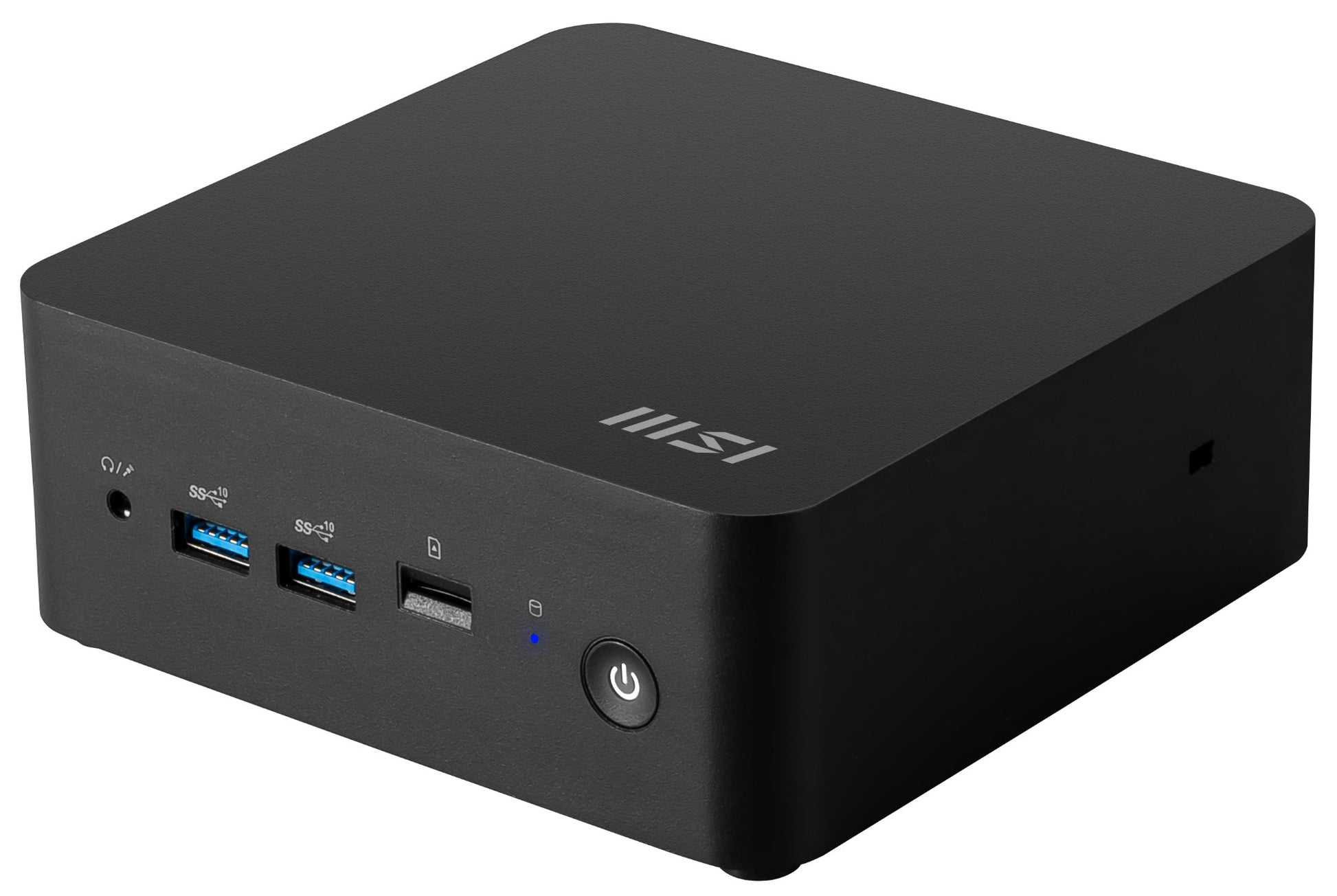

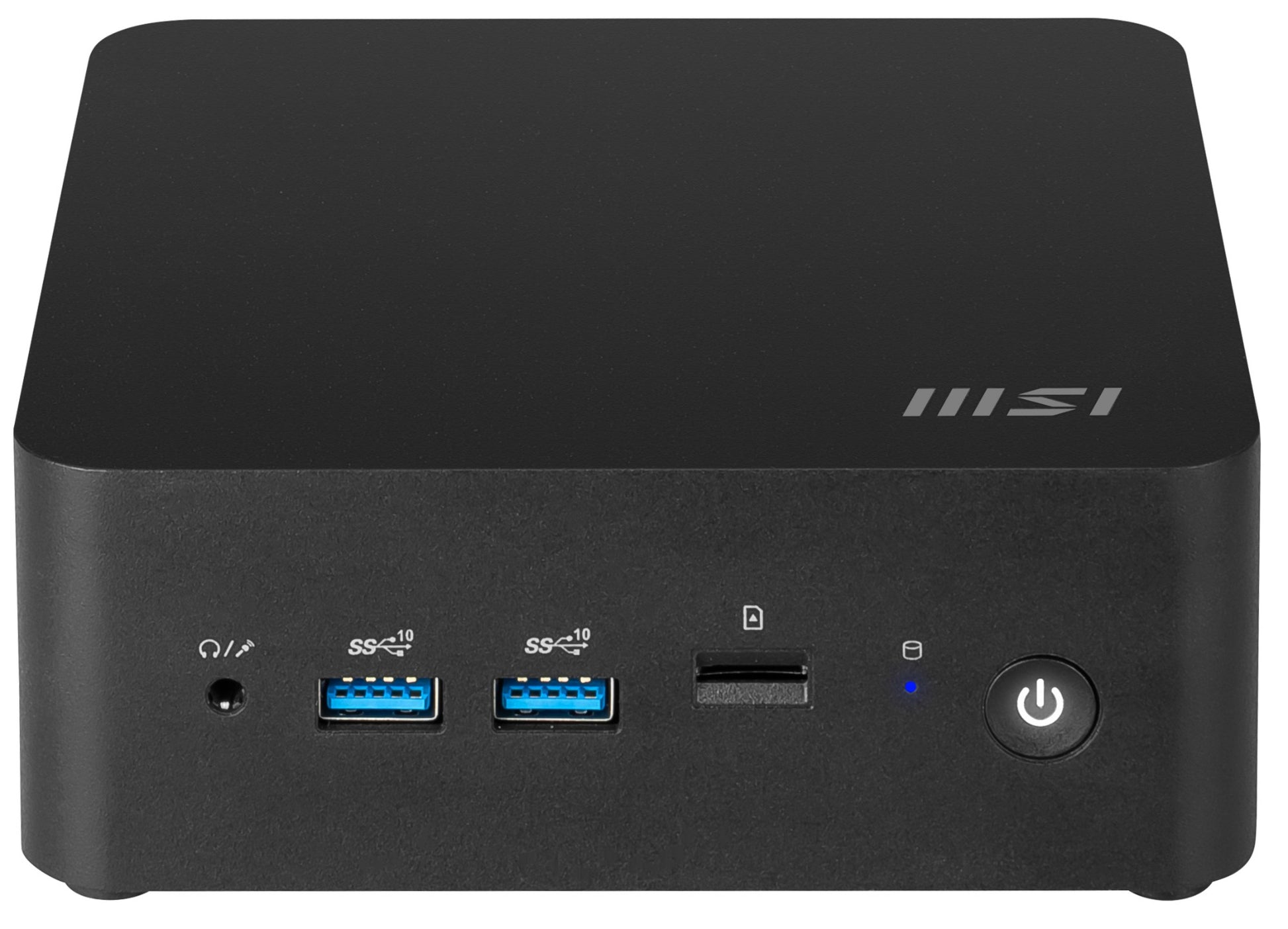

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"

Specifications

Processor
Processor generation	Intel Core (Series 1)
Processor cache	10 MB
Processor model	100U
Number of processors installed	1
Processor manufacturer	Intel
Processor threads	8
Processor cores	6
Processor family	Intel Core 3
Performance cores	2
Efficient cores	4
Performance-core base frequency	1.2 GHz
Efficient-core base frequency	0.9 GHz
Processor base power	15 W
Maximum turbo power	55 W
Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core Max Turbo Frequency	4.7 GHz
Memory
Memory layout (slots x size)	1 x 8 GB
Internal memory	8 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	5200 MHz
Storage
Storage media	SSD
Number of storage drives installed	1
Number of storage drives supported	3
Optical drive type	No
SSD interface	M.2
SSD capacity	512 GB
Number of SSDs installed	1
HDD size	2.5"
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Graphics
On-board GPU manufacturer	Intel
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.3
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Wake-on-LAN ready	Yes
WLAN controller model	Intel Wi-Fi 6E AX211
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
LAN controller	Intel I226-V
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI version	1.4/2.1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	0
Serial ports quantity	0
S/PDIF out port	No
PS/2 ports quantity	0
Parallel ports quantity	0
Mini DisplayPorts quantity	0
Microphone in	No
Line-out	No
Line-in	No
Firewire (IEEE 1394) ports	0
Headphone outputs	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	2
eSATA ports quantity	0
DVI port	No
DisplayPorts quantity	0
DC-in jack	Yes
PowerShare	No
Number of USB ports with PowerShare support	0
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB4 Gen 2x2 ports quantity	0
USB4 Gen 3x2 ports quantity	0
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
Fiber NIC port (Flex I/O)	No
Number of rear USB ports	4
Number of rear audio ports	0
Number of front USB ports	2
Number of front audio ports	1
Number of side USB ports	0
Technical details
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini PC
Motherboard form factor	NUC
Placement supported	Horizontal
Cable lock slot	Yes
Motherboard chipset	Intel SoC
Locale	English
Sustainability certificates	ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic
Design
VESA mounting	Yes
Housing material	Plastic
Volume	0.84 L
Colour name	Black
Country of origin	China
Introduction year	2024
Introduction month	July
Performance
Market positioning	Business
Powered by	MSI
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Power
Power supply input frequency	50-60 Hz
Power supply input voltage	100-240 V
Power supply	120 W
Weight & dimensions
Package width	205 mm
Package depth	220 mm
Package height	94 mm

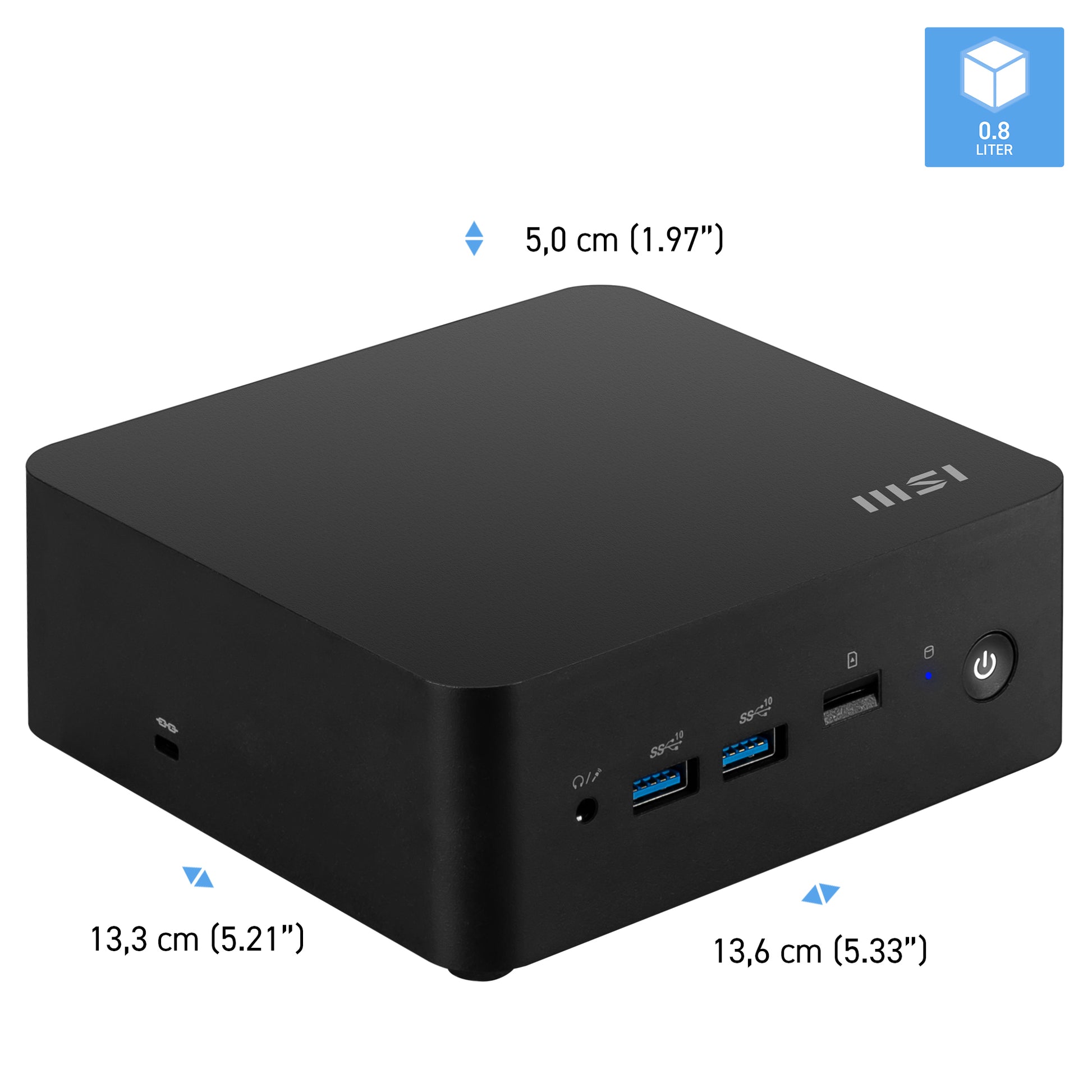

Width	132.5 mm
Depth	135.6 mm
Height	50.1 mm
Package weight	1.45 kg
Weight	625 g
Packaging content
VESA mount included	Yes
Cables included	AC, Power
Mouse included	No
Display included	No
Keyboard included	No
Screws included	Yes
Other features
TV tuner integrated	No
Built-in microphone	No
