Microconnect

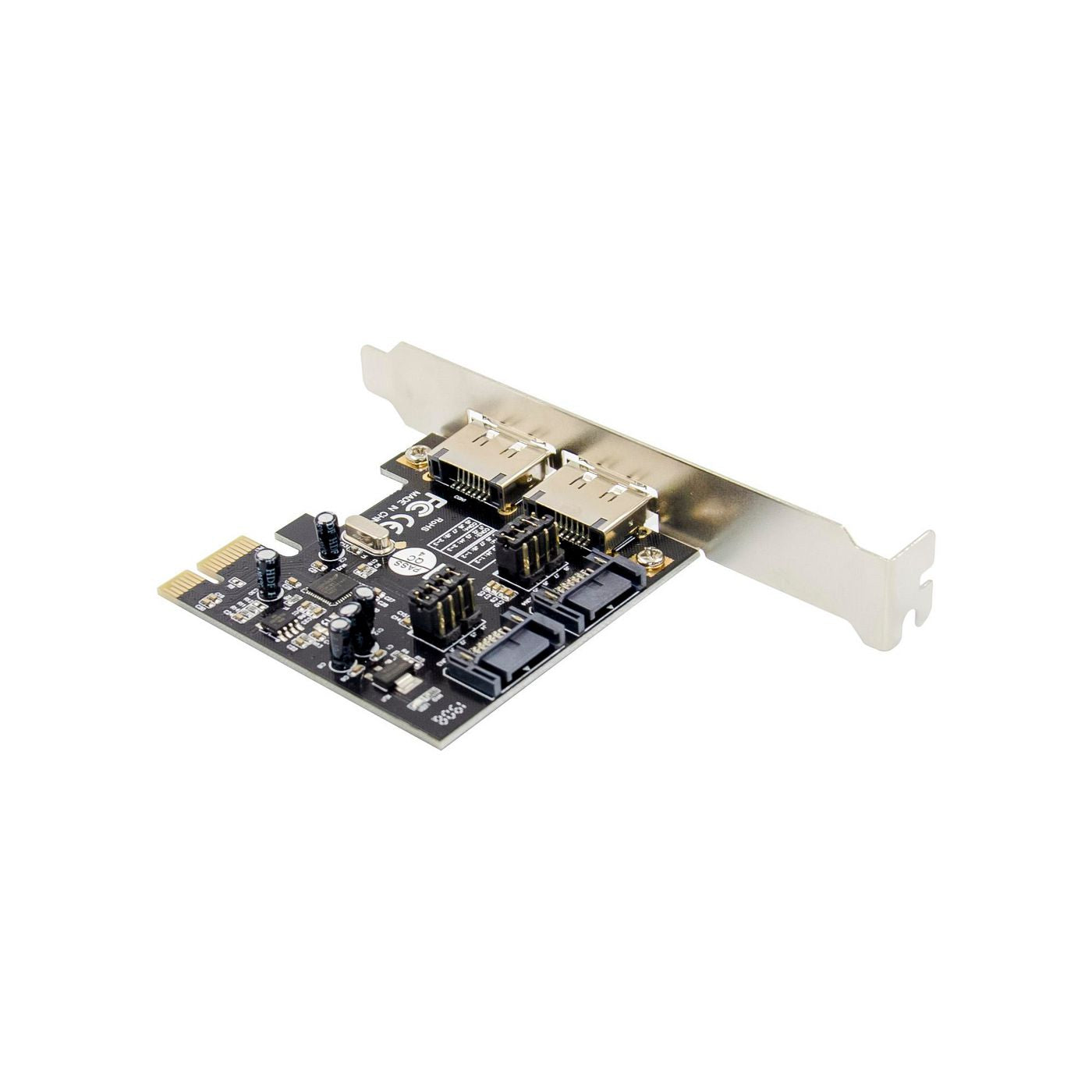

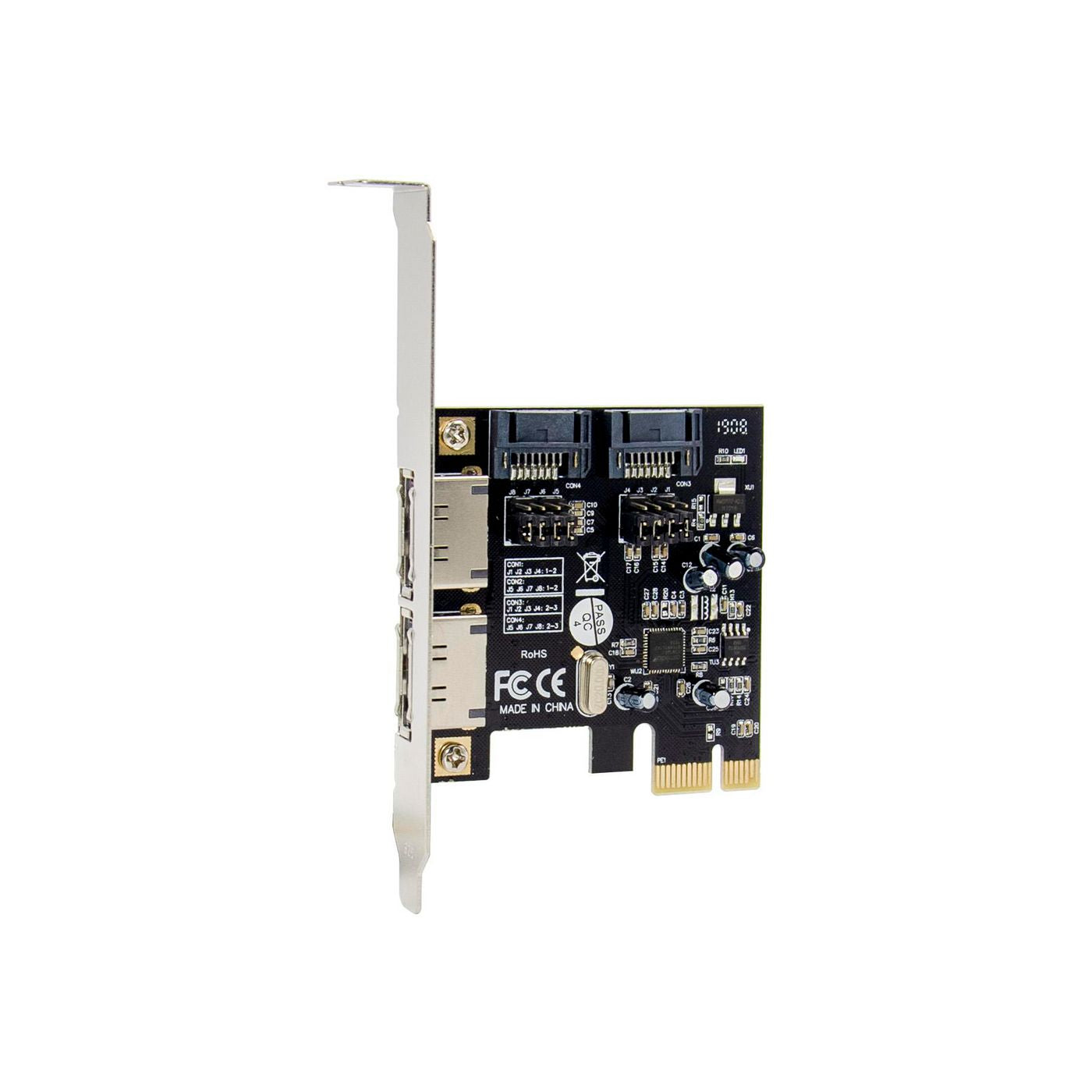

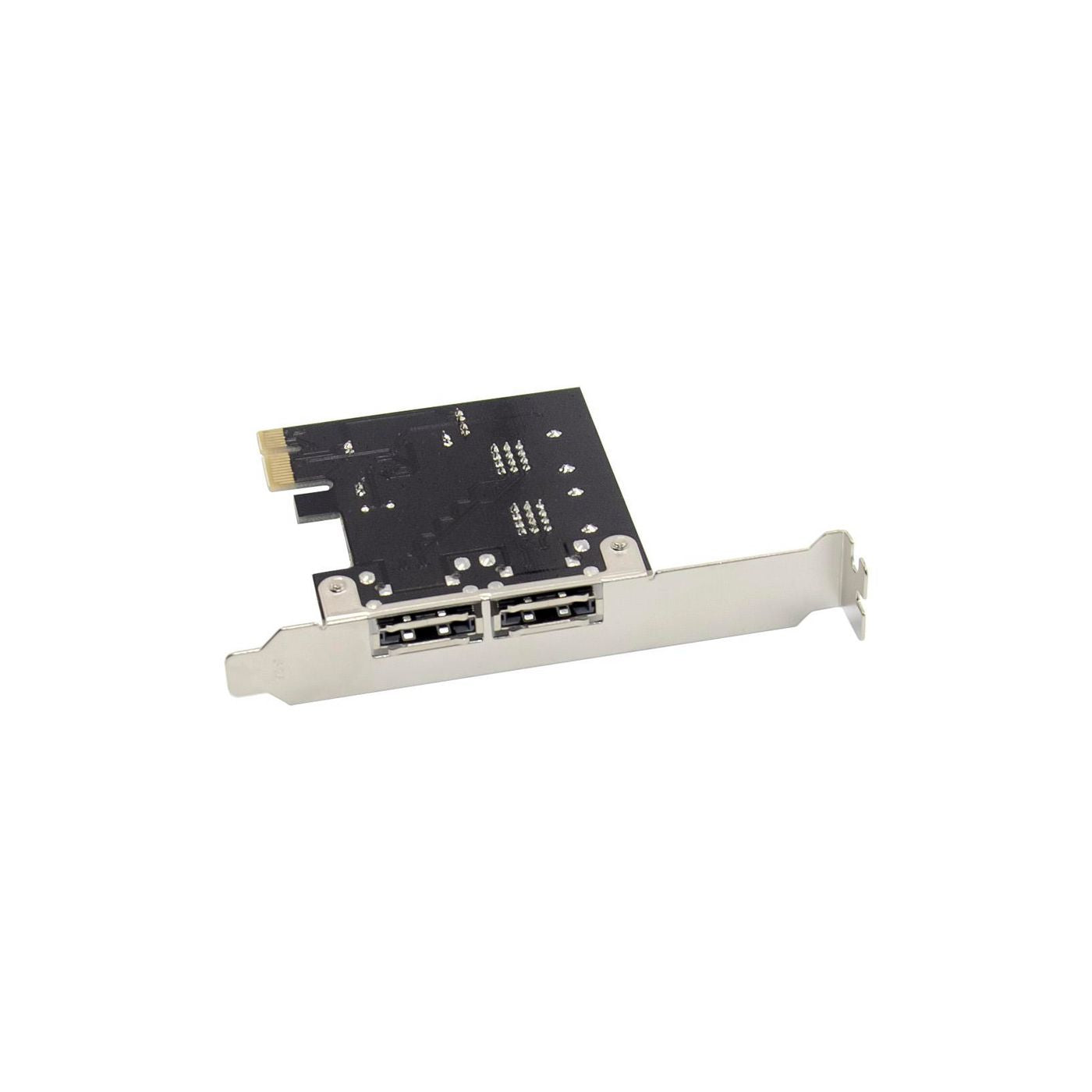

Microconnect MC-SATA3-T4 interface cards/adapter Internal SATA Hub

£23.71 GBP

Sale Sold out

Taxes included.

Condition New

The Microconnect MC-SATA3-T4 expands your ports in seconds — plug in and go.

This board is a single-chip, PCI Express to two SATA Gen III 6Gb/s channels host controller that brings server-class features to the desktop. This board enables the use of the industry’s newest and fastest hard drives at 6Gb/s while providing backward compatibility to legacy SATA 1.5Gb/s or 3Gb/s drives. It uses the same cable and connectors as previous SATA generations to ease integration. Besides, PCI Express 2.0 double the bandwidth of the existing PCI Express bus for faster data throughput. It will enhance system performance for every type of computer user. Each PCI-Express 2.0 lane provides up to 500MB/s of throughput. It also backward compatible with previous generation of PCI Express 1.0 technology.

Specifications

Ports & interfaces
Internal	Yes
Output interface	SATA
eSATA ports quantity	2
Host interface	PCIe
Technical details
Chipset	ASMedia ASM1061
Bandwidth	6 Gbit/s
Quantity per pack	1 pc(s)
Power
Output voltage	5 V
Output current	0.9 A
Operational conditions
Operating temperature (T-T)	5 - 35 °C
System requirements
Windows operating systems supported	Yes
Weight & dimensions
Width	83 mm
Depth	68 mm
Weight	86 g
Package width	173 mm
Package depth	130 mm
Package height	35 mm
Package weight	96 g
