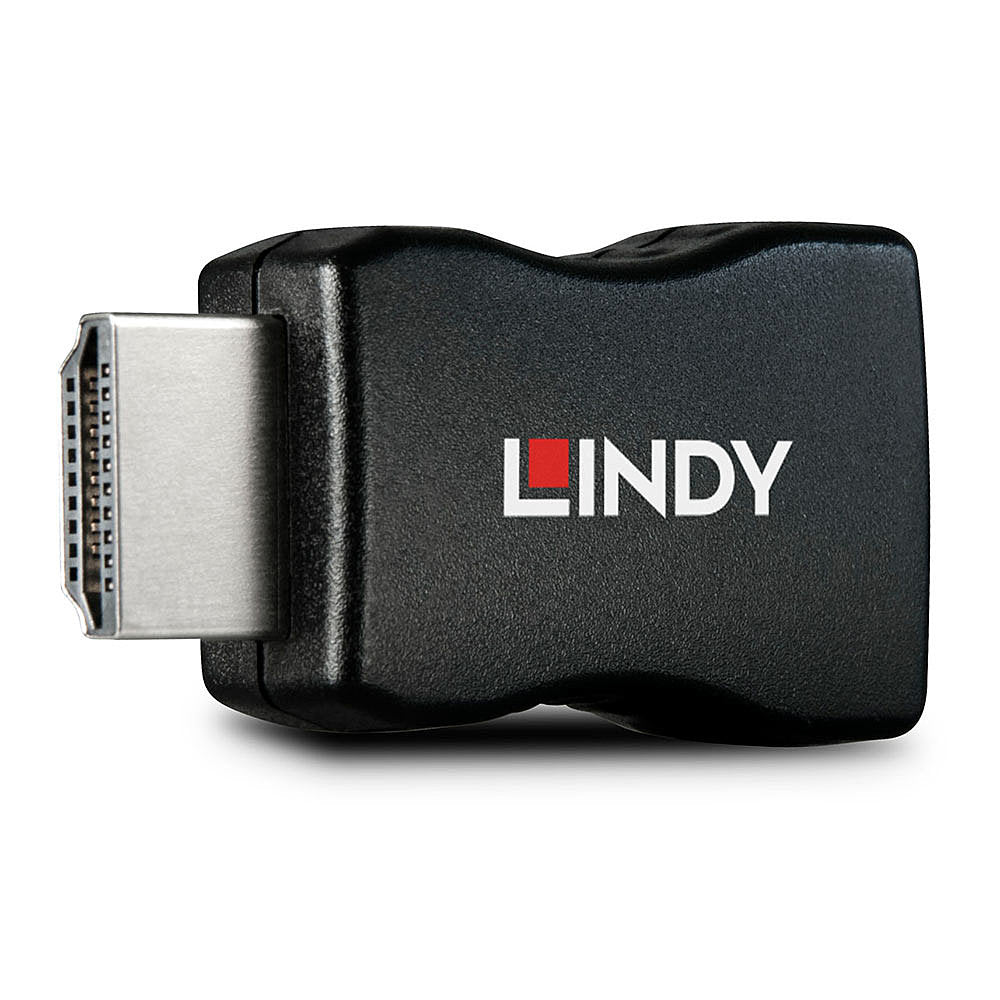

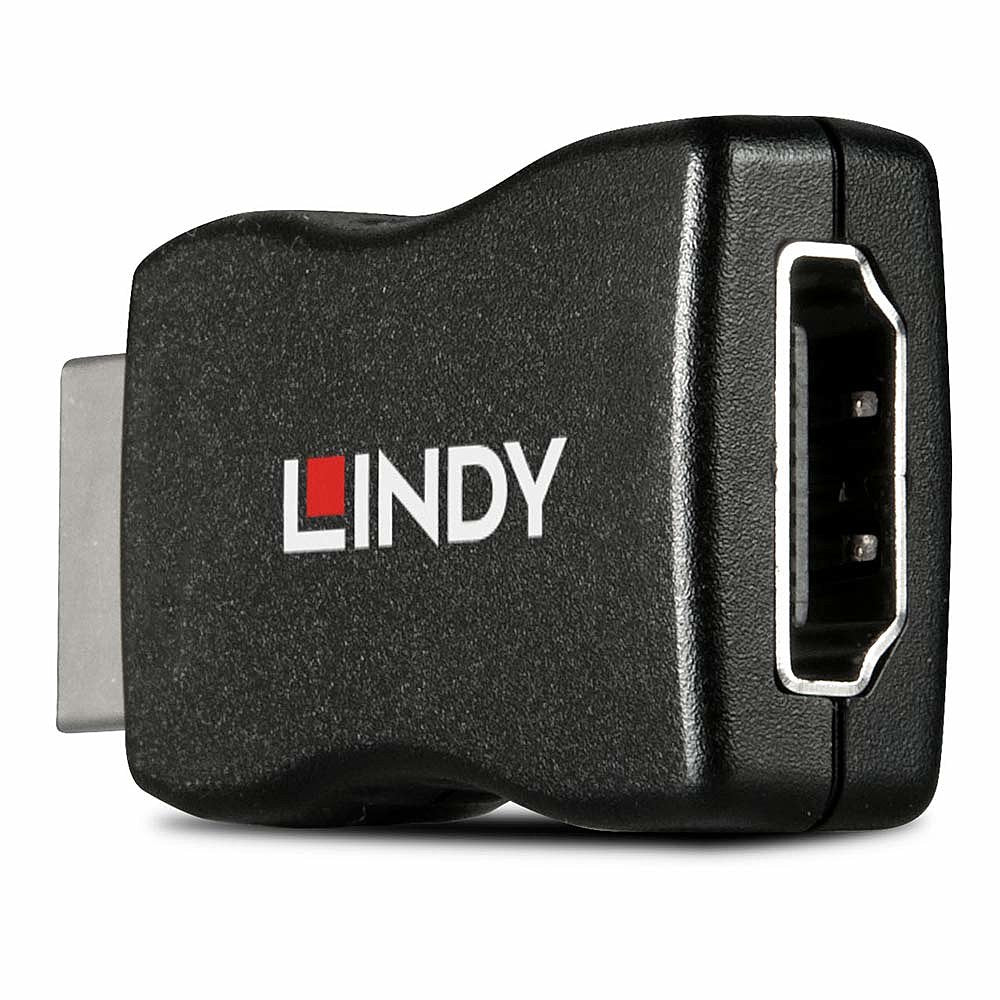

Lindy HDMI 10.2G EDID Emulator Cable

Make the connection with the Lindy HDMI 10.2G EDID Emulator — length and connector details are in the spec table.

The Lindy HDMI 10.2G EDID Emulator Adapter is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM extenders, switches and splitters. It can also be used in place of a monitor to keep the graphics card of a PC or server awake for remote access via IP. With support for resolutions up to 2160p including the ability to passthrough HDCP content, the Emulator is suitable for use with a wide variety of PC and AV applications. When used with the Lindy HDMI / VGA / DVI EDID Recorder (32120) this compact device can provide cloned EDID information to your graphics card.

It is also possible to use the Emulator without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.

*Please note: This Emulator does not support HDMI 2.0 or HDCP 2.2 content. If you require this then please see our complete range of EDID emulators

Specifications

Ports & interfaces
Connector 2	HDMI-A
Connector 1	HDMI-A
Connector 2 gender	Female
Connector 1 gender	Male
Performance
Housing material	Acrylonitrile butadiene styrene (ABS)
Maximum resolution (HDMI)	3840 x 2160 pixels
Compatible products	Lindy 32100
Product colour	Black
Data transfer rate	18 Gbit/s
Certification	REACH, CE, FCC
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Relative humidity	0 - 80%
Operating temperature (T-T)	0 - 60 °C
Certificates
Compliance certificates	RoHS
Weight & dimensions
Width	24 mm
Weight	8 g
Height	12.3 mm
Depth	43 mm
Packaging content
Manual	Yes
Packaging data
Package width	136 mm
Package type	Polybag
Package height	138 mm
