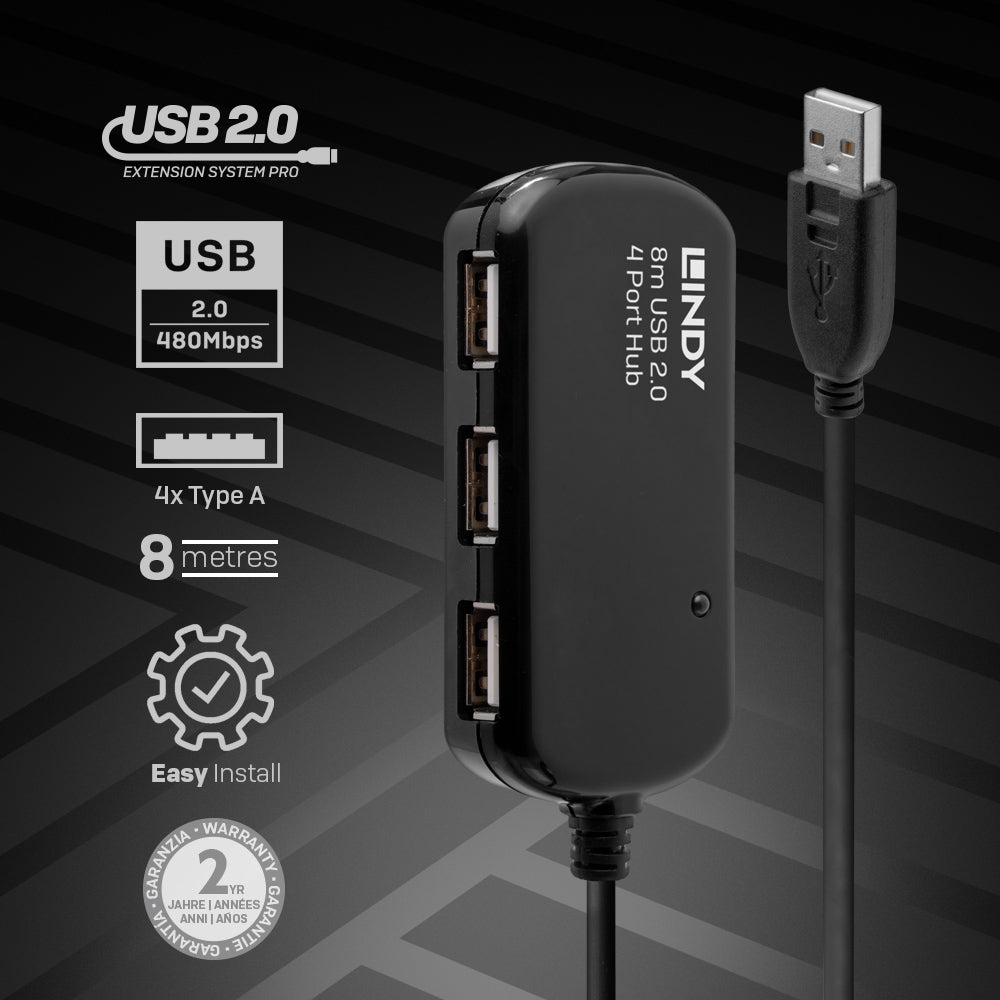

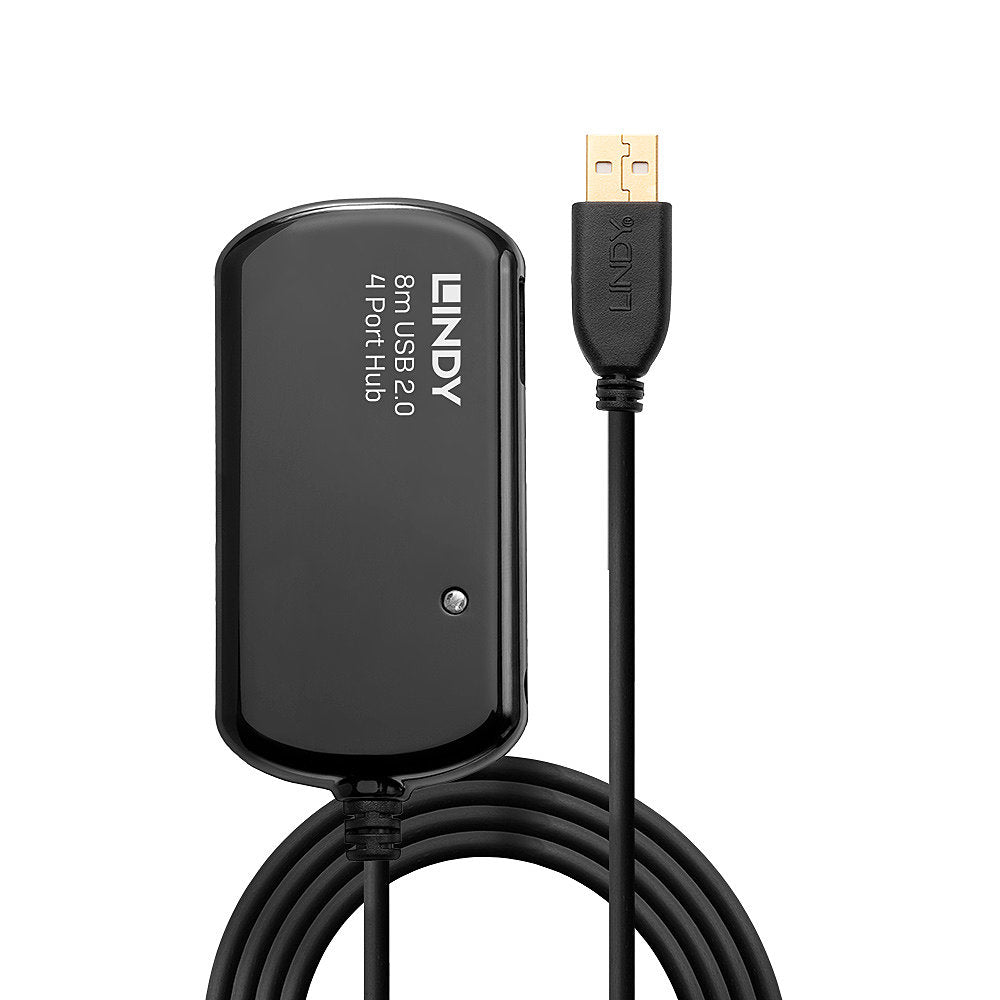

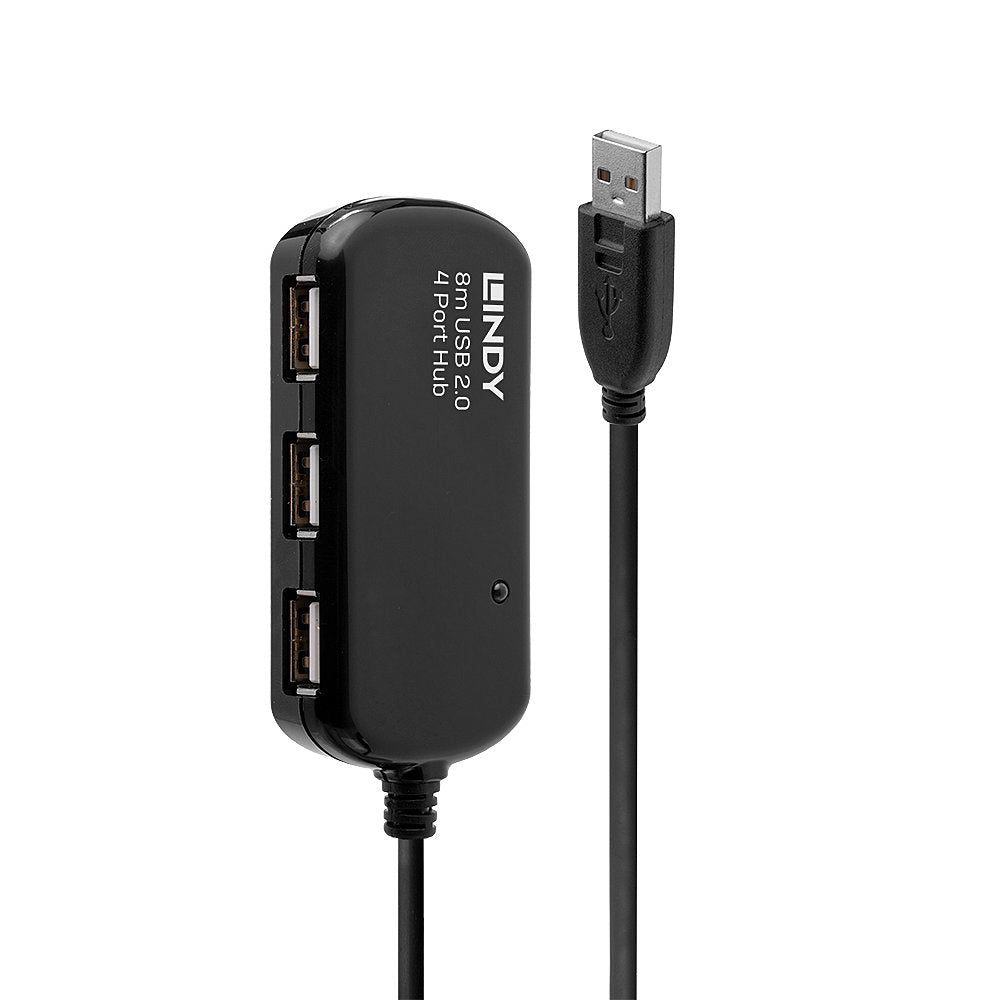

Lindy 8m USB 2.0 Active Extension Pro Hub

The Lindy 8m expands your ports in seconds — plug in and go.

The Lindy USB Active Extension Hub Pro is a high performance hub with active cable that allows access to four USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension hub is perfect for transferring data volumes quickly and reliably.

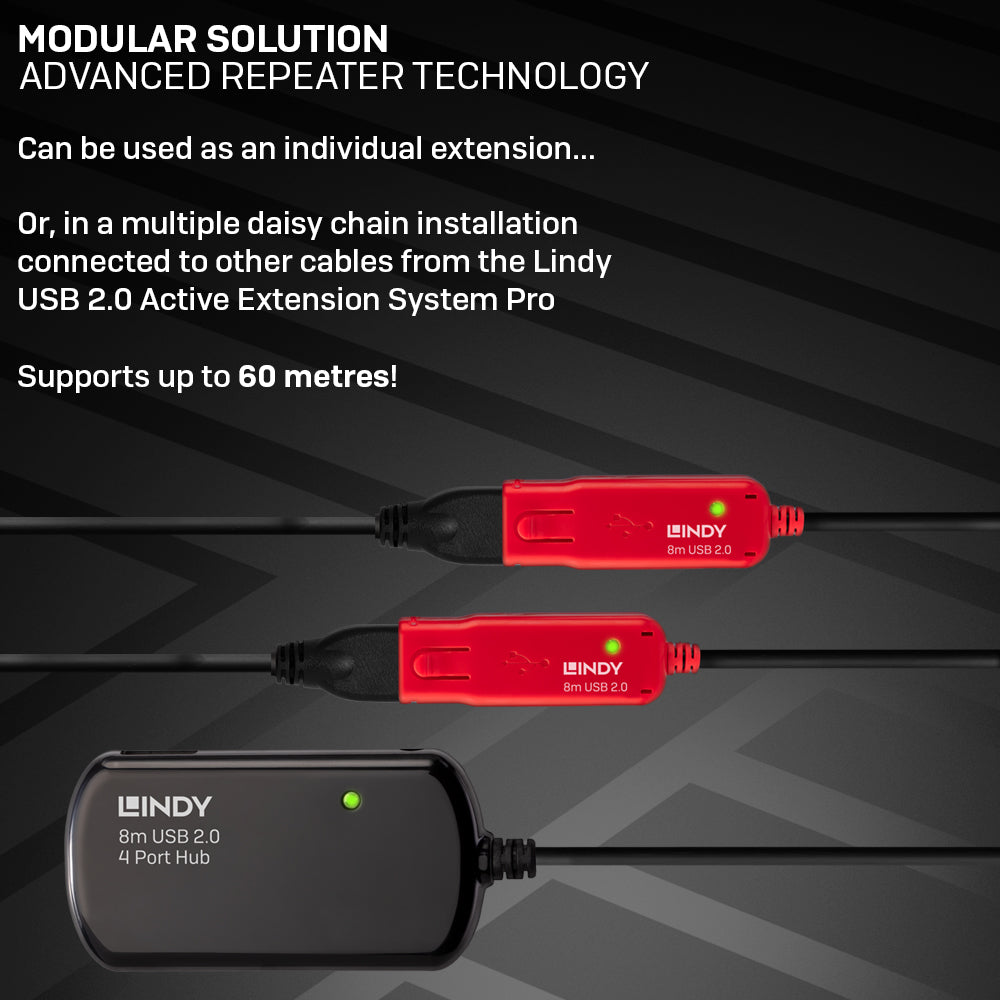

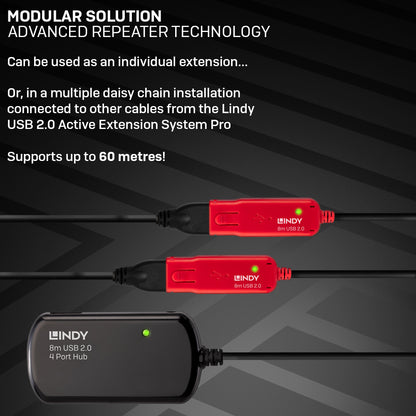

This 8m extension hub can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.

The 8m and 12m cable, and the 8m and 12m hub feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Specifications

Ports & interfaces
USB 2.0 ports quantity	4
DC-in jack	Yes
Card reader integrated	No
Ports quantity	4
Cable length	8 m
Features
Plug and Play	Yes
Data transfer rate	480 Mbit/s
Power
USB powered	Yes
Performance
Harmonized System (HS) code	84719000
System requirements
Compatible operating systems	Win ME, 2000, XP, Vista Mac OS Linux
Weight & dimensions
Weight	331 g
Other features
Interface	USB 2.0/1.1
Mac compatibility	Yes
Connector(s)	1x USB-A M, 4x USB-A FM

Downloads

• Datasheet (PDF)
