Lindy 7 Port USB 3.2 Gen 2 Metal Hub

The Lindy 7 Port expands your ports in seconds — plug in and go.

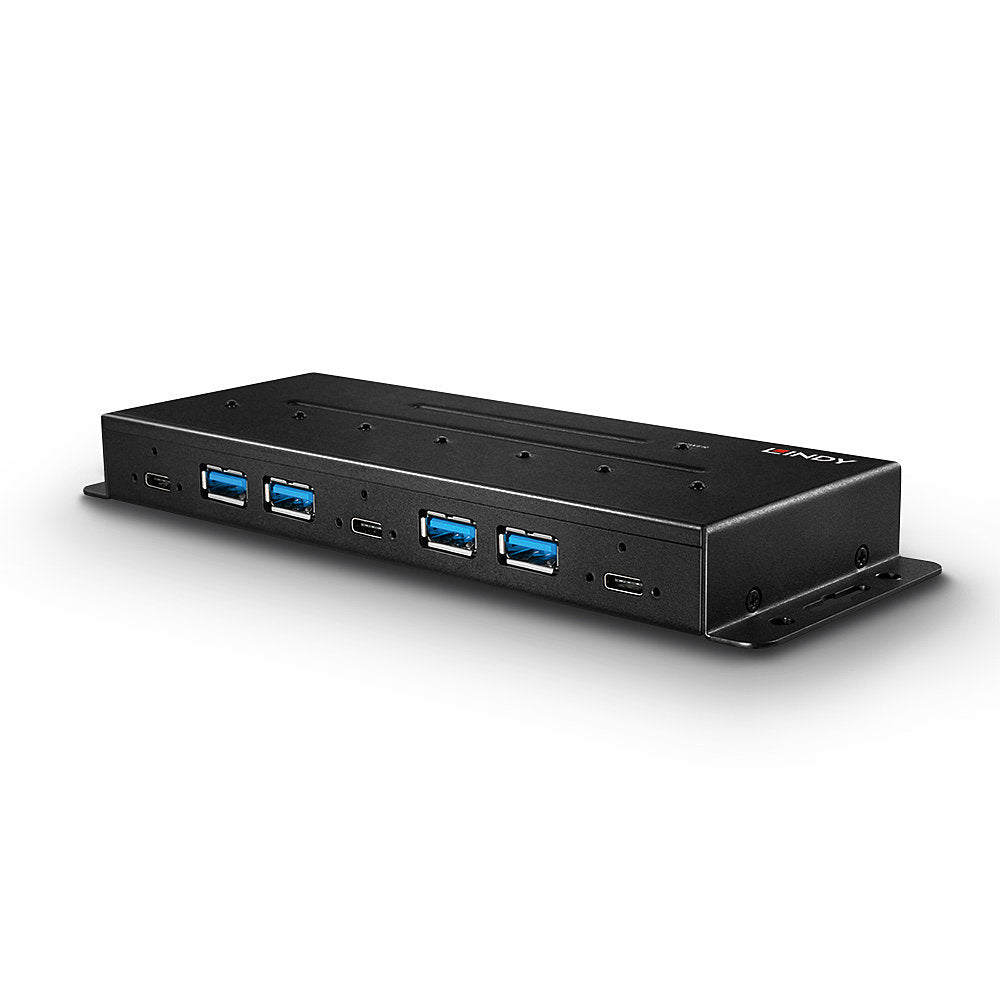

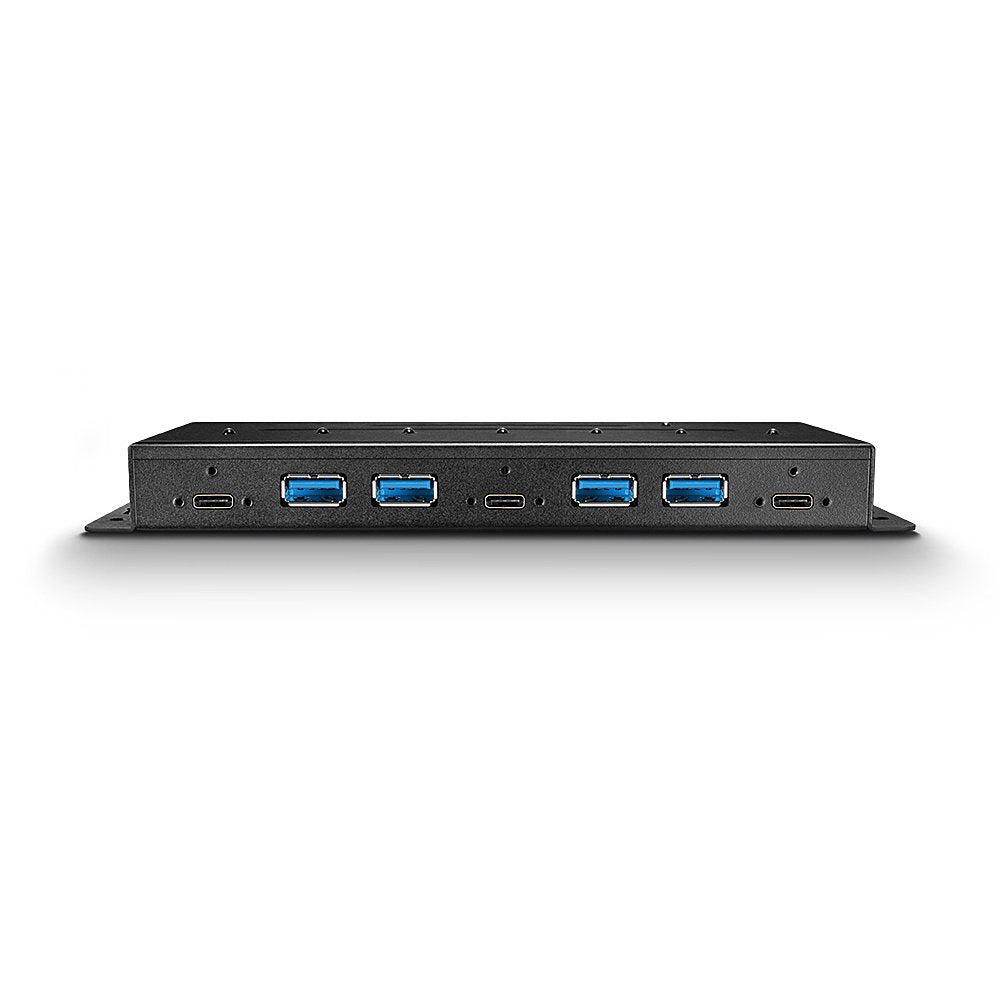

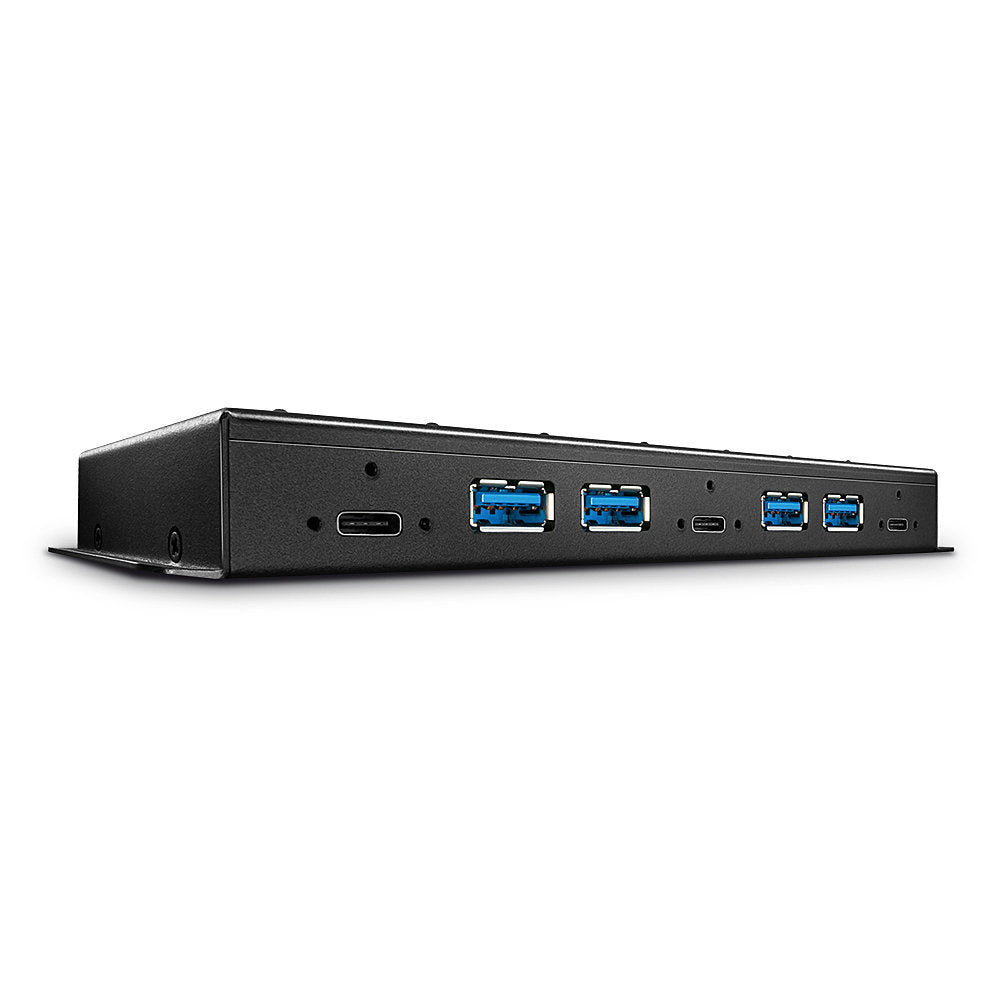

The Lindy 7 Port USB 3.2 Gen 2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps. This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.

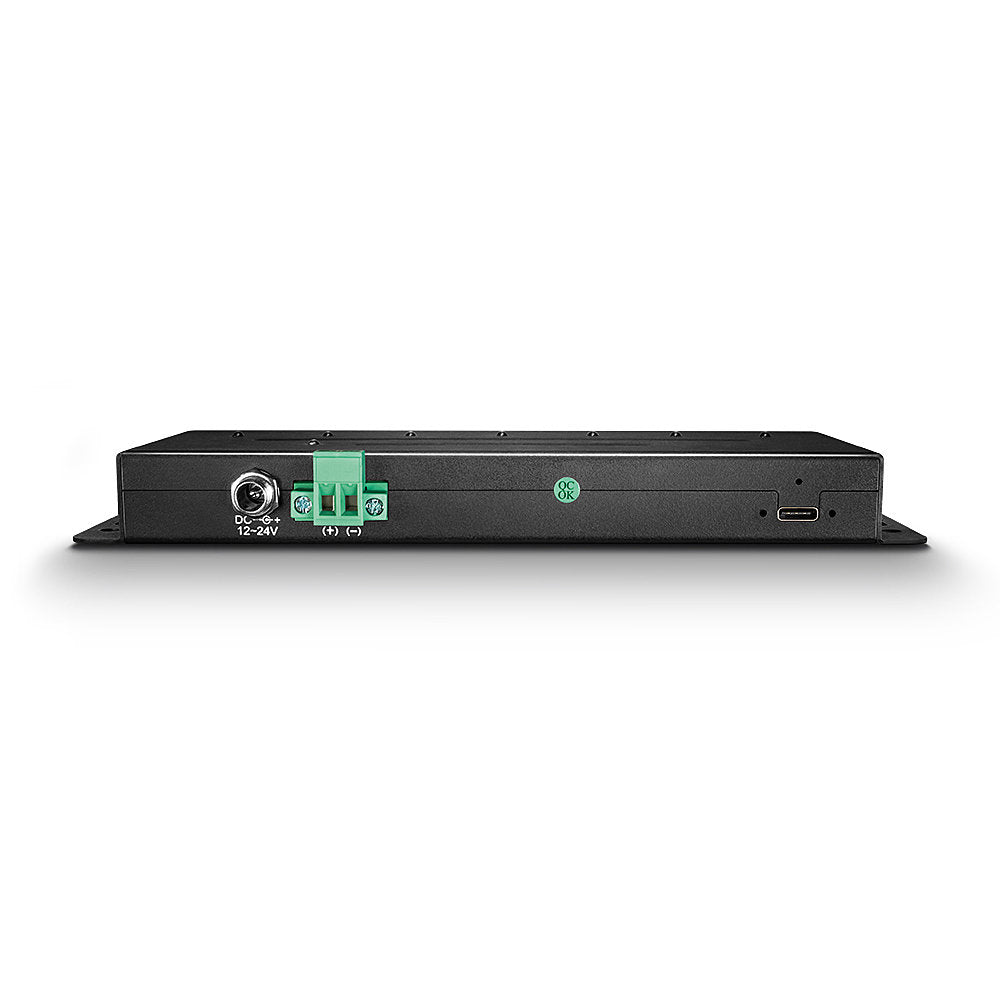

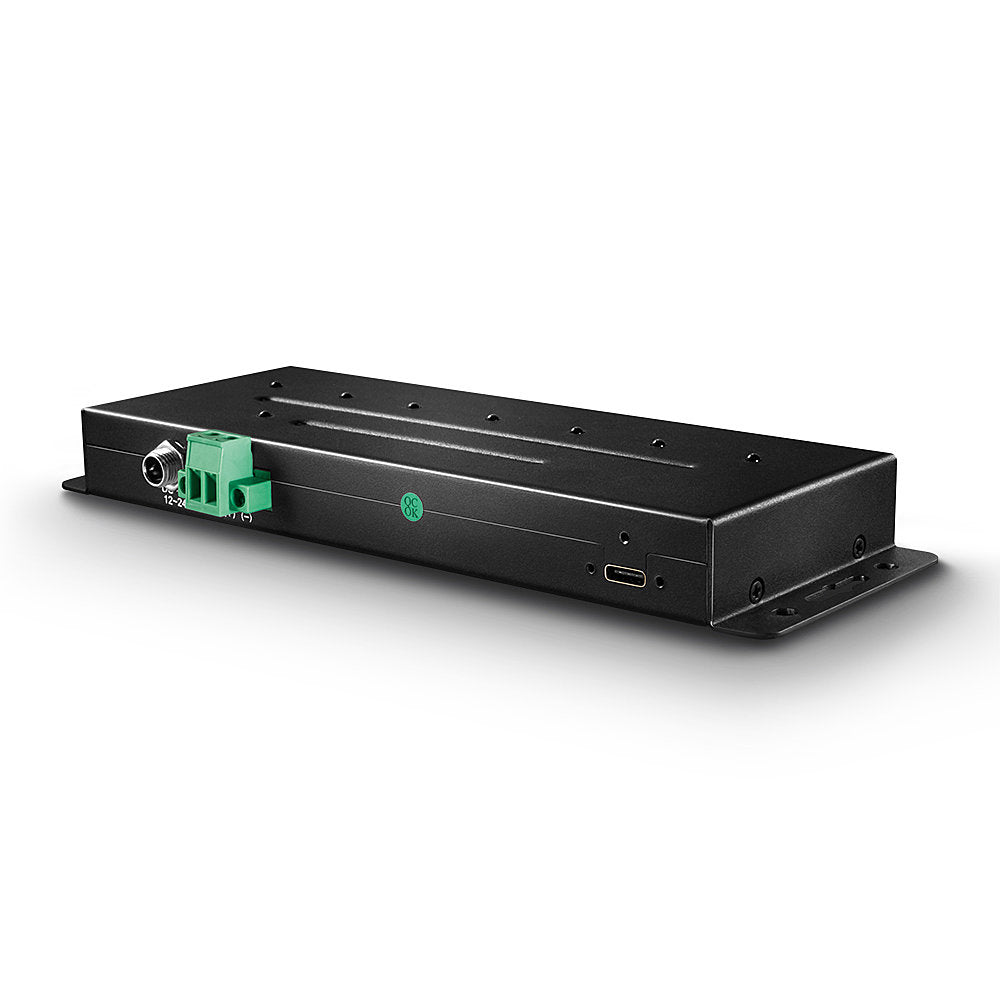

Each port features individual short circuit protection - and all 7 USB ports support the Battery Charging specification 1.2 with a total charging power of 40 Watts for all 7 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-A
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	3
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
DC-in jack	Yes
Ports quantity	7
Features
Product colour	Black
Certification	CE, FCC, RoHS, REACH, California Proposition 65
Data transfer rate	10000 Mbit/s
Housing material	Metal
Power
Input current	3 A
Input voltage	16 V
Weight & dimensions
Weight	700 g
Width	184.5 mm
Depth	64.3 mm
Height	20 mm
Package width	260 mm
Package depth	180 mm
Package height	70 mm
Packaging data
Package type	Carton
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
