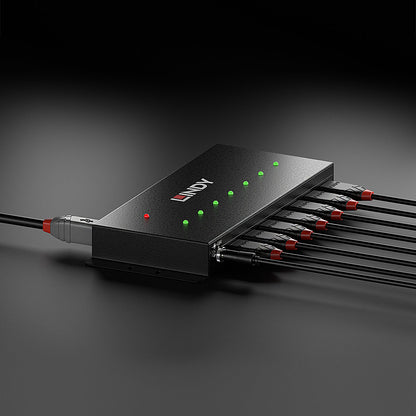

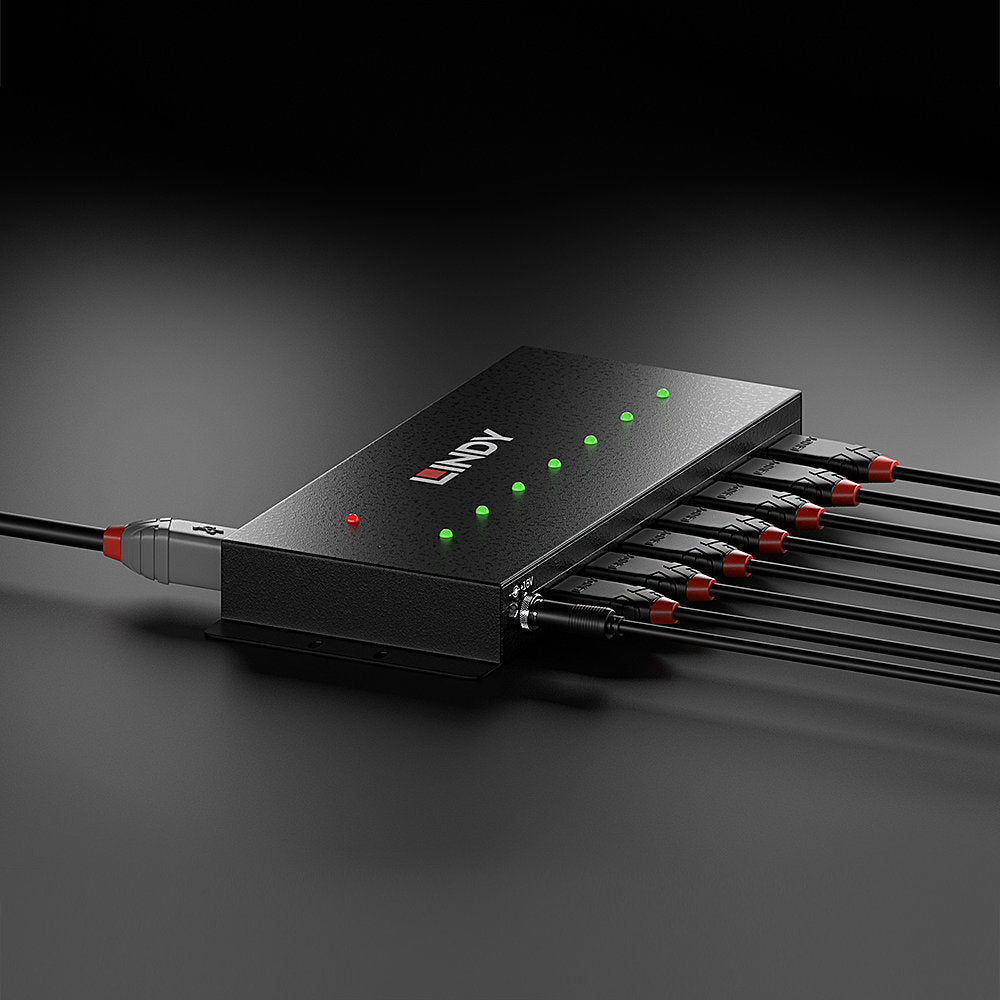

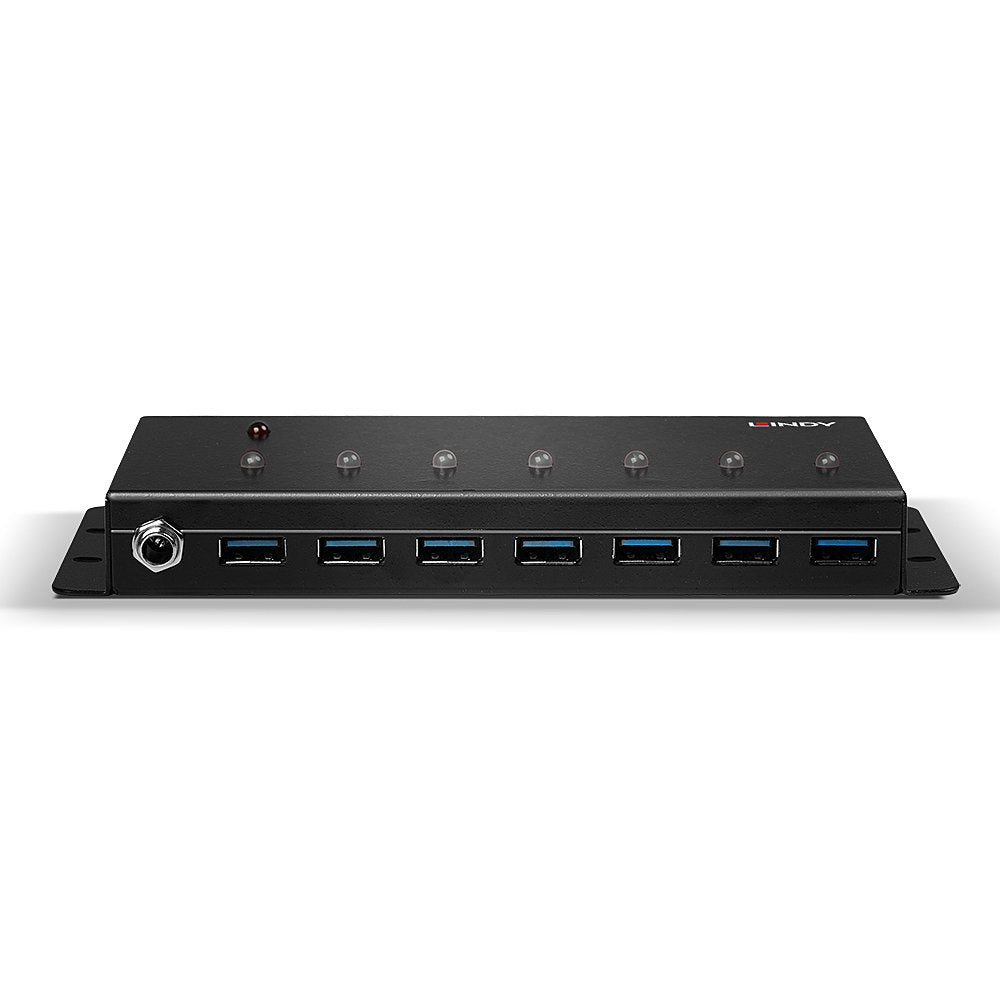

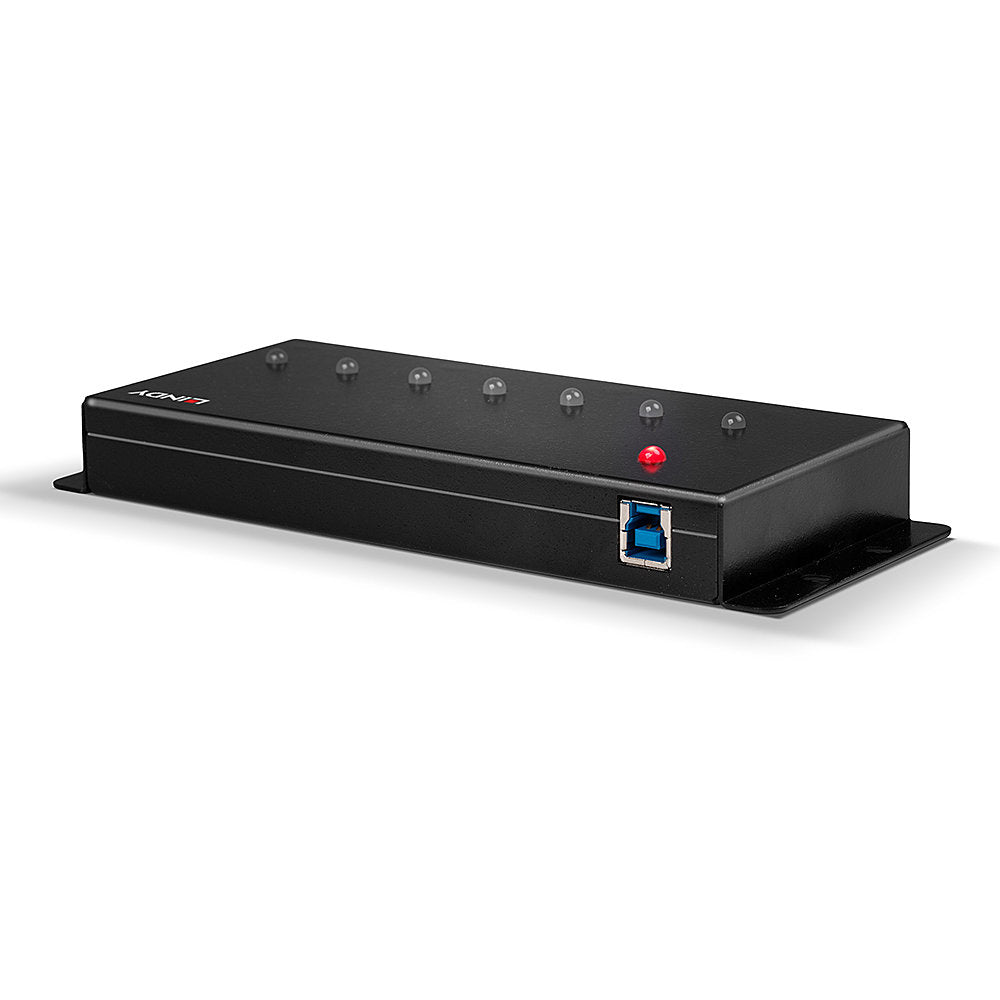

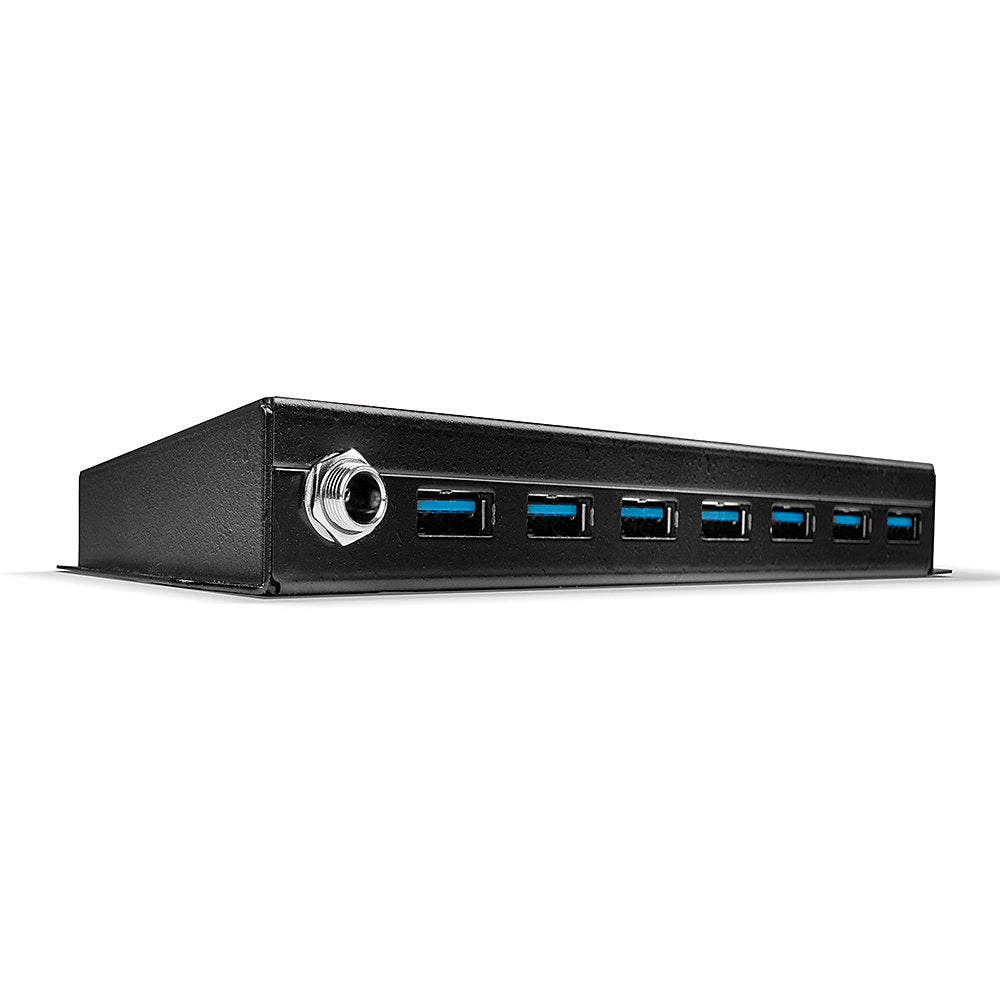

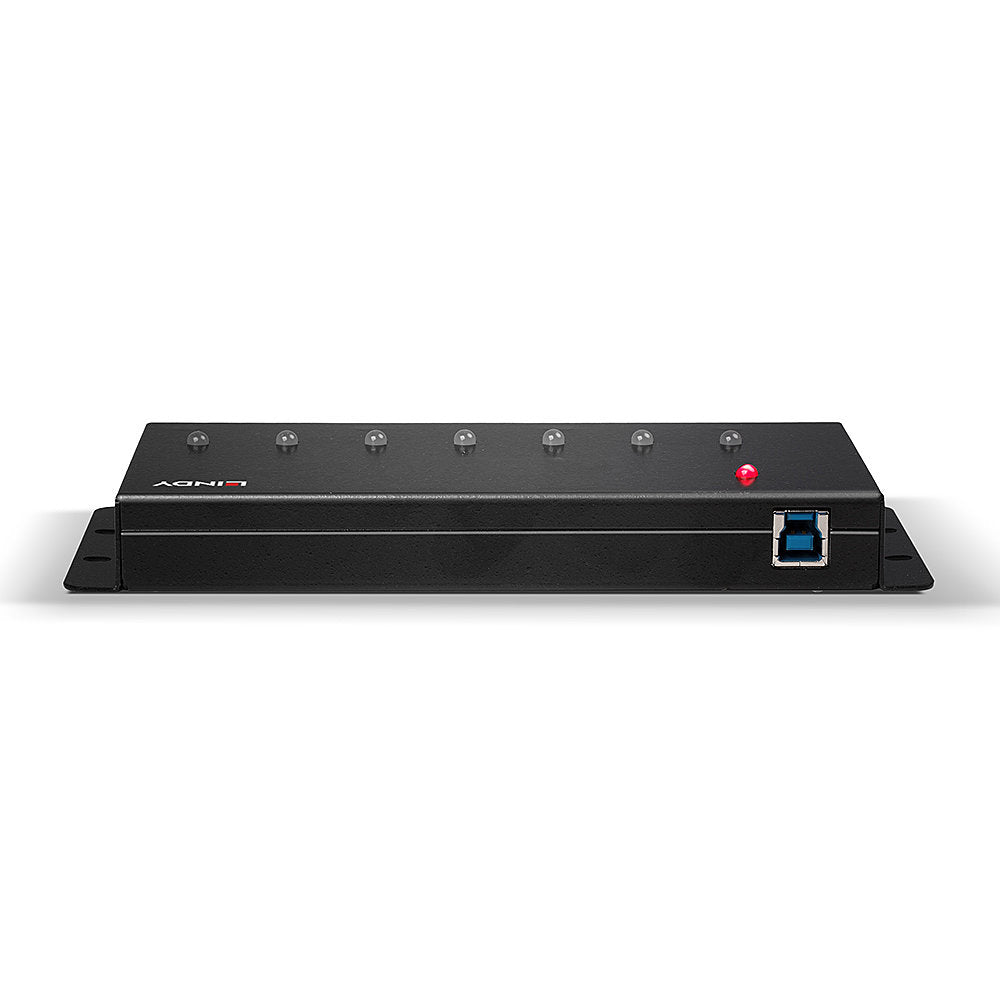

Lindy 7 Port USB 3.0 Metal Hub

The Lindy 7 Port expands your ports in seconds — plug in and go.

The Lindy 7 Port USB 3.0 Metal Hub has been designed to provide reliable performance in demanding operational environments.

This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this hub is the ideal solution for use in industrial environments.

Backwards compatibility with USB 2.0/1.1/1.0 means the hub can simultaneously support older USB peripherals or systems that lack USB 3.0 capabilities, extending their lifetime and giving a greater return on investment. Each port features individual short circuit protection, while the included power supply ensures secure and uninterrupted electricity supply.Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	7
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Cable length	0.8 m
Features
LED indicators	Yes
Product colour	Black
Data transfer rate	5000 Mbit/s
Weight & dimensions
Weight	379 g
Width	185 mm
Depth	75 mm
Height	20 mm
Performance
Harmonized System (HS) code	84719000
Packaging content
Cables included	USB
Operational conditions
Operating temperature (T-T)	0 - 65 °C

Downloads

• Datasheet (PDF)
