Lindy

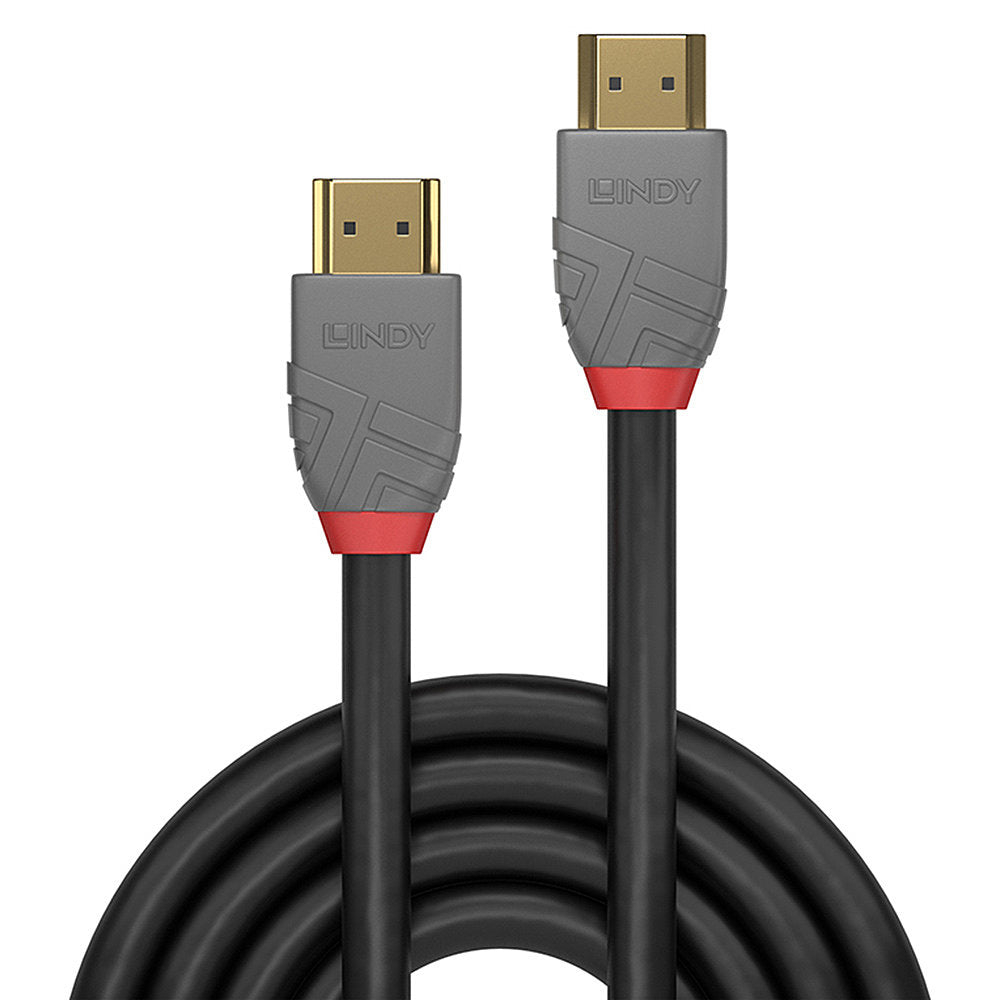

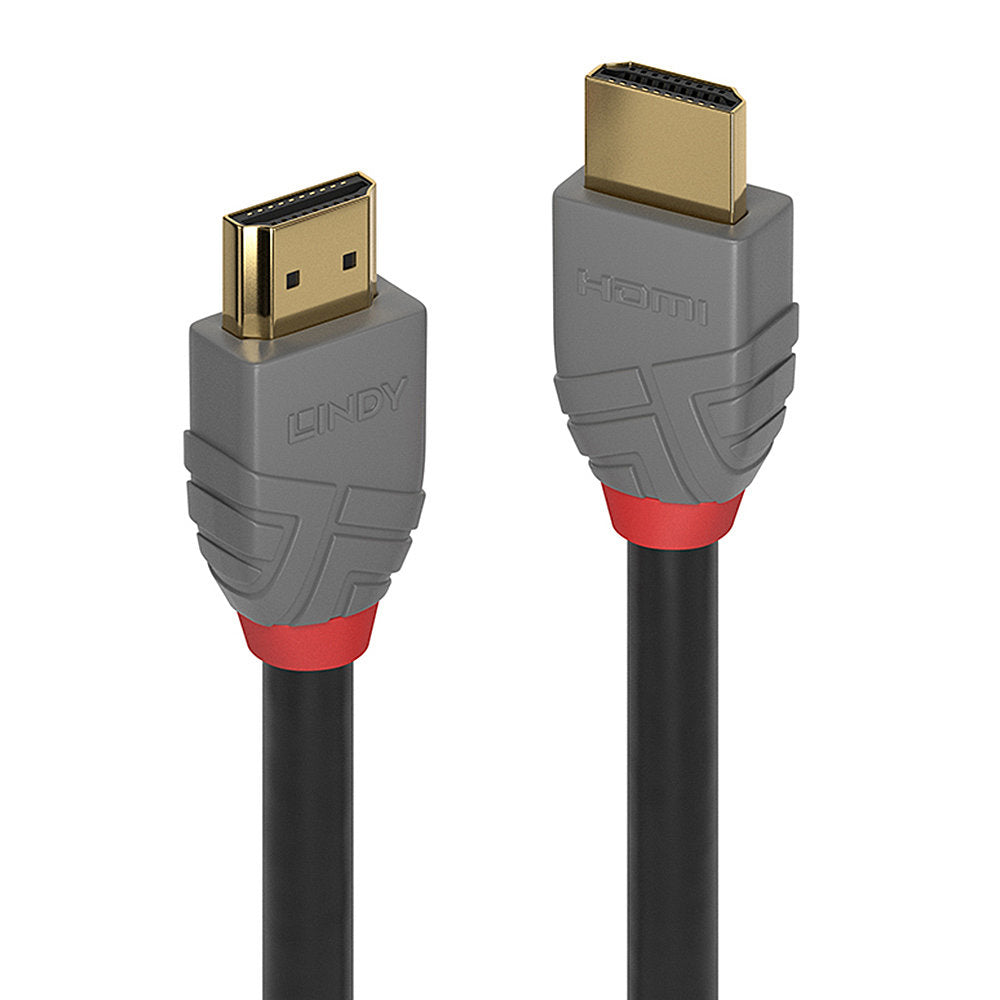

Lindy 7.5m Standard HDMI Cable, Anthra Line
Lindy 7.5m Standard HDMI Cable, Anthra Line
Regular price
£26.77 GBP
Regular price
Sale price
£26.77 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Make the connection with the Lindy 7.5m Standard HDMI Cable — length and connector details are in the spec table.
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m.
Anthra Line HDMI cables are available in lengths from 0.3m to 20m.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Product colour | Black, Grey |
| Cable length | 7.5 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper |
| AWG wire size | 24 |
| HDMI version | 2.0 |
| Data transfer rate | 10.2 Gbit/s |
| 3D | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Colour sampling | 4:2:0 |
| Bending radius (min) | 9.8 cm |
| Contact material | Phosphor bronze |
| Connector housing material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Shield material | Aluminium |
| Nominal attenuation | 300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB |
| Certification | RoHS, REACH, UL |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 9.8 mm |
| Connector 1 dimensions (WxDxH) | 21.4 x 41.44 x 12.7 mm |
| Connector 2 dimensions (WxDxH) | 21.4 x 41.44 x 12.7 mm |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
