Lindy 5m USB 3.0 Active Extension Cable
Lindy 5m USB 3.0 Active Extension Cable
Regular price
£23.45 GBP
Regular price
Sale price
£23.45 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Make the connection with the Lindy 5m — length and connector details are in the spec table.

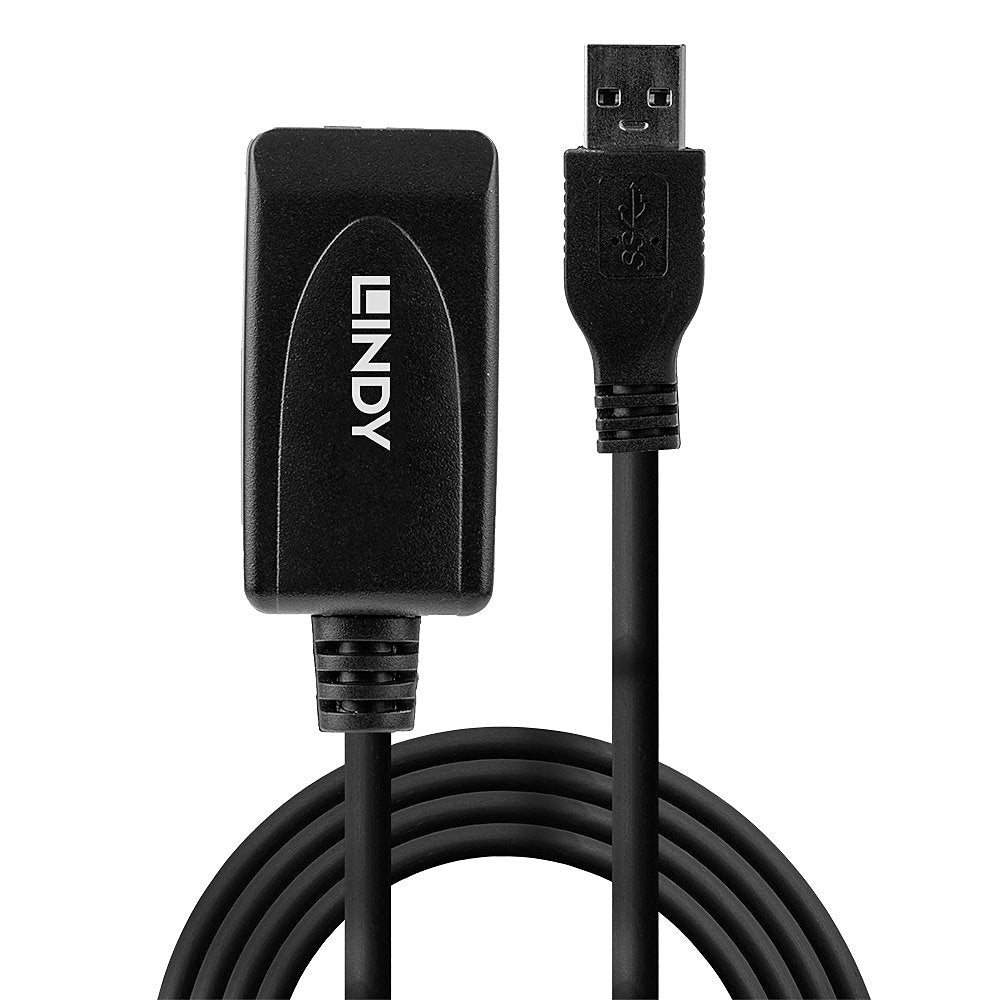

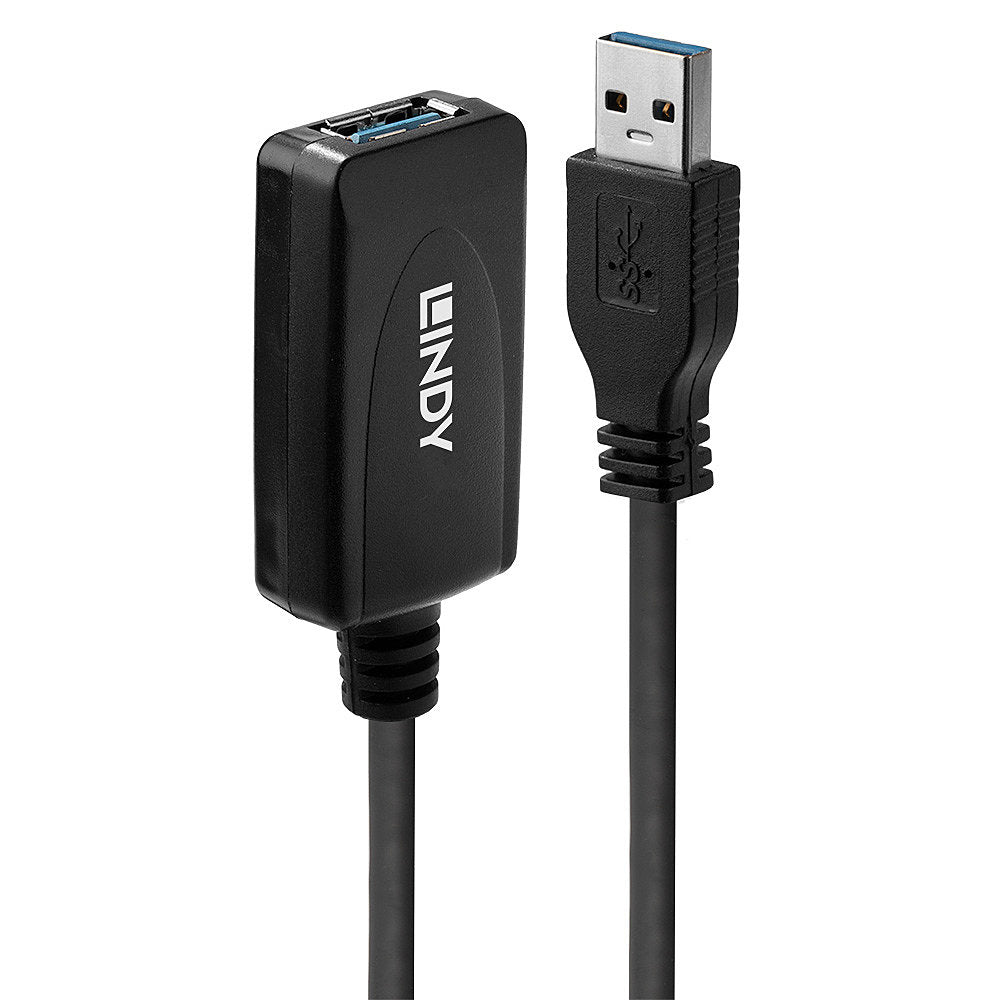

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 5m whilst continuing to support data transfer rates of up to 5Gbps.With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers.
It is certified by Google to provide a long distance active connection between the ASUS Chromebox and USB camera in a Google Hangouts Meet hardware installation, perfect for use in boardrooms and other video conferencing scenarios.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 28/24 |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Cable length | 5 m |
| Connector contacts plating | Gold |
| Maximum data transfer rate | 5000 Mbit/s |
| Product colour | Black |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Conductor material | Tinned copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector material | Gold |
| Contact material | Brass |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Connector housing material | Plastic |
| Transmission medium | Twisted pair |
| Nominal attenuation | 1.5dB/2M@0.1GHz 5.0dB/2M@1.25GHz 7.5dB/2M@2.5GHz 25dB/2M@7.5GHz |
| Cable diameter | 5.5 mm |
| Weight | 220 g |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Bend radius (min) | 5.5 cm |
| Connector 1 dimensions (WxDxH) | 16 x 48 x 6 mm |
| Connector 2 dimensions (WxDxH) | 24 x 46 x 12 mm |
| Package width | 237 mm |
| Package depth | 60 mm |
| Package height | 138 mm |
| Package weight | 289 g |
| Package type | Blister |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
