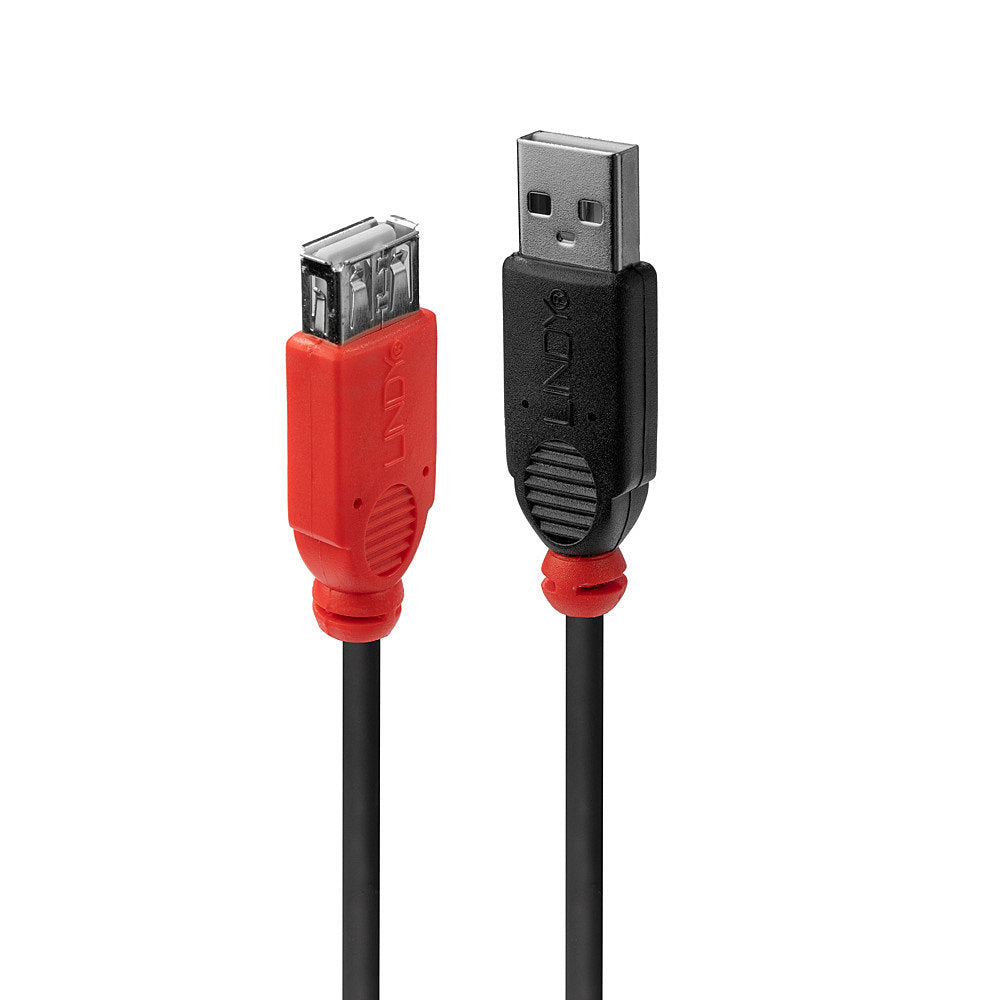

Lindy 5m USB 2.0 Active Extension Slim Cable

Make the connection with the Lindy 5m — length and connector details are in the spec table.

The Lindy USB 2.0 Active Extension Cable Slim uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 5m whilst continuing to support data transfer rates of up to 480Mbps.

With its USB A male and USB A female connector it allows Type A devices to be connected at longer distances and ensures flexible positioning. Up to 5 extension cables can be chained together to achieve a distance of 25m.

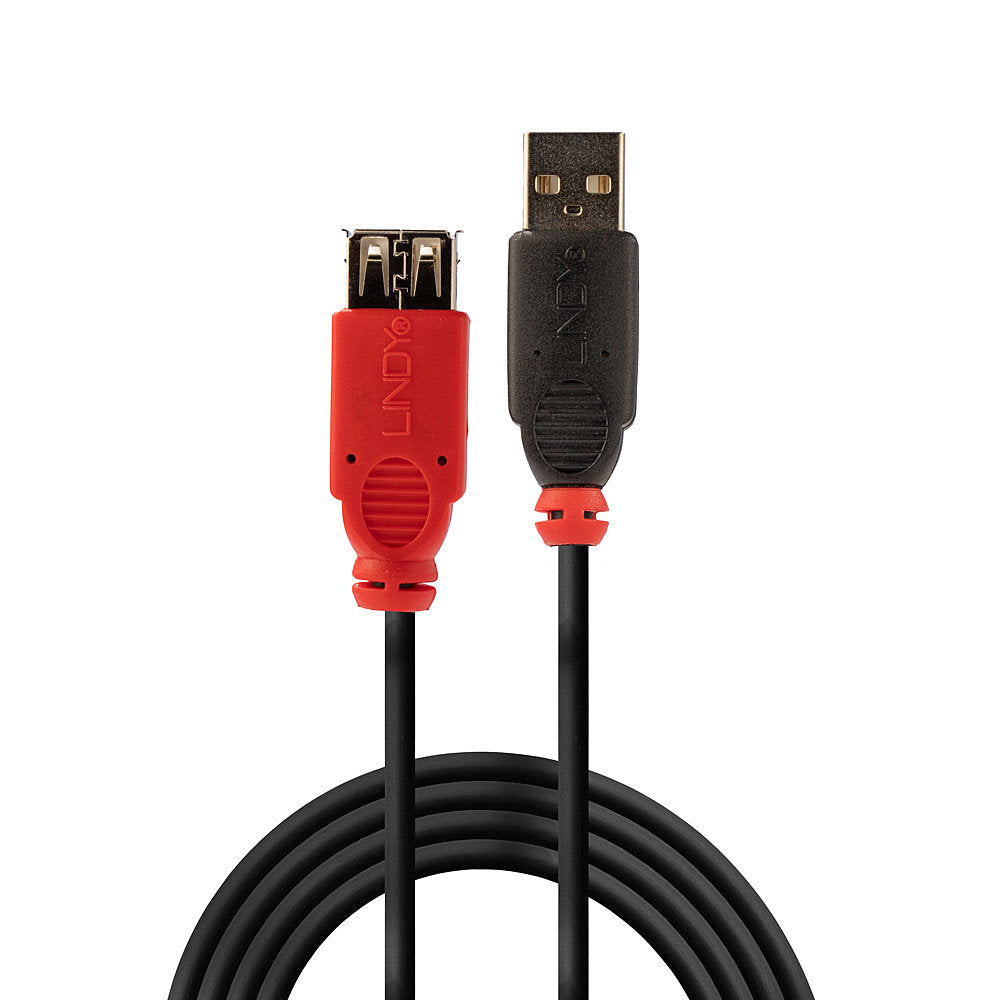

The cable's unique and slim design allows the active electronics to fit into a standard USB connector - an advantage over other active USB leads which use bulky connectors. Compatible with all USB Type A equipped computers.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Plug and Play	Yes
AWG wire size	24/28
USB version	USB 2.0
Connector 1	USB A
Connector 2	USB A
Cable length	5 m
Connector contacts plating	Gold
Maximum data transfer rate	480 Mbit/s
Product colour	Black
Certification	CE, UKCA, FCC, RoHS & REACH
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Female
Conductor material	Tinned copper
Cable jacket material	Polyvinyl chloride (PVC)
Connector material	Nickel
Contact material	Brass
Connector shielding	Yes
Connector shield material	Aluminium
Connector housing material	Plastic
Transmission medium	Twisted pair
Nominal attenuation	24AWG: 93.25Ohm/km 28AWG: 237.25Ohm/km
Cable diameter	4.8 mm
Weight	180 g
Quantity per pack	1 pc(s)
Weight & dimensions
Bend radius (min)	4.8 cm
Connector 1 dimensions (WxDxH)	15 x 40 x 6 mm
Connector 2 dimensions (WxDxH)	15 x 45 x 8 mm
Package width	214 mm
Package depth	146 mm
Package height	38 mm
Package weight	200 g
Package type	Blister
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 80 °C
Technical details
Harmonized System (HS) code	84733080
