Lindy

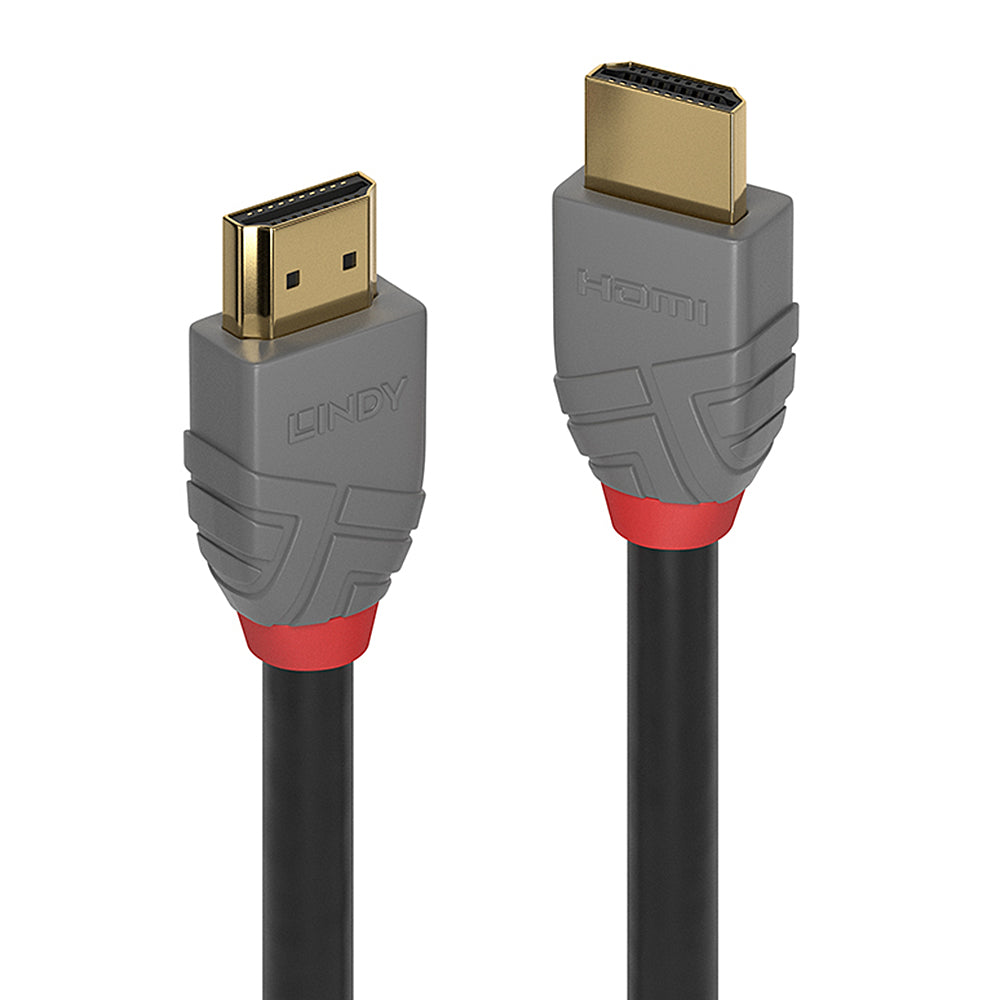

Lindy 5m High Speed HDMI Cable, Anthra Line
Lindy 5m High Speed HDMI Cable, Anthra Line
Regular price
£14.90 GBP
Regular price
Sale price
£14.90 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Make the connection with the Lindy 5m High Speed HDMI — length and connector details are in the spec table.
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors with for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.
Anthra Line HDMI cables are available in lengths from 0.3m to 5m.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| HDMI Ethernet channel | Yes |
| Product colour | Black, Grey |
| Cable length | 5 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper |
| AWG wire size | 30 |
| Data transfer rate | 18 Gbit/s |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| Plug and Play | Yes |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Colour sampling | 4:4:4 |
| Bending radius (min) | 4.8 cm |
| Contact material | Phosphor copper |
| Connector material | Gold |
| Connector housing material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Shield material | Copper |
| Nominal attenuation | 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB |
| Certification | RoHS, REACH, UL, ATC |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 6 mm |
| Connector 1 dimensions (WxDxH) | 20 x 34.2 x 10.9 mm |
| Connector 2 dimensions (WxDxH) | 20 x 34.2 x 10.9 mm |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
