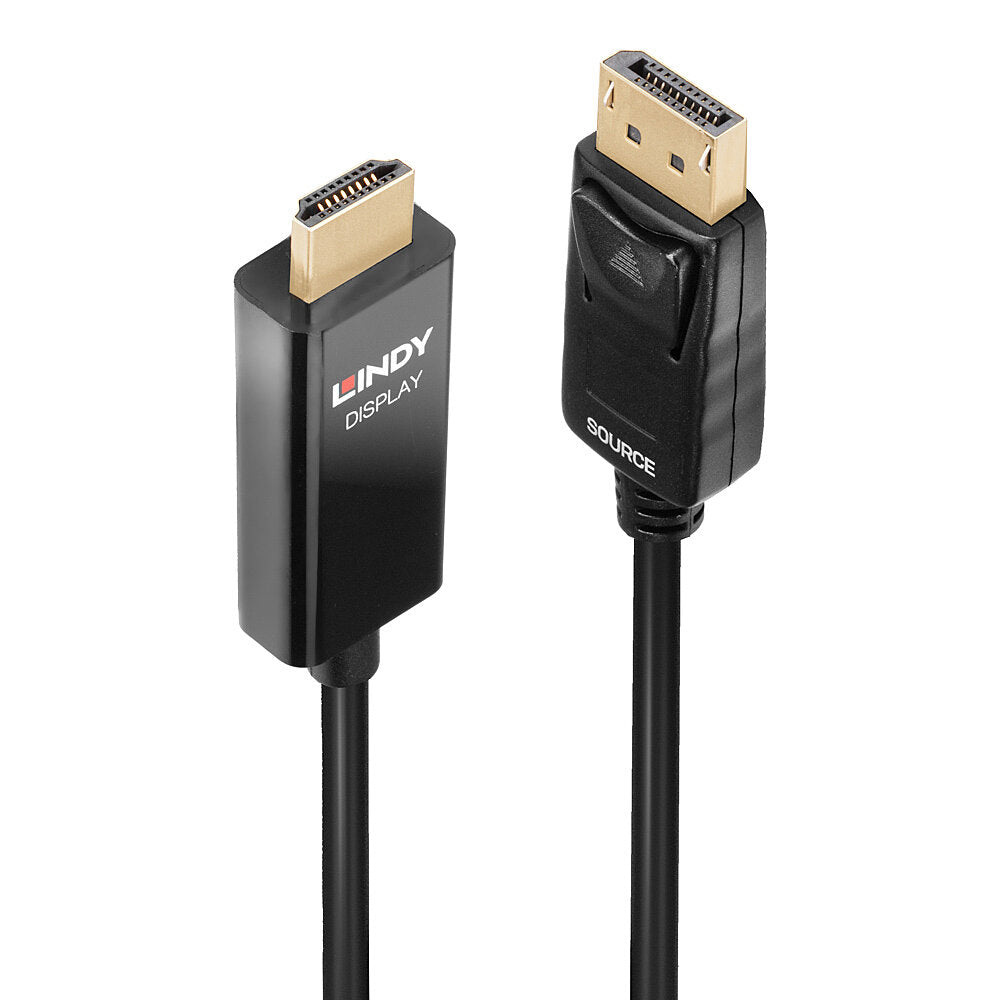

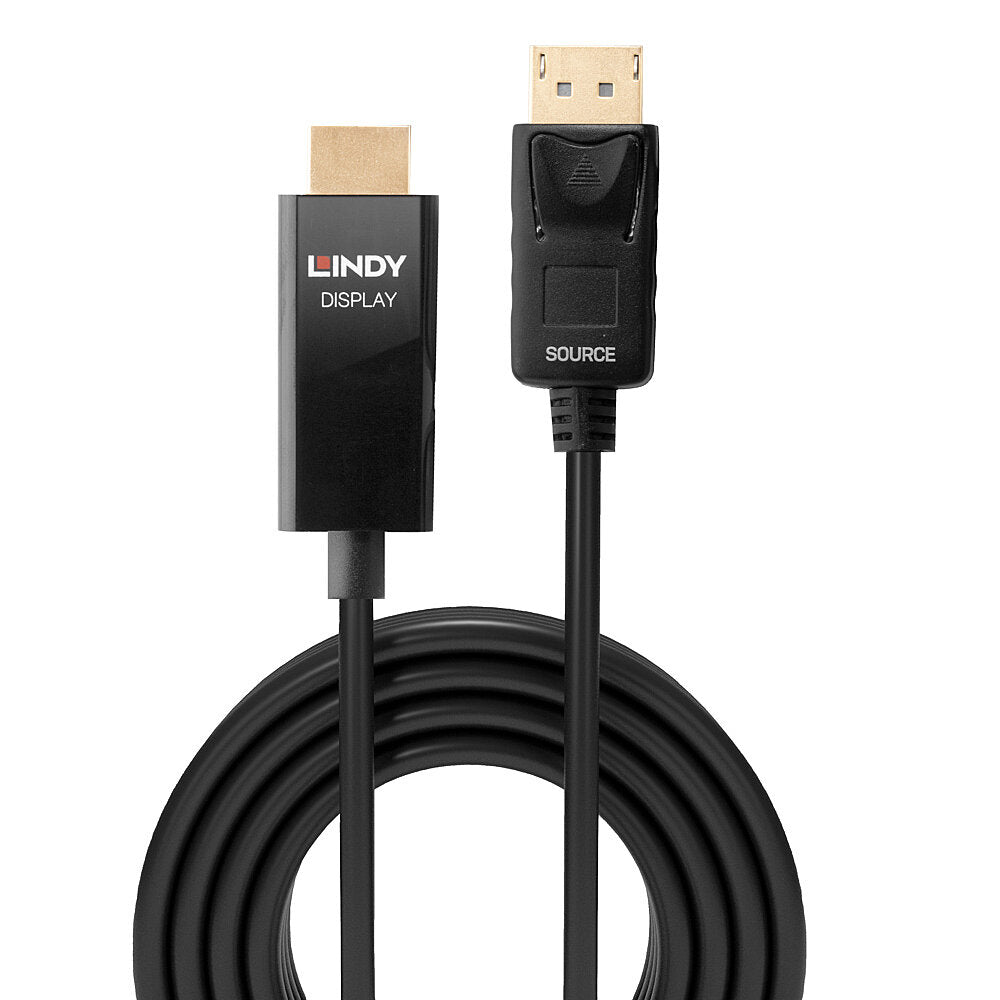

Lindy 5m DP to HDMI Adapter Cable with HDR

Make the connection with the Lindy 5m DP to HDMI — length and connector details are in the spec table.

Lindy's Active DisplayPort to HDMI Cable range combine superior performance with stylish design to provide a high quality conversion of DisplayPort 4K@60Hz signals to output to a HDMI display or projector. This range of active cables come with an in-built chipset to not only provide a reliable connection, but also enhance compatibility with both dual mode and non-dual mode graphic cards and source devices, perfect for use with DP graphics cards, laptops and PC's, while avoiding the need for additional adapters.

With support for resolutions up to 4096x2160@60Hz and with additional support for High Dynamic Range, 4K content can be viewed with crystal clear clarity, enhanced contrast and more lifelike colour. These cables are great for creating eye-catching retail displays, innovative working environments or immersive video playback in sports bars and home cinema installations, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video.

Support for AMD Eyefinity technology also brings the user a cost effective way of creating a non-standard aspect ratio or ultra-high resolution display made up from up to 3 or more monitors. This feature also allows the user to run multiple applications simultaneously on separate screens, improving productivity in the workplace or creating a widescreen gaming experience.

Please note:

Audio output over HDMI is only supported when the graphics card of the notebook or desktop computer supports audio output over DisplayPort. Several on-board graphics adapters such as Mobile Intel 4 Series Express Chipset in Notebooks do NOT support audio output over DisplayPort, even when HDMI support (Intel High Definition Audio HDMI Service) is installed for audio controllers. In such instances a separate audio connection has to be set up.

Please note: Some of Nvidia's latest drivers do not work correctly at 4k@60Hz 4:4:4 when converting from DP/mDP to HDMI and will only work at 4k@60Hz 4:2:2

Specifications

Features
Cable shielding	Copper braid
HDMI version	2.0
DisplayPort version	1.2
Product colour	Black
Cable length	5 m
Connector 1	DisplayPort
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	32
Maximum resolution	4096 x 2160 pixels
Supported graphics resolutions	4096 x 2160
Certification	California Proposition 65
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
High Dynamic Range (HDR) supported	Yes
Bend radius (min)	6 cm
Conductor material	Tinned copper
Nominal attenuation	-12dB@825-2475MHz -20dB@ 2475-4125MHz -25dB@4125-5100MHz
Cable type	Round cable
Connector material	Gold
Connector housing material	Acrylonitrile butadiene styrene (ABS)
Refresh rate at maximum resolution	60 Hz
Operational conditions
Operating temperature (T-T)	-20 - 70 °C
Storage temperature (T-T)	-25 - 85 °C
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Cable diameter	5 mm
Connector 1 dimensions (WxDxH)	36 x 20 x 7.5 mm
Connector 2 dimensions (WxDxH)	45.1 x 21.8 x 12.2 mm
Packaging data
Package type	Polybag
Quantity per pack	1 pc(s)
