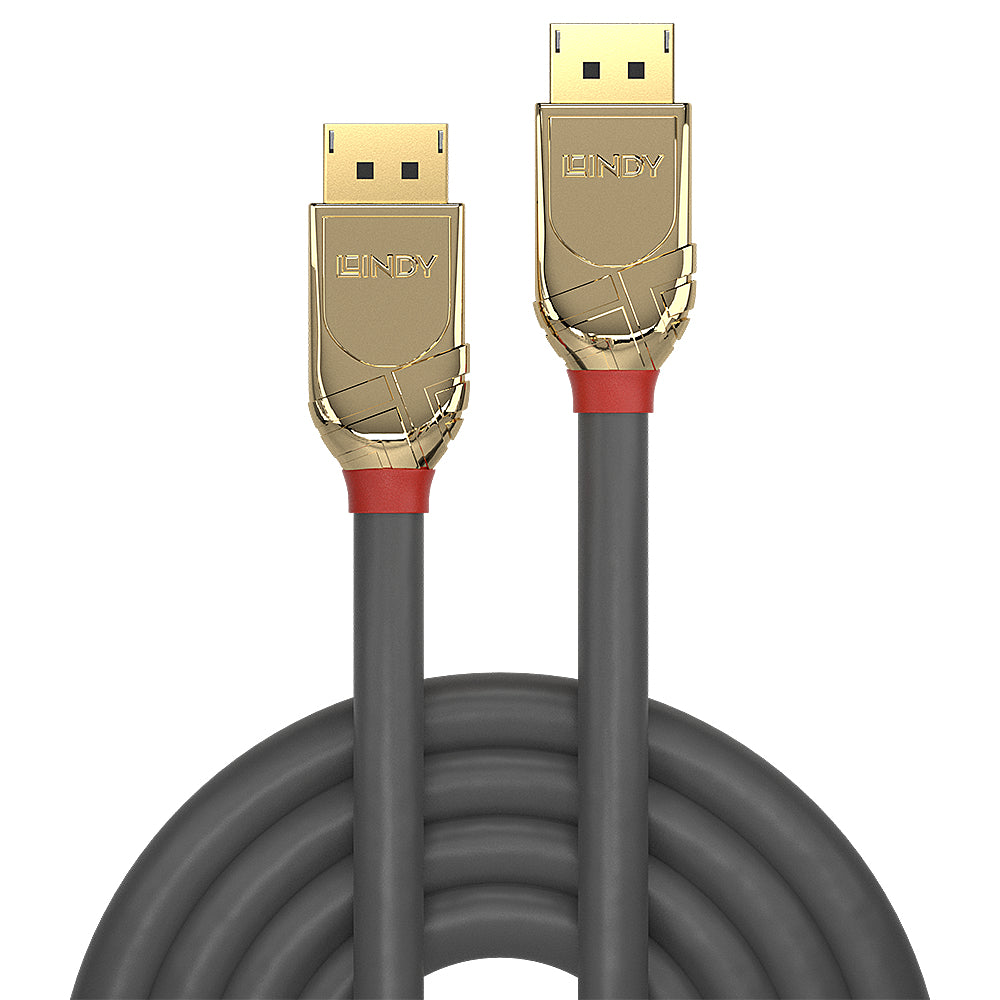

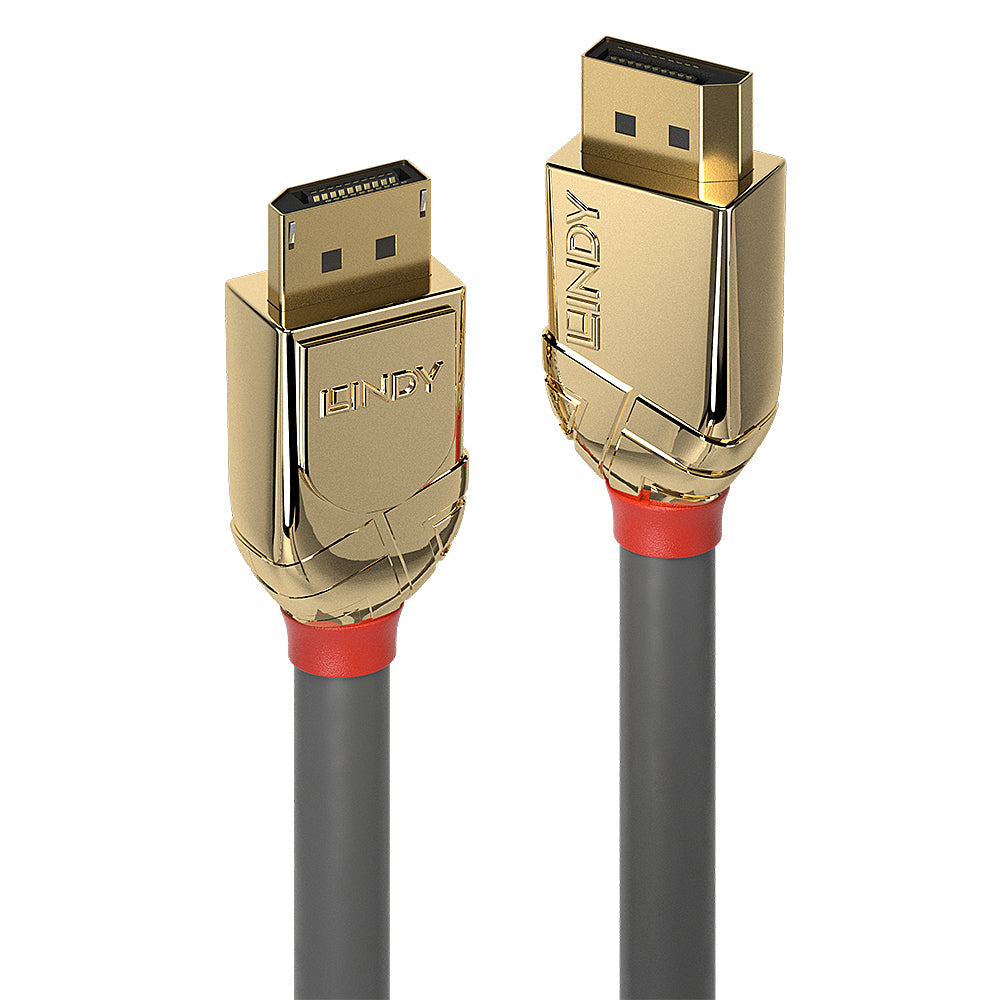

Lindy 5m DisplayPort 1.2 Cable, Gold Line

Make the connection with the Lindy 5m DisplayPort 1.2 Cable — length and connector details are in the spec table.

From the Lines cable connectivity concept developed by Lindy, Gold Line DisplayPort cables are the no compromise, high performance connection solution for use in the most demanding professional environments.

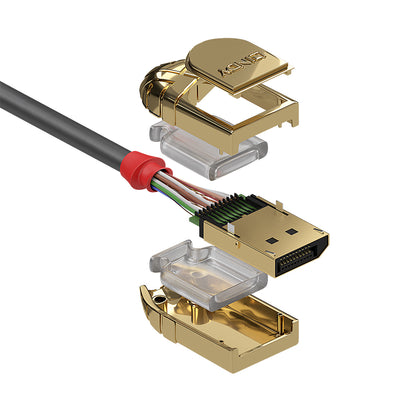

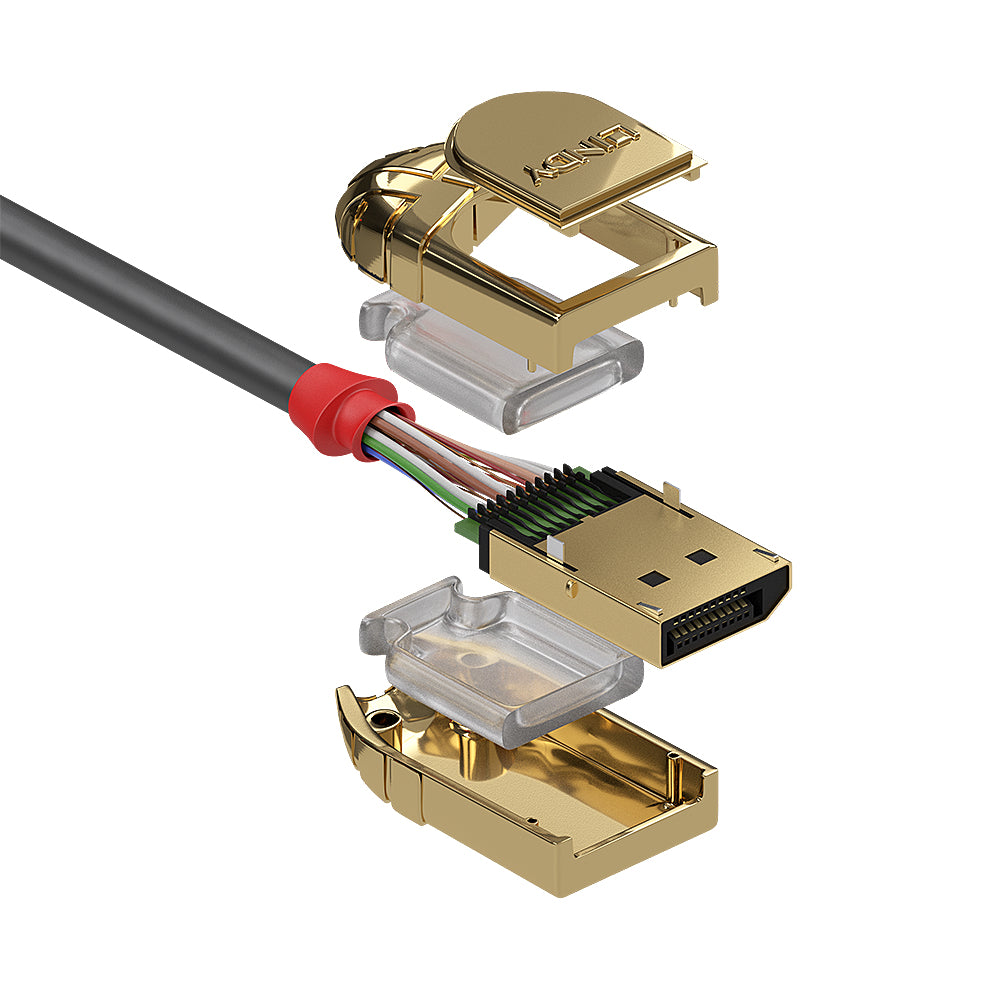

Gold Line DisplayPort cables feature triple shielded construction with 24AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@120Hz 4:4:4 8bit and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.

Gold DisplayPort cables are available in lengths from 0.5m to 20m.

Specifications

Features
Product colour	Black
Cable length	5 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	24
DisplayPort version	1.2
Maximum resolution	4096 x 2160 pixels
Certification	RoHS, REACH, UL
Operational conditions
Operating temperature (T-T)	-20 - 80 °C
Storage temperature (T-T)	-25 - 80 °C
Technical details
Harmonized System (HS) code	84733080
