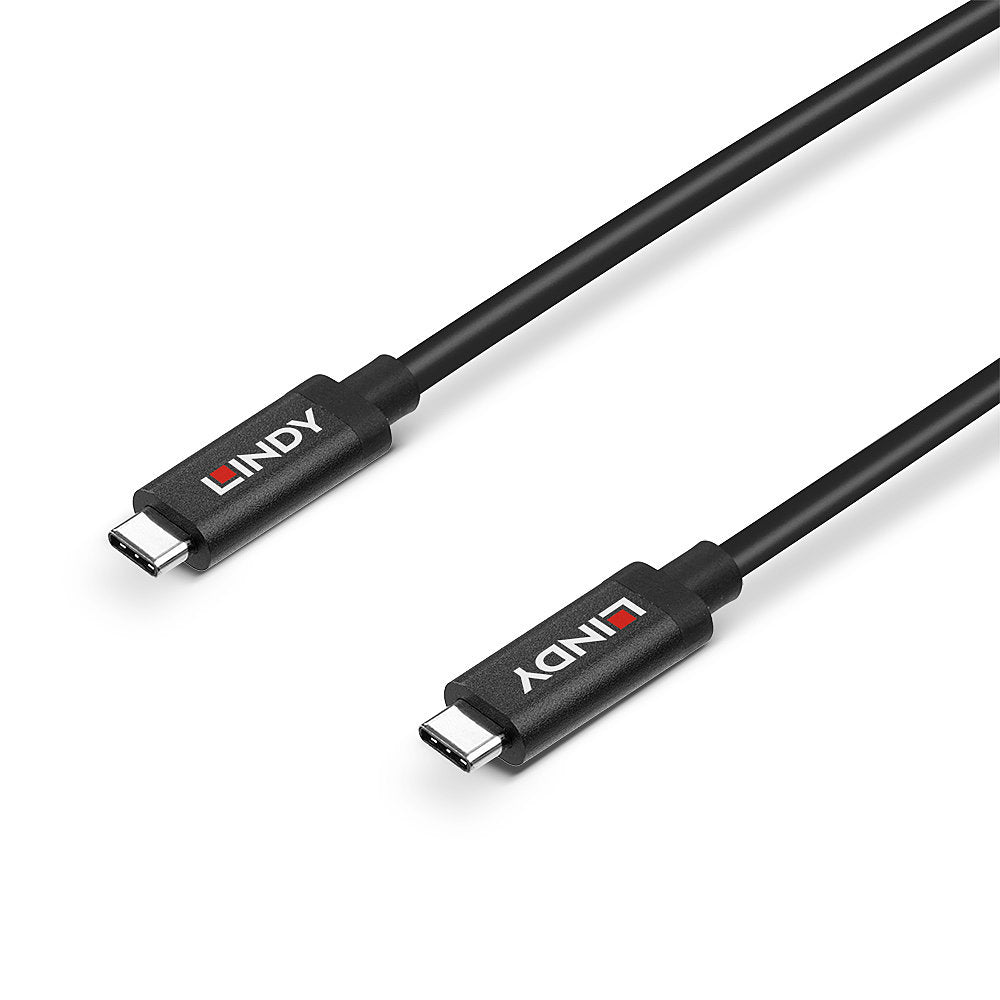

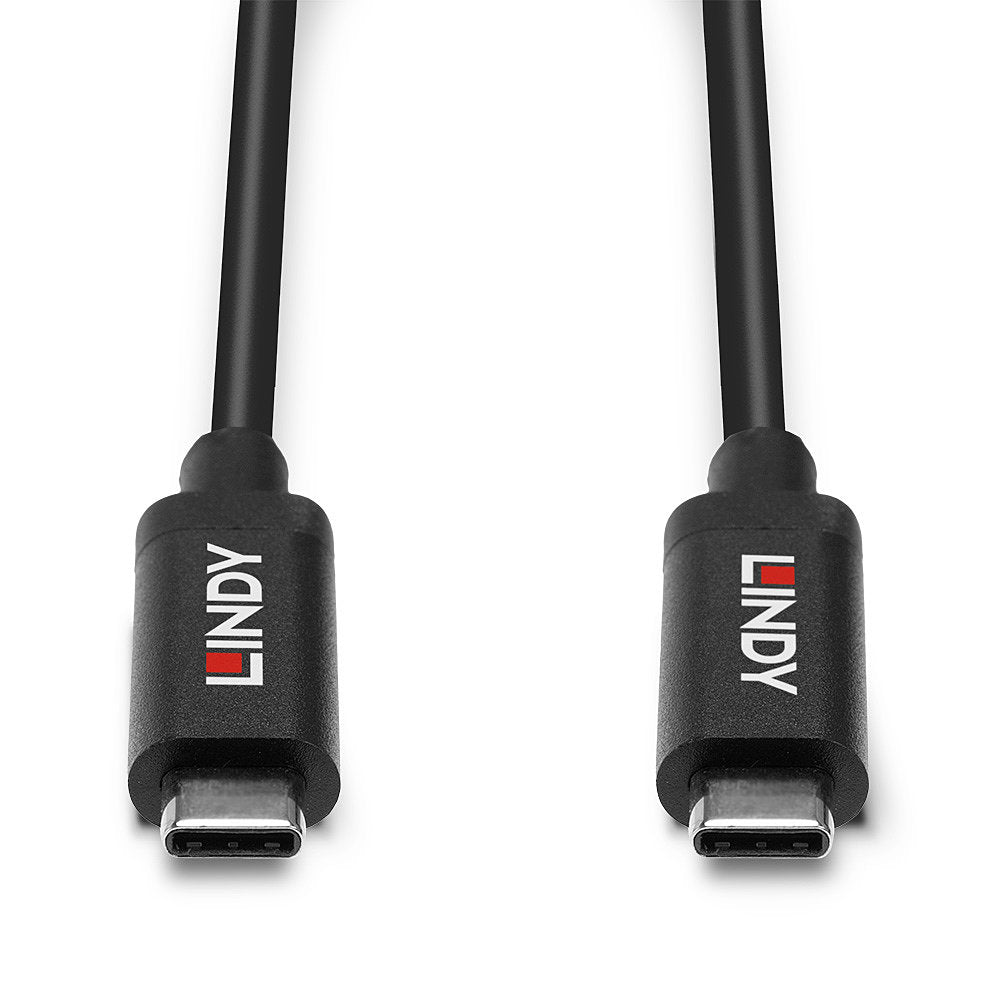

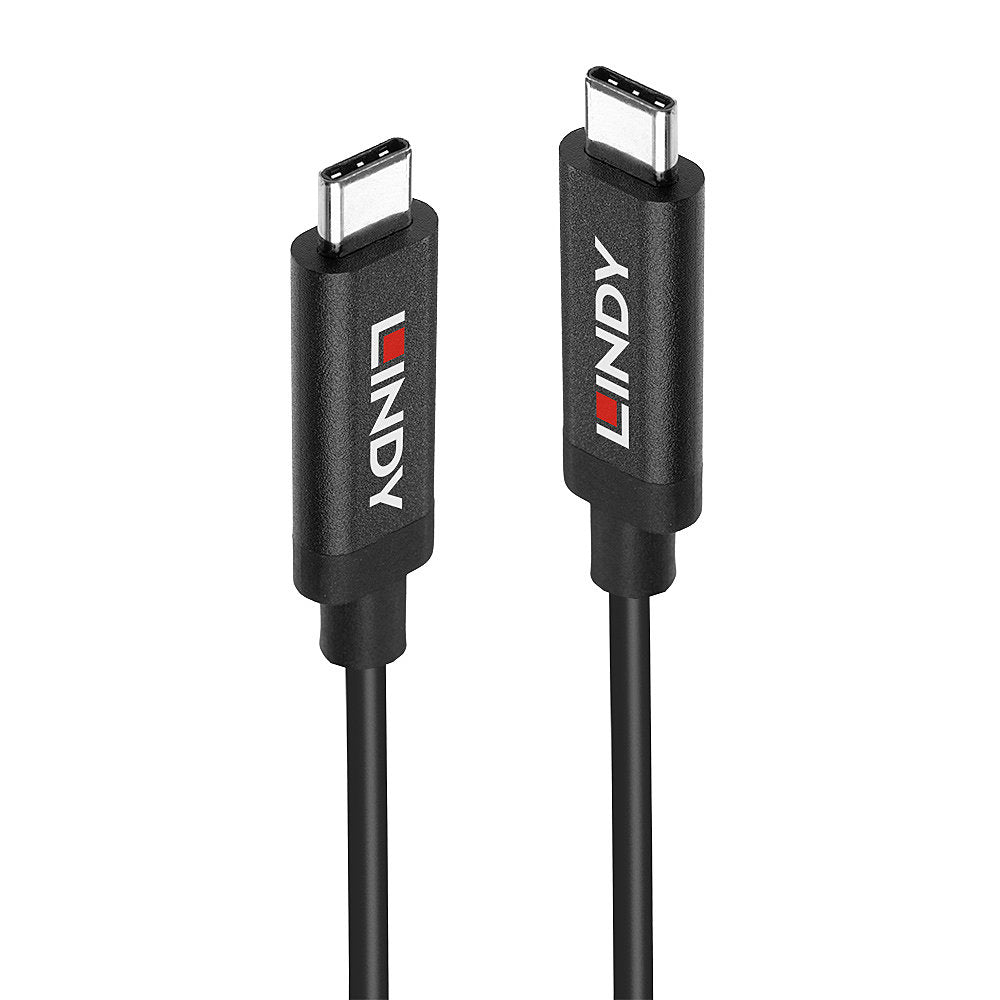

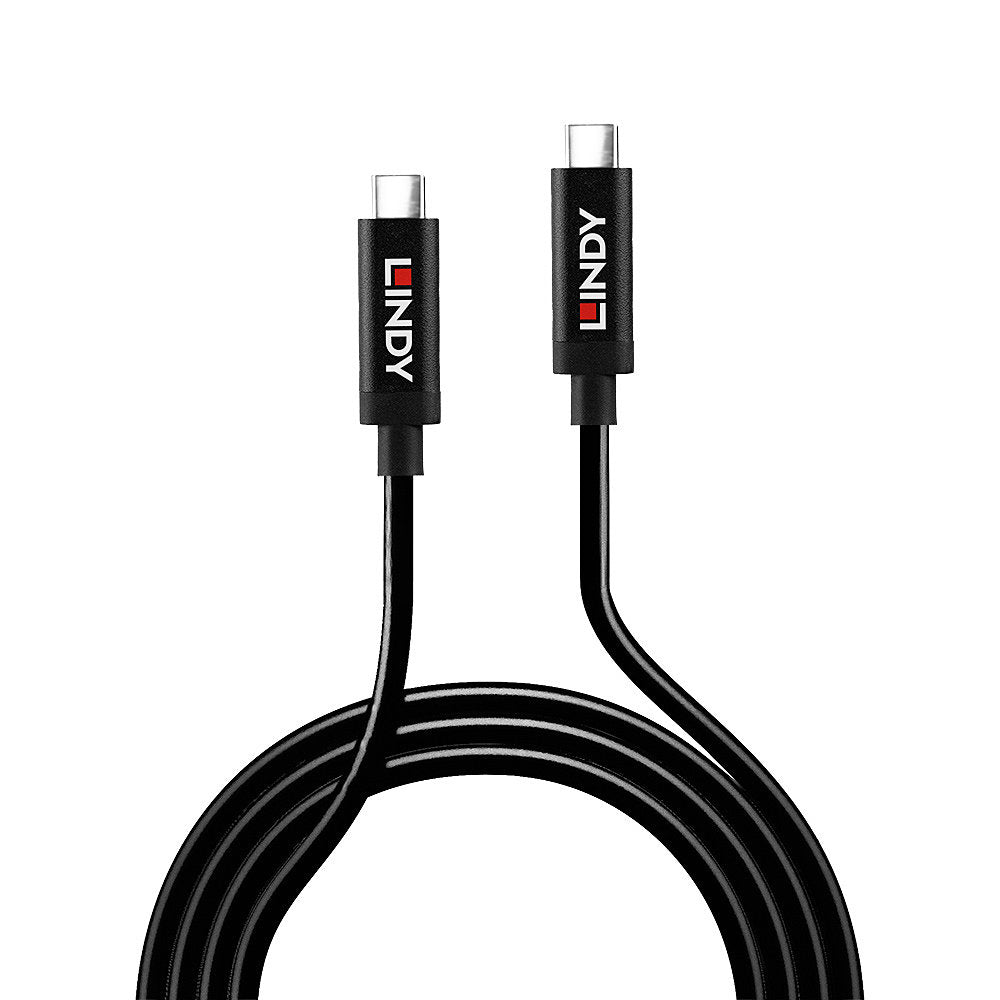

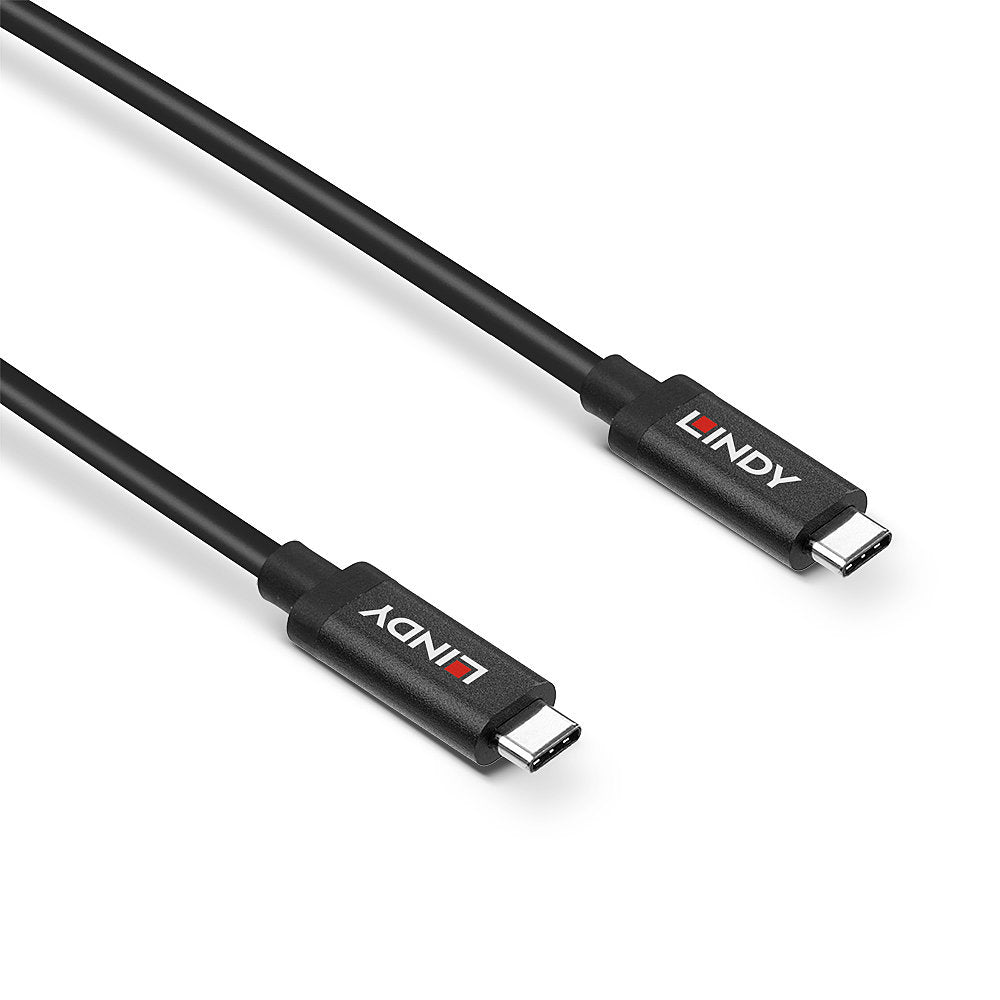

Lindy 5m Active USB 3.2 Gen 2 C/C Cable

Make the connection with the Lindy 5m Active — length and connector details are in the spec table.

USB active cables allow users to extend the connection distance between two USB devices. These cables feature integrated active electronics to boost the signal for high speed data transfer.

The Lindy USB 3.2 Gen 2 Active Cable uses built-in active electronics to extend the cable length of a USB device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 10Gbps as well as Displayport 1.4 Alternate Mode. It combines data, video and USB Power Delivery into one cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels.

When sending DP 1.4 signals, only USB 2.0 up to 480Mbps can be supported. USB 3.2 Gen 2 with data rates up to 10Gbps can be achieved when sending DP 1.2 signals with resolutions up to 4K 60Hz. The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.



Information about USB 3.0, 3.1 and 3.2 USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB C
Connector 2	USB C
Cable length	5 m
Connector contacts plating	Nickel/Gold
Maximum data transfer rate	10000 Mbit/s
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Male
USB Power Delivery (USB PD)	Yes
Cable jacket material	Polyvinyl chloride (PVC), Thermoplastic elastomer (TPE)
USB Power Delivery up to	60 W
Cable diameter	5.3 mm
Quantity per pack	1 pc(s)
Weight & dimensions
Package width	236 mm
Package height	255 mm
Package weight	200 g
Package type	Bag
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	CE, REACH, RoHS

Downloads

• Datasheet (PDF)
