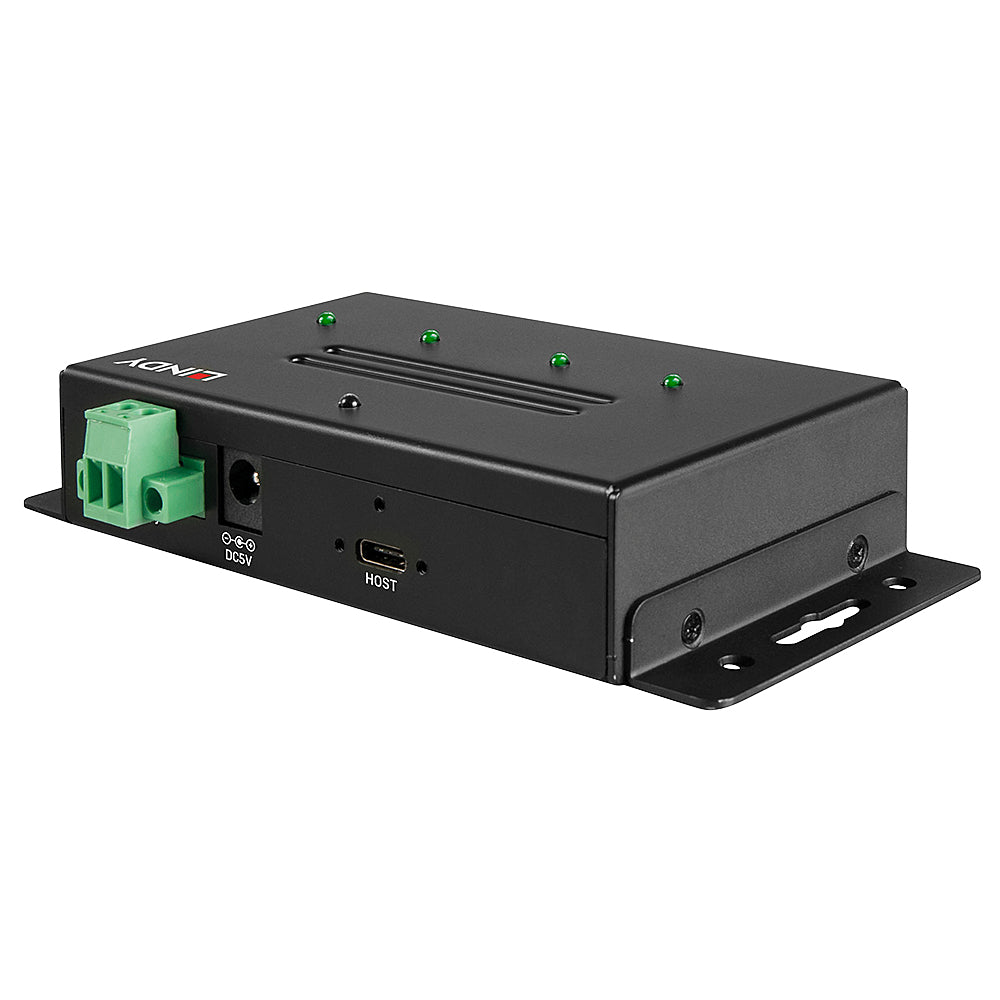

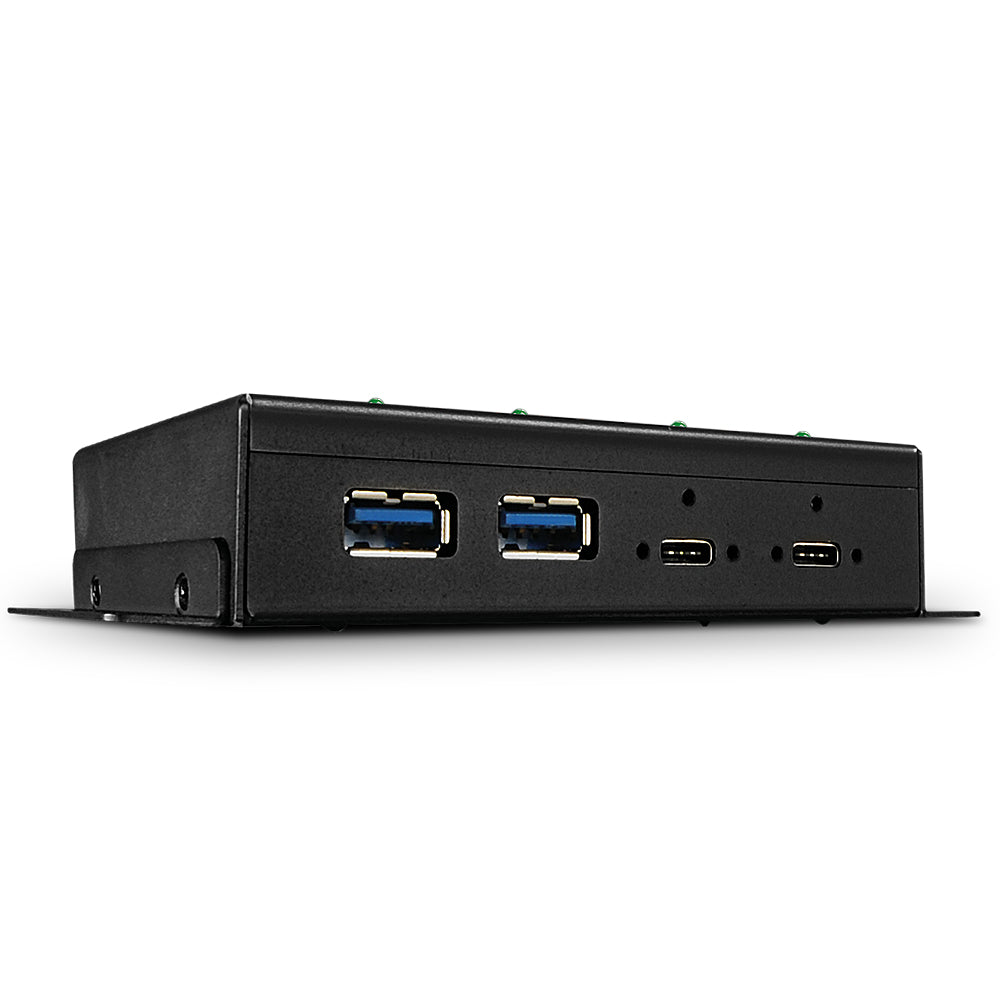

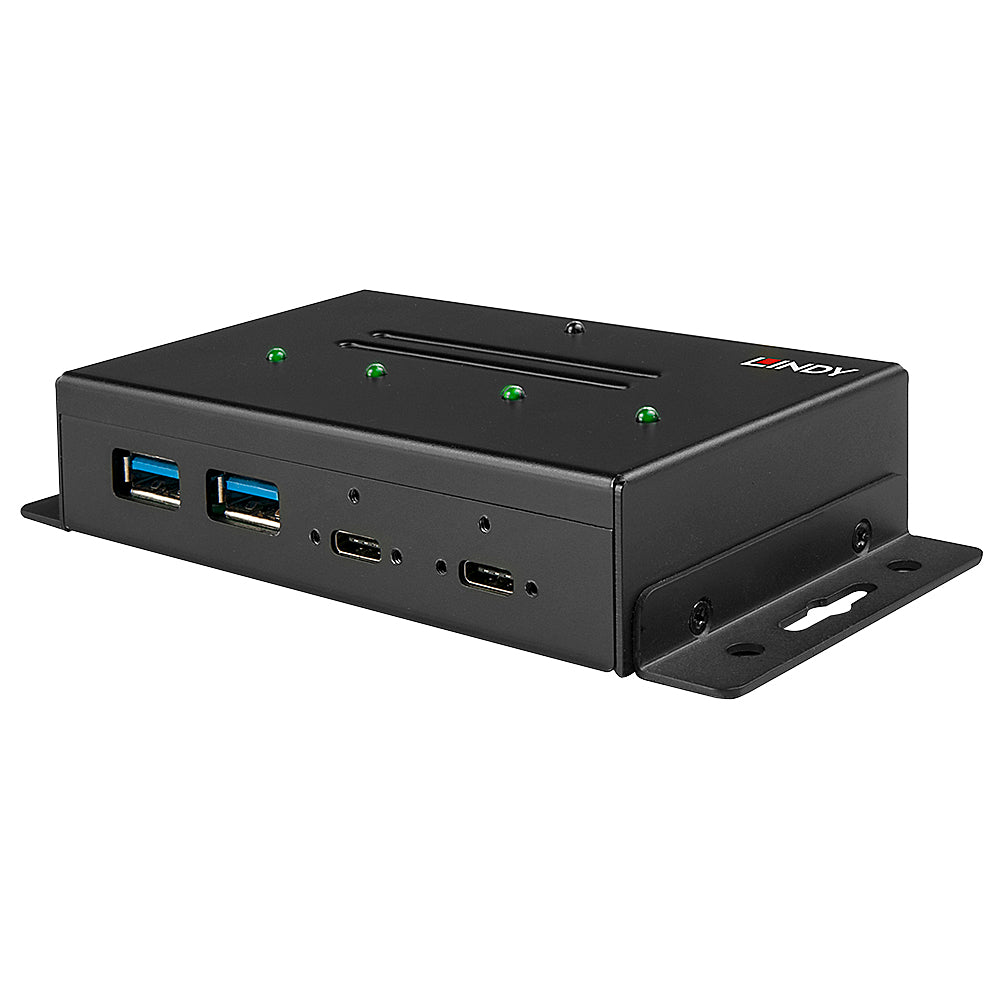

Lindy 4 Port USB 3.2 Gen 2 Type C Metal Hub

The Lindy 4 Port expands your ports in seconds — plug in and go.

The Lindy 4 Port USB 3.2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps.

This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.

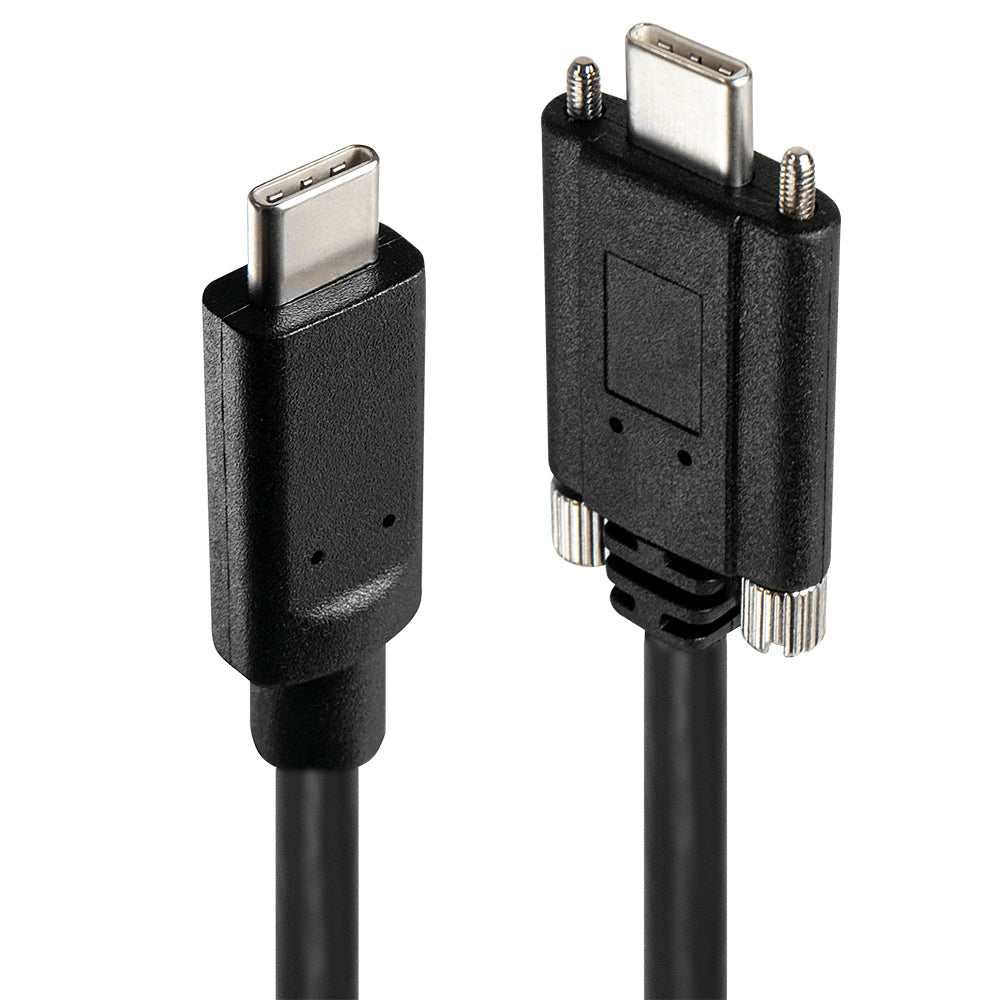

With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.

Each port features individual short circuit protection - and all 4 USB ports support the Battery Charging specification 1.2 with a total charging power of 17.5 Watt for all 4 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Terminal block port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Hub interfaces	USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
DC-in jack	Yes
Ports quantity	4
Features
Product colour	Black
Certification	CE, FCC, RoHS, REACH
Data transfer rate	10000 Mbit/s
Housing material	Metal
Power
Input current	4 A
Input voltage	5 V
Technical details
Operating temperature (T-T)	32 - 122 °F
Performance
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	229 g
Width	135 mm
Depth	60 mm
Height	24 mm
Package width	230 mm
Package depth	198 mm
Package height	63 mm
Package weight	667 g
Packaging content
Manual	Yes
Cables included	USB Type-C
AC adapter included	Yes
Operational conditions
Storage temperature (T-T)	-25 - 85 °C
Operating relative humidity (H-H)	0 - 95%

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
