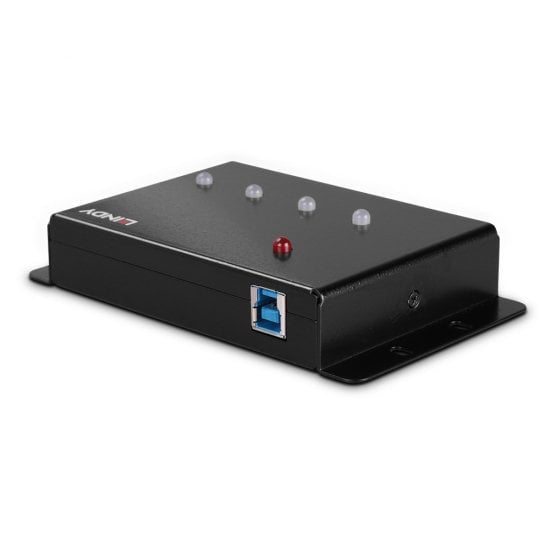

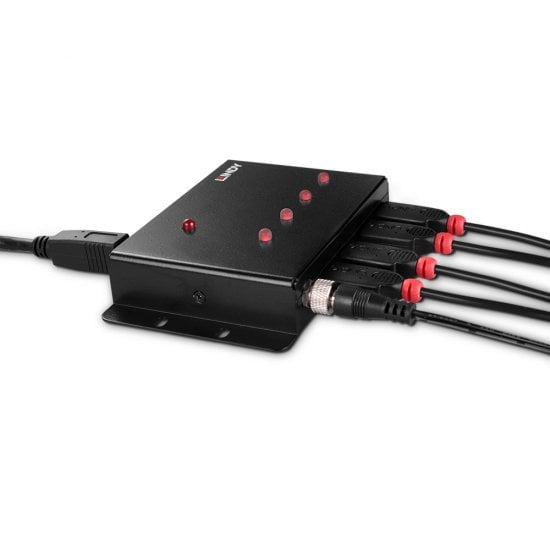

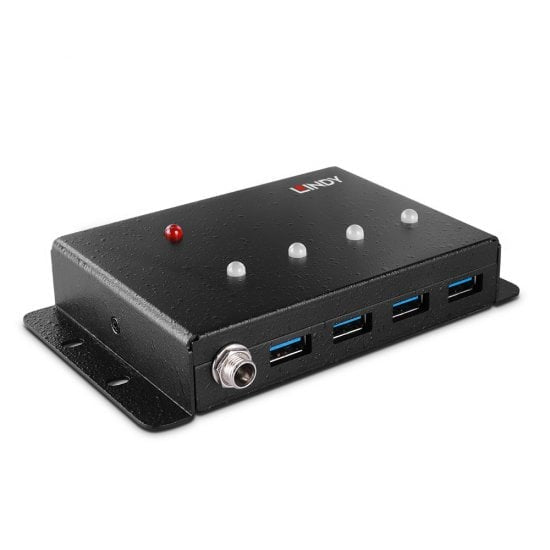

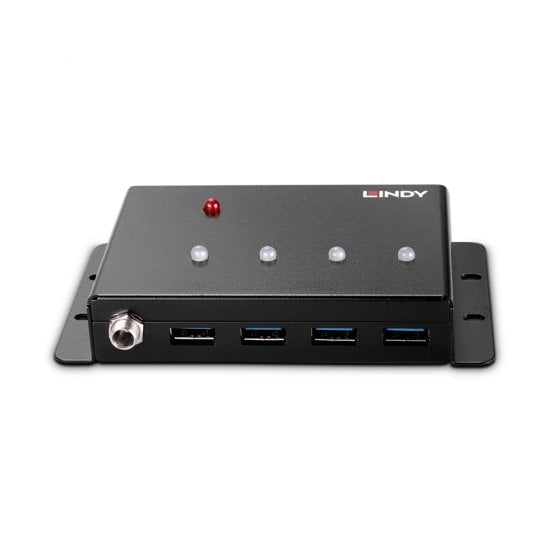

Lindy 4 Port USB 3.0 Metal Hub

The Lindy 4 Port expands your ports in seconds — plug in and go.

The Lindy 4 Port USB 3.0 Metal Hub has been designed to provide reliable performance in demanding operational environments. This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this Hub is the ideal solution for use in industrial environments.

Backwards compatibility with USB 2.0/1.1/1.0 means the hub can simultaneously support older USB peripherals or systems that lack USB 3.0 capabilities, extending their lifetime and giving a greater return on investment. The hub also supports MTT technology which guarantees highest possible throughput speed for USB 1.1 devices.

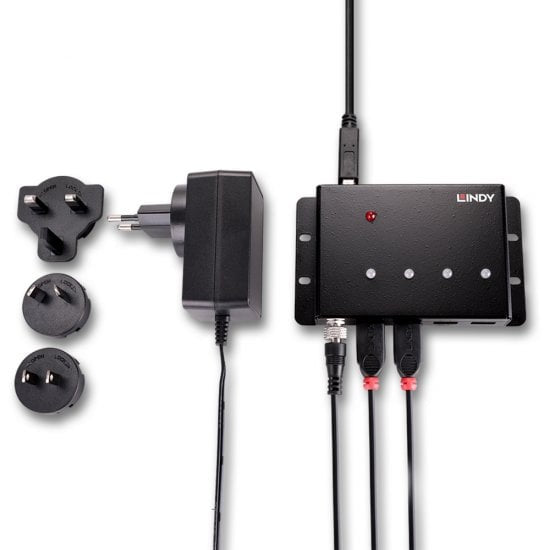

Each port features individual short circuit protection, while the included power supply ensures secure and uninterrupted electricity supply.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
DC-in jack	Yes
Card reader integrated	No
Ports quantity	4
Cable length	0.8 m
Features
LED indicators	Yes
Product colour	Black
Certification	CE, UKCA, FCC, RoHS & REACH, California Proposition 65
Cable type	Round cable
Data transfer rate	5000 Mbit/s
Housing material	Metal
Power
Power supply type	DC
Technical details
Operating temperature (T-T)	-20 - 60 °F
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Weight & dimensions
Weight	256 g
Width	125 mm
Depth	74.6 mm
Height	22 mm
Package width	260 mm
Package depth	180 mm
Package height	70 mm
Package weight	650 g
Packaging data
Package type	Box
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
Operational conditions
Operating relative humidity (H-H)	0 - 90%
Minimum operating temperature	0 °C
Maximum operating temperature	50 °C

Downloads

• Datasheet (PDF)
