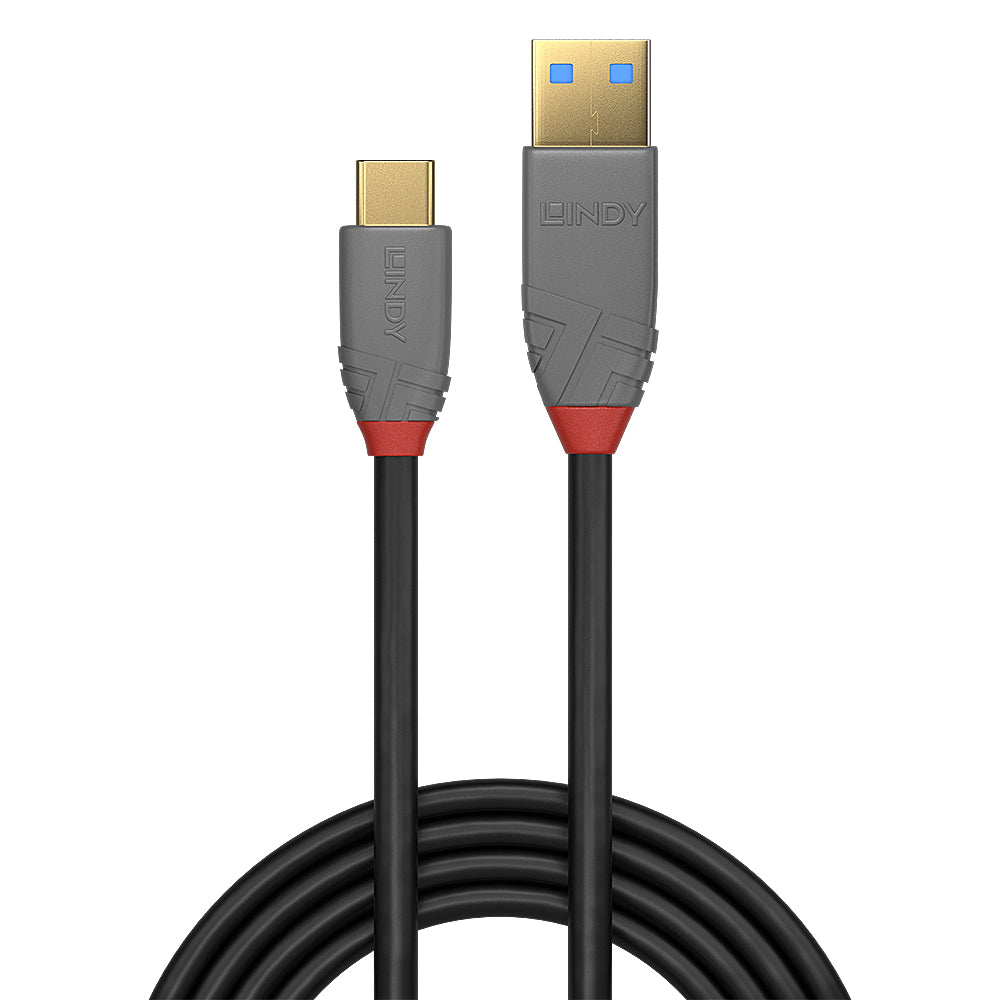

Lindy 3m USB 3.2 Type A to C Cable, 5A PD, Anthra Line
Lindy 3m USB 3.2 Type A to C Cable, 5A PD, Anthra Line
Regular price
£22.09 GBP
Regular price
Sale price
£22.09 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Make the connection with the Lindy 3m — length and connector details are in the spec table.
The Anthra Line USB 3.2 Type A to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type A to C, 5A cables are available in the following lengths: 0.5m, 1m and 1.5m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable colour | Black |
| Plug and Play | Yes |
| AWG wire size | 24/30/32 |
| Connector 1 | USB C |
| Connector 2 | USB A |
| Cable length | 3 m |
| Connector contacts plating | Gold |
| Magnetically shielded | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Product colour | Black |
| Certification | RoHS, REACH, California Proposition 65 & UL |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Conductor material | Tinned copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector material | Nickel |
| Contact material | Phosphor bronze |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Connector housing material | Polyvinyl chloride (PVC) |
| Cable diameter | 4.5 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Bend radius (min) | 4.5 cm |
| Connector 1 dimensions (WxDxH) | 16 x 47 x 8.8 mm |
| Connector 2 dimensions (WxDxH) | 13 x 41 x 7.75 mm |
| Package type | Polybag |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | REACH, RoHS, UL |
