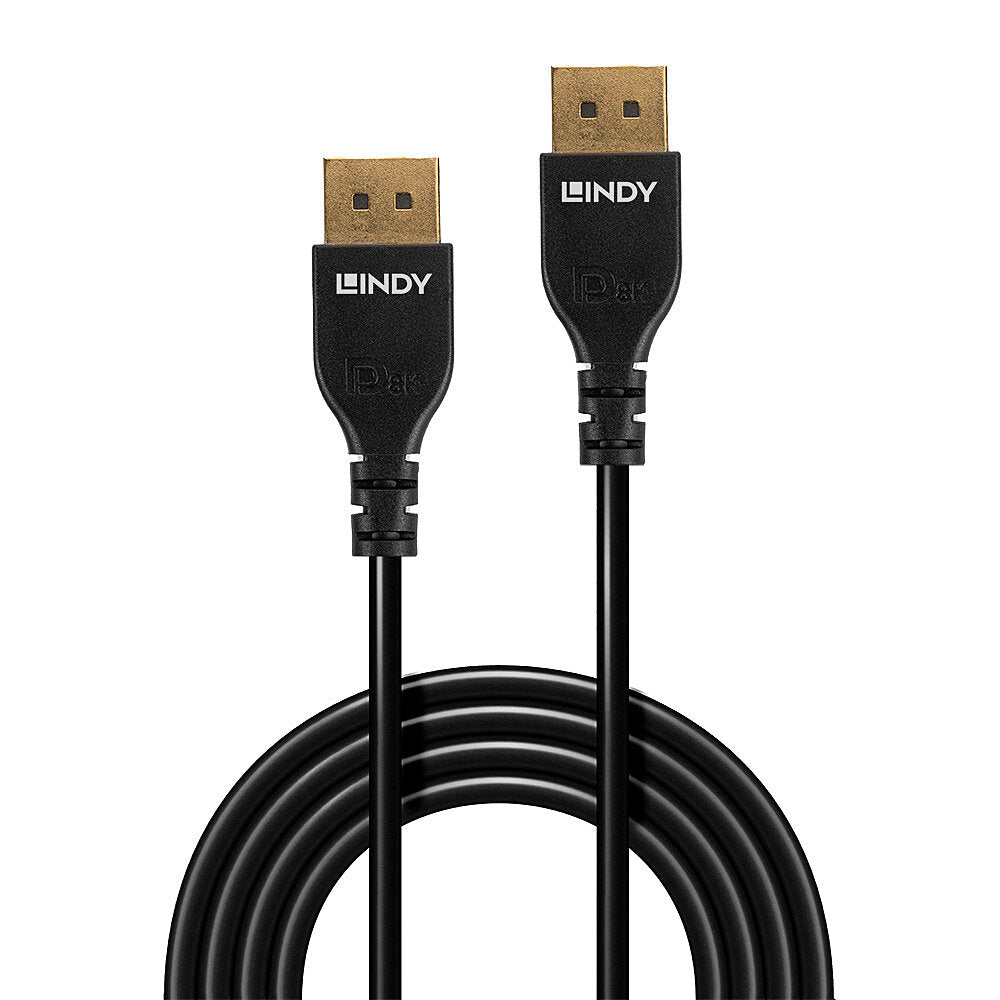

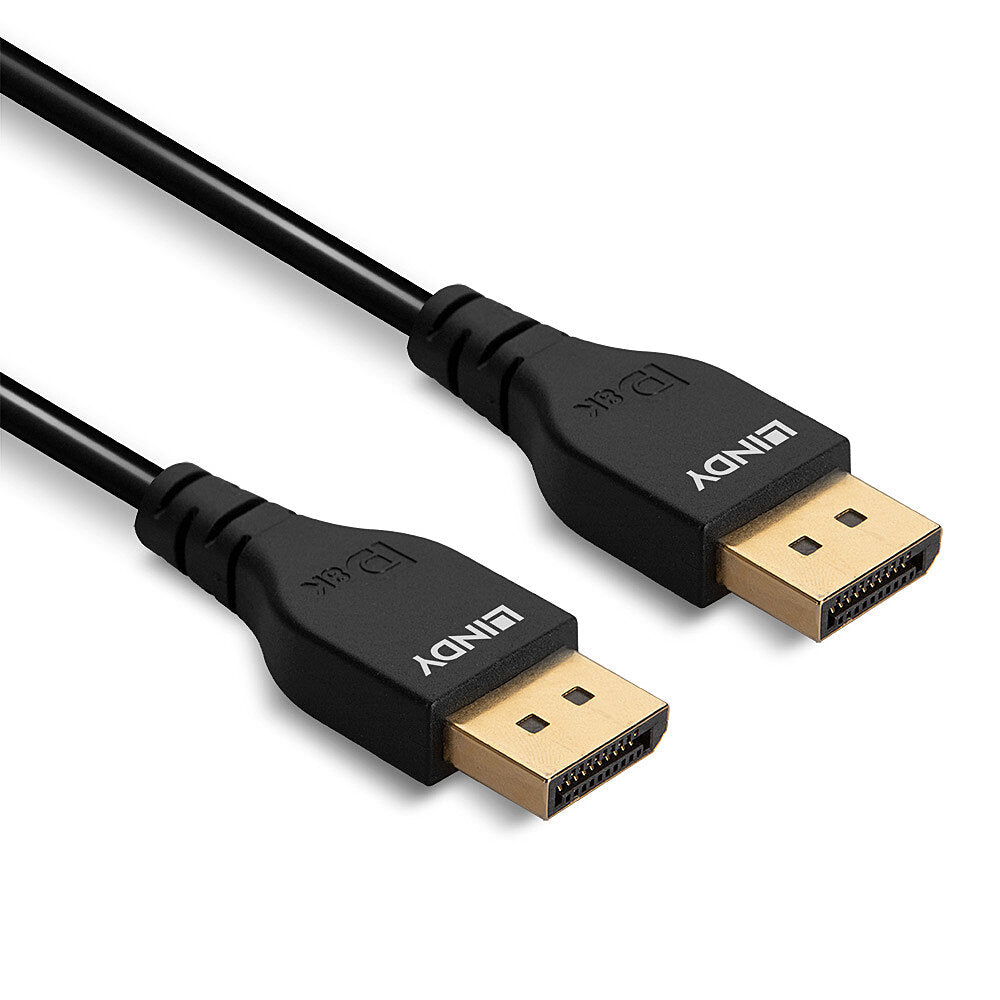

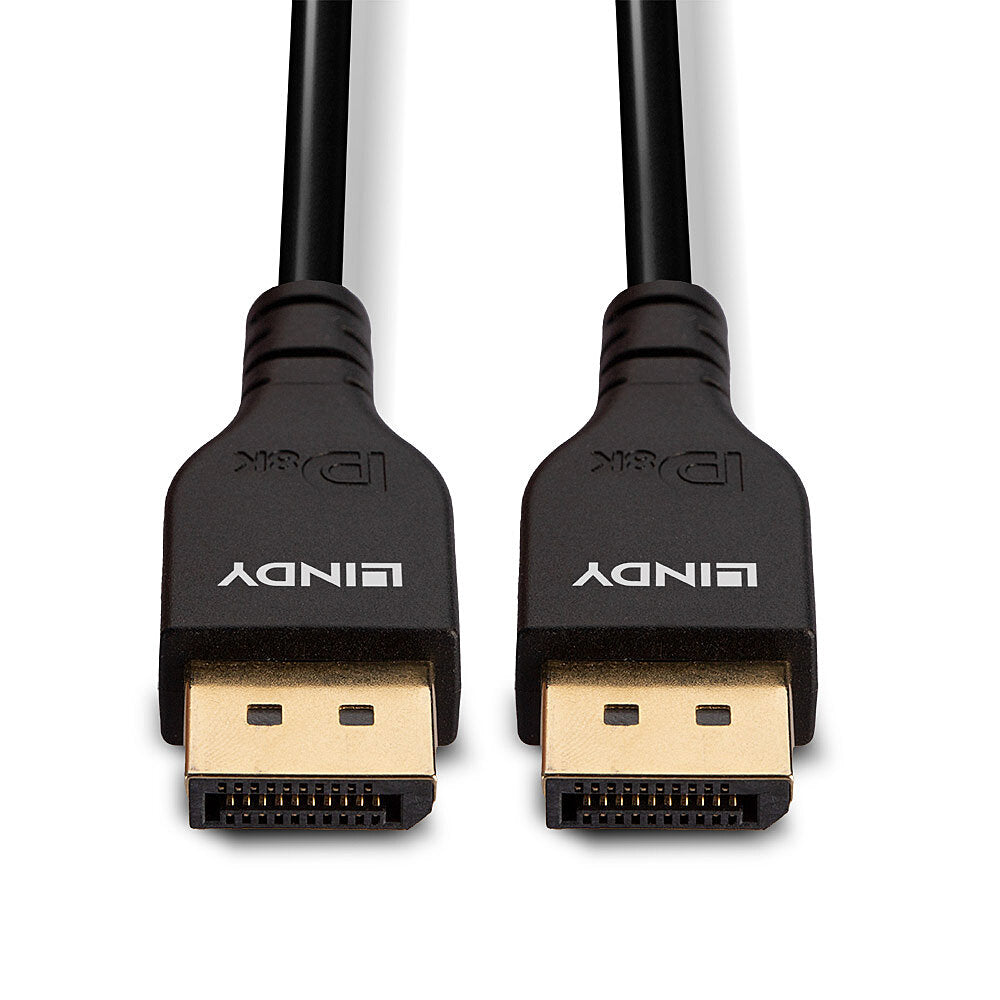

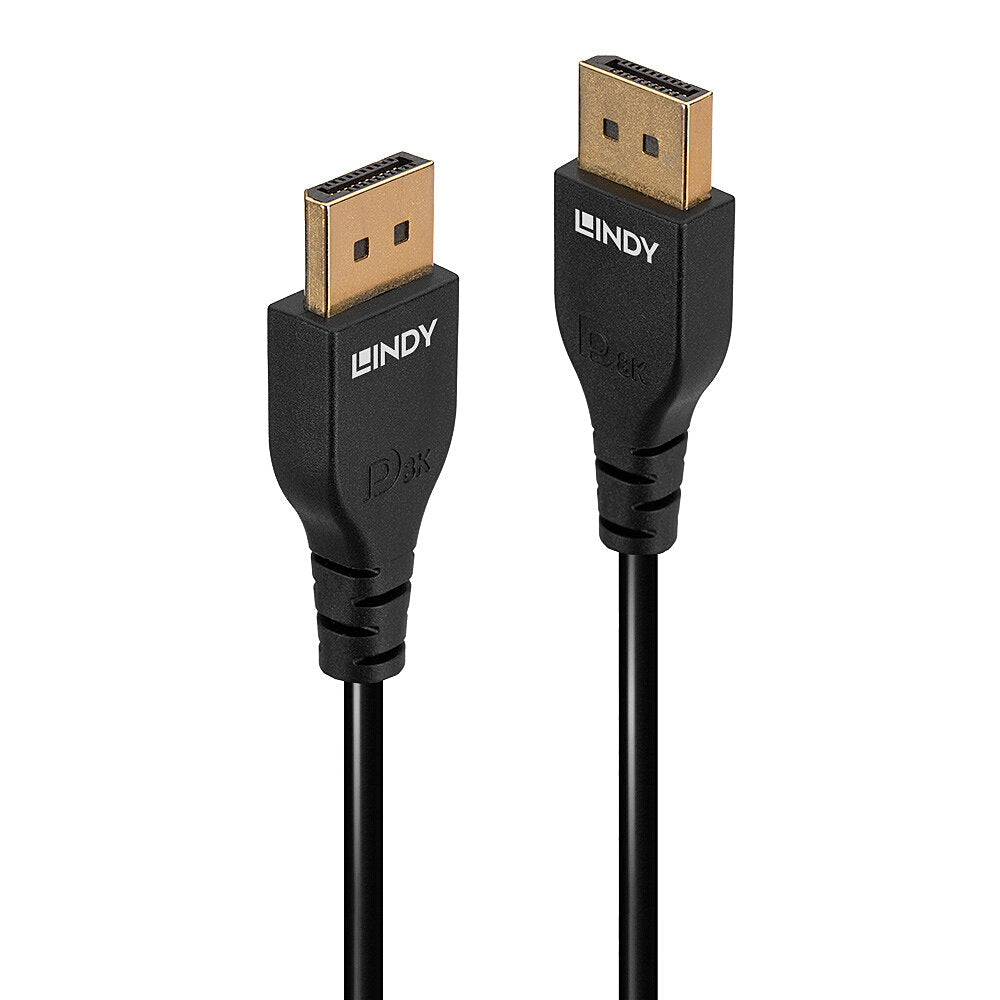

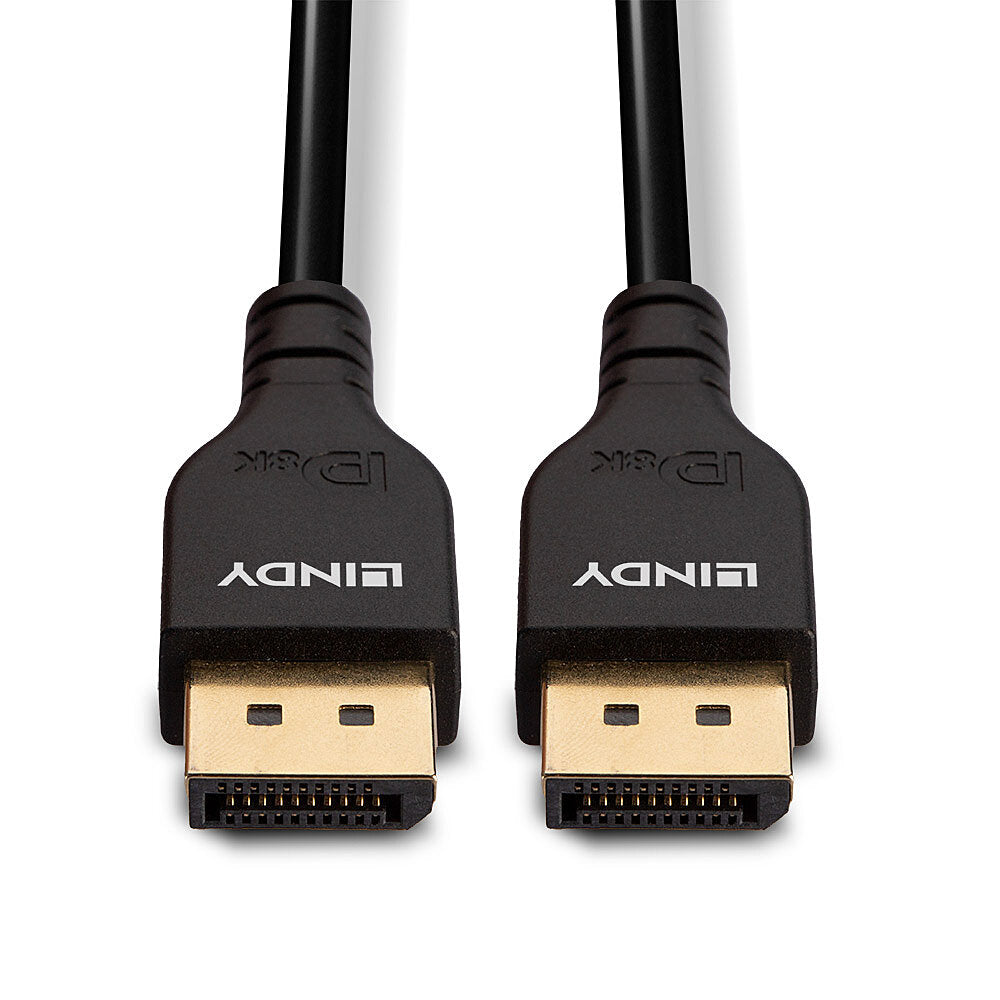

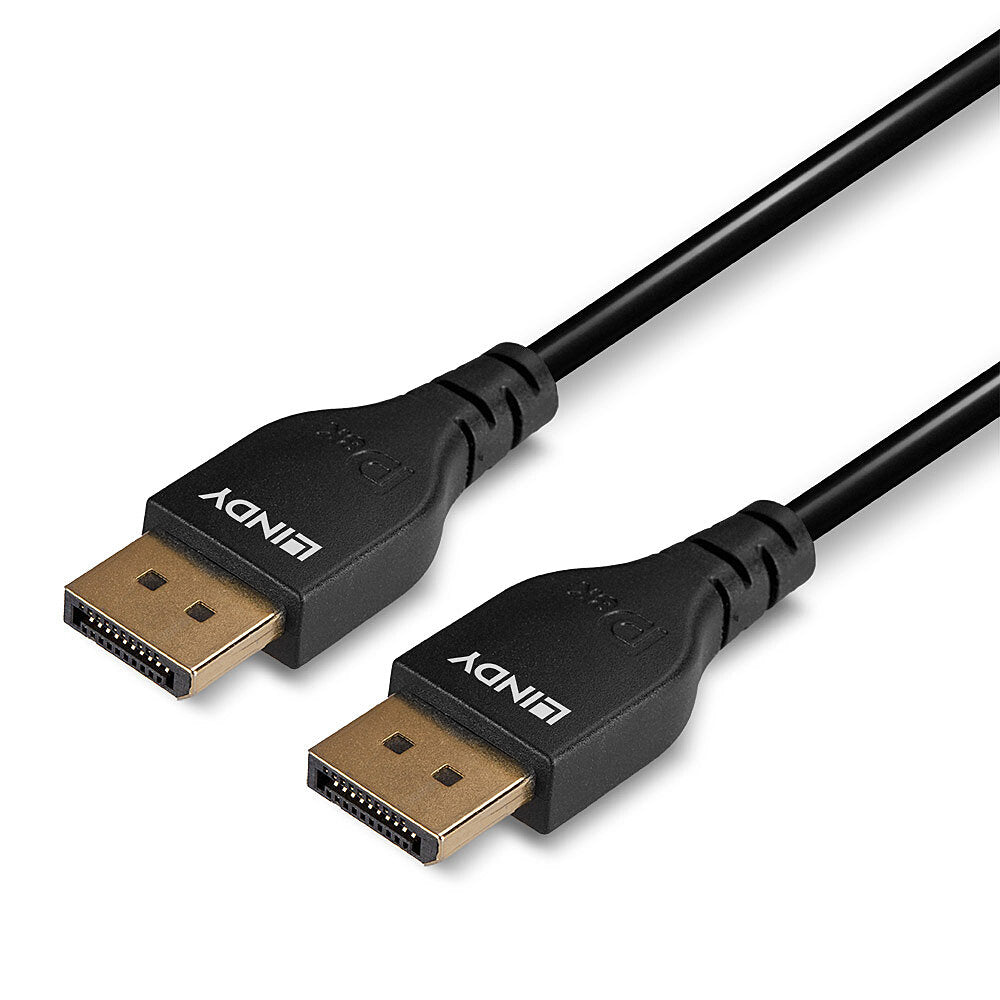

Lindy 3m Slim DisplayPort 1.4 Cable

Make the connection with the Lindy 3m Slim DisplayPort 1.4 — length and connector details are in the spec table.

Lindy's range of slim DisplayPort cables provide a more flexible and high-quality DP connection solution, utilising a specially designed compact, low profile connector and a smaller diameter cable structure.

With their compact, high performance design, these cables are ideal for situations where space is limited around source and display ports, such as with gaming monitors or graphics cards. Their triple shielded 30AWG pure copper conductors ensure overall improved performance, while gold-flashed phosphor bronze pins protect against corrosion and fatigue. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

Supporting DP 1.4 resolutions including 8K@60Hz and 4K@144Hz, these cables are great for high-level gaming setups, whether in the home or in an eSports arena, or alternatively with small-scale, digital signage installs such as Shop-in-Shops or concession stands. With lengths available in 0.5, 1, 2 and 3m, they are also a versatile solution for collaborative huddle spaces or engaging education setups when combined with a touch panel or LFD (large format display).

Specifications

Features
Cable shielding	Copper
Product colour	Black
Number of shielding layers	3
Cable length	3 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	30
DisplayPort version	1.4
Data transfer rate	32.4 Gbit/s
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	4096 x 2160, 7680 x 4320
Supported video modes	4320p
Maximum refresh rate	144 Hz
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Contact material	Phosphor bronze
Cable type	Round cable
Operational conditions
Operating temperature (T-T)	10 - 80 °C
Storage temperature (T-T)	0 - 80 °C
Certificates
Compliance certificates	REACH, RoHS
Packaging data
Package type	Polybag
Technical details
Harmonized System (HS) code	84733080
