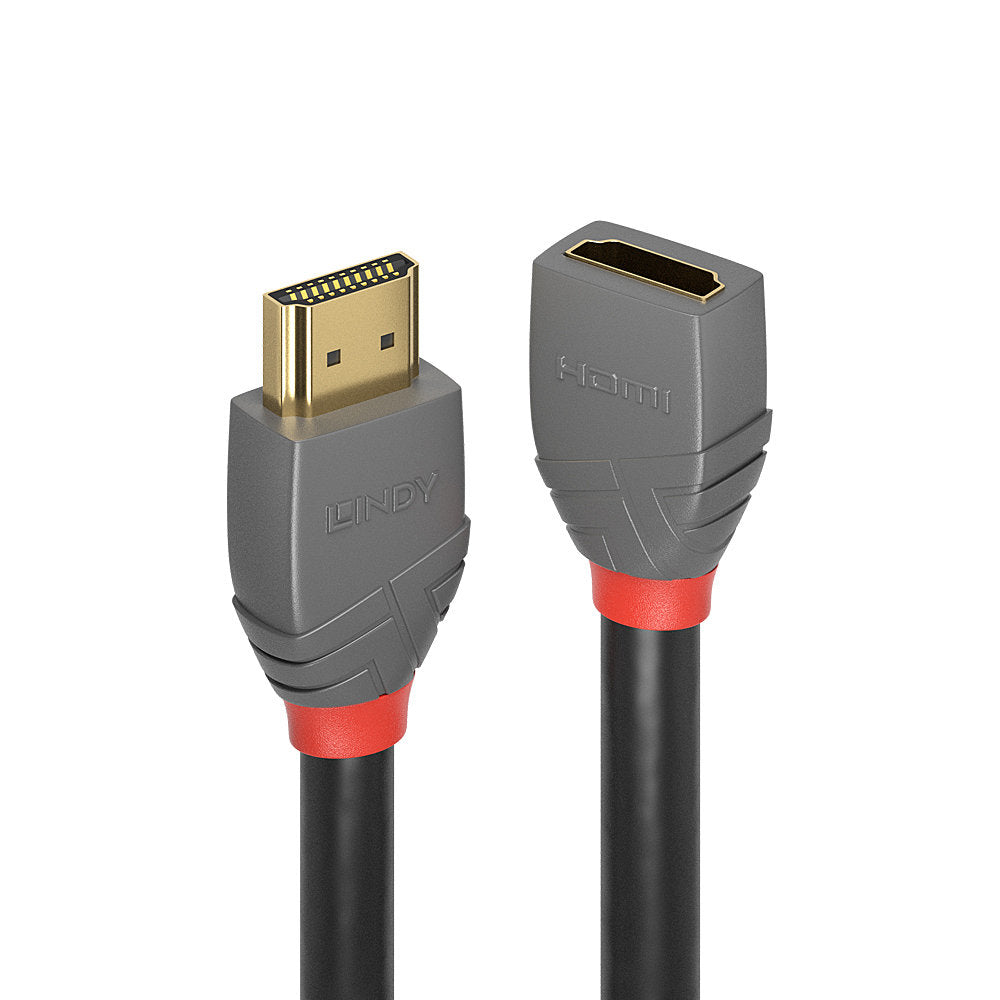

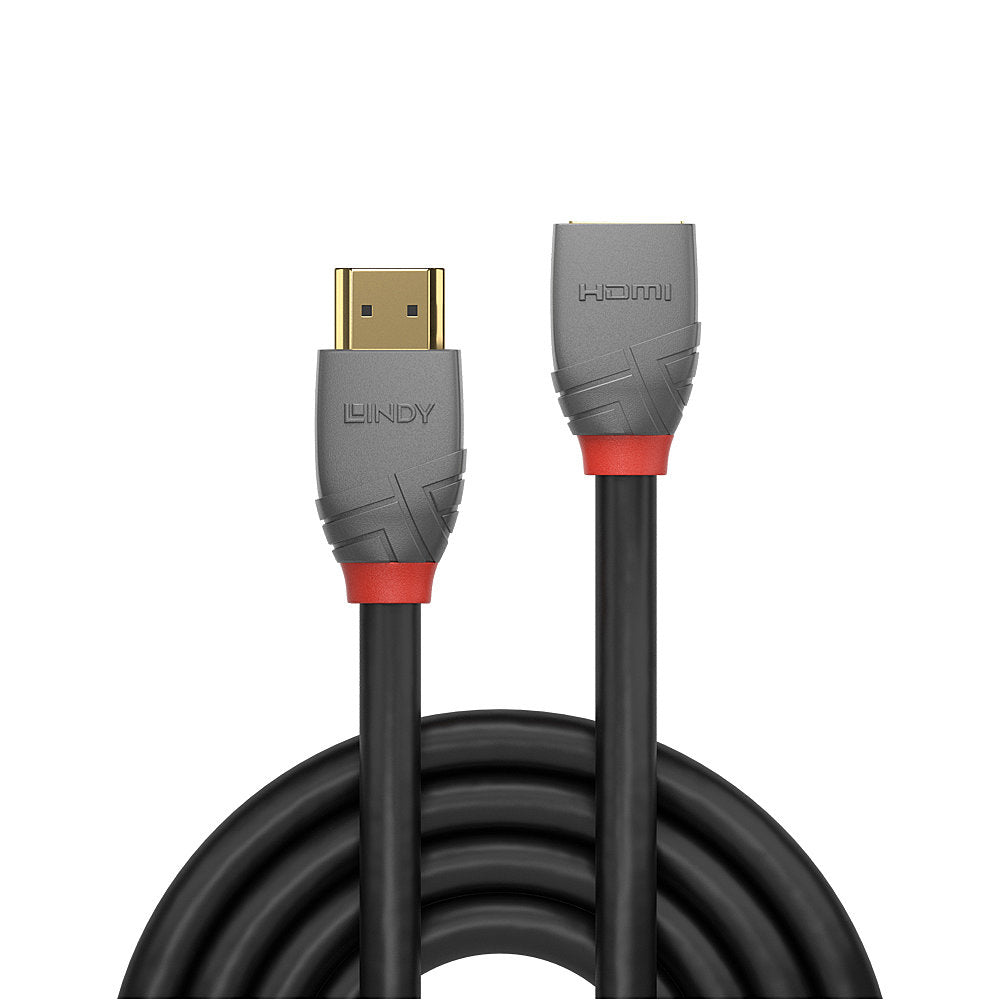

Lindy 3m HDMI 2.0 Extension, Anthra Line Cable

Make the connection with the Lindy 3m HDMI 2.0 Extension — length and connector details are in the spec table.

Superior performance and design High Speed HDMI 2.0 cable
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 8bit
Robust PVC housing, gold plated connectors and contacts
Triple shielded cable, corrosion resistant bare copper 28AWG conductors
HDMI 2.0 compliant, 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; 10 year warranty

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line HDMI cables are premium connections that feature triple shielded with 28AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.

These HDMI 2.0 cables support 18Gbps bandwidth capacity in cable lengths from 0.5m up to 3m.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
Dolby technologies	DTS-HD Master Audio, Dolby TrueHD
Audio Return Channel (ARC)	Yes
Product colour	Black
Cable length	3 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Female
Connector contacts plating	Gold
AWG wire size	28
HDMI version	2.0
Data transfer rate	18 Gbit/s
3D	Yes
Supported graphics resolutions	4096 x 2160
Supported video modes	2160p
Cable jacket material	Polyvinyl chloride (PVC)
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	-10 - 80 °C
Storage temperature (T-T)	-20 - 85 °C
Packaging content
Package type	Polybag
Logistics data
Harmonized System (HS) code	84733080

Downloads

• Datasheet (PDF)
