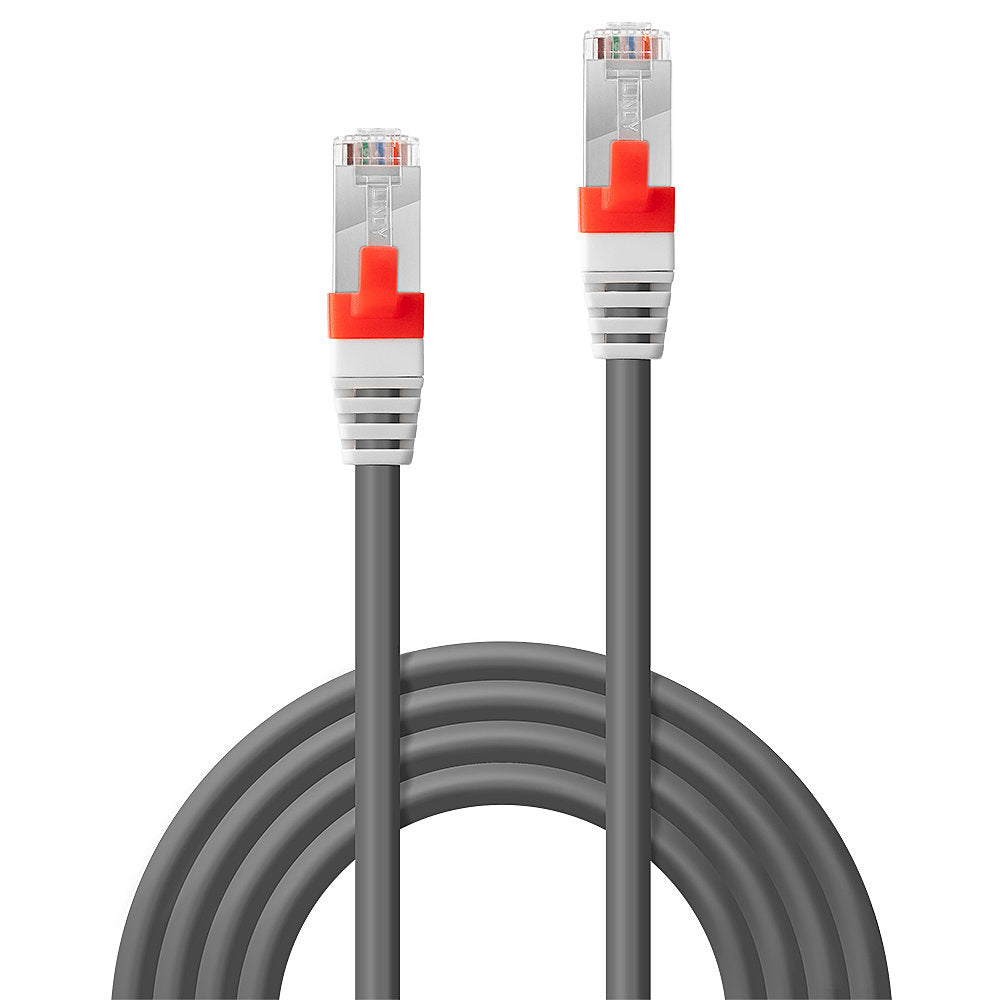

Lindy 3m Cat.6A S/FTP LSZH Network Cable, Grey

Make the connection with the Lindy 3m Cat.6A S/FTP LSZH — length and connector details are in the spec table.

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

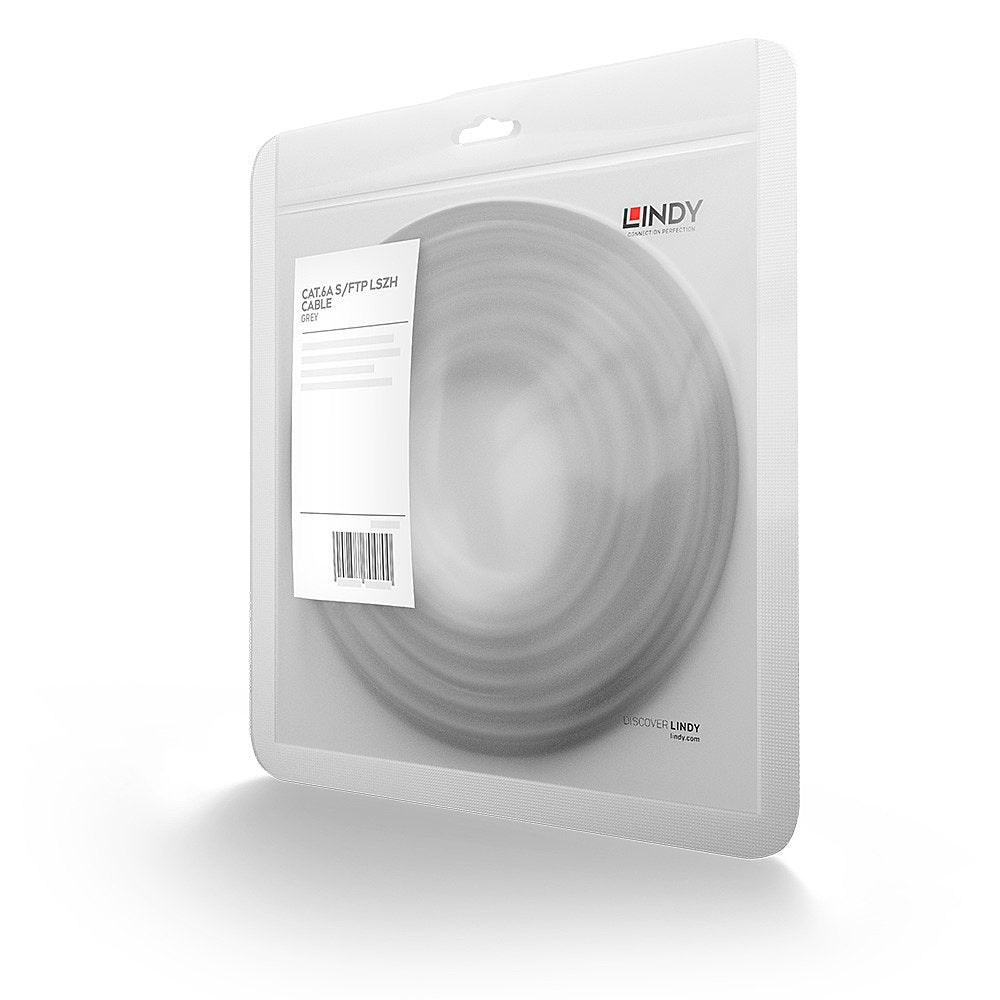

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The 100% Component test slip includedin each polybag ensures flawless compatibility between devices, each componentof the cable is individually tested helping to eliminate problems such asinsertion loss, return loss and crosstalk.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red.

Specifications

Features
Product colour	Grey
Connector shielding	Yes
Connector shield material	Aluminium/Polyester
Conductor material	Copper
Frequency	500 MHz
AWG wire size	26
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Nickel/Gold
Jacket material	Low smoke zero halogen (LSZH)
Cable length	3 m
Connector 2 gender	Male
Connector 1 gender	Male
Bend radius (min)	1.86 cm
Certification	RoHS, REACH, UL
Harmonized System (HS) code	84733080
Operational conditions
Storage temperature (T-T)	-25 - 60 °C
Operating temperature (T-T)	-25 - 60 °C
Weight & dimensions
Outer diameter	6.2 mm
Connector 2 dimensions (WxDxH)	11.6 x 21.5 x 8.3 mm
Connector 1 dimensions (WxDxH)	11.6 x 21.5 x 8.3 mm
Packaging data
Package type	Polybag
