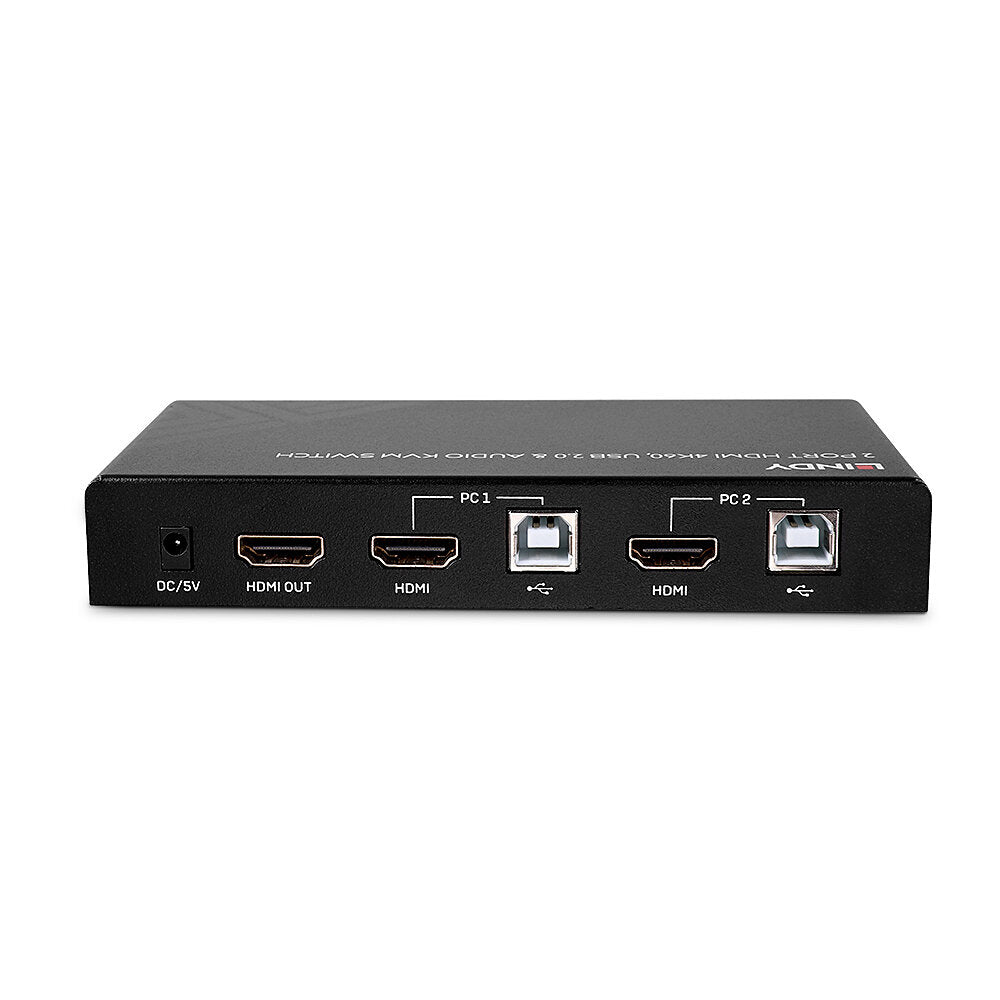

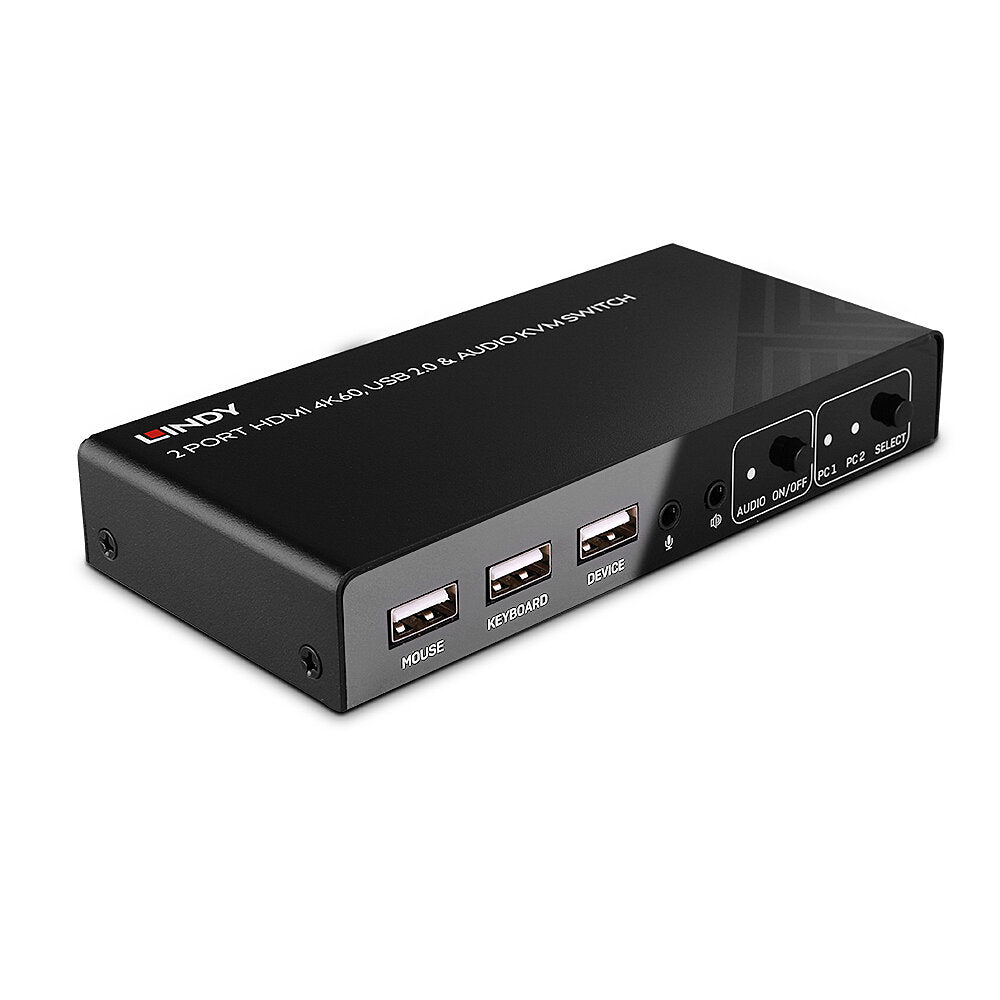

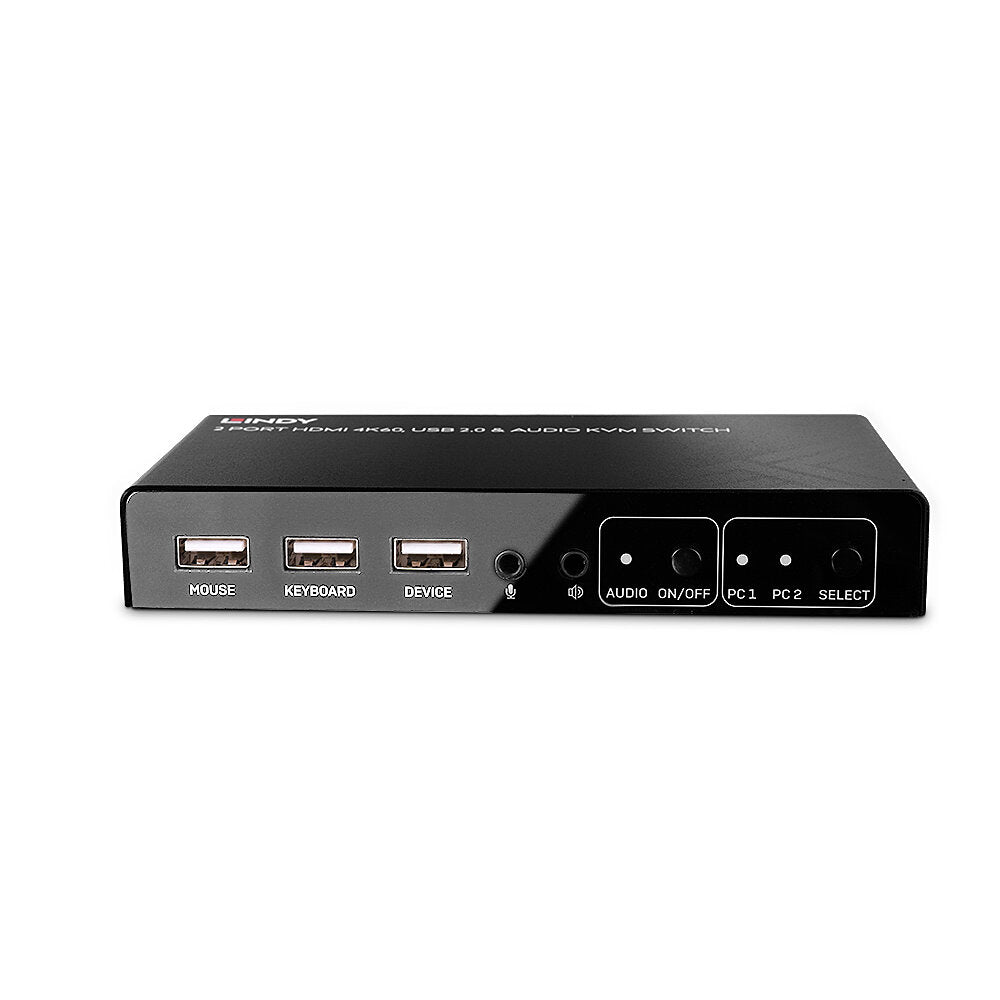

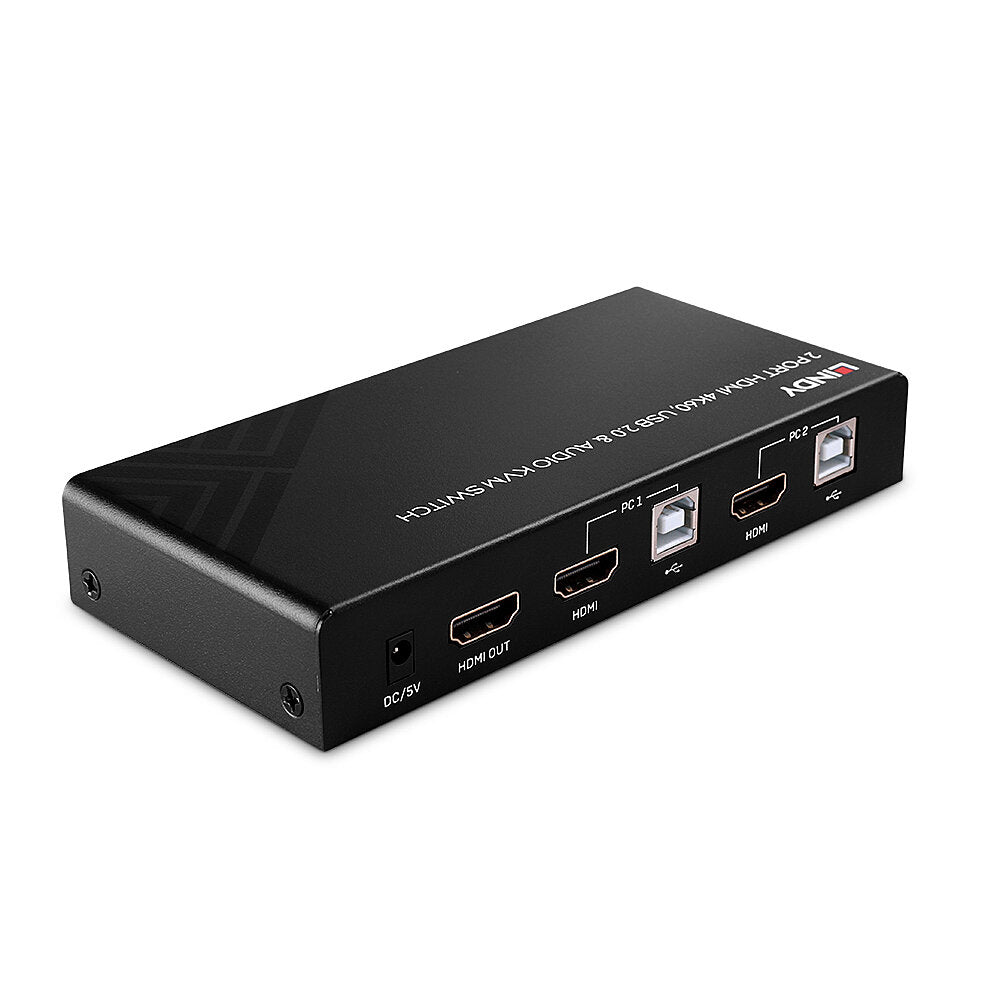

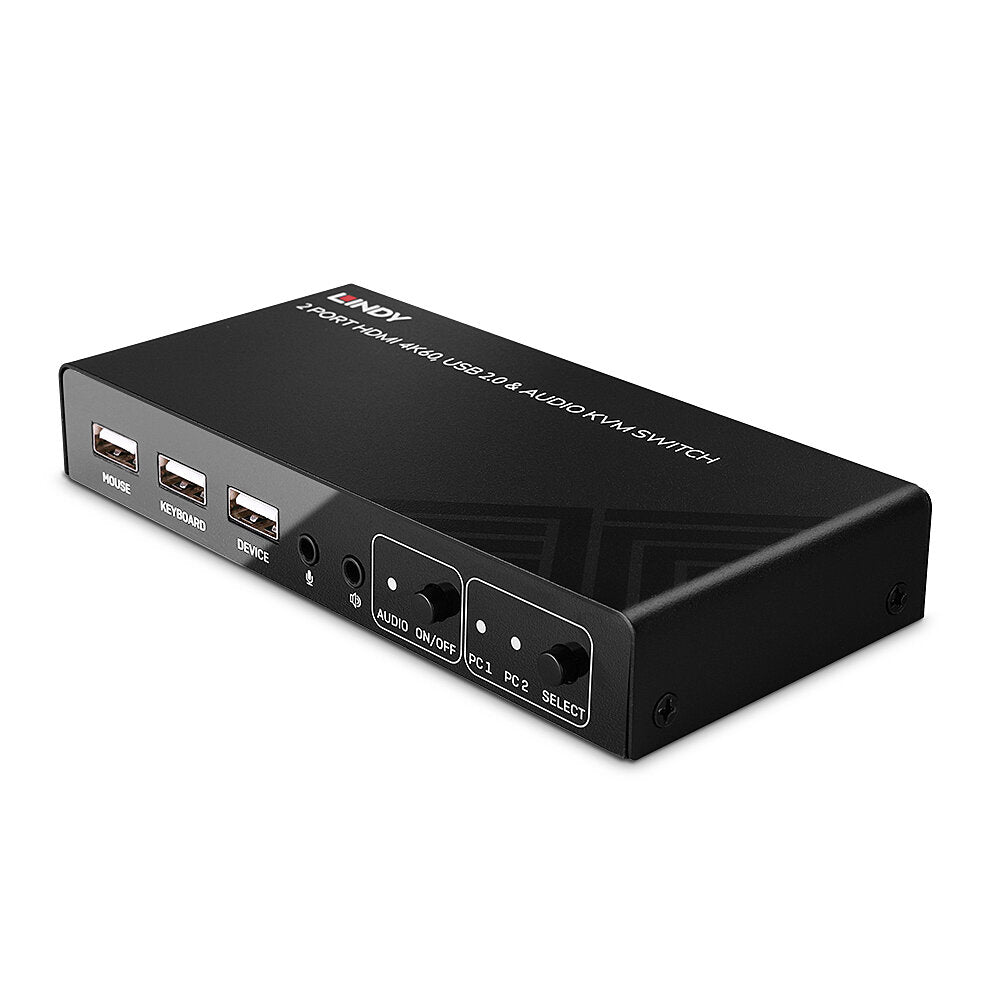

Lindy 2 Port HDMI 4K60, USB 2.0 and Audio KVM Switch

Control multiple machines from one keyboard, monitor and mouse with the Lindy 2 Port HDMI 4K60.

The Lindy 2 Port HDMI 4K60, USB 2.0 and Audio KVM Switch is a compact solution for providing access and control over two HDMI equipped PCs from a single keyboard, mouse and monitor setup.

Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or quad system control workstations. The additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut.

The audio output ports on the main unit also allow users to connect headphones or speakers to add immersive 2CH audio and a microphone, pressing the Audio On/Off button on the front panel mutes these devices. These ports are not connected to the HDMI signal but to a built-in USB converter while an additional USB device such as a printer, scanner or hard drive can be connected to the additional USB port on the front panel.

The KVM switch features two switching options including push buttons on the unit and keyboard hotkeys provide simple, reliable control for the user, great for both professional and first time users.

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A, USB B
USB connector type	USB Type-A, USB Type-B
Number of microphone inputs	1
HDMI version	2.0
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Audio connections	Yes
Headphone outputs	1
HDMI ports quantity	2
DC-in jack	Yes
USB 2.0 Type-B ports quantity	2
Console HDMI ports quantity	2
Performance
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels
Technical details
Product colour	Black
Push button	Yes
Sustainability compliance	Yes
Design
Display switch button	Yes
Housing material	Metal
Display
Built-in display	No
Power
Input current	2 A
Power source	DC
External power adapter	Yes
Input voltage	5 V
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	5 - 80%
Storage relative humidity (H-H)	5 - 80%
Weight & dimensions
Width	143 mm
Depth	68 mm
Height	23 mm
Weight	400 g
Package width	207 mm
Package depth	187 mm
Package height	56 mm
Package weight	600 g
Packaging data
Package type	Box
