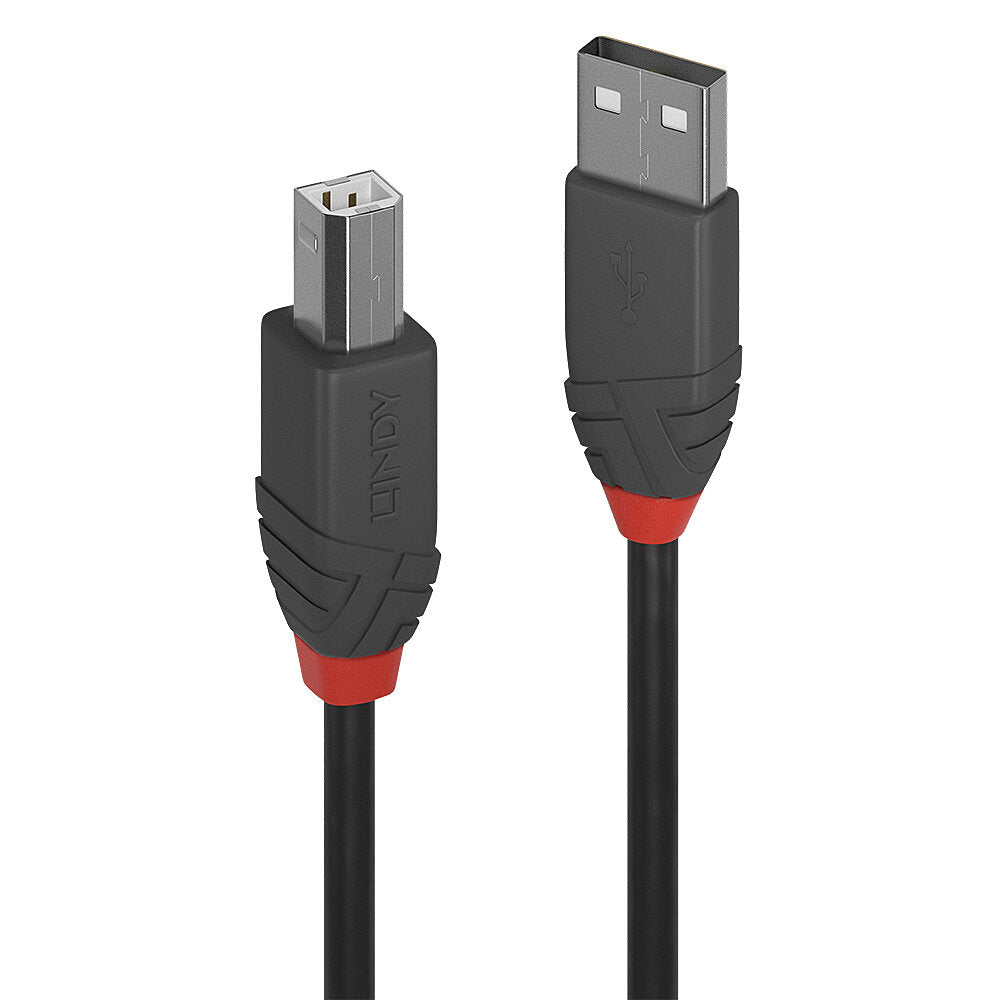

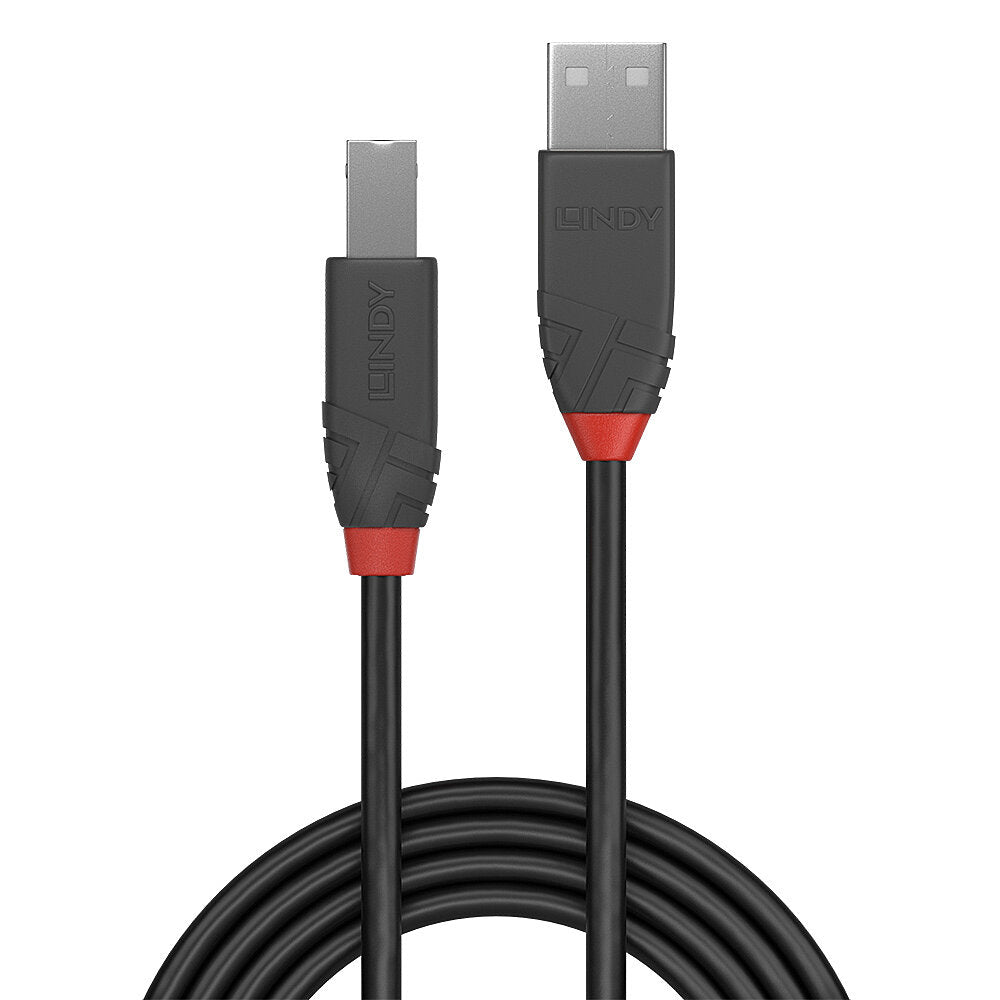

Lindy 10m USB 2.0 Type A to B Cable, Anthra Line

Make the connection with the Lindy 10m — length and connector details are in the spec table.

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to B cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 10m.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	28/24
USB version	USB 2.0
Connector 1	USB A
Connector 2	USB B
Cable length	10 m
Connector contacts plating	Gold
Maximum data transfer rate	480 Mbit/s
Product colour	Black, Grey, Red
Certification	RoHS, REACH, UL
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Male
Conductor material	Tinned copper
Cable jacket material	Polyvinyl chloride (PVC)
Connector material	Nickel
Contact material	Copper
Connector shielding	Yes
Connector shield material	Aluminium
Connector housing material	Polyvinyl chloride (PVC)
Nominal attenuation	5.8db/km
Cable diameter	5 mm
Quantity per pack	1 pc(s)
Weight & dimensions
Bend radius (min)	1.6 cm
Connector 1 dimensions (WxDxH)	15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH)	11.8 x 35 x 10.2 mm
Package type	Polybag
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	0 - 60 °C
Technical details
Harmonized System (HS) code	84733080

Downloads

• Datasheet (PDF)
