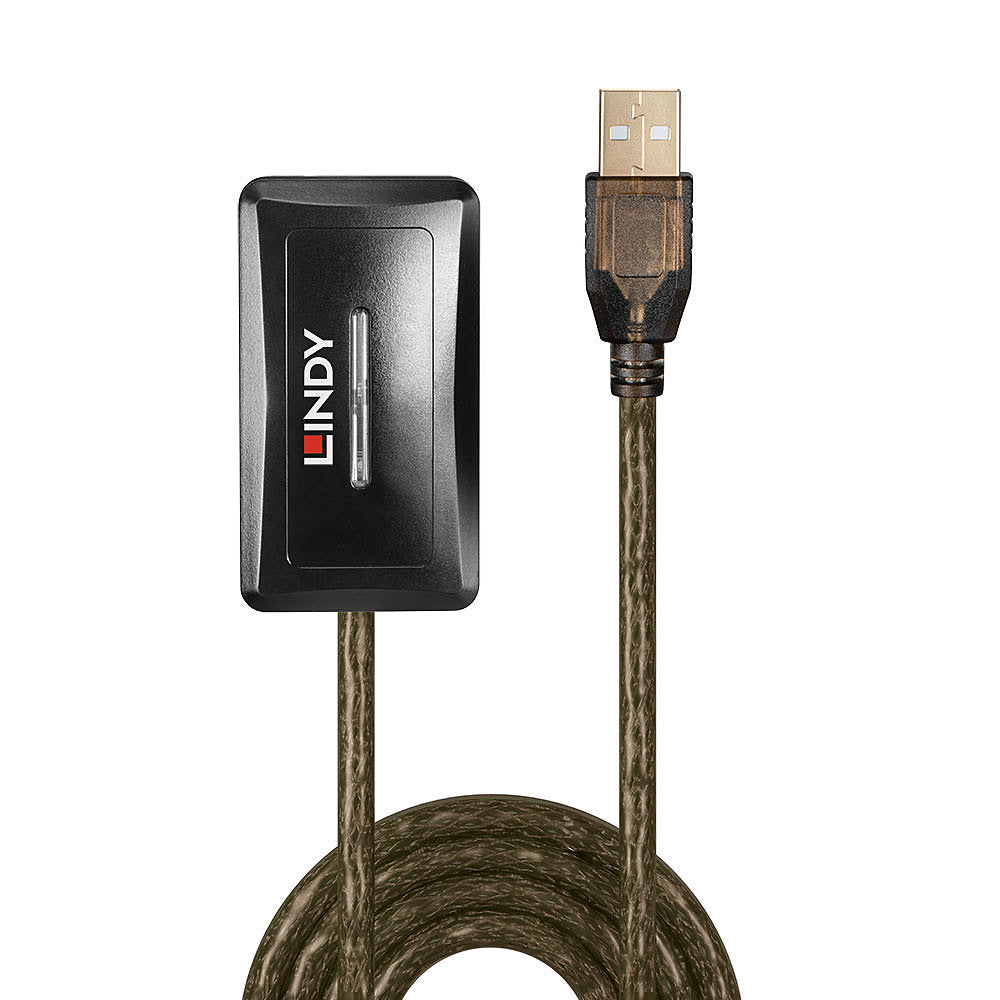

Lindy 10m USB 2.0 Active Extension Hub

The Lindy 10m expands your ports in seconds — plug in and go.

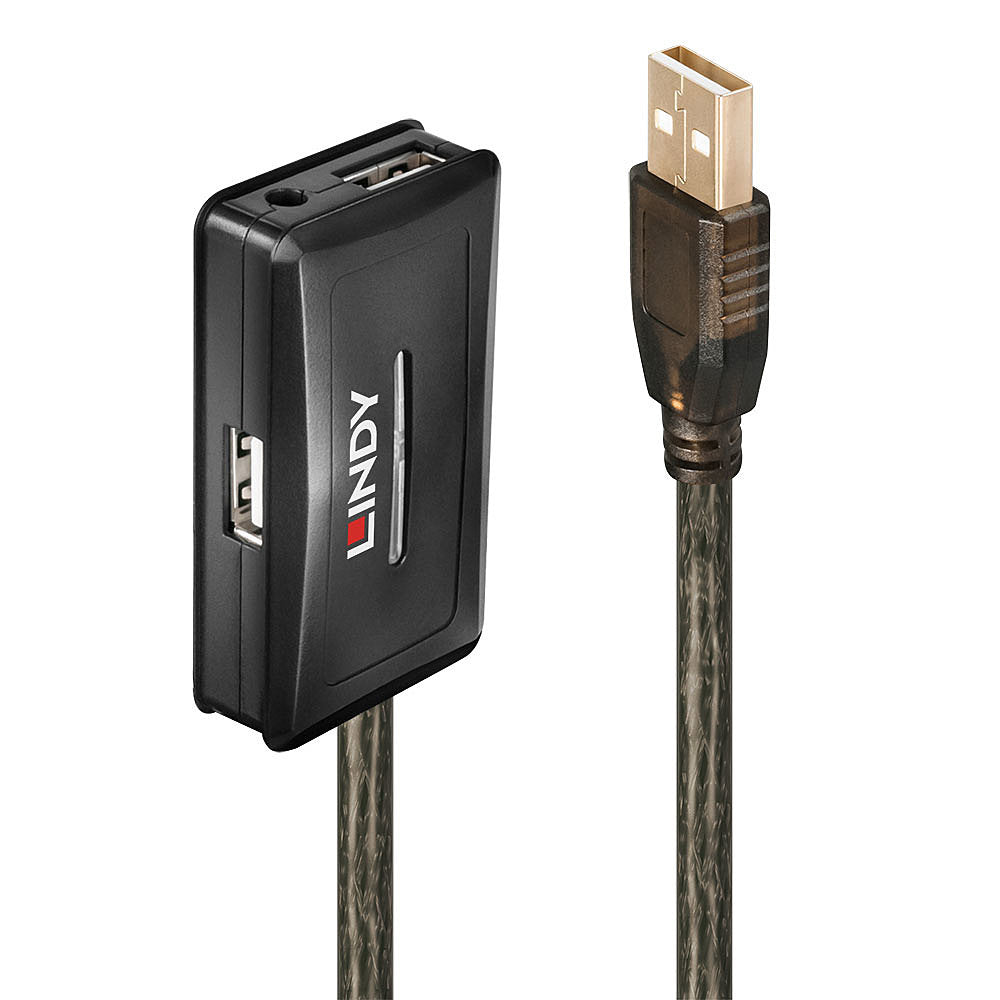

The Lindy USB 2.0 Active Extension Hub uses built-in active electronics to extend the cable length of up to four USB 2.0 devices by an additional 10m whilst continuing to support data transfer rates of up to 480Mbps. With its USB A male and four USB A female connectors it allows multiple Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 USB 2.0 Active Extension Hubs can be chained together to achieve a distance of 20m.

The Lindy USB 2.0 Active Extension Hub is compatible with all USB Type A equipped computers. With plug and play functionality, it can be installed quickly and with minimum fuss. It also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.

Specifications

Ports & interfaces
Host interface	USB 2.0
Hub interfaces	USB 2.0
USB 2.0 ports quantity	4
DC-in jack	Yes
Card reader integrated	No
Ports quantity	4
Cable length	10 m
Features
Plug and Play	Yes
Product colour	Grey
Data transfer rate	480 Mbit/s
AWG wire size	28/24
Performance
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	310 g

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
