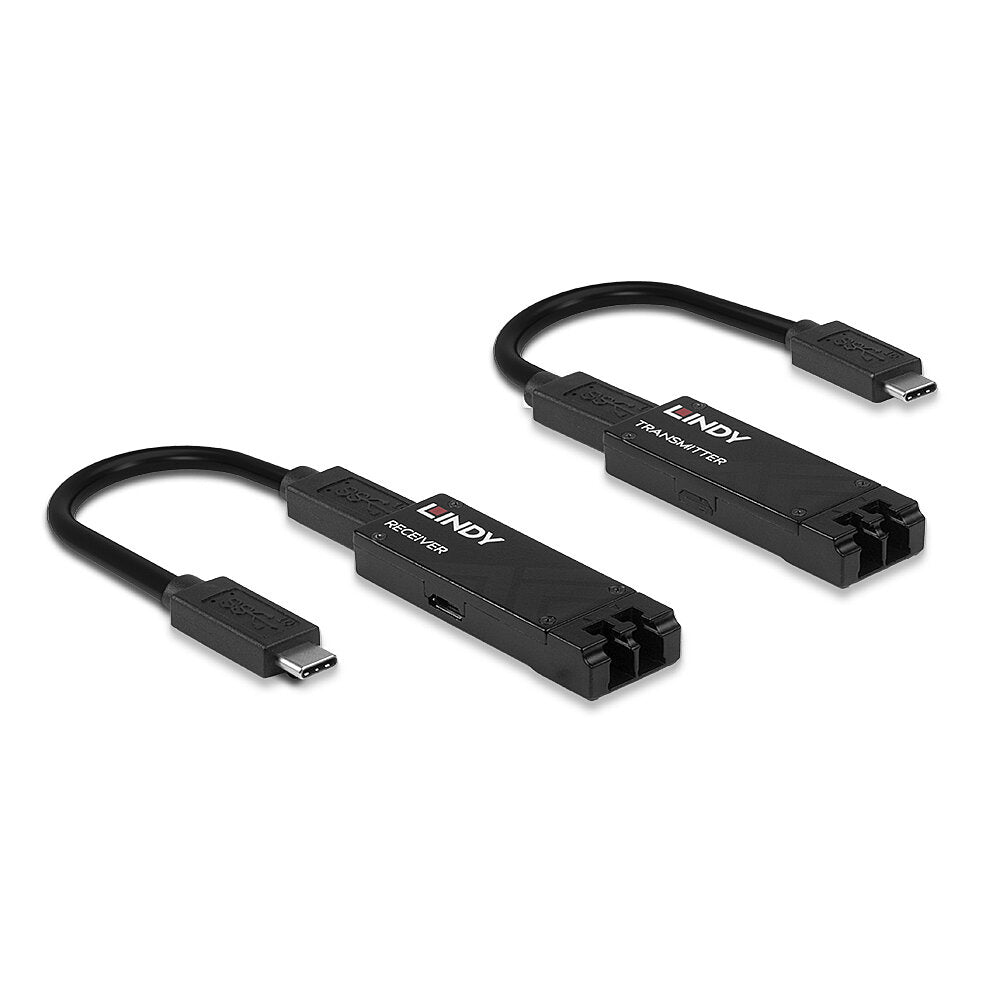

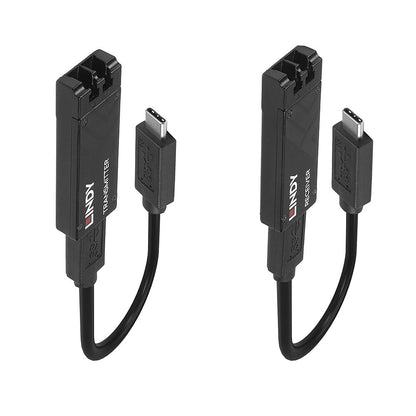

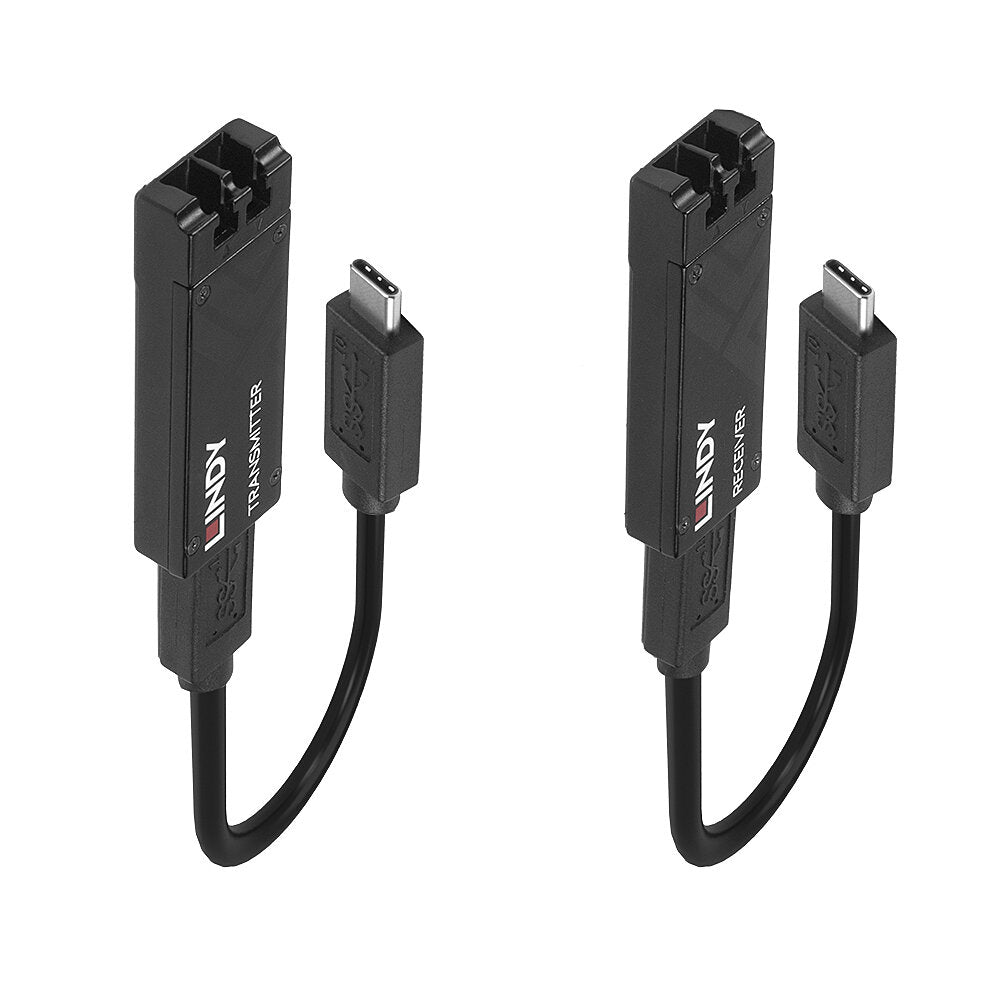

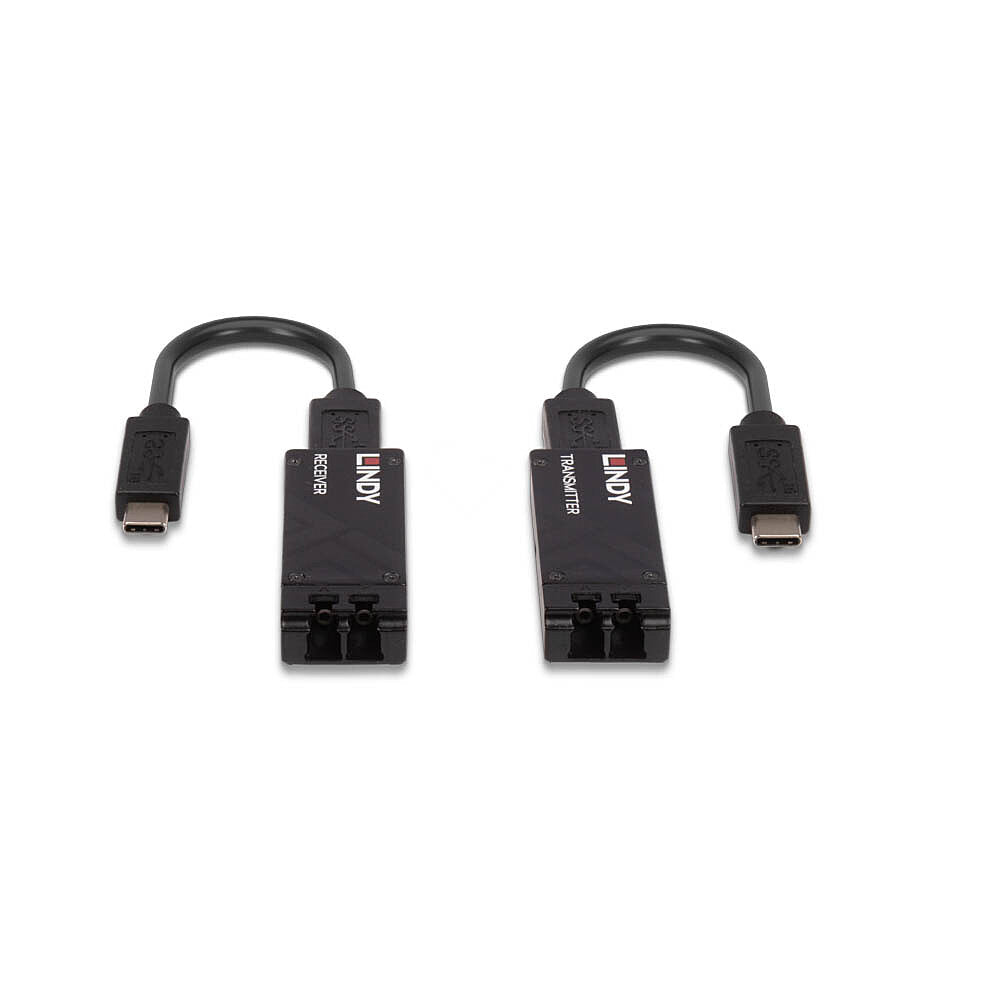

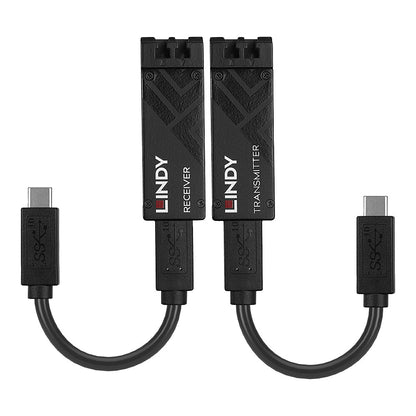

Lindy 100m Fibre Optic USB 3.2 Type C Extender Hub

The Lindy 100m Fibre Optic expands your ports in seconds — plug in and go.

Fibre Optic USB extenders allow USB signals to be extended far beyond the limits of traditional copper cable solutions. The Lindy 100m Fibre Optic USB 3.2 Type C Extender supports SuperSpeed transfer rates of up to 10Gbps. This Extender is a complete and compact two-part hardware solution comprising of a transmitter that connects directly to the user's computer and receiver that connects to the USB peripheral, using andldquo;off the shelfandrdquo; LC duplex fibre cabling.

The extender is ideal for long distance use with remote desktop links, industrial control systems, surveillance control rooms and external storage applications. This device is fully compatible with, and can be used to extend signals from, 4K USB webcams and video conferencing systems. Utilising fibre optic transmission, this extender provides high resistance to EMI and RFI, perfect for use in andldquo;noisyandrdquo; areas such as hospitals, large retail installations or industrial buildings. The Fibre Optic USB 3.2 Type C Extender is supplied with a USB Type A to Micro-B cable which can be attached to a second USB port or to a USB Power supply (not included) should additional power be required.

Please note that DisplayPort Alternate Mode is not supported.

Please note: This Extender is not backwards compatible with USB 2.0.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

Ports & interfaces
Internal	No
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Fiber optic connector	LC
Output interface	LC
Host interface	USB Type-C
Host interface gender	Male
Technical details
Full duplex	Yes
Data transfer rate (max)	10 Gbit/s
Bidirectional	Yes
Quantity per pack	2 pc(s)
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
Performance
Maximum cable length	100 m
Product colour	Black
Features
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Power
USB powered	Yes
Power supply input voltage	5 V
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 80%
Weight & dimensions
Width	58 mm
Depth	20 mm
Height	9 mm
Weight	39 g

Downloads

• Datasheet (PDF)
