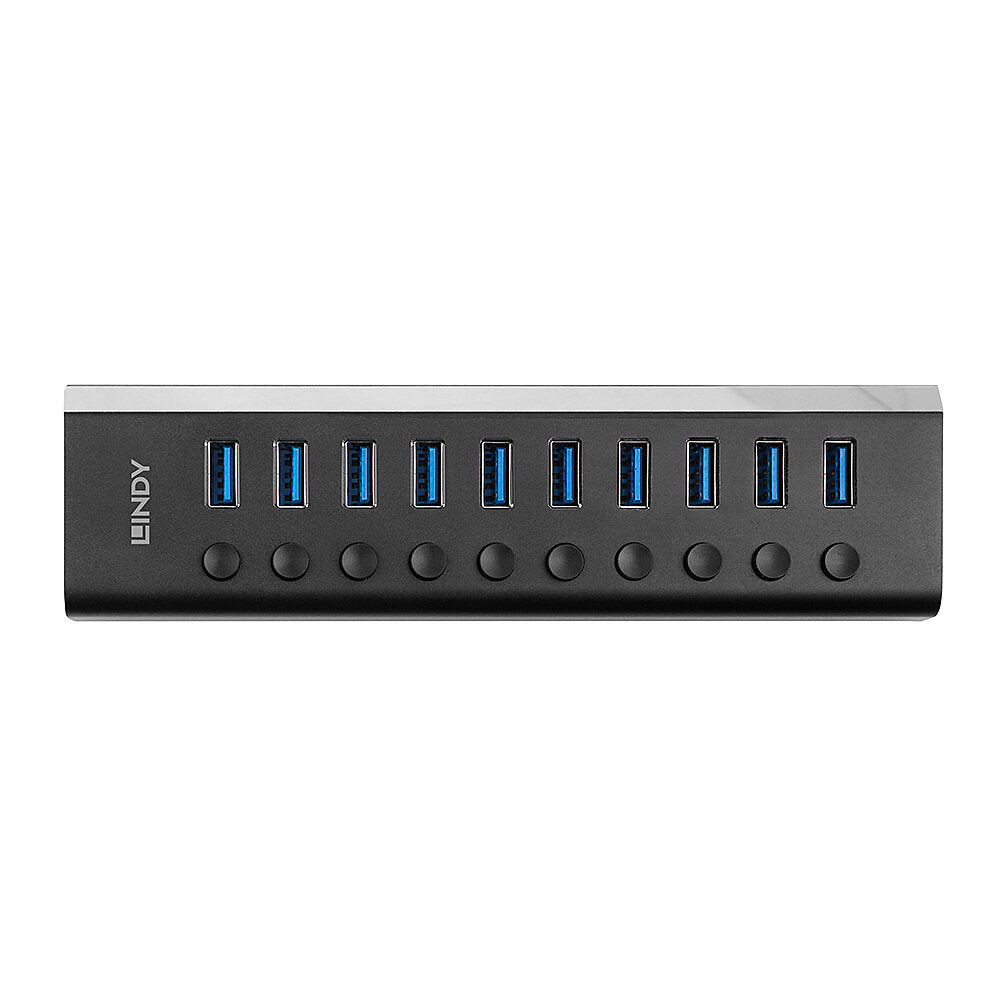

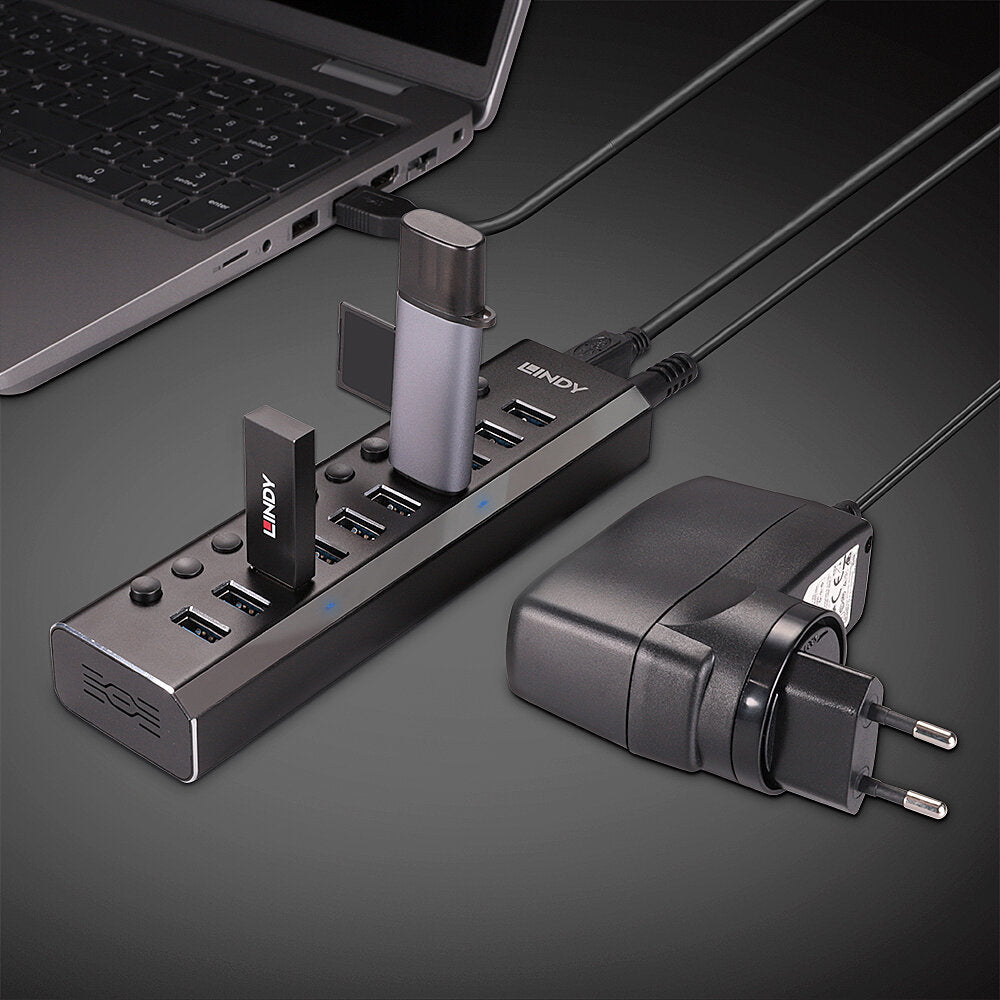

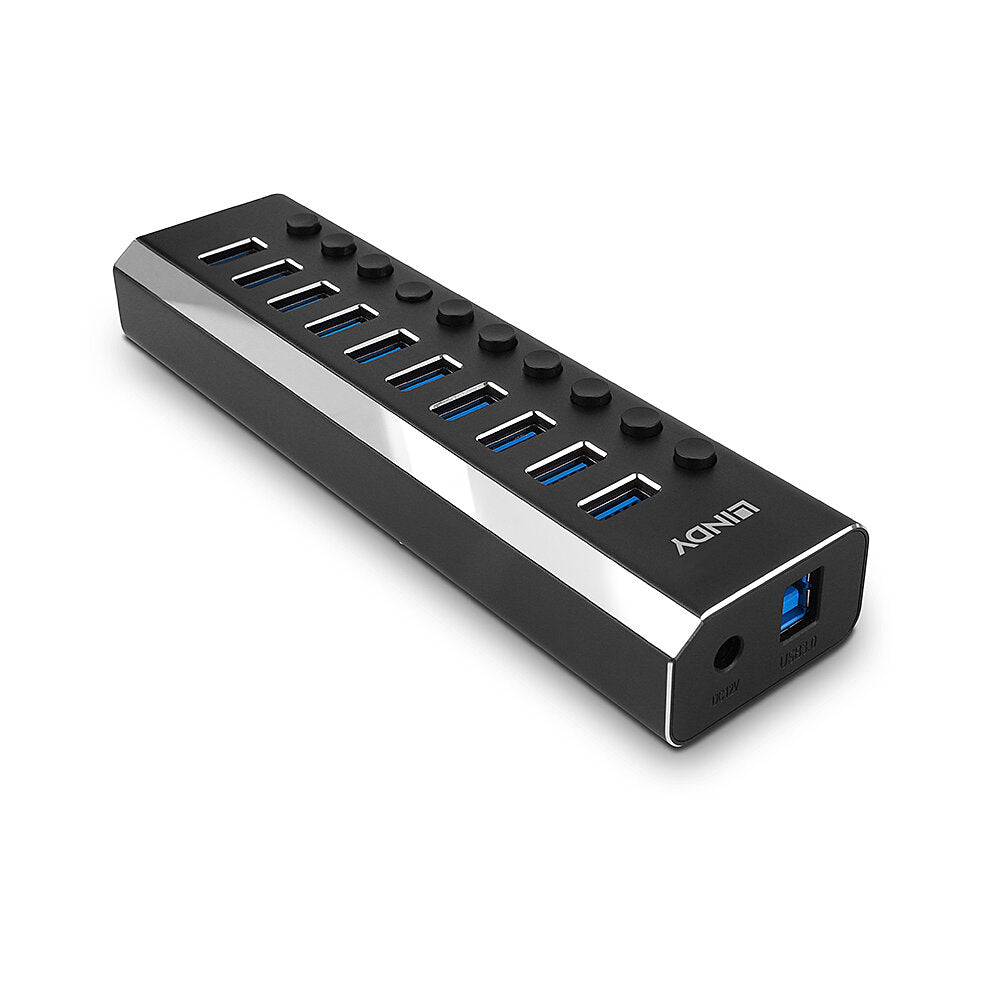

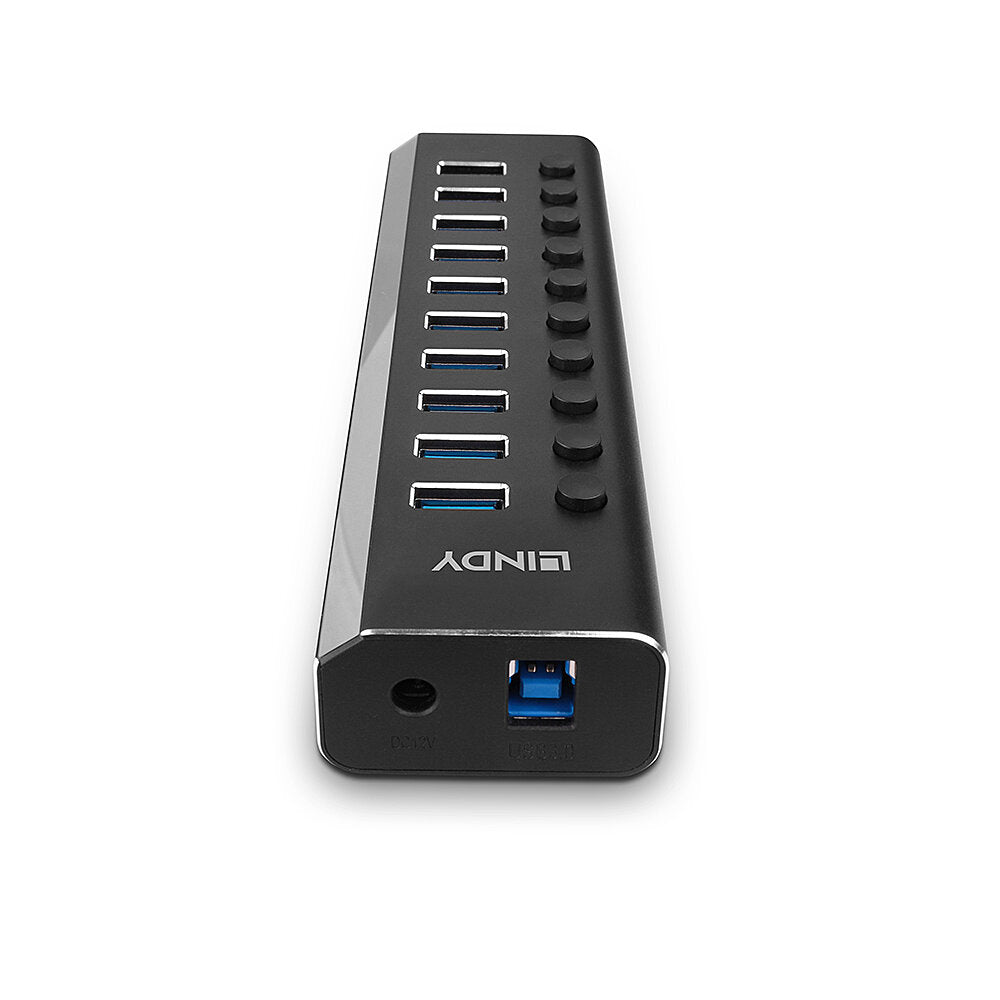

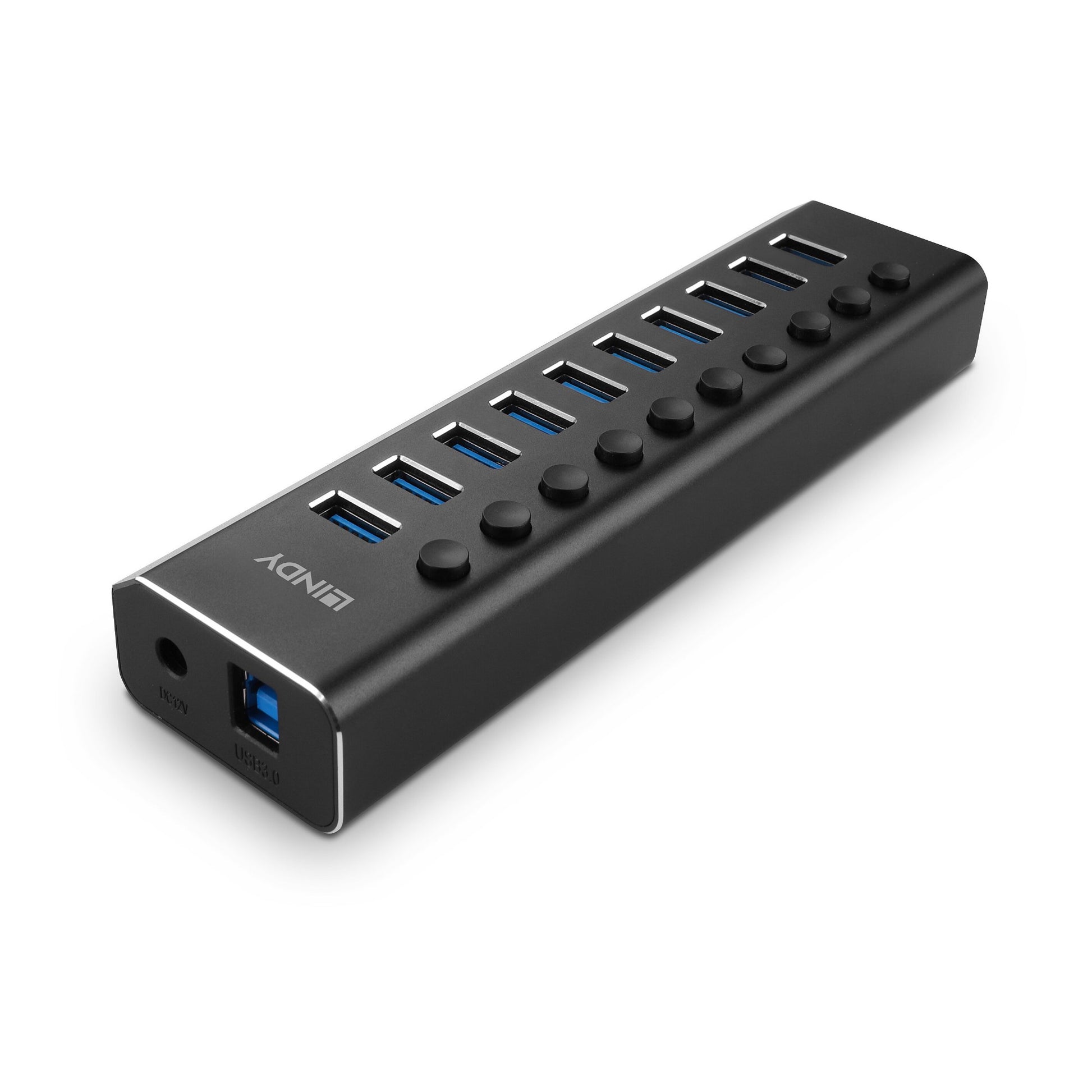

Lindy 10 Port USB 3.0 Hub with On/Off Switches

The Lindy 10 Port expands your ports in seconds — plug in and go.

A USB hub connects to a PC or laptop and provides additional USB ports for connecting multiple peripherals or other devices simultaneously.

The Lindy 10 Port USB 3.0 Hub provides convenient access and effective power management for up to 10 USB peripherals and storage devices. Capable of data transfer speeds of up to 5Gbps, the hub is also backwards compatible with USB 2.0 and 1.1. The hub supports Multi TT technology which guarantees the highest possible throughput speed for USB 1.1 devices.

The hubs individual On/Off switching ports can help reduce overall power consumption and are perfect for accessing external hard drives or other periodically used devices. Each port has its own LED power status. The included 36 Watt power supply ensures that there is always enough power available, even for several or power-hungry USB devices.

The unit also features USB battery charging ports which are each capable of delivering 5V 1.5A up to a total of 36W when the hub is connected to the external power supply, perfect for charging larger devices such as smartphones and tablets.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	10
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
DC-in jack	Yes
Ports quantity	11
Cable length	1 m
Features
Product colour	Black
Certification	CE, FCC, RoHS & REACH, CP65
Data transfer rate	5000 Mbit/s
USB Power Delivery (USB PD)	No
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium
Power
Input current	3 A
Input voltage	12 V
Power supply type	AC
Technical details
Operating temperature (T-T)	23 - 133 °F
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
Weight & dimensions
Weight	42 g
Width	169.6 mm
Depth	46.2 mm
Height	25 mm
Package width	205 mm
Package depth	132 mm
Package height	52 mm
Package weight	600 g
Packaging data
Package type	Carton
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
Included power plug types	AU, EU, UK, US
Cables included	USB Type-A to USB Type-B
AC adapter included	Yes
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Other features
Chipset	RTS5411
