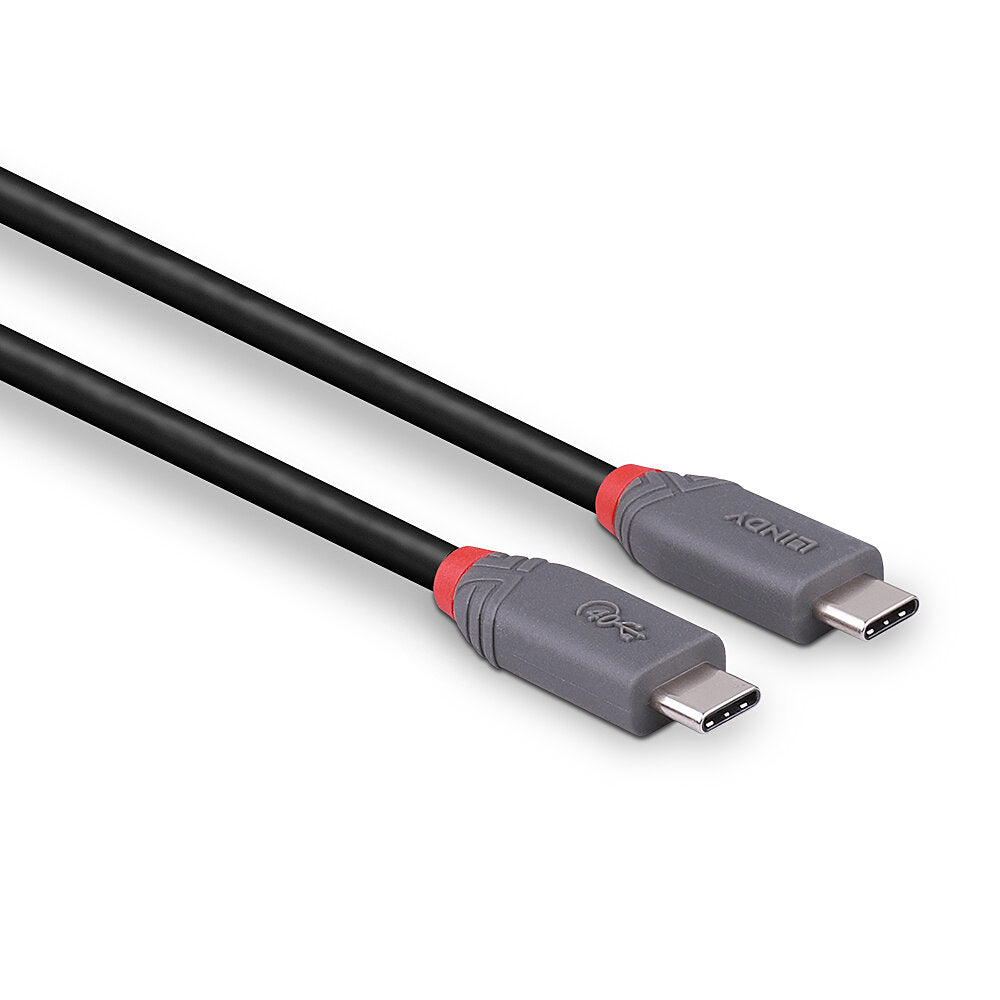

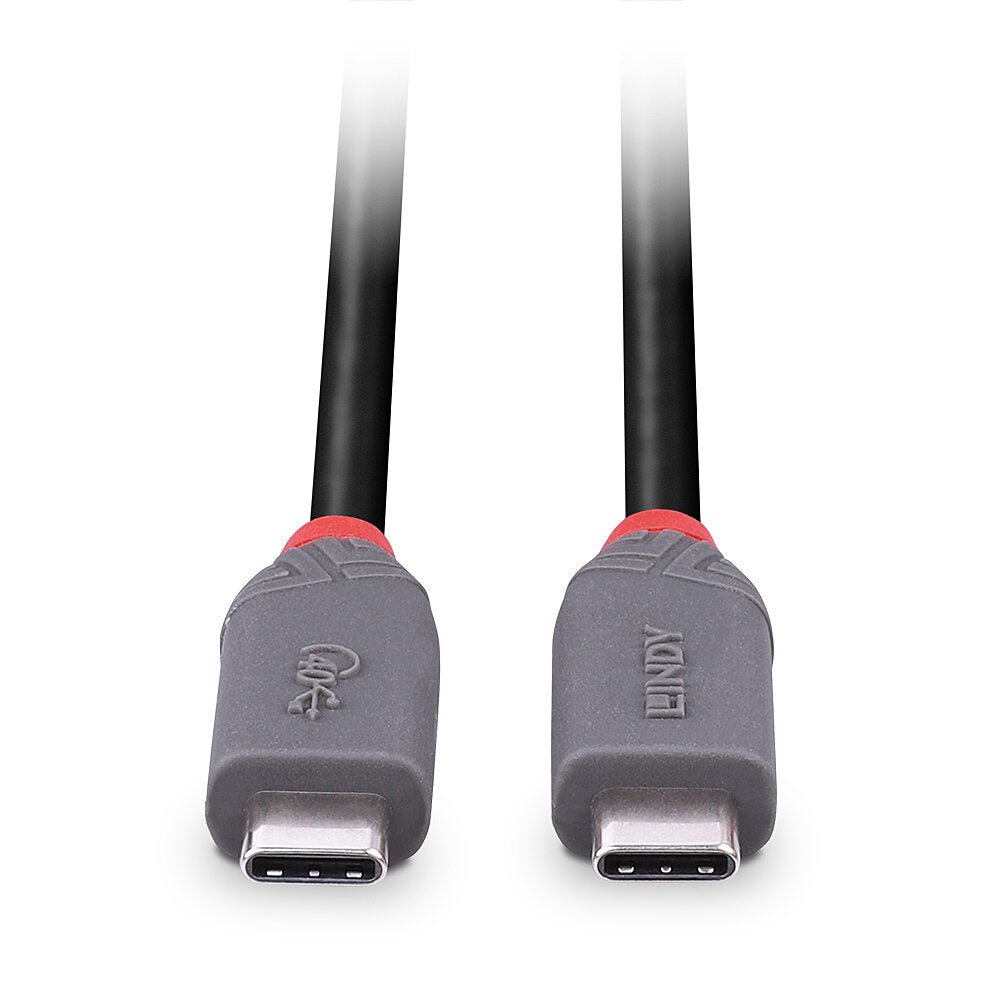

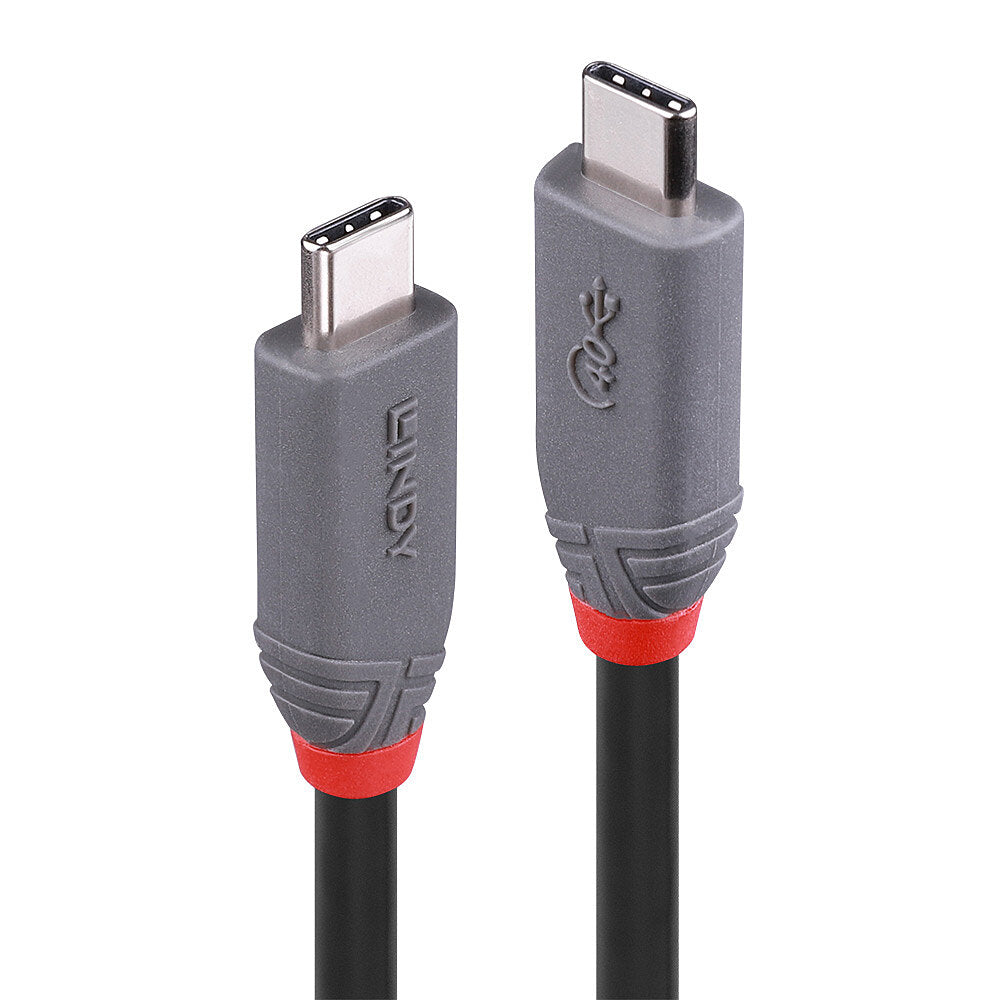

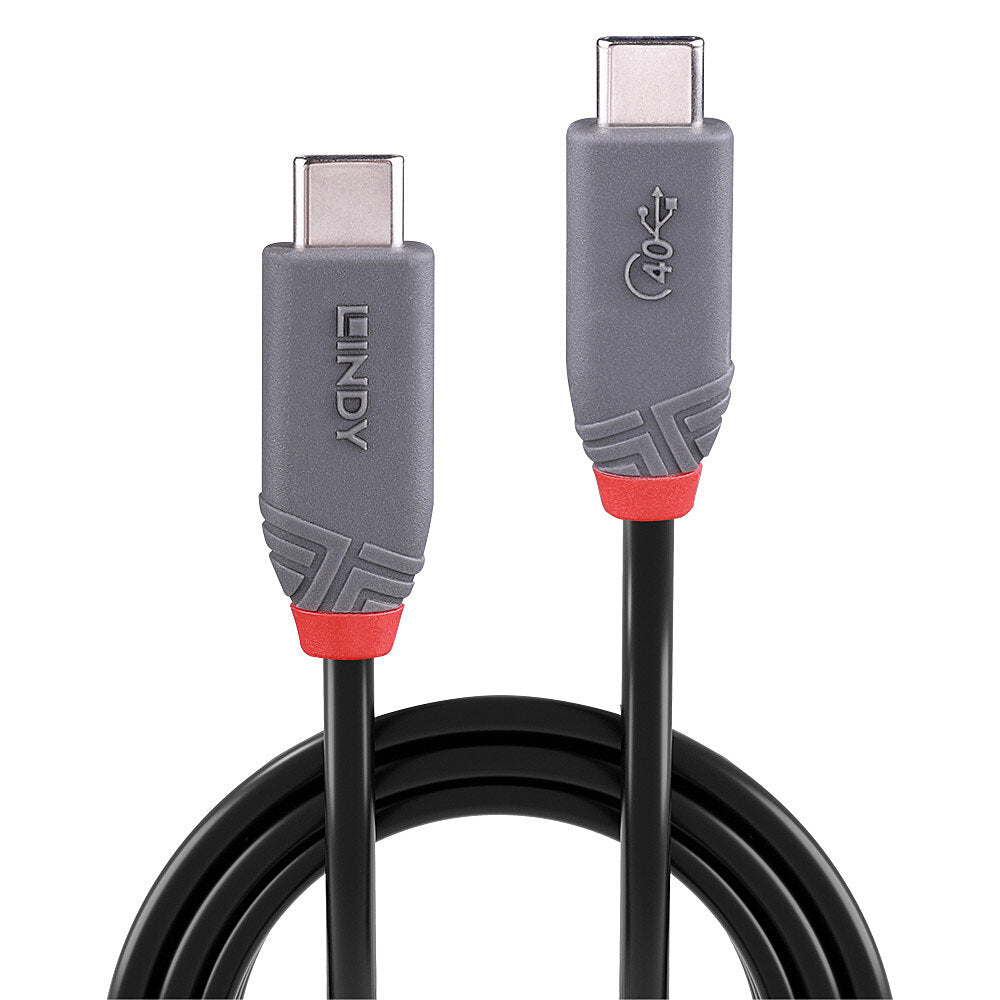

Lindy 0.8m USB 4 Type C Cable, 40Gbps, Anthra Line

Make the connection with the Lindy 0.8m — length and connector details are in the spec table.

The Anthra Line USB 4 Type C to C cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
USB version	USB4 Gen 3x2
Connector 1	USB C
Connector 2	USB C
Cable length	0.8 m
Connector contacts plating	Gold
Product colour	Black
Certification	RoHS, REACH, California Proposition, UL
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Male
Conductor material	Copper
Cable jacket material	Thermoplastic elastomer (TPE)
Connector material	Nickel
Nominal attenuation	0.5Mhz-15Ghz = 11dB
Quantity per pack	1 pc(s)
Weight & dimensions
Bend radius (min)	2.88 cm
Package type	Polybag
Operational conditions
Operating temperature (T-T)	-20 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Technical details
Harmonized System (HS) code	84733080
