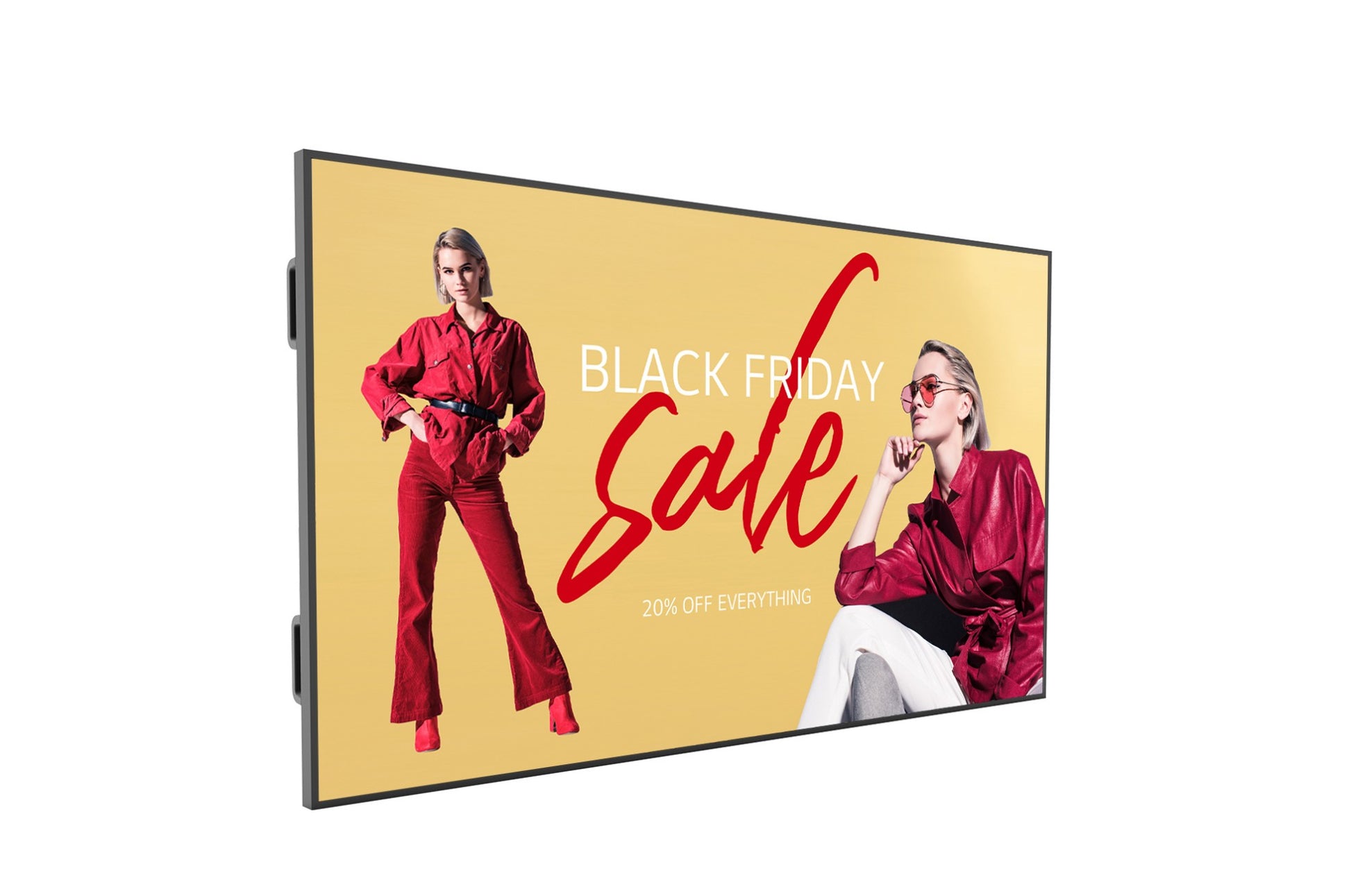

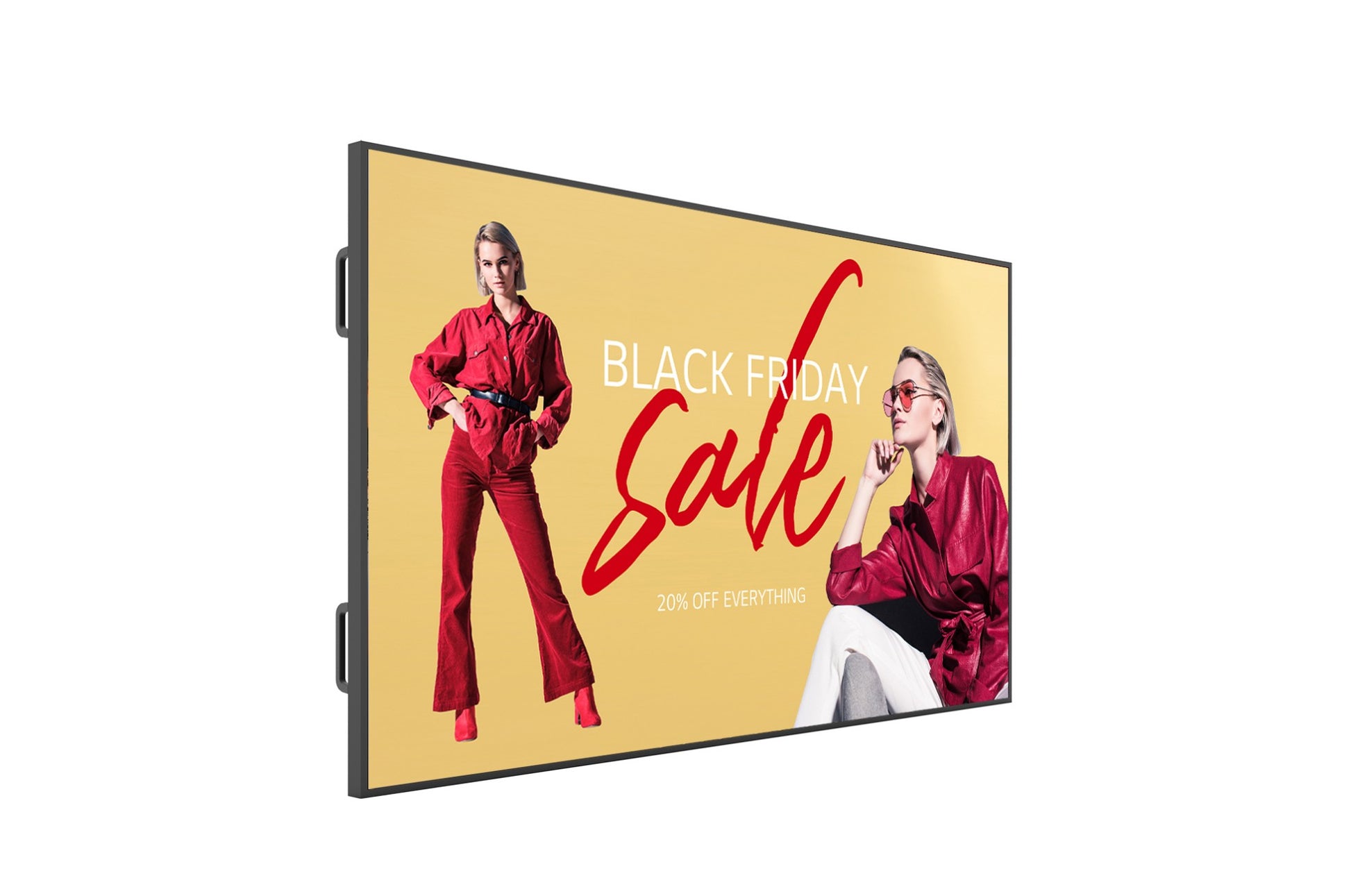

LG 98UM5K Digital signage flat panel 2.49 m 4K UHD Monitor

The LG 98UM5K Digital signage flat panel 2.49 m delivers a crisp 4K UHD 3840x2160 monitor that handles everyday work and entertainment with ease.

UHD Large Screen Signage Display with LG webOS Platform

Super High Resolution
Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.

Adequate Brightness Level
The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.

High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

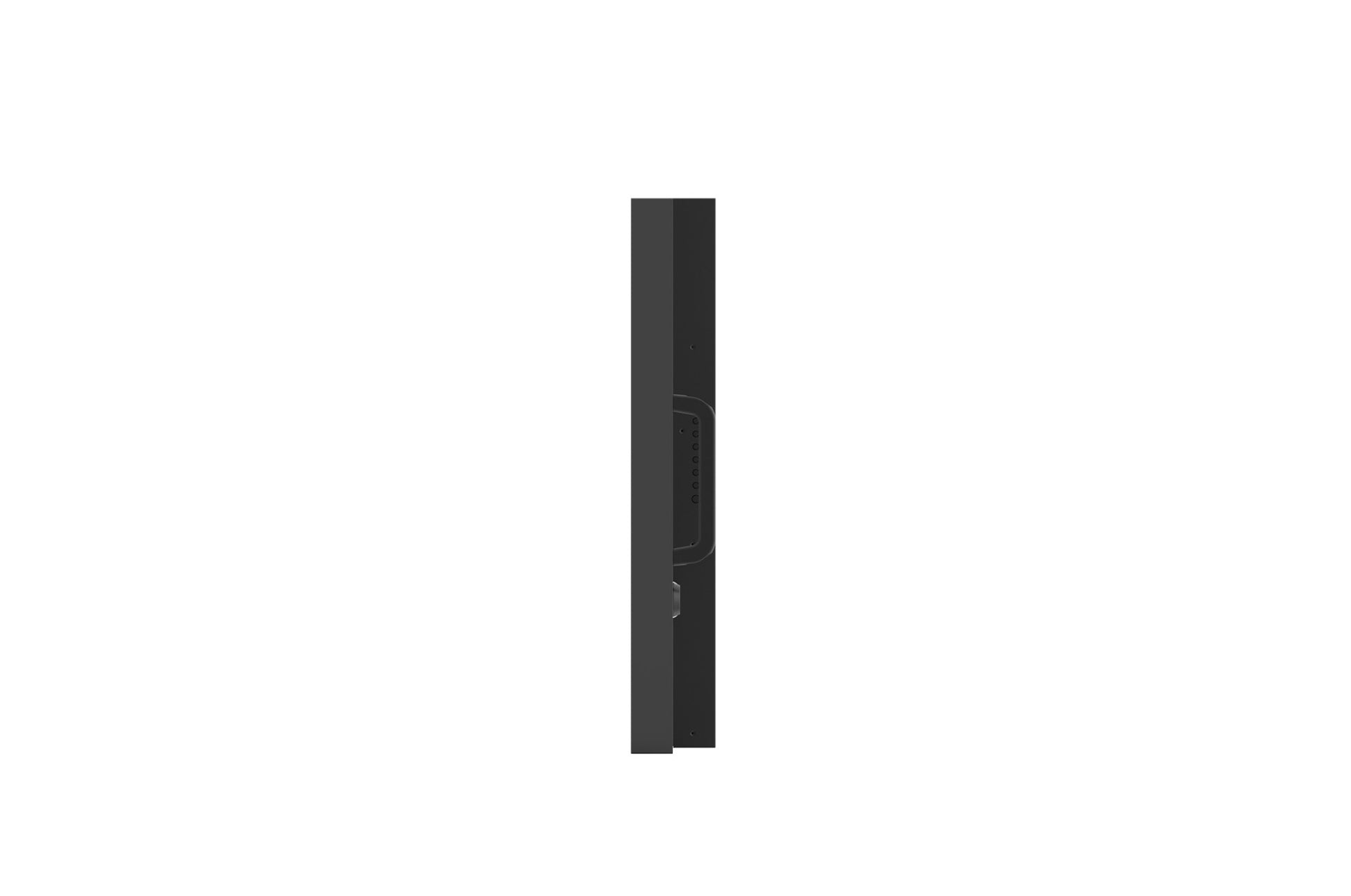

Slim Design
Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.

Compatible with AV Control System
The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Specifications

Display
LED backlight	Yes
Panel type	ADS
Display number of colours	1.07 billion colours
LED backlighting type	Direct-LED
Touchscreen	No
Display technology	LCD
Display diagonal	2.49 m (98")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	200000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Panel life	30000 h
Native aspect ratio	16:9
Colour depth	8 bit
Native refresh rate	60 Hz
Haze rate	25%
Ports & interfaces
USB connector type	USB Type-A
Remote (IR) input	1
USB port	Yes
RS-232C	Yes
Wi-Fi	Yes
DisplayPorts quantity	1
Ethernet LAN	Yes
HDMI ports quantity	4
DVI port	Yes
DVI-D ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB version	2.0
USB ports quantity	1
HDMI input ports quantity	3
HDMI output ports quantity	1
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Bezel width (top)	1.7 cm
Bezel width (side)	1.7 cm
Bezel width (bottom)	1.7 cm
Product colour	Black
Panel mounting interface	800 x 400 mm
VESA mounting	Yes
Performance
Purpose	Commercial
Operating hours (hours/days)	16/7
Picture-in-Picture	Yes
On Screen Display (OSD)	Yes
HDCP	Yes
Automatic brightness control	Yes
Plug and Play	Yes
HDCP version	1.4/2.2/2.3
Power
Power consumption (max)	560 W
Power consumption (typical)	430 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Computer system
Operating system installed	WebOS
Internal memory	16 GB
Operating system version	6.0
Weight & dimensions
Display width	2198 mm
Display depth	79.5 mm
Display height	1253 mm
Display weight	78 kg
Packaging data
Package width	2455 mm
Package depth	288 mm
Package height	1458 mm
Package weight	105 kg
Remote control included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
Real Time Clock (RTC)	Yes
Other features
Power consumption (PowerSave)	301 W
Audio output	1
Audio input	1

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
